19“ Wall Housing Foldable, Depth 450 mm, RAL7035

Priser kun synlige for indloggede brugere

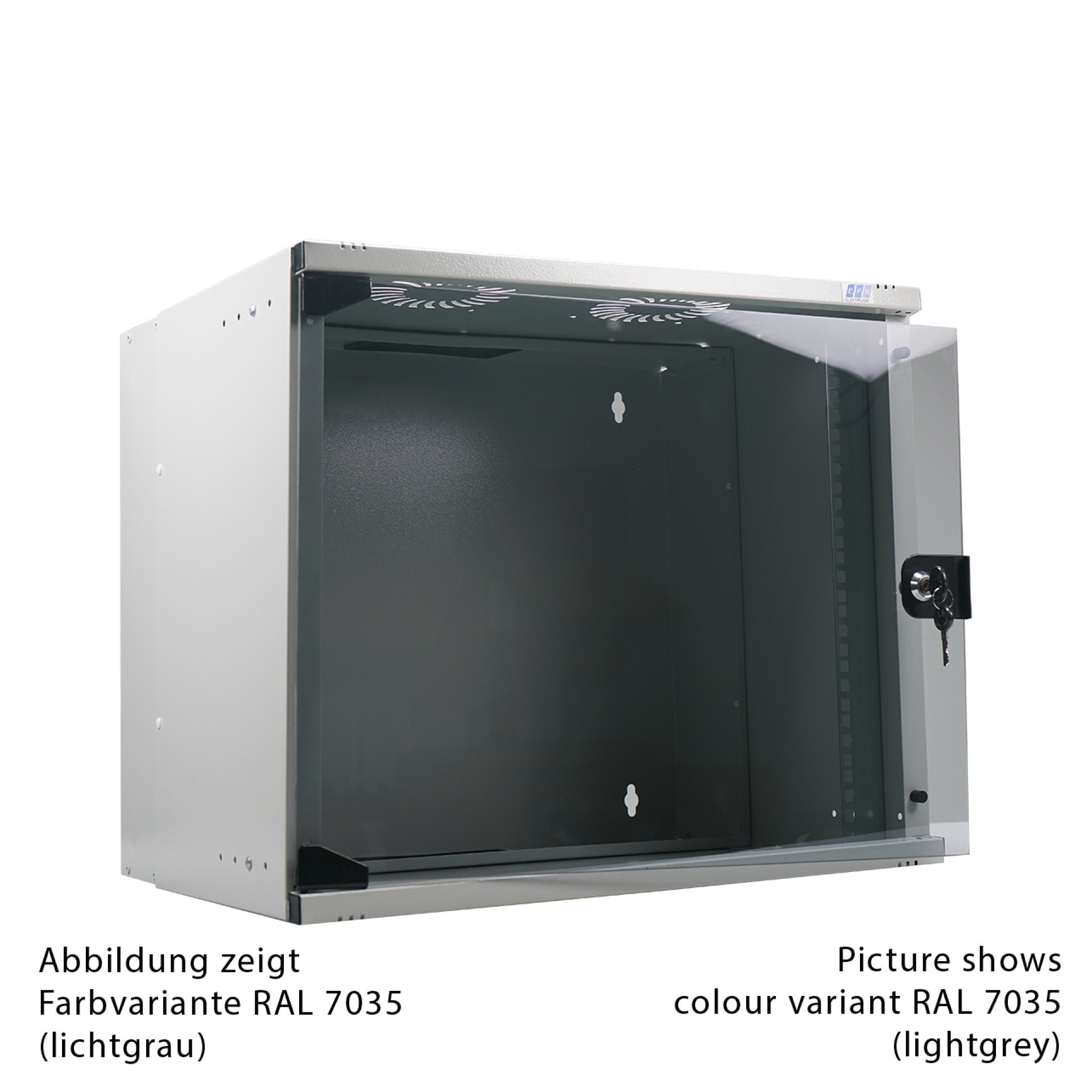

19“ 04U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035
Varenummer: WGF-1904GR.45

Produktinformation für 19“ 04U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035

19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic

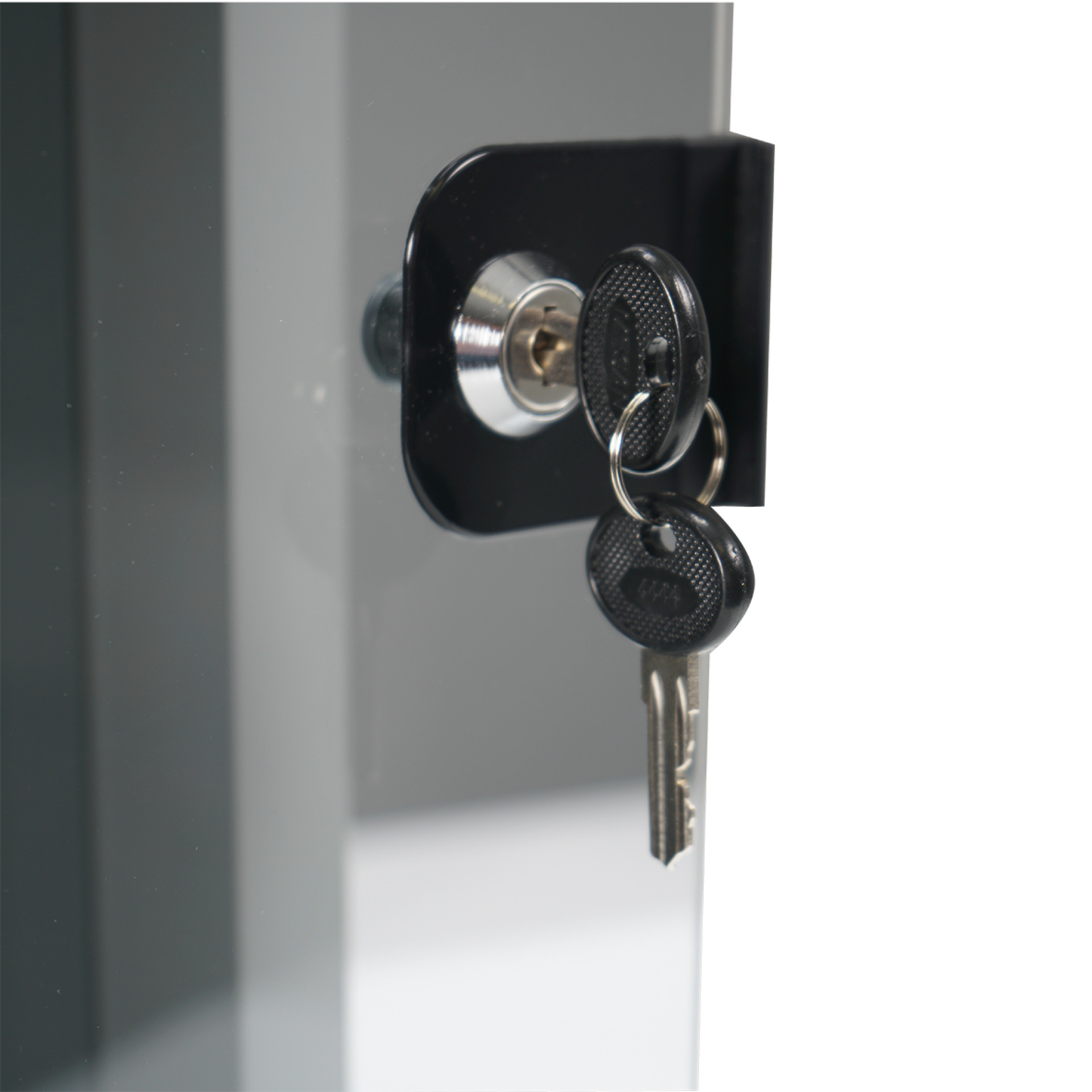

Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm

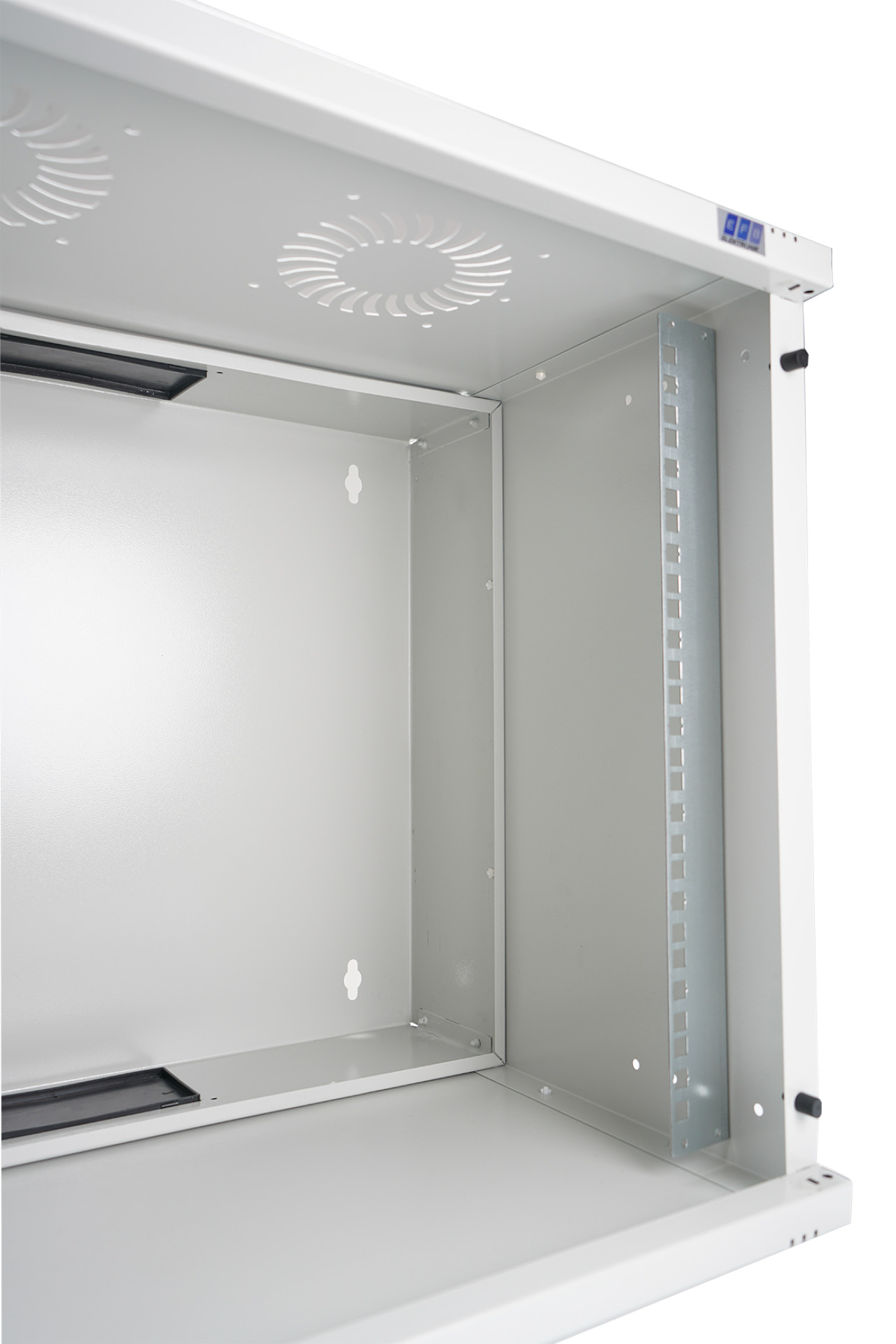

Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle

Tekniske egenskaber

Degree of protection: IP20
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front side
Number of cartons: 1
Number of doors: 1
Surface finishing: powder coating
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: True
With front door: True
With roof plate: True
With sidewall: True

Varianter

Art. Nej. Betegnelse Max. Load Height Width Colour Number of height units Depth RAL-number
WGF-1904GR.45 19“ 04U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035 50 kg 237 mm 542 mm grey 4 U 450 mm 7035 Vælg
WGF-1906GR.45 19“ 06U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035 50 kg 326 mm 542 mm grey 6 U 450 mm 7035 Vælg
WGF-1909GR.45 19“ 09U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035 50 kg 458 mm 542 mm grey 9 U 450 mm 7035 Vælg
WGF-1912GR.45 19“ 12U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035 50 kg 592 mm 542 mm grey 12 U 450 mm 7035 Vælg
WGF-1915GR.45 19“ 15U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035 50 kg 726 mm 542 mm grey 15 U 450 mm 7035 Vælg
