19“ Wall Housing Foldable, Depth 600 mm, RAL9005
Priser kun synlige for indloggede brugere
19“ 04U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005
Varenummer:
WGF-1904TS.60
Produktinformation für 19“ 04U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005
19" wall housing 1-part, Flat Pack type
Steel sheet housing, not pre-assembled
Innovative: easiest mounting by flap-out of the side walls
Completely toolless mounting of the components via plastic rivets
Front door fluyy made of certified safety glass (thickness 4 mm), smoke-coloured

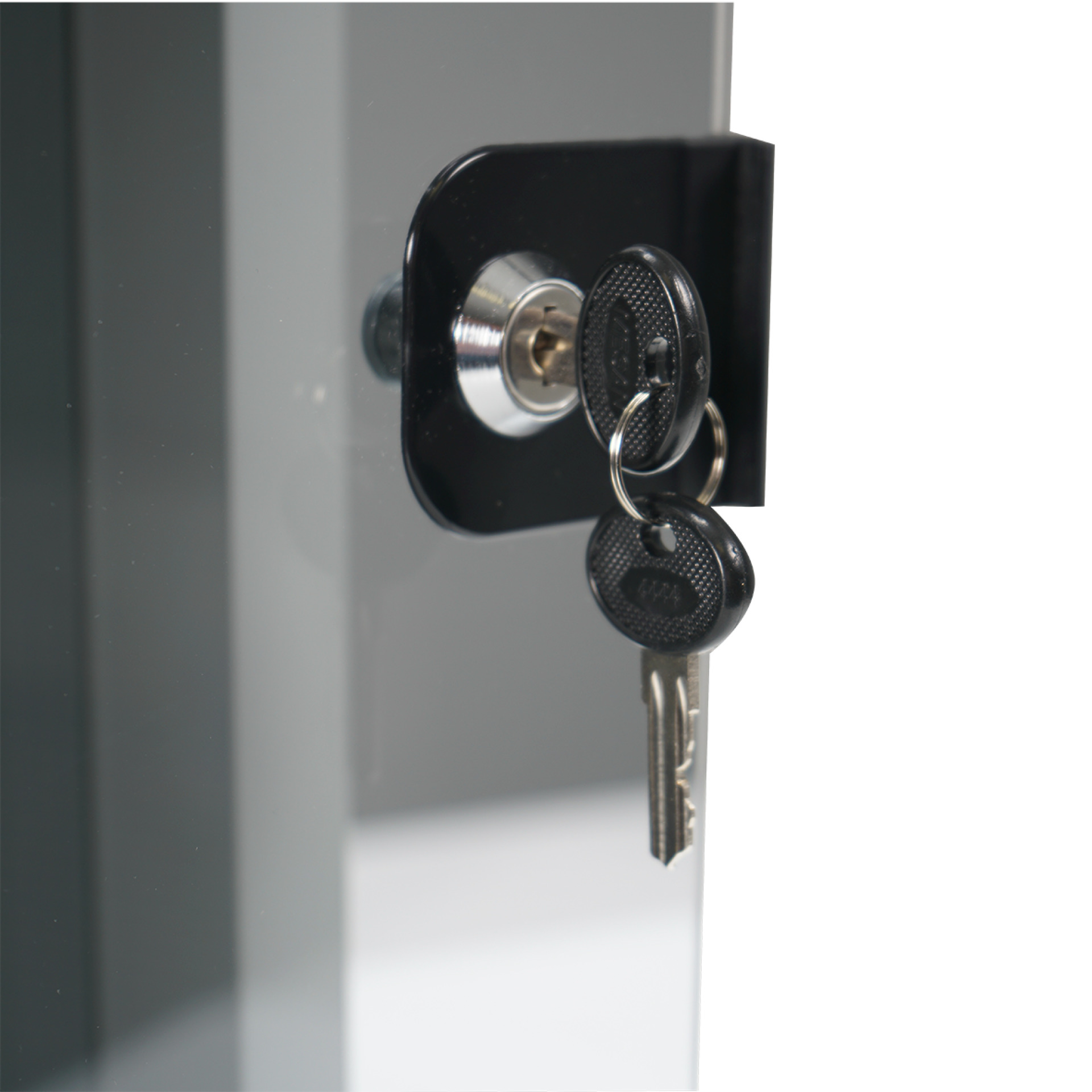

Front door lockable, door opening angle 180°
Door stop easy changeable (right/left)
Side walls not detachable
Roof prepared for plug & play fan unit 691656xx.1
Roof and bottom with cable entries 145 x 70 mm

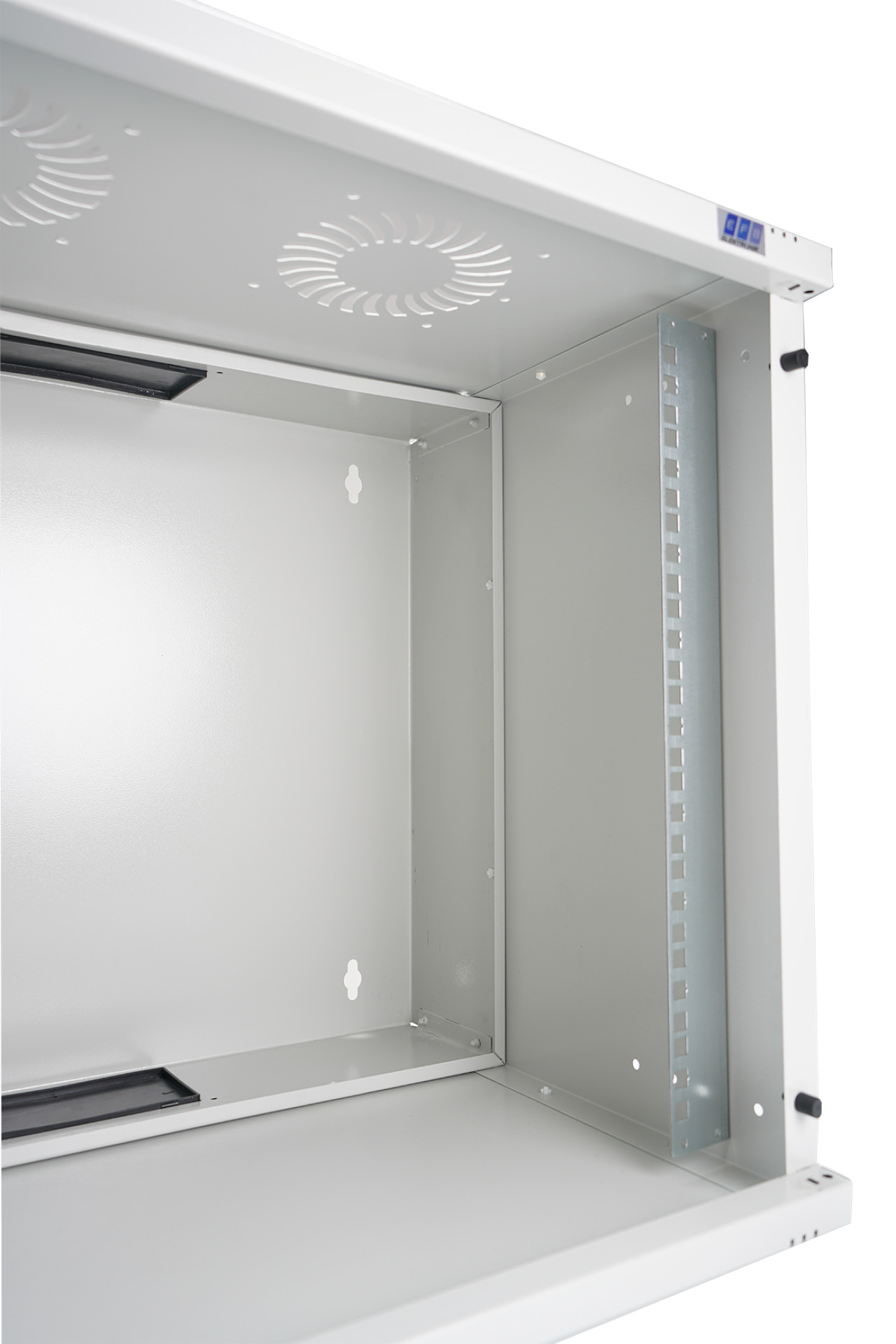

Depth 450 mm: inside 2 x 19" profile rails, depth-adjustable, no rear sided profile rails mountable
Depth 600 mm: inside 2 x 19" profile rails, depth adjustable, rear sided profiles additionally mountable (not included)

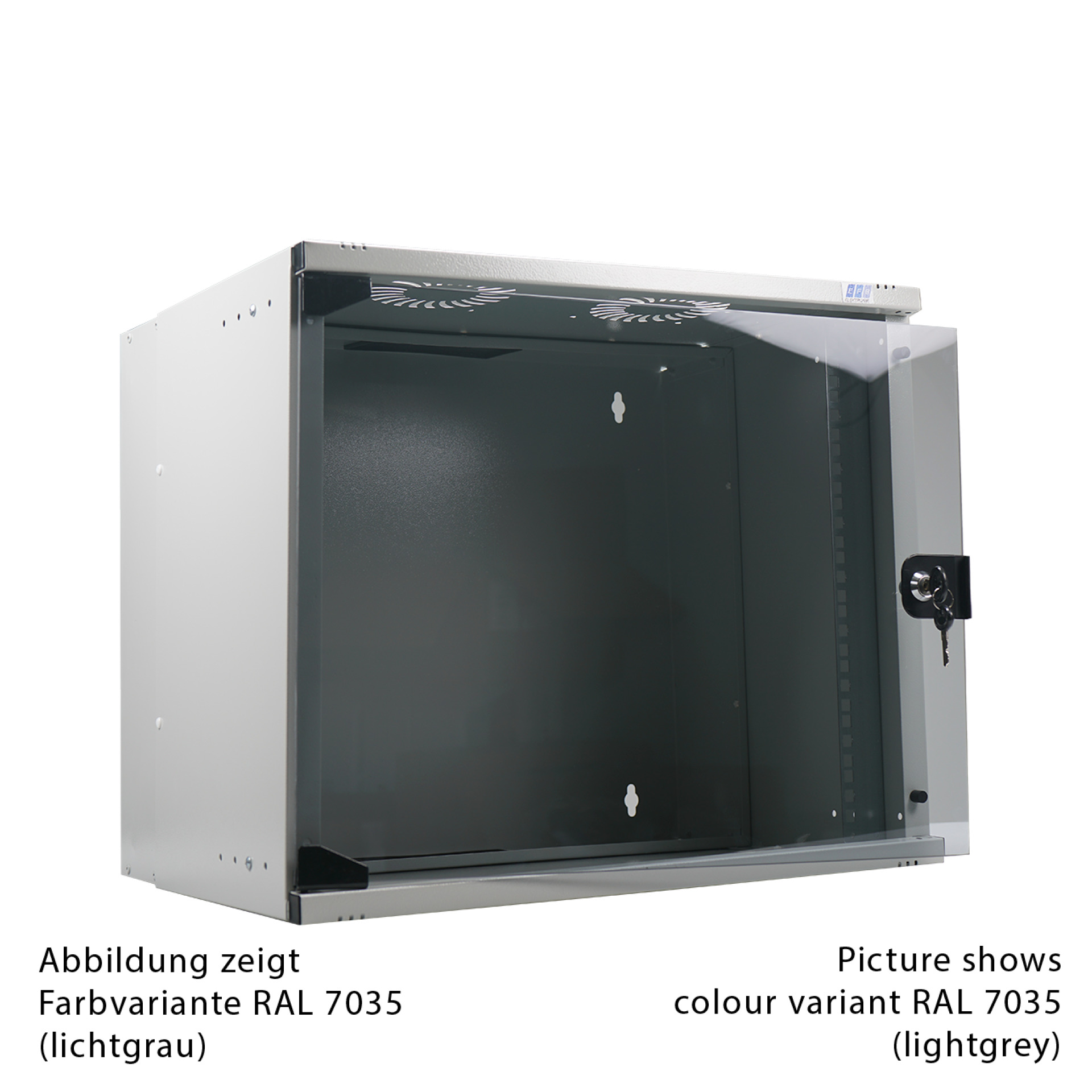

Paint finish RAL7035 (light grey) / RAL9005 jet black) / RAL9010 (pure white)
Max. load 30 kg (static, equally distributed)
Protection degree IP20
Delivery incl. 2 keys in 1 carton
Note: due to the toolless mounting, no devices shall be placed directly at the bottom sheet, always a 19" shelf should be used, e.g. Art.-No. 691650(GR/TS).x
Steel sheet housing, not pre-assembled
Innovative: easiest mounting by flap-out of the side walls
Completely toolless mounting of the components via plastic rivets
Front door fluyy made of certified safety glass (thickness 4 mm), smoke-coloured
Front door lockable, door opening angle 180°
Door stop easy changeable (right/left)
Side walls not detachable
Roof prepared for plug & play fan unit 691656xx.1
Roof and bottom with cable entries 145 x 70 mm
Depth 450 mm: inside 2 x 19" profile rails, depth-adjustable, no rear sided profile rails mountable
Depth 600 mm: inside 2 x 19" profile rails, depth adjustable, rear sided profiles additionally mountable (not included)
Paint finish RAL7035 (light grey) / RAL9005 jet black) / RAL9010 (pure white)
Max. load 30 kg (static, equally distributed)
Protection degree IP20
Delivery incl. 2 keys in 1 carton
Note: due to the toolless mounting, no devices shall be placed directly at the bottom sheet, always a 19" shelf should be used, e.g. Art.-No. 691650(GR/TS).x
Tekniske egenskaber
| Cabinet Series: | Wall Housings Foldable |
|---|---|
| Degree of protection: | IP20 |
| Degree of protection (NEMA): | - |
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianter
| Art. Nej. | Betegnelse | Colour | Max. Load | Width | Depth | Degree of protection (NEMA) | Height | Number of height units | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|---|
| WGF-1904TS.60 | 19“ 04U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005 | black | 50 kg | 544 mm | 600 mm | - | 237 mm | 4 U | 9005 | |
| WGF-1906TS.60 | 19“ 06U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005 | black | 50 kg | 544 mm | 600 mm | - | 326 mm | 6 U | 9005 | |
| WGF-1909TS.60 | 19“ 09U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005 | black | 50 kg | 544 mm | 600 mm | 1 | 458 mm | 9 U | 9005 | |
| WGF-1912TS.60 | 19“ 12U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005 | black | 50 kg | 544 mm | 600 mm | - | 592 mm | 12 U | 9005 | |
| WGF-1915TS.60 | 19“ 15U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005 | black | 50 kg | 544 mm | 600 mm | - | 726 mm | 15 U | 9005 |
