19" 6U Wall Brackets, Depth-Adjustable
Priser kun synlige for indloggede brugere

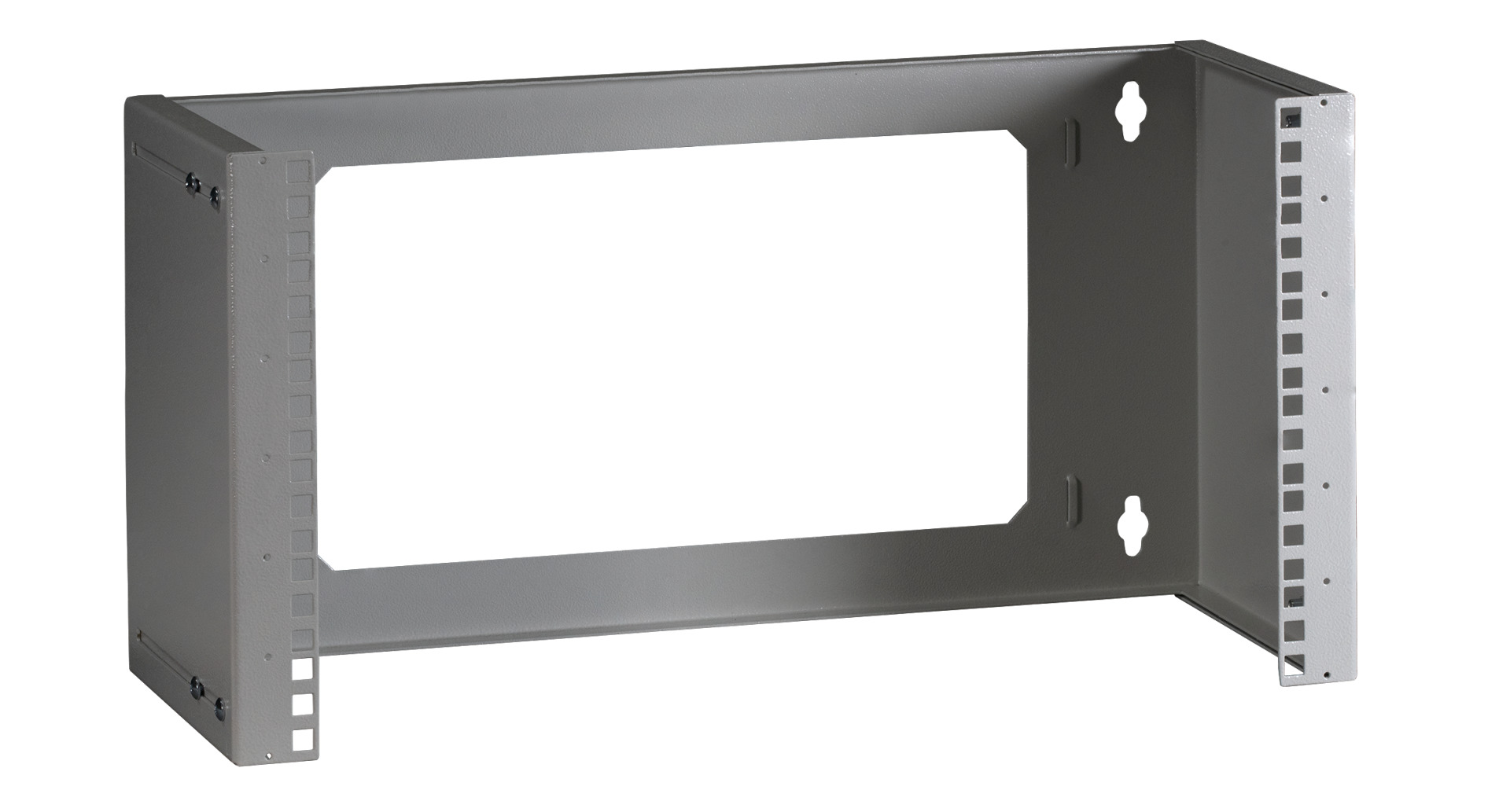

19" 6U Wall Bracket, Depth-Adj., RAL7035
Varenummer:
691831GR.6
EAN nr.:
4049759209216
Produktinformation für 19" 6U Wall Bracket, Depth-Adj., RAL7035

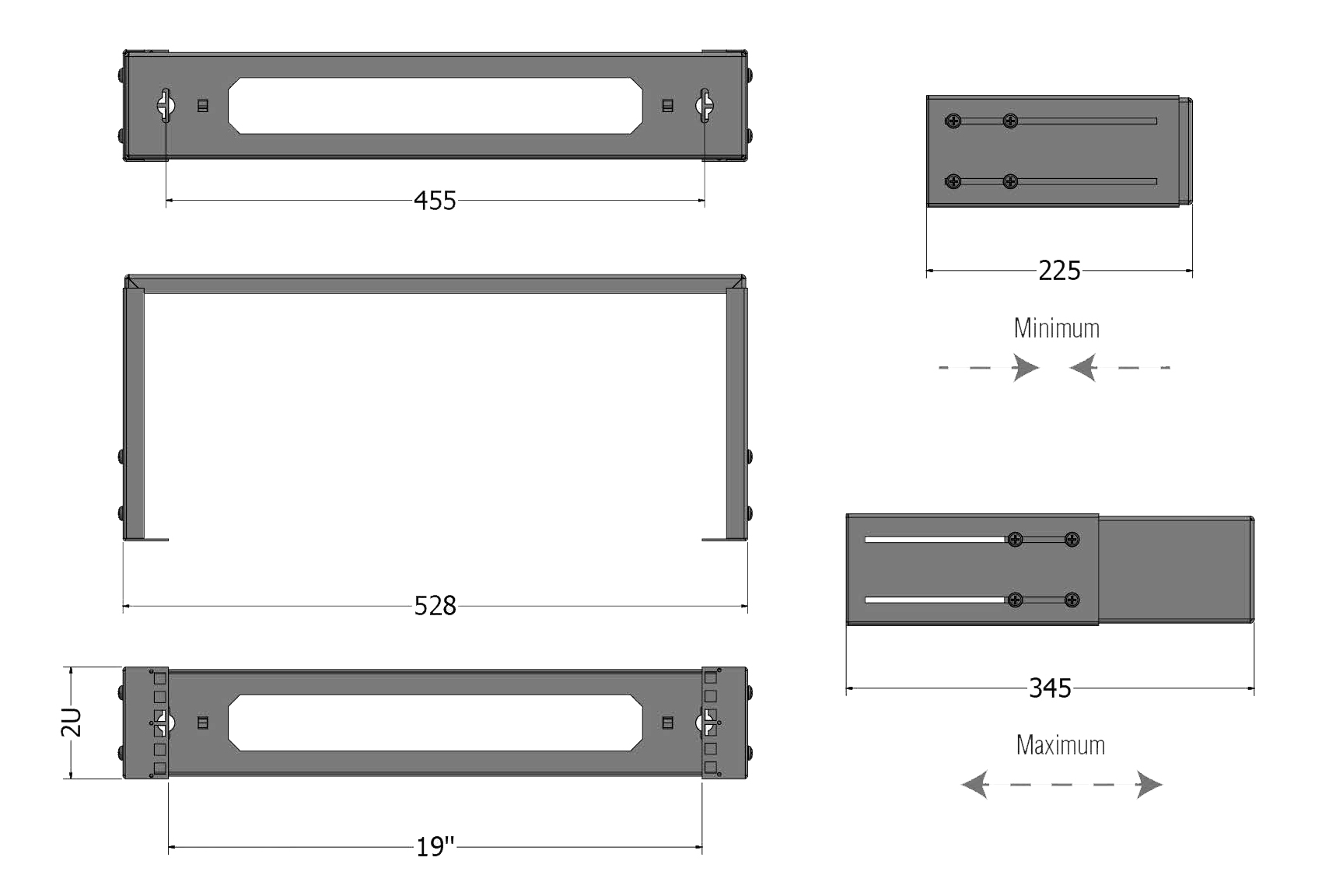

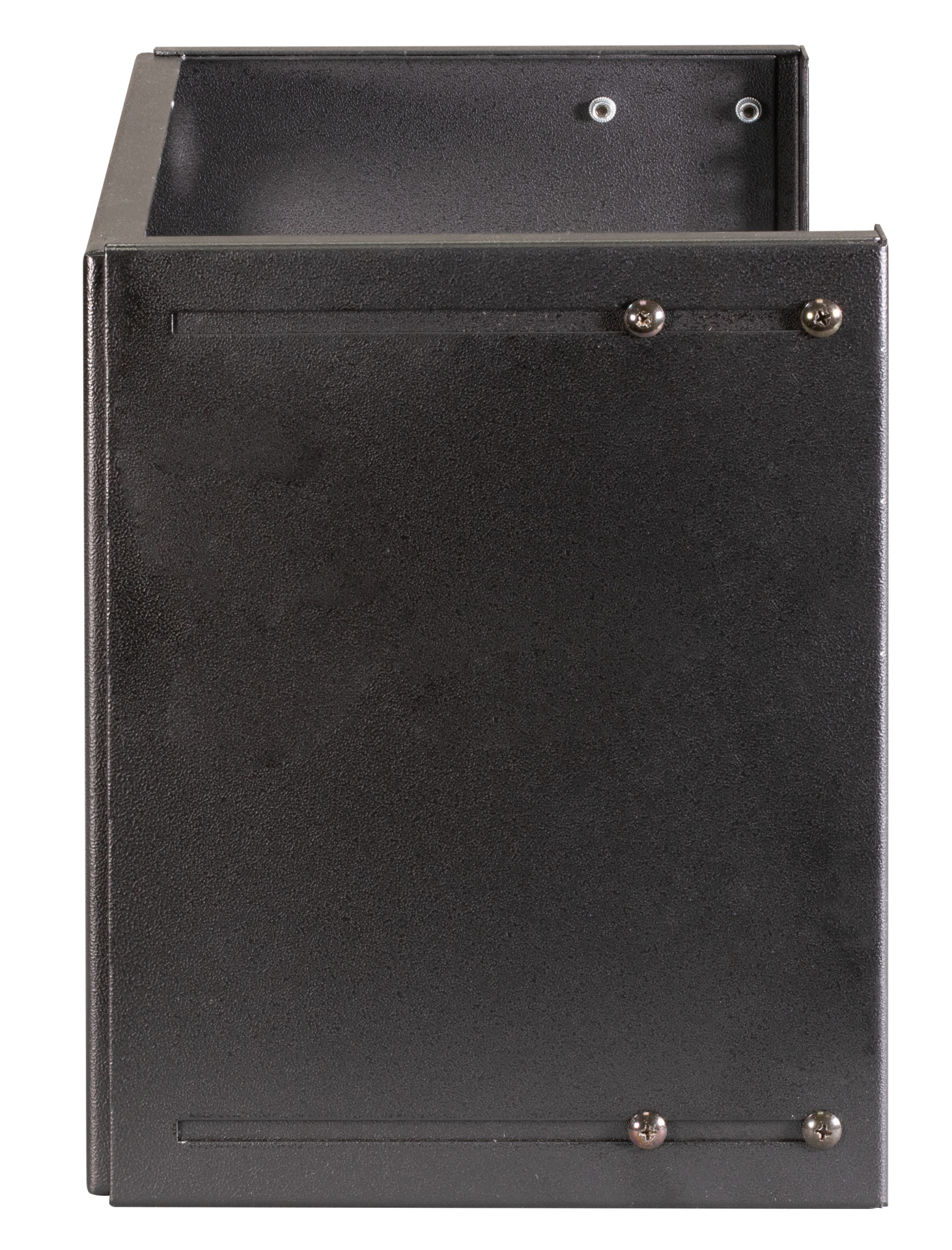

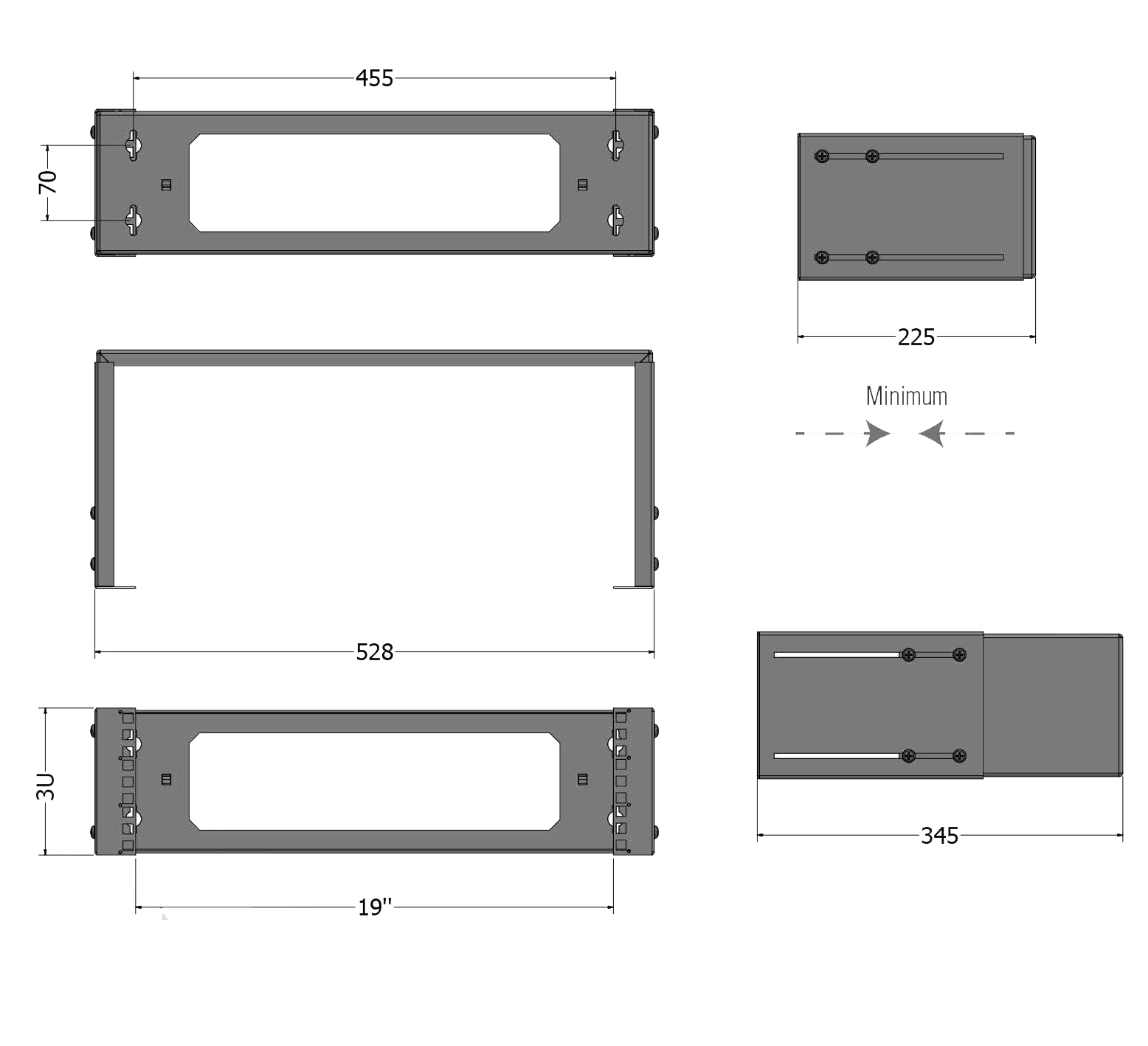

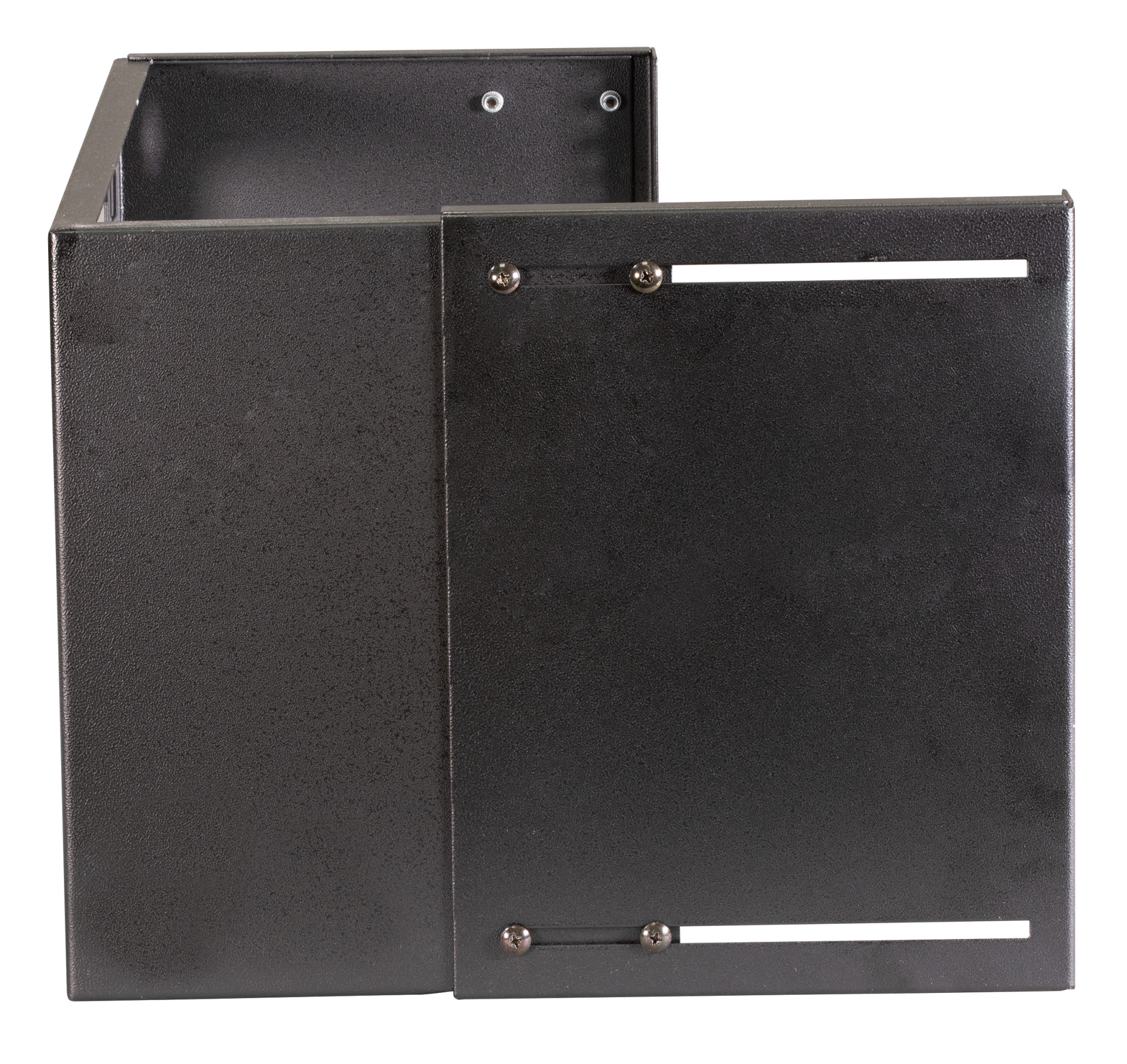

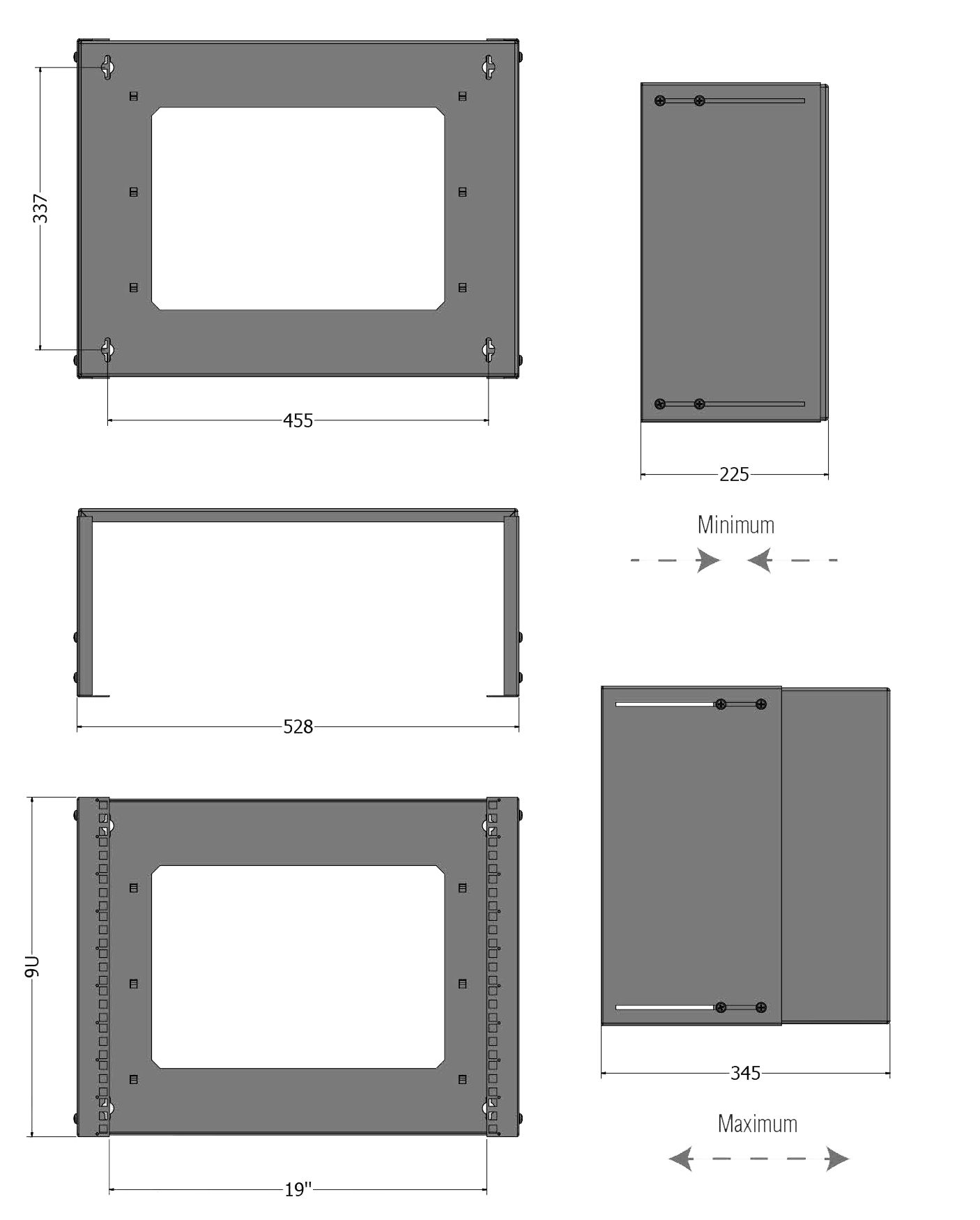

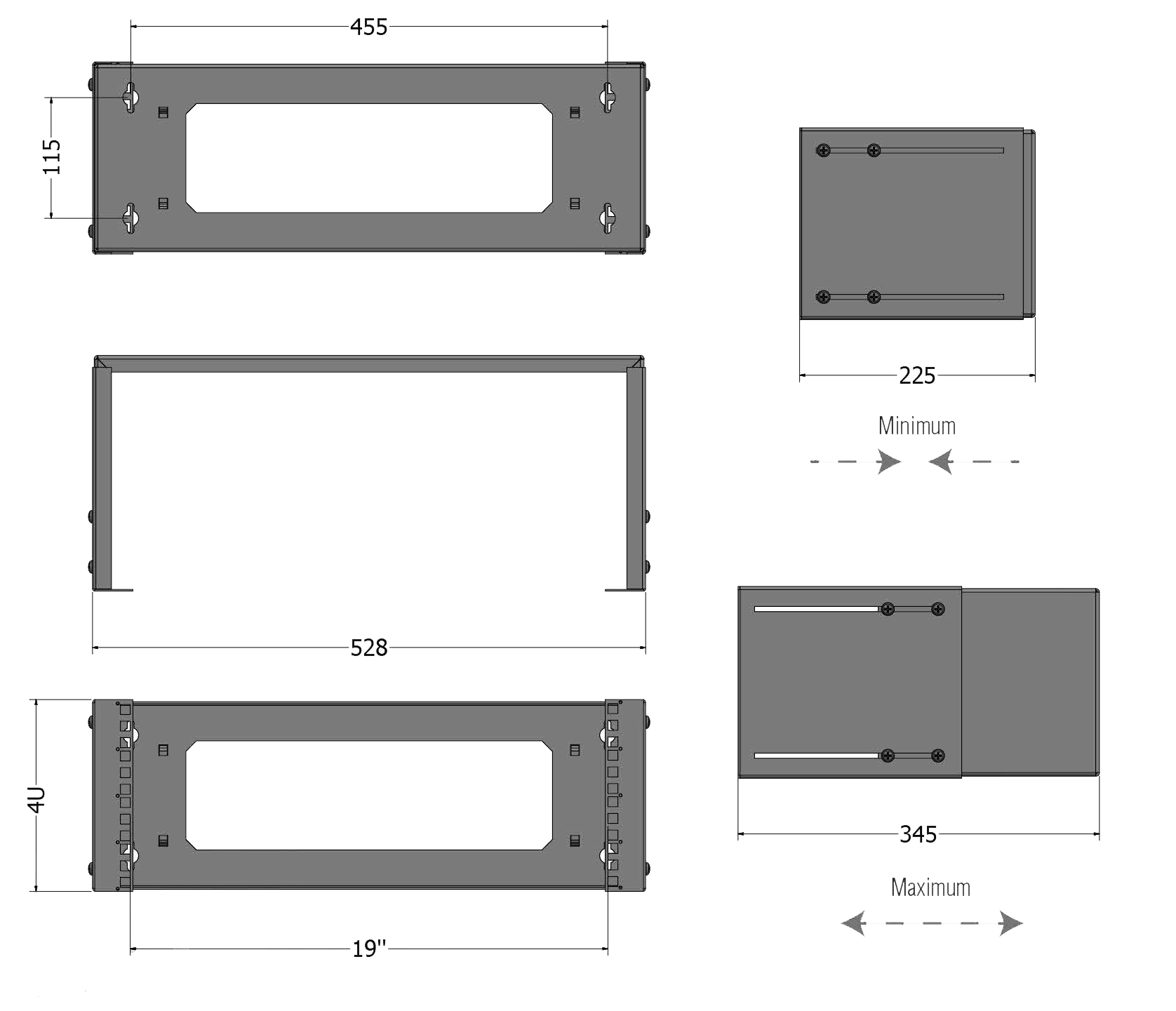

19" wall brachet with adjustable mounting depth (225 .. 345 mm)
Material steel
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white
Material steel
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white
Tekniske egenskaber
| Degree of protection: | IP00 |
|---|---|
| Demountable: | True |
| Material: | steel |
| Model: | Other |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 0 |
| Surface finishing: | powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianter
| Art. Nej. | Betegnelse | Width | Height | Number of height units | Depth | Max. Load | Max. load capacity | Colour | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|---|
| 691831GR.6 | 19" 6U Wall Bracket, Depth-Adj., RAL7035 | 528 mm | 267 mm | 6 U | 345 mm | 15 kg | 15 kg | grey | 7035 | |
| 691831TS.6 | 19" 6U Wall Bracket, Depth-Adj., RAL9005 | 528 mm | 267 mm | 6 U | 345 mm | 15 kg | 15 kg | black | 9005 | |
| 691831WS.6 | 19" 6U Wall Bracket, Depth-Adj., RAL9010 | 528 mm | 267 mm | 6 U | 345 mm | 15 kg | 15 kg | white | 9010 |
