19" 9U Wall Brackets, Depth-Adjustable
Priser kun synlige for indloggede brugere
19" 9U Wall Bracket, Depth-Adj., RAL7035
Varenummer:
691831GR.9
EAN nr.:
4049759209223
Produktinformation für 19" 9U Wall Bracket, Depth-Adj., RAL7035

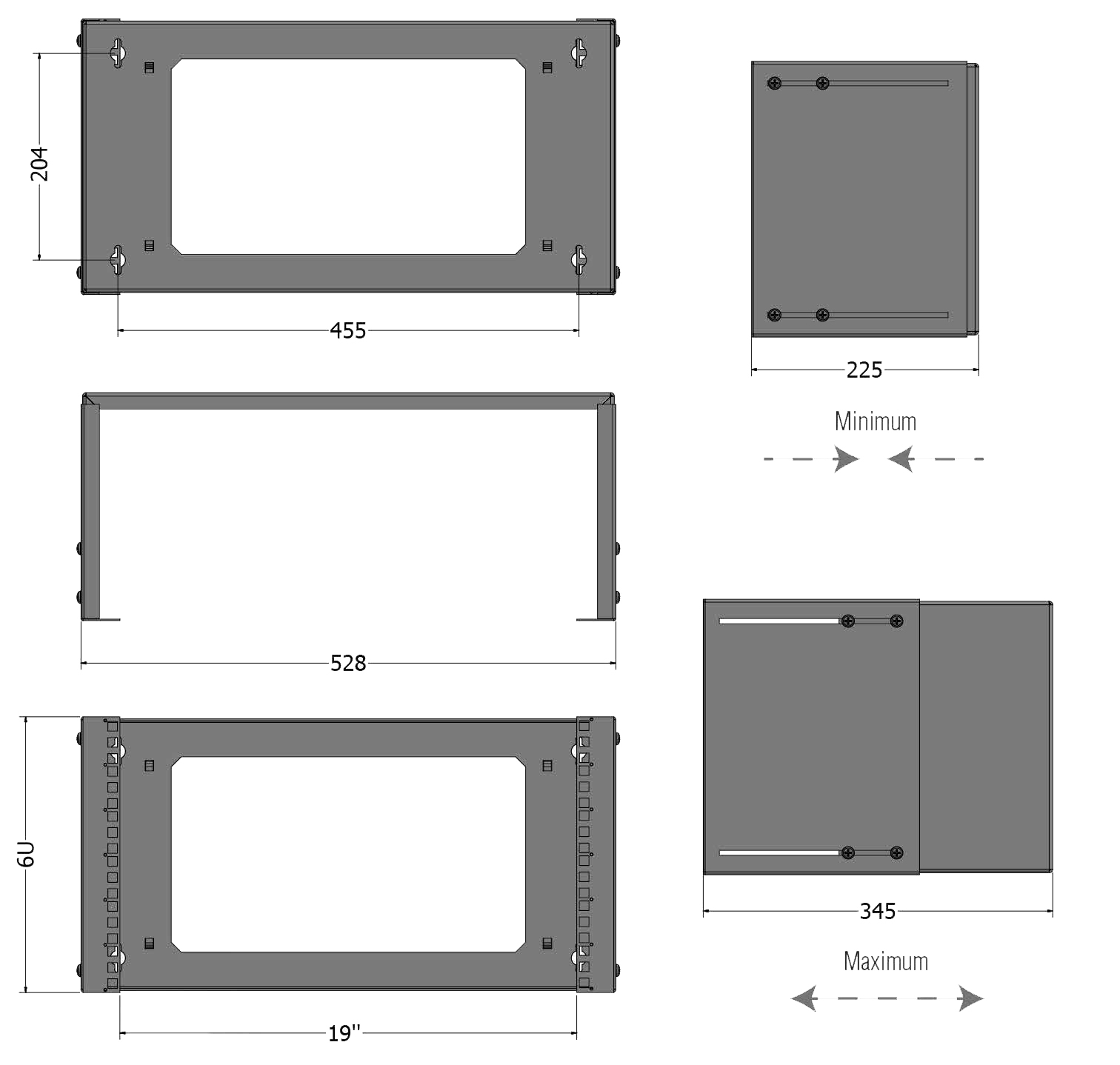

19" wall brachet with adjustable mounting depth (225 .. 345 mm)
Material steel
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white
Material steel
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white
Tekniske egenskaber
Degree of protection: | IP00 |
---|---|
Demountable: | True |
Material: | steel |
Model: | Other |
Modular spacing: | 482.6 mm (19 inch) |
Mounting level: | Front side |
Number of cartons: | 1 |
Number of doors: | 0 |
Surface finishing: | powder coating |
Type of profile rail: | L-shaped |
Type of ventilation: | Passive |
With earthing: | True |
With front door: | False |
With roof plate: | True |
With sidewall: | True |
Varianter
Art. Nej. | Betegnelse | Width | Height | Depth | Number of height units | Max. Load | Colour | Max. load capacity | RAL-number | |
---|---|---|---|---|---|---|---|---|---|---|
691831GR.9 | 19" 9U Wall Bracket, Depth-Adj., RAL7035 | 528 mm | 400 mm | 345 mm | 9 U | 15 kg | grey | 15 kg | 7035 | |
691831WS.9 | 19" 9U Wall Bracket, Depth-Adj., RAL9010 | 528 mm | 400 mm | 345 mm | 9 U | 15 kg | white | 15 kg | 9010 |
