19" Server Cabinets PRO, 800x1000 mm, 2-Part Doors

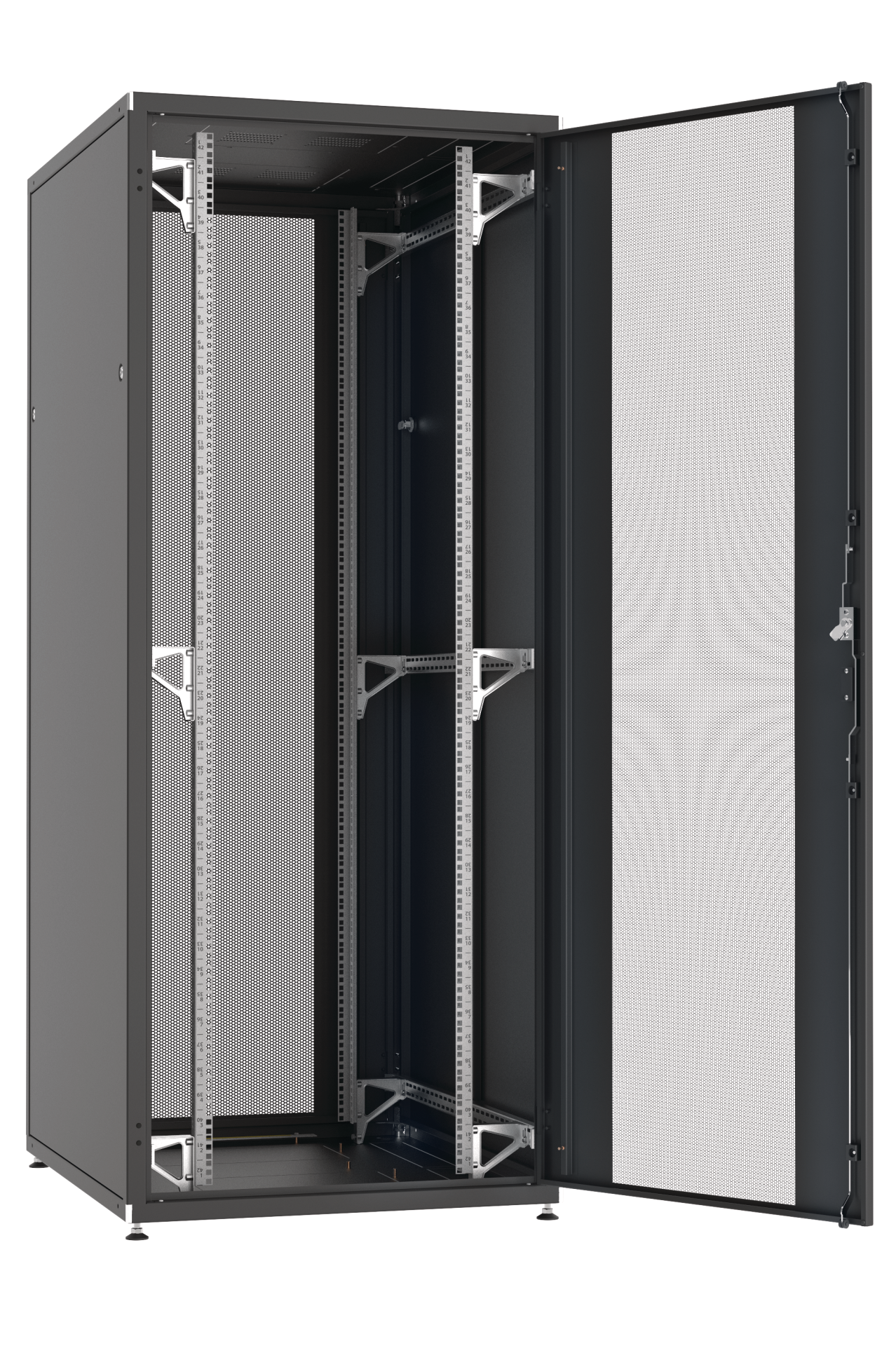

19" Server Cabinet PRO 42U, 800x1000 mm, F+R 2-Part, RAL7035
Varenummer:
PRO-4280GR.P2
EAN Nr.:
4049759263942
Produktinformation til 19" Server Cabinet PRO 42U, 800x1000 mm, F+R 2-Part, RAL7035
19" server cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

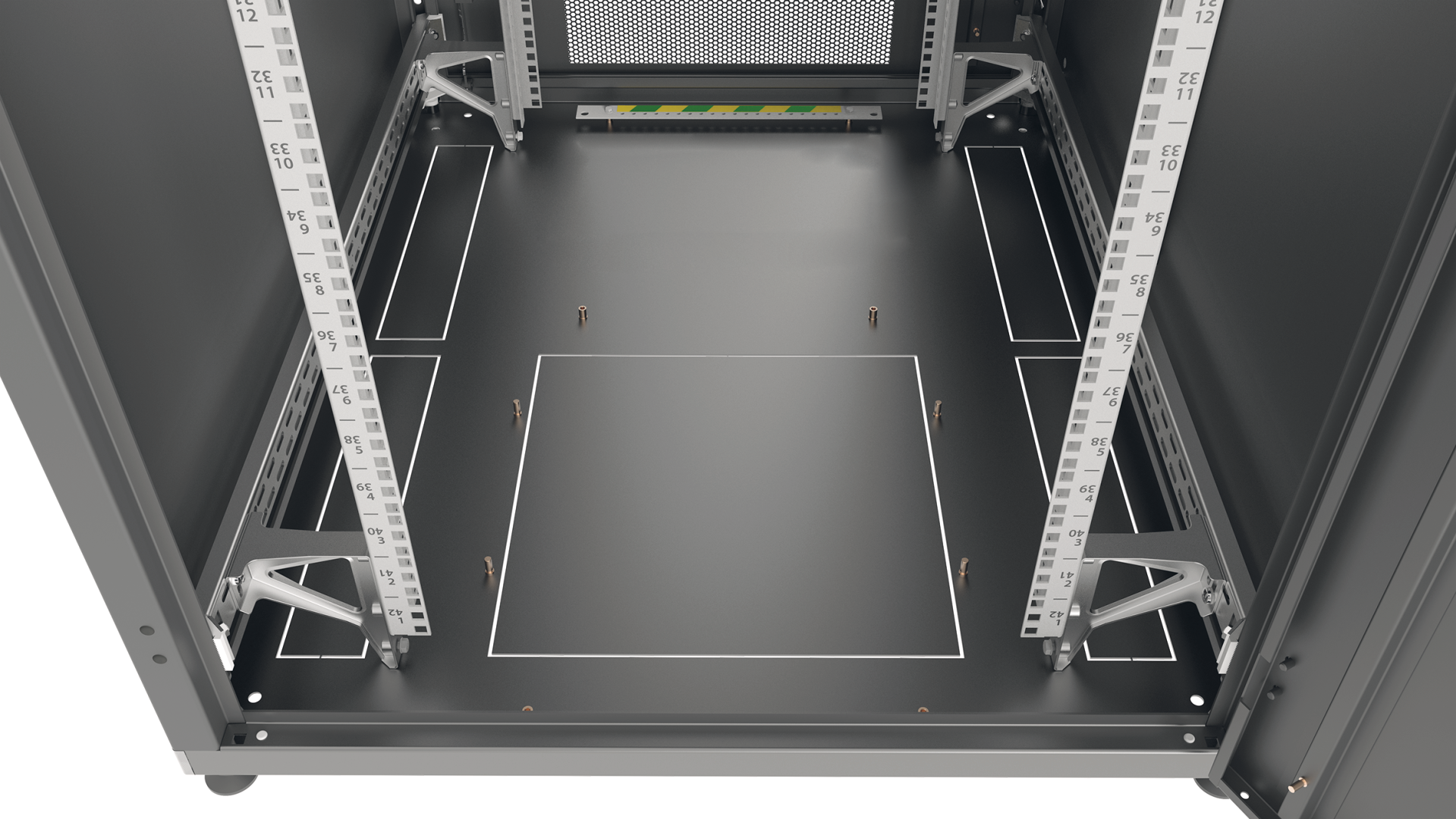

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

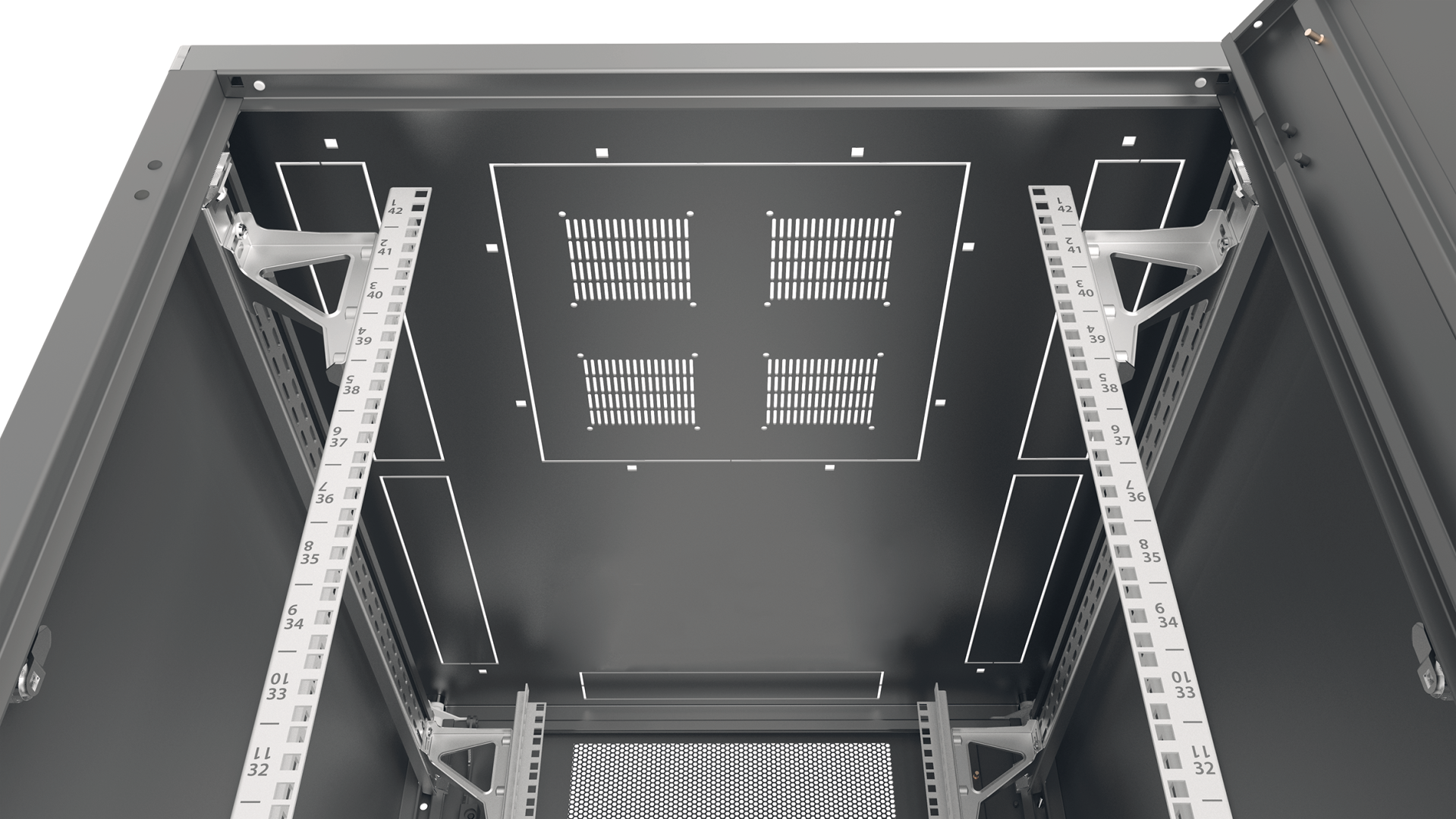

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Degree of protection: | IP20 |
|---|---|
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | Powder coating |
| Type of back door: | Steel perforated 2-part |
| Type of front door: | Steel perforated 2-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
Varianten
| Art. Nr. | Bezeichnung | Color | Width | Front door locking system | Rear door locking system | Material front door | Material rear door | Max. load capacity | Depth | With vertical cable management | With glazed door | Number of height units | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-4280TS.P2 | 19" Server Cabinet PRO 42U, 800x1000 mm, F+R 2-Part, RAL9005 | black | 800 mm | Three-point | Three-point | Steel | Steel | 1360 kg | 1000 mm | False | False | 42 U | 1963 mm | 9005 | 2 | |
| PRO-4780TS.P2 | 19" Server Cabinet PRO 47U, 800x1000 mm, F+R 2-Part, RAL9005 | black | 800 mm | Three-point | Three-point | Steel | Steel | 1360 kg | 1000 mm | False | False | 47 U | 2186 mm | 9005 | 2 | |
| PRO-4280GR.P2 | 19" Server Cabinet PRO 42U, 800x1000 mm, F+R 2-Part, RAL7035 | grey | 800 mm | Three-point | Three-point | Steel | Steel | 1360 kg | 1000 mm | False | False | 42 U | 1963 mm | 7035 | 2 | |
| PRO-3380TS.P2 | 19" Server Cabinets PRO, 800x1000 mm, 2-Part Doors | black | 800 mm | Three-point | Three-point | Steel | Steel | 1360 kg | 1000 mm | False | False | 33 U | 1563 mm | 9005 | 2 |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
