1HE Spleißbox, unbestückt, ausziehbar, RAL7035
Priser kun synlige for indloggede brugere
19"Splicebox,sl.unit,RAL7035 12 ST o. FC
Varenummer:
53600.2
EAN nr.:
4049759036133

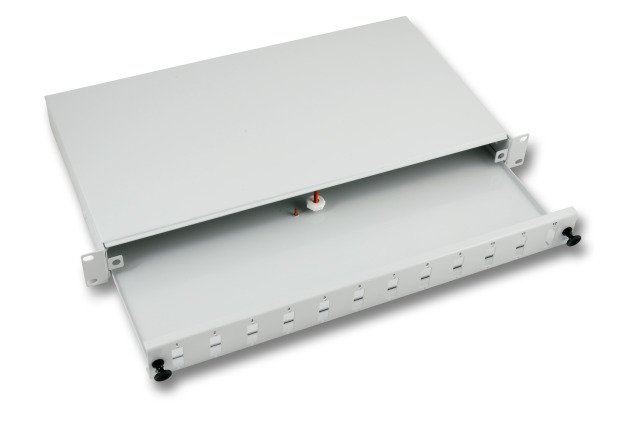

Produktinformation für 19"Splicebox,sl.unit,RAL7035 12 ST o. FC
Unassembled, depth adjustable
steel sheet 1.5 mm
6 x self adhesive fiber tray
front panel screwed
with sleeve nut (item 80555.1) max. 4 splice cassettes installable
cable entry at the rear, prepared for PG16/M20
steel sheet 1.5 mm
6 x self adhesive fiber tray
front panel screwed
with sleeve nut (item 80555.1) max. 4 splice cassettes installable
cable entry at the rear, prepared for PG16/M20
Tekniske egenskaber
| Depth: | 244.0 mm |
|---|---|
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | False |
Varianter
| Art. Nej. | Betegnelse | Suitable for number of couplings/adapters | Colour | RAL-number | Type of connector external | |
|---|---|---|---|---|---|---|
| 53600.2 | 19"Splicebox,sl.unit,RAL7035 12 ST o. FC | 12 | grey | 7035 | ST | Vælg varianter |

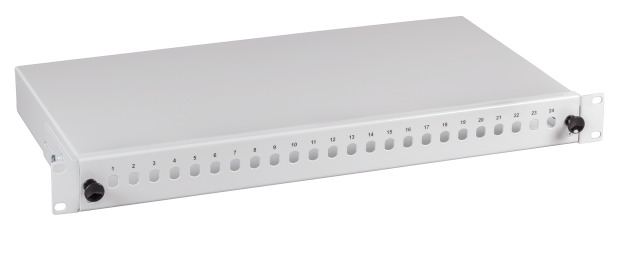

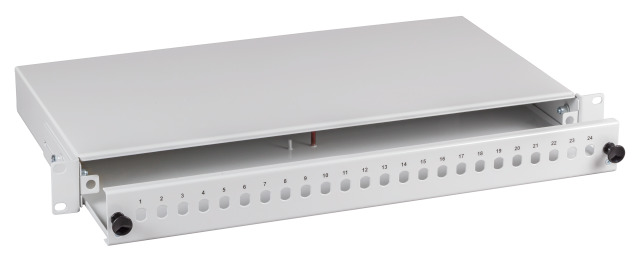

| 53600.3 | 19"Splicebox,sl.unit,RAL7035 24 SC dpx. vertical | 24 | grey | 7035 | SC duplex/ LC quad | Vælg varianter |
