19" Wall Housing 15U, Acoustically Insulated
19" Wall Housing 15U, Depth 600 mm, Acoustically Insulated, incl. Silent-Fans
Varenummer:
691715.2-AK
EAN Nr.:
4049759236052
Produktinformation til 19" Wall Housing 15U, Depth 600 mm, Acoustically Insulated, incl. Silent-Fans
Acoustically high-quality insulated wall housing, basing on EFB standard wall housings
For realisation of network projects in SoHo environments and acoustical insulation of loud, active devices like e.g. switches, router etc.
For installation in immediate near of working places, in seminar- or conference rooms without noise pollution

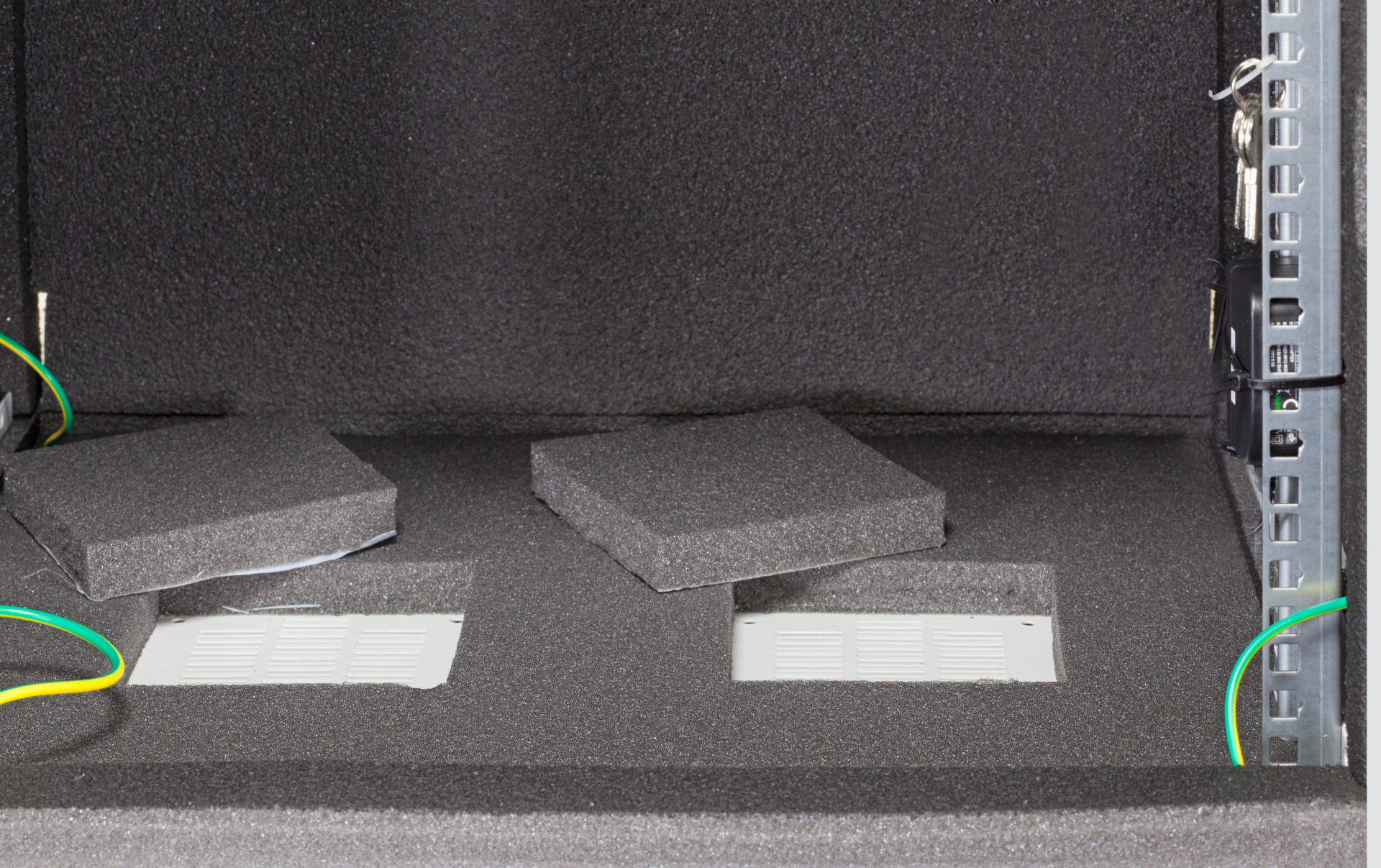

Complete inner lining with especially noise absorbers
Attenuation (typ.) 8 .. 25 dB (frequenceny-dependent, see data sheet)
Special decoupled Super-Silent fans (evacuating) in roof area
Converted air volume 196 m³/h
Closeable fresh air inlets in bottom

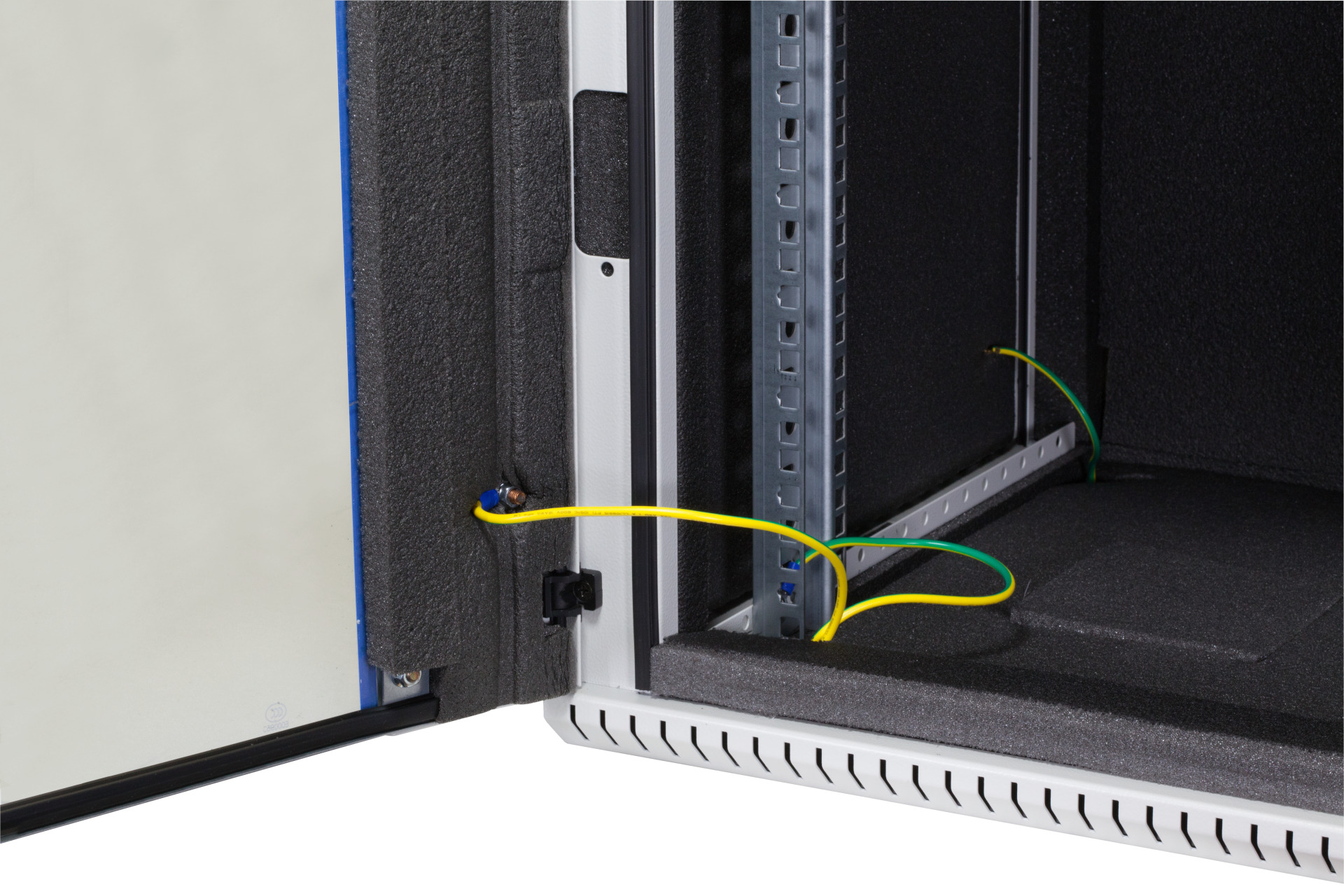

Cable entry in bottom via noise bridge and brush

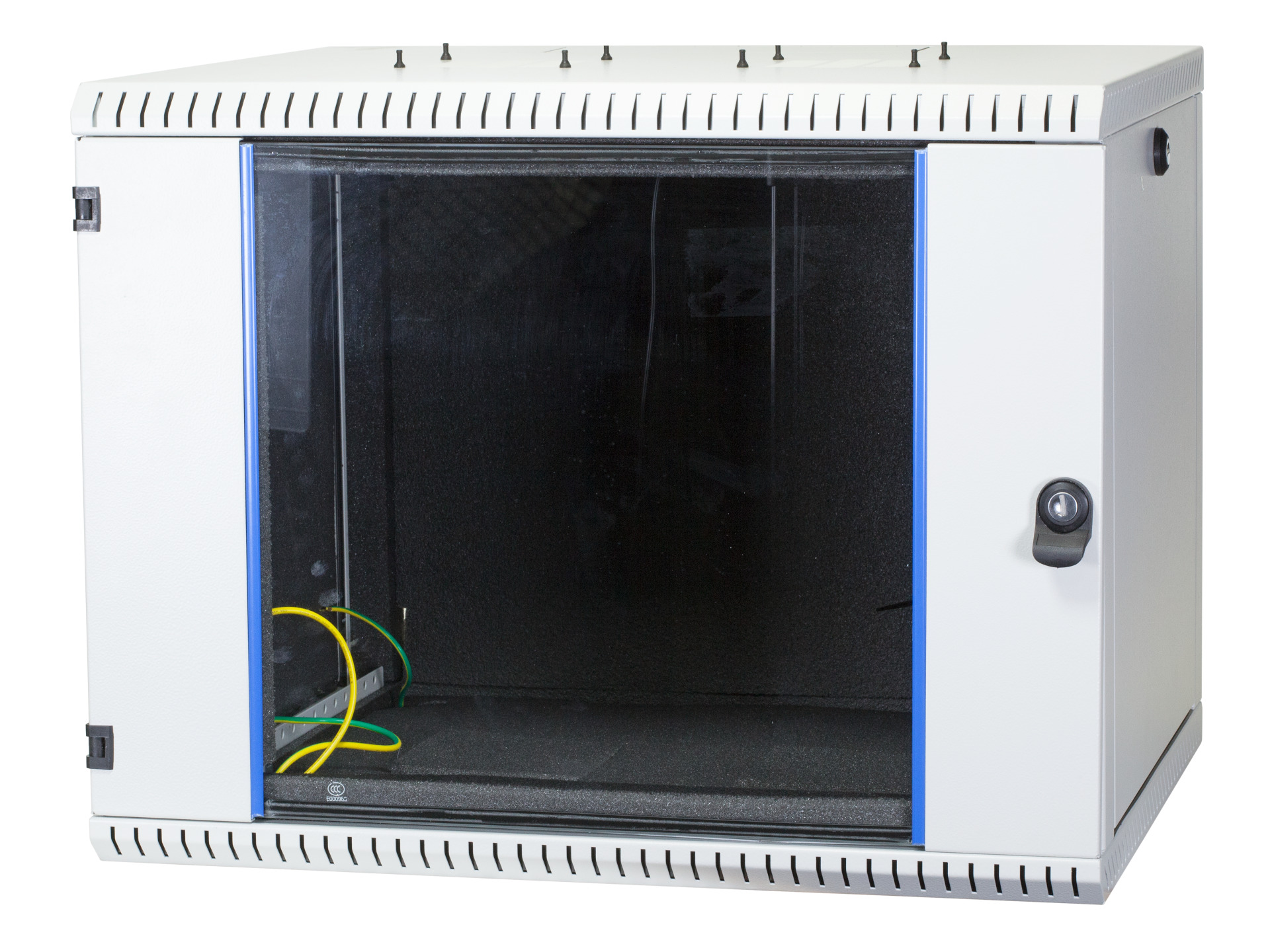

Front door with window of certified safety glass (4 mm), lockable

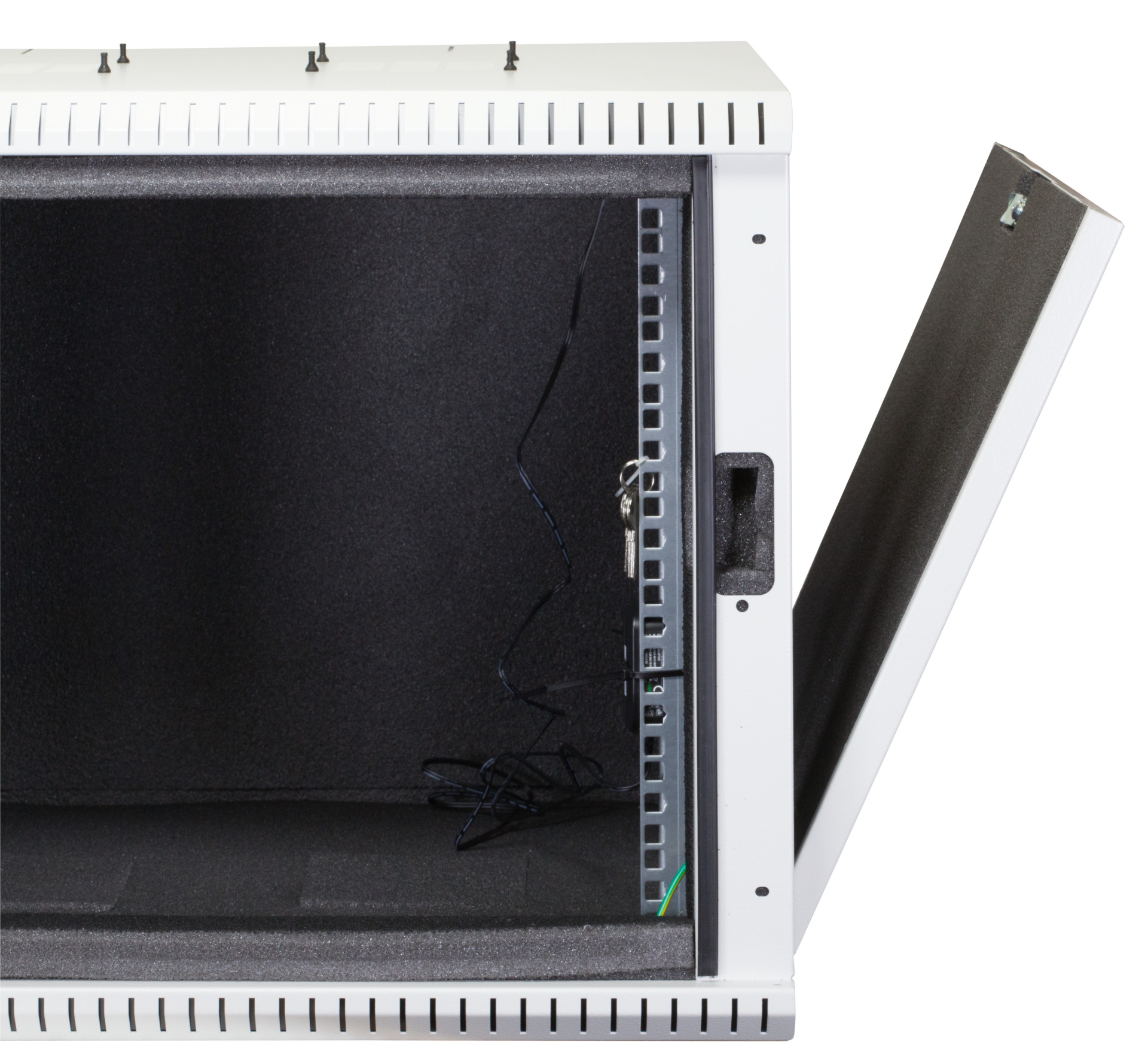

Side walls detachable, lockable, lock equal to door lock
Paint finish RAL7035, light grey
Delivery incl. 2 x key, 1 x power supply for the fans
All EFB housings are available as acoustical insulated type - ask your sales contact!
For realisation of network projects in SoHo environments and acoustical insulation of loud, active devices like e.g. switches, router etc.
For installation in immediate near of working places, in seminar- or conference rooms without noise pollution
Complete inner lining with especially noise absorbers
Attenuation (typ.) 8 .. 25 dB (frequenceny-dependent, see data sheet)
Special decoupled Super-Silent fans (evacuating) in roof area
Converted air volume 196 m³/h
Closeable fresh air inlets in bottom
Cable entry in bottom via noise bridge and brush
Front door with window of certified safety glass (4 mm), lockable
Side walls detachable, lockable, lock equal to door lock
Paint finish RAL7035, light grey
Delivery incl. 2 x key, 1 x power supply for the fans
All EFB housings are available as acoustical insulated type - ask your sales contact!
Tekniske egenskaber
| Degree of protection: | IP20 |
|---|---|
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | Powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Active |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
