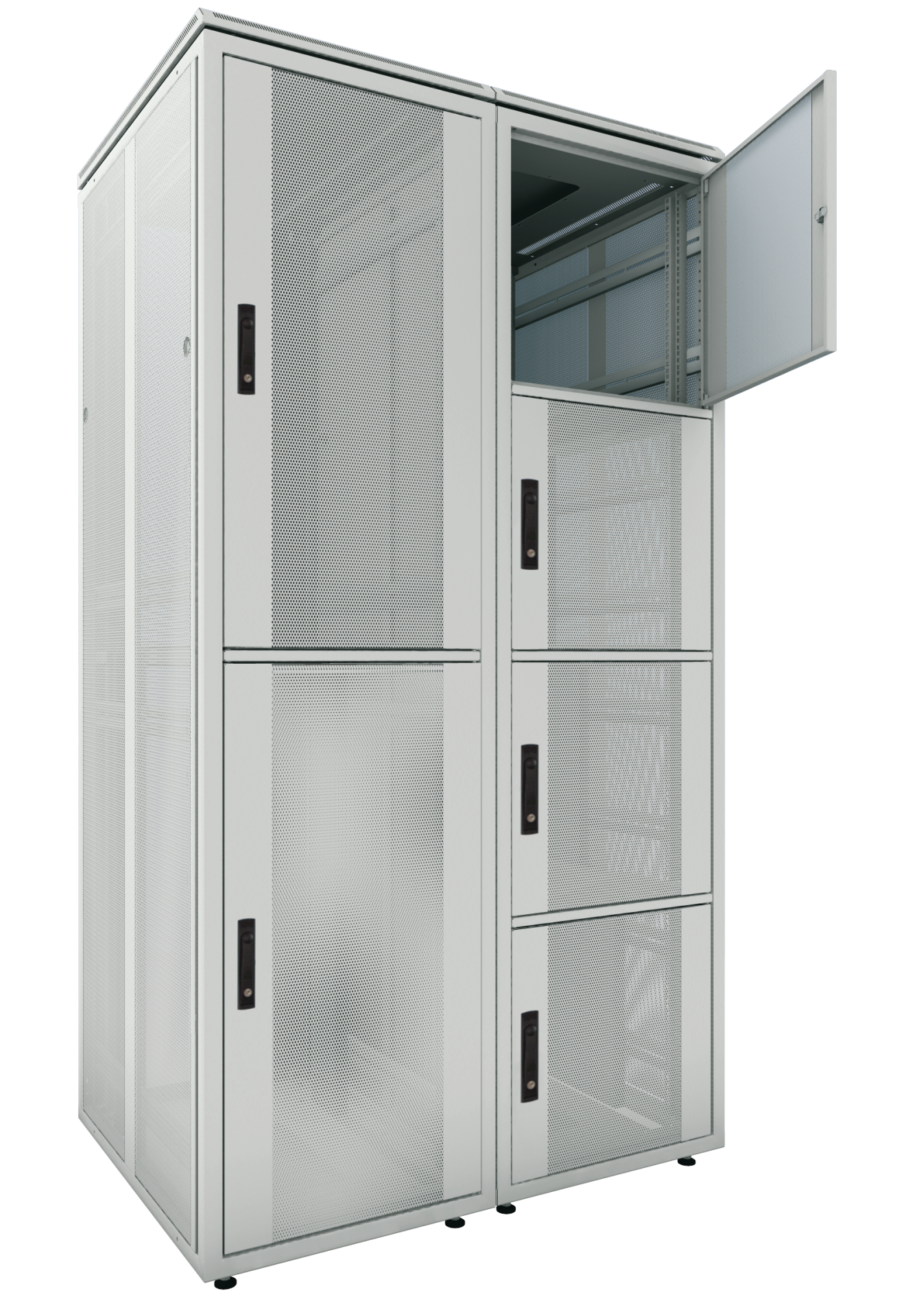

19'' Co-Location Rack PRO, 600x800
Co-Location Rack PRO, 4 x 11U, 600x800 mm, F+R 1-Part Perforated, RAL7035
Varenummer:
PRO-CL4-4768GR.P1
EAN Nr.:
4049759296155
Produktinformation til Co-Location Rack PRO, 4 x 11U, 600x800 mm, F+R 1-Part Perforated, RAL7035
19" network cabinet according to DIN 41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated

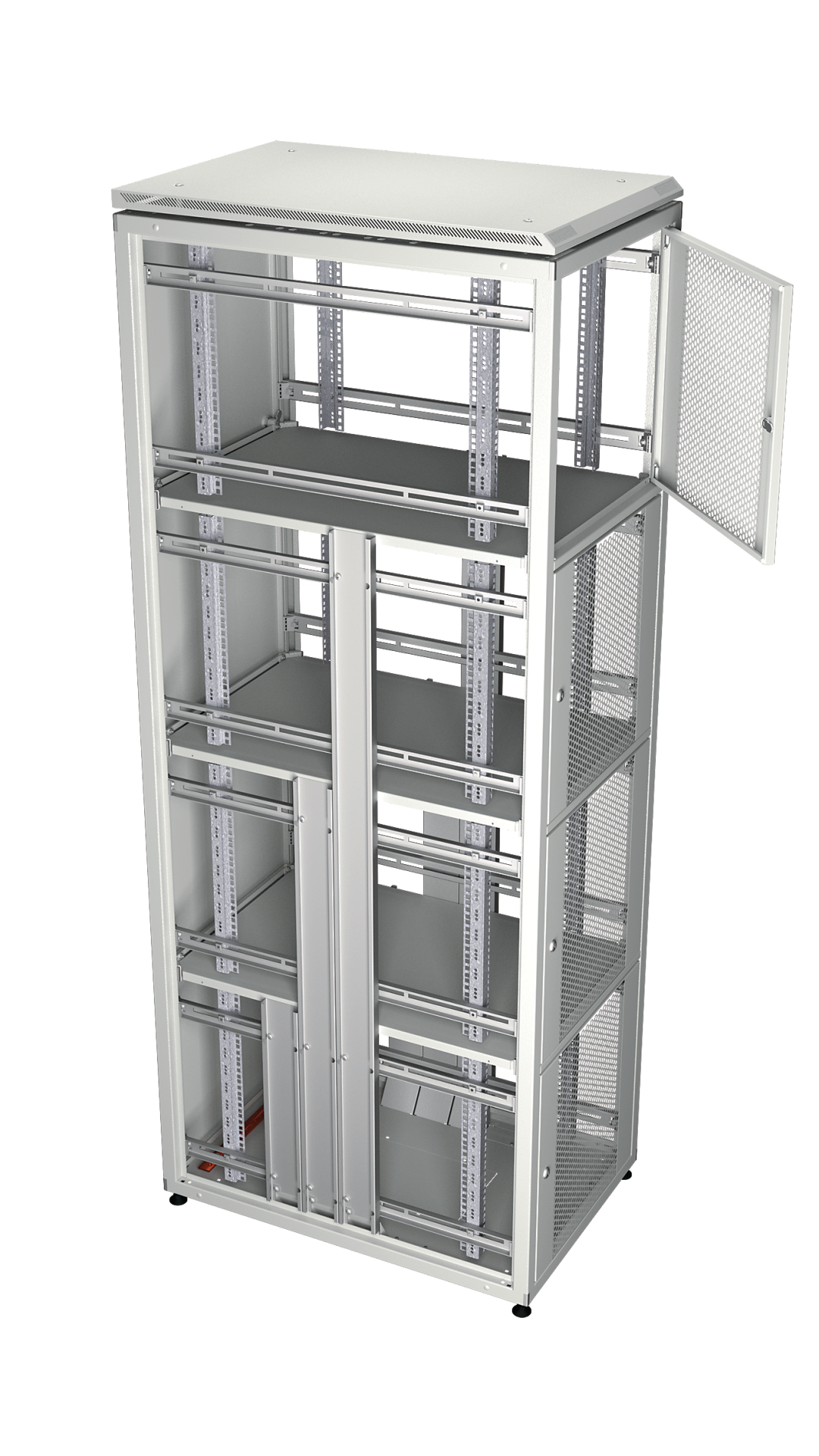

1, 2, 3 or 4 boxes for individual access

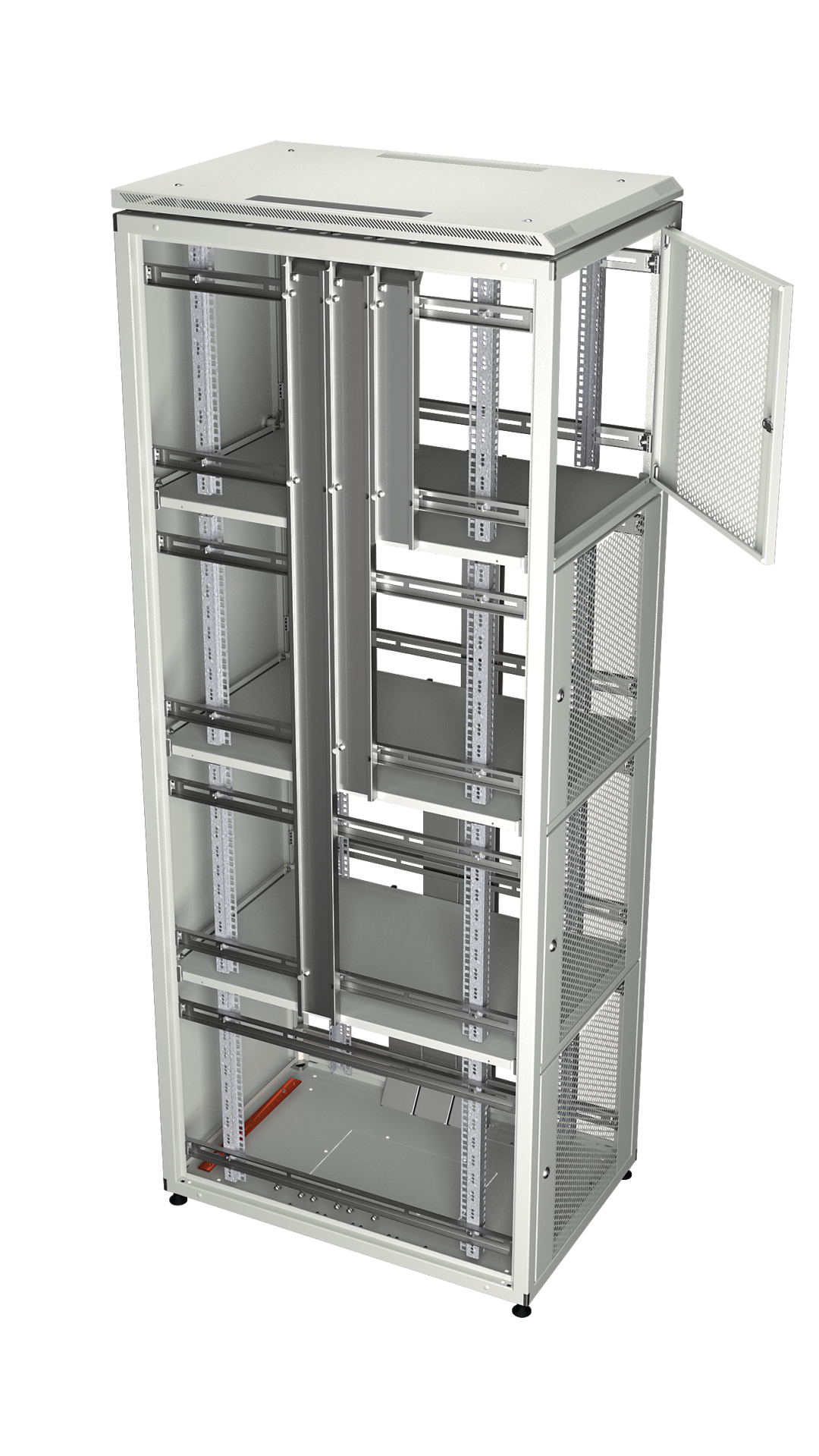

Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01

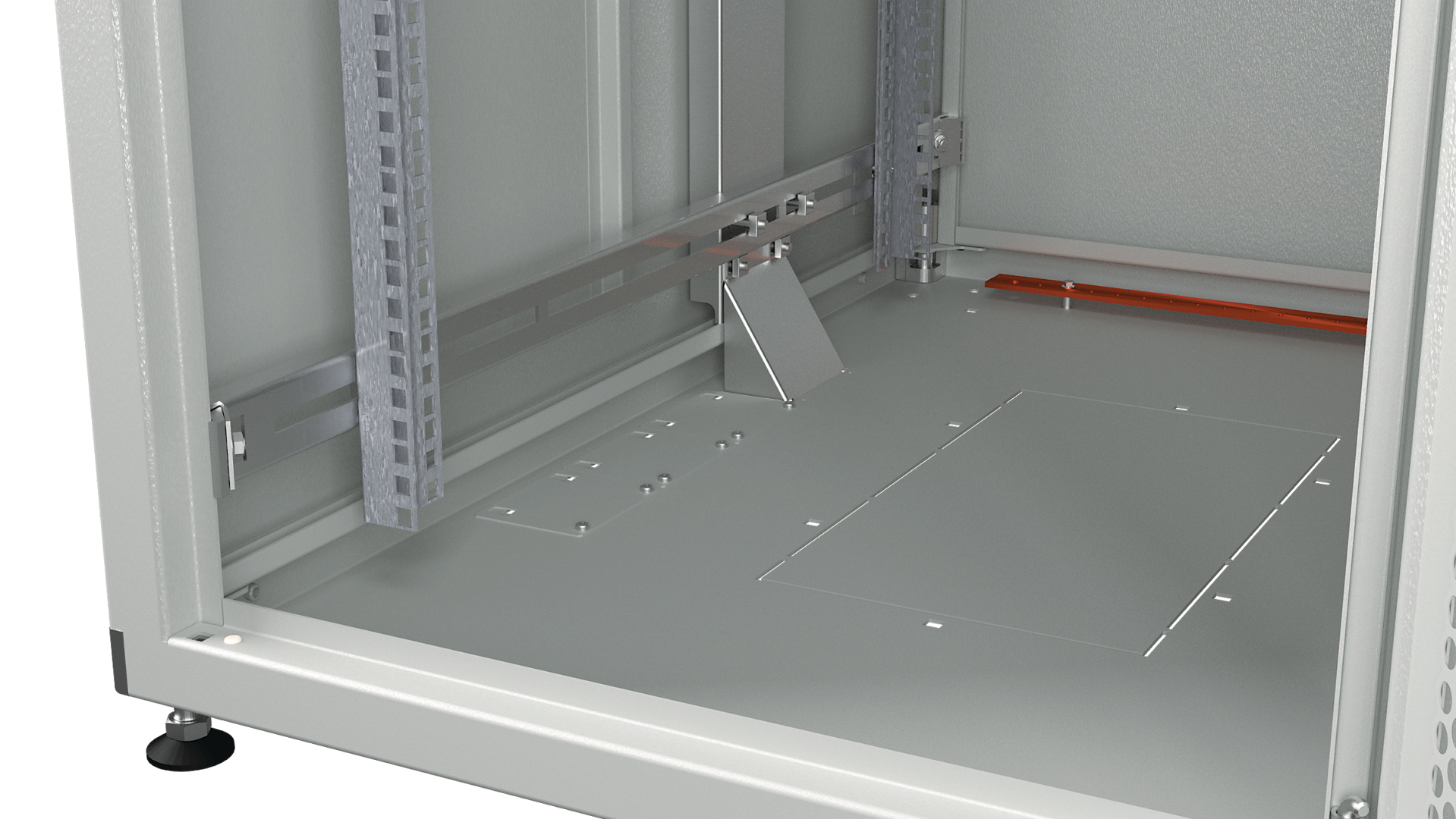

Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx

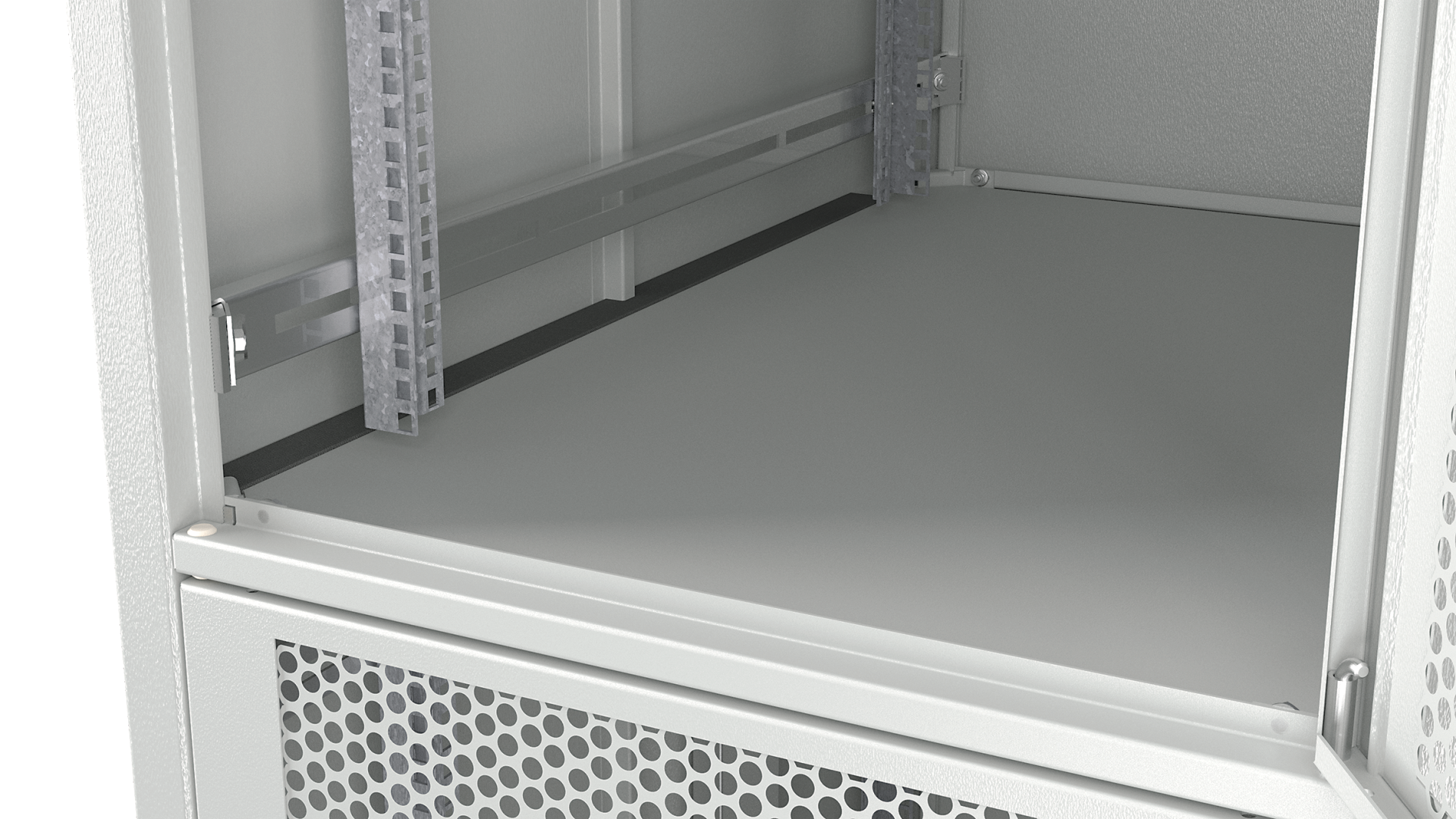

Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated
1, 2, 3 or 4 boxes for individual access
Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01
Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BT.xx
Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | Powder coating |
| Type of back door: | Steel perforated 1-part |
| Type of front door: | Steel perforated 1-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
Varianten
| Art. Nr. | Bezeichnung | Front door locking system | Depth | Max. load capacity | Width | Material front door | Rear door locking system | Material rear door | With vertical cable management | Color | Number of height units | Height | RAL-number | Number of doors | Suitable Fans | Number of Boxes | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-CL2-4768GR.P1 | Co-Location Rack PRO, 2 x 23U, 600x800 mm, F+R 1-Part Perforated, RAL7035 | One point | 800 mm | 600 kg | 600 mm | Steel | One point | Steel | True | grey | 2 x 23 U | 2186 mm | 7035 | 4 | PRO-LFD02BT.x | 2 | |
| PRO-CL3-4768GR.P1 | Co-Location Rack PRO, 23U+2x11U, 600x800 mm, F+R 1-Part Perforated, RAL7035 | One point | 800 mm | 600 kg | 600 mm | Steel | One point | Steel | True | grey | 1 x 23 + 2 x 11 U | 2186 mm | 7035 | 6 | PRO-LFD02BT.x | 3 | |
| PRO-CL4-4268TS.P1 | Co-Location Rack PRO, 4 x 10U, 600x800 mm, F+R 1-Part Perforated, RAL9005 | One point | 800 mm | 600 kg | 600 mm | Steel | One point | Steel | True | black | 4 x 10 U | 1963 mm | 9005 | 8 | PRO-LFD02BT.x | 4 | |
| PRO-CL4-4768GR.P1 | Co-Location Rack PRO, 4 x 11U, 600x800 mm, F+R 1-Part Perforated, RAL7035 | One point | 800 mm | 600 kg | 600 mm | Steel | One point | Steel | True | grey | 4 x 11 U | 2186 mm | 7035 | 8 | PRO-LFD02BT.x | 4 |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
