Coaxial Cable 50 Ohm, double shielded
Priser kun synlige for indloggede brugere

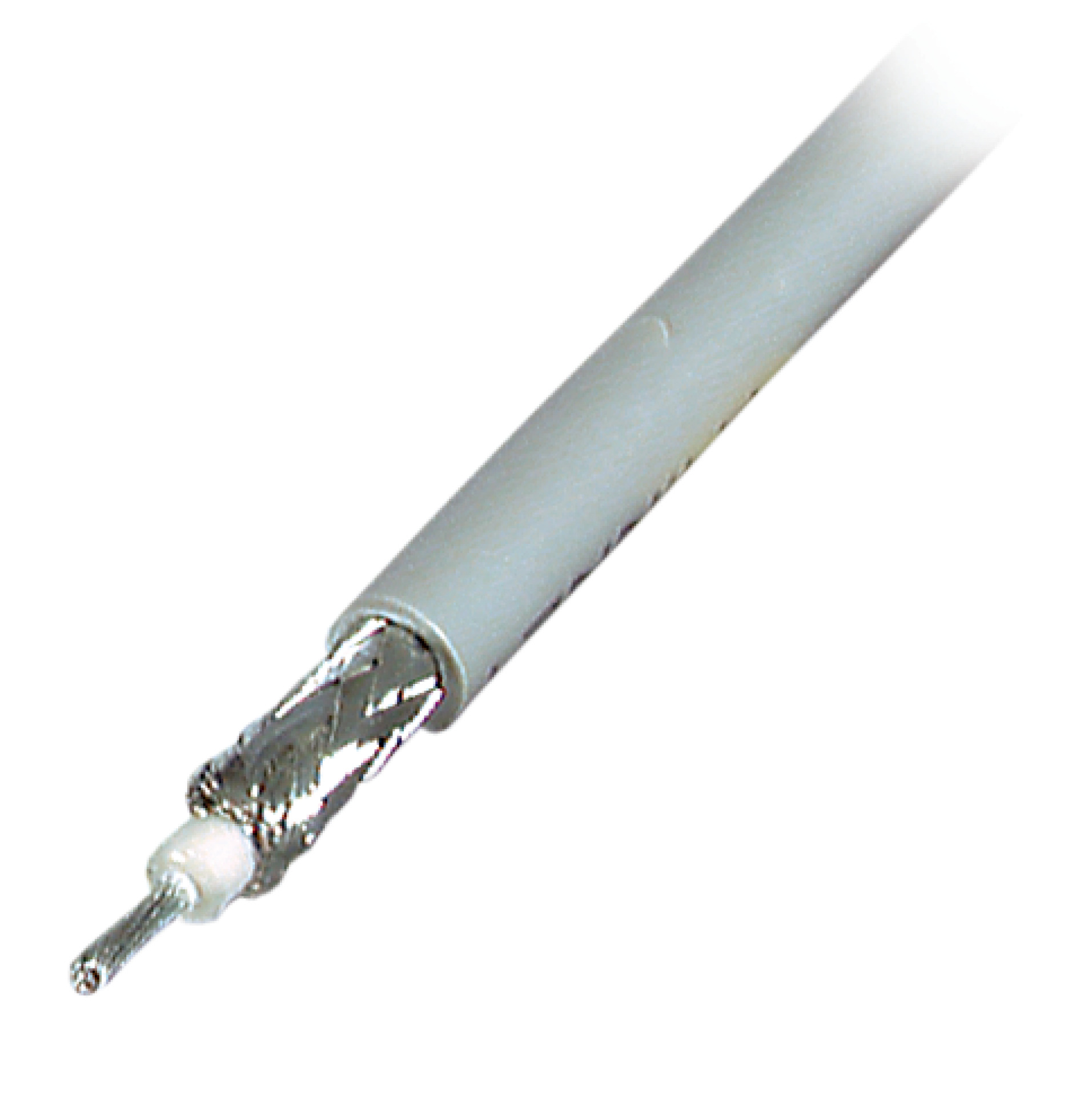

Coax Cable RG58 C/U 50Ohm thin wire, double shielded, 1000m
Varenummer:
91258.1
EAN nr.:
4049759039943
Produktinformation für Coax Cable RG58 C/U 50Ohm thin wire, double shielded, 1000m
Coaxial Thin Wire RG58 cable for high frequent measured data and signals defined characteristic impedance and tight production tolerances in 50 Ohm.

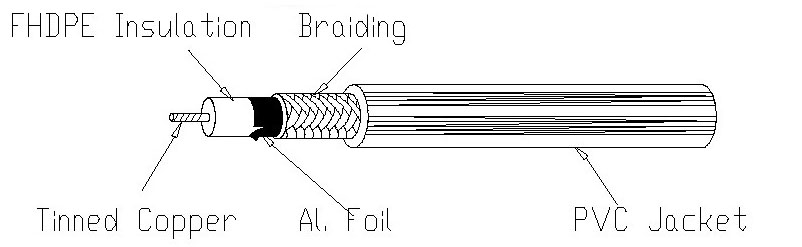

Shielding : Tinned copper braiding & aluminum foil
Shielding : Tinned copper braiding & aluminum foil
Tekniske egenskaber
| Armouring: | False |
|---|---|
| Colour outer sheath: | grey |
| Diameter inner conductor: | 0.19 mm |
| Diameter outer conductor: | 0.12 mm |
| Dielectric: | cellular PE |
| Halogen free (acc. EN 50267-2-2): | False |
| Inner conductor category: | Class 5 = flexible |
| Inner conductor material: | CU, tinned |
| Jacket material: | PVC |
| Operating temperature, fix: | -40 – 80 °C |
| Operating temperature, flexible: | -40 – 80 °C |
| Outer conductor material: | CU, tinned |
| Type of outer conductor: | braiding |

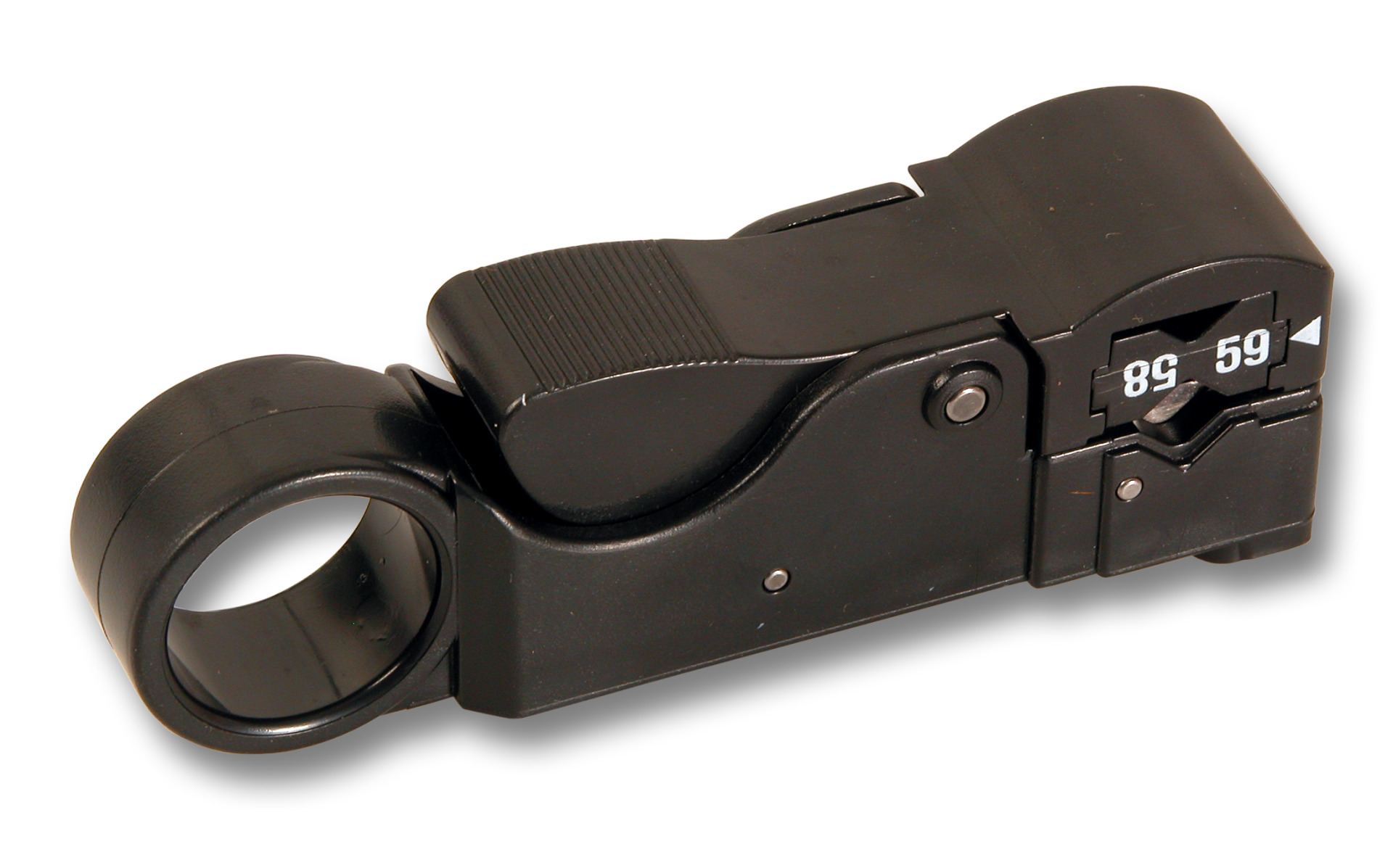

necessary tools
