Consolidation Point Box
Priser kun synlige for indloggede brugere

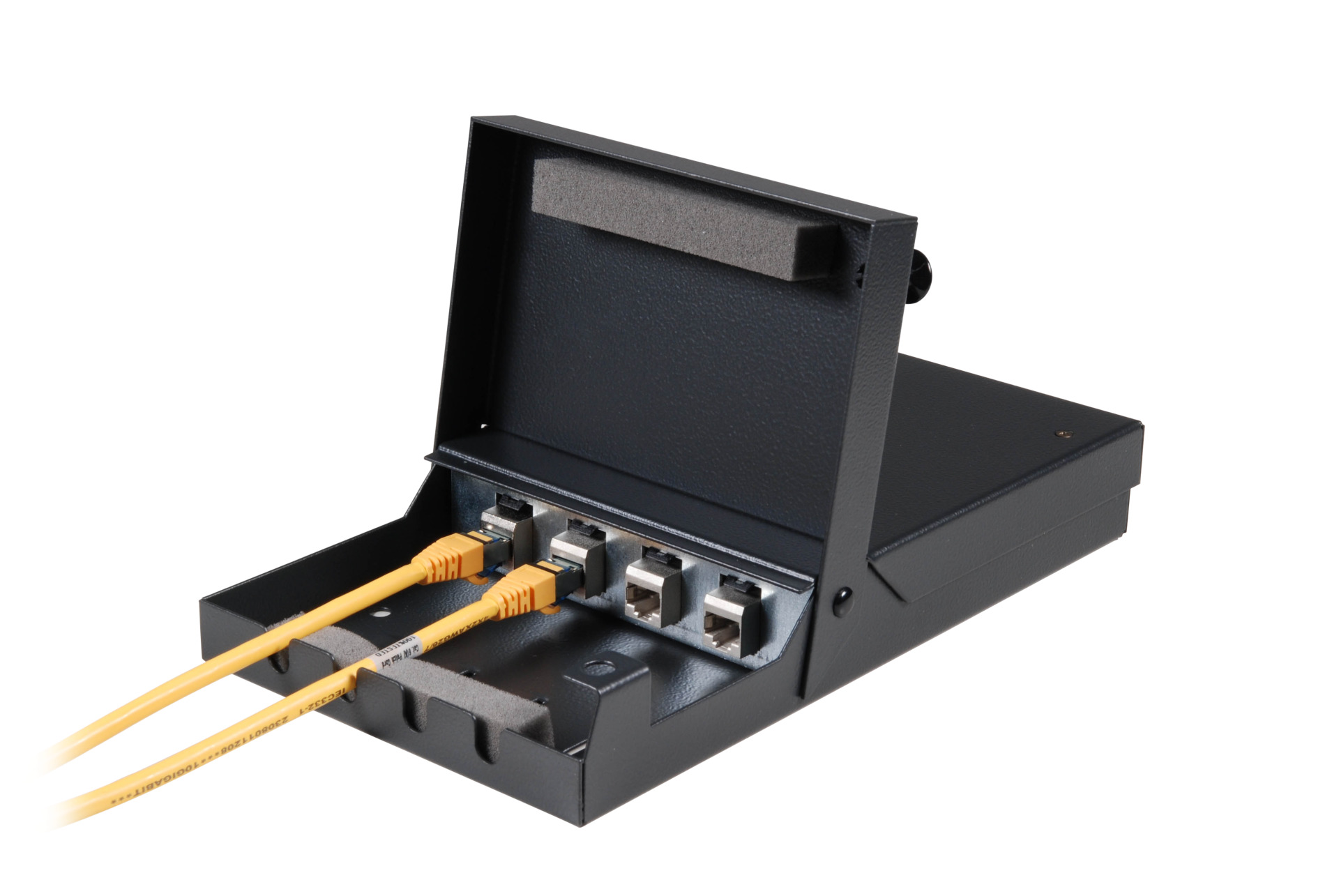

Consolidation Point Box, for 4x Keystones
Varenummer:
ET-25172
EAN nr.:
4049759038120
Produktinformation für Consolidation Point Box, for 4x Keystones
Description
Consolidation Points (CPs) are stationary distribution points, collecting points, for a flexible managment of the structured cabling in buildings or in the industrial enviroments.
For many public buildings, especially in open-plan offices, the concept of Consolidation Points are an ideal solution for the connection of workstations. With the help of collecting points office infrastructure can be used much more flexible compared with traditional installation. This has a significant effect to cut costs. The CP concept is a very efficient solution for office and industry, which provides future security and reliability.
Application area of Consolidation Point CP-Boxes:
Double floors
Underfloor system
Intermediate ceiling
Specifications:

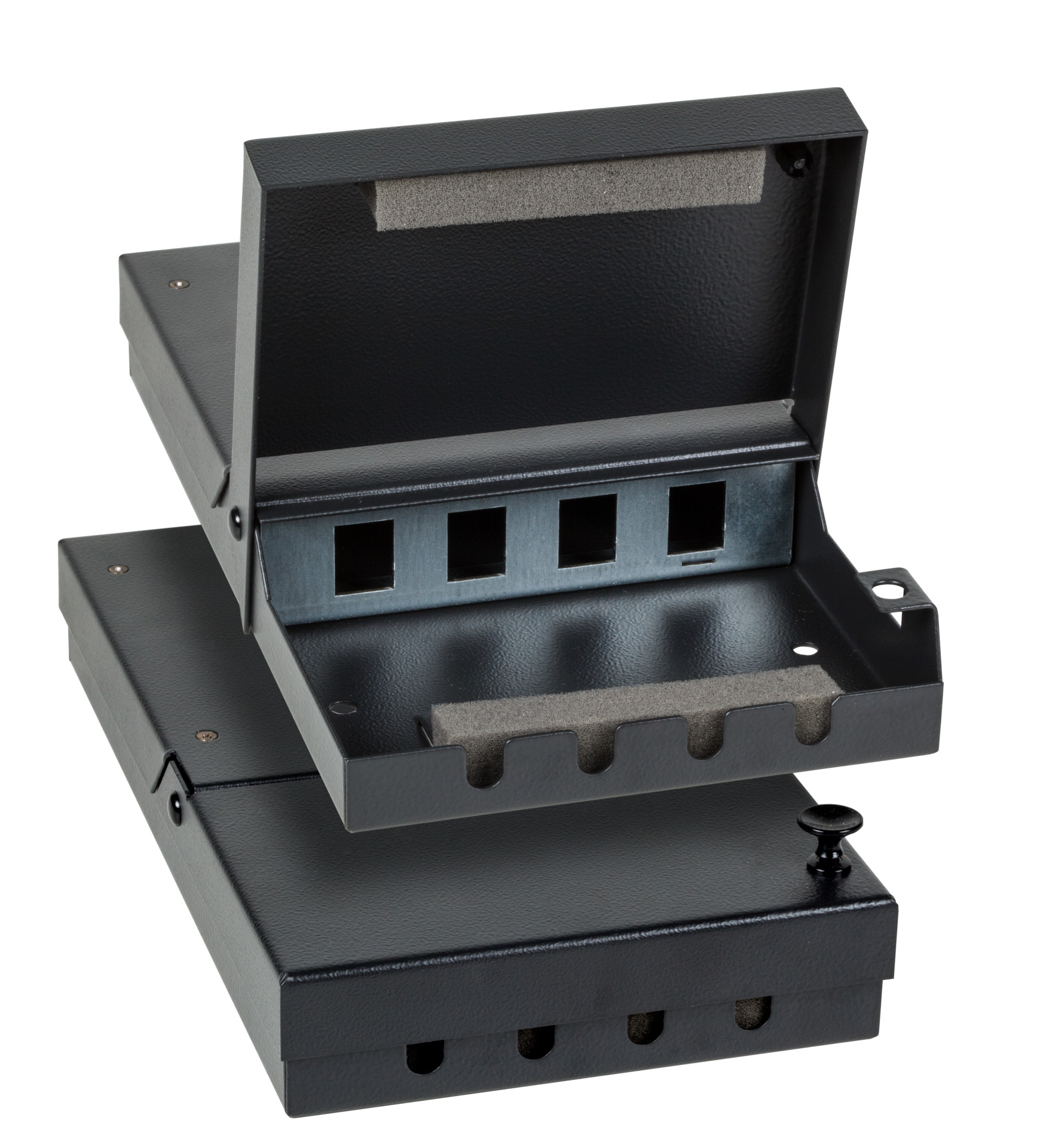

Robust steel case with hinged cover and cable strain relief

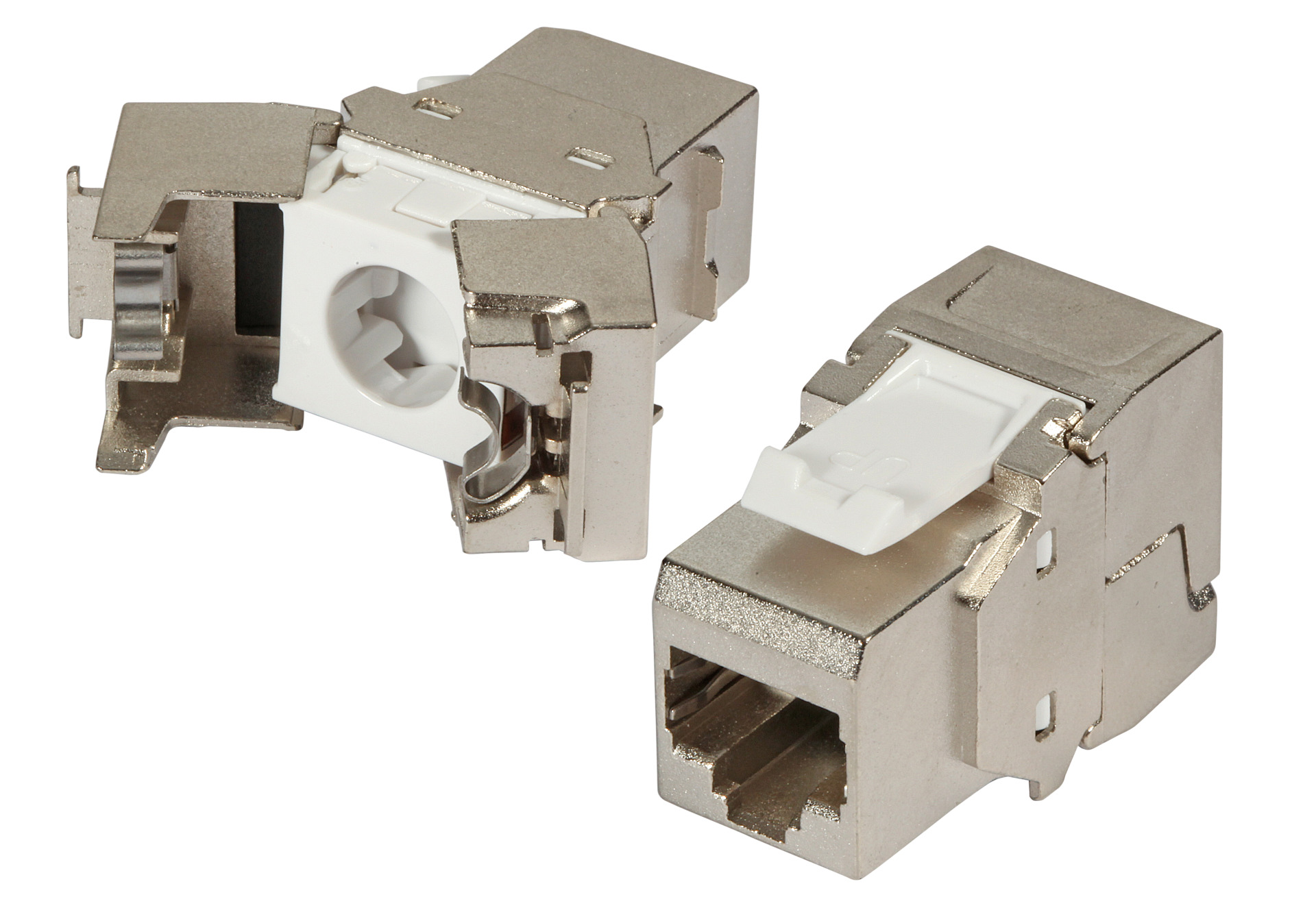

Suitable for installation of 4, 8, 12 or 24 keystone modules from the EFB portfolio.
The part which is accessible for the patch cord is hinged and can be opened tool-free with the quick lock.
The cable entry for the installed keystone modules is secured against access with a screwed cover. Both cable entries are protected against dust by using foam.
Separate grounding bolt
Protection class IP20
Black powder coating
Dimensons:
ET-25172: 115mm x 265mm x 43mm
ET-25172.1: 230mm x 265mm x 43mm
ET-25172.2: 388mm x 265mm x 43mm
ET-25172.3: 490mm x 265mm x 43mm
Consolidation Points (CPs) are stationary distribution points, collecting points, for a flexible managment of the structured cabling in buildings or in the industrial enviroments.
For many public buildings, especially in open-plan offices, the concept of Consolidation Points are an ideal solution for the connection of workstations. With the help of collecting points office infrastructure can be used much more flexible compared with traditional installation. This has a significant effect to cut costs. The CP concept is a very efficient solution for office and industry, which provides future security and reliability.
Application area of Consolidation Point CP-Boxes:
Double floors
Underfloor system
Intermediate ceiling
Specifications:
Robust steel case with hinged cover and cable strain relief
Suitable for installation of 4, 8, 12 or 24 keystone modules from the EFB portfolio.
The part which is accessible for the patch cord is hinged and can be opened tool-free with the quick lock.
The cable entry for the installed keystone modules is secured against access with a screwed cover. Both cable entries are protected against dust by using foam.
Separate grounding bolt
Protection class IP20
Black powder coating
Dimensons:
ET-25172: 115mm x 265mm x 43mm
ET-25172.1: 230mm x 265mm x 43mm
ET-25172.2: 388mm x 265mm x 43mm
ET-25172.3: 490mm x 265mm x 43mm
Tekniske egenskaber
| Colour coding: | False |
|---|---|
| Degree of protection: | IP20 |
| Duct installation: | False |
| Floor box/sub-floor mounted: | False |
| Flush-mounted installation/built-in installation: | False |
| Material connector housing: | Metal |
| Mechanical coding: | False |
| Mounting method shielding connection: | Screw |
| Outlet direction: | Straight |
| Separate earthing connection: | True |
| Separate strain relief: | False |
| Shielded housing: | True |
| Surface mounting: | True |
| Type of fastening: | Screwing |
| With dust cover: | True |
| With label space: | False |
Varianter
| Art. Nej. | Betegnelse | Suitable for number of connectors | With buses/couplings | |
|---|---|---|---|---|
| ET-25172 | Consolidation Point Box, for 4x Keystones | 4 | False | Vælg varianter |
| ET-25172.1 | Consolidation Point Box, for 8x Keystones | 8 | False | Vælg varianter |
| ET-25172.2 | Consolidation Point Box, for 12x Keystones | 12 | False | Vælg varianter |

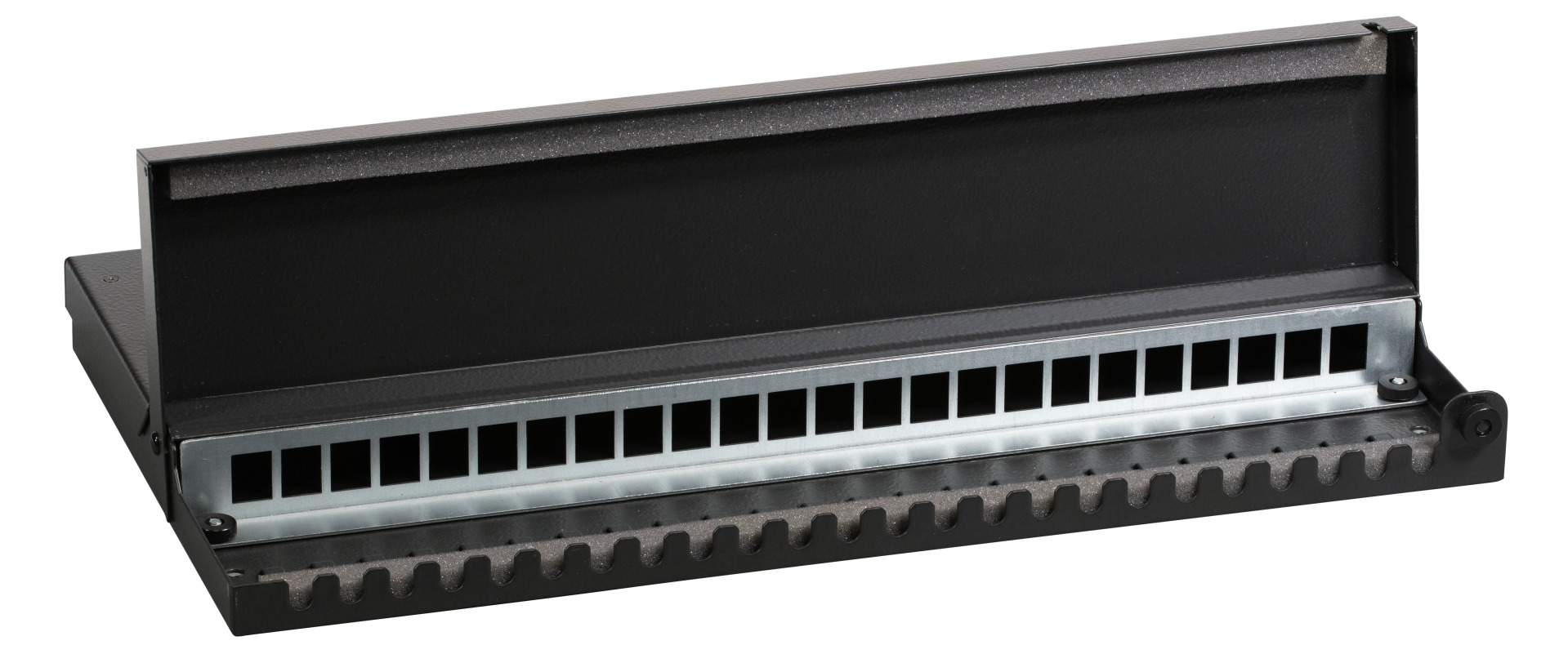

| ET-25172.3 | Consolidation Point Box, for 24x Keystones | 24 | False | Vælg varianter |
