IES-0008T, DIN-Rail Switch 8x10/100TX -20°C..+60°C + alarm contacts
Priser kun synlige for indloggede brugere

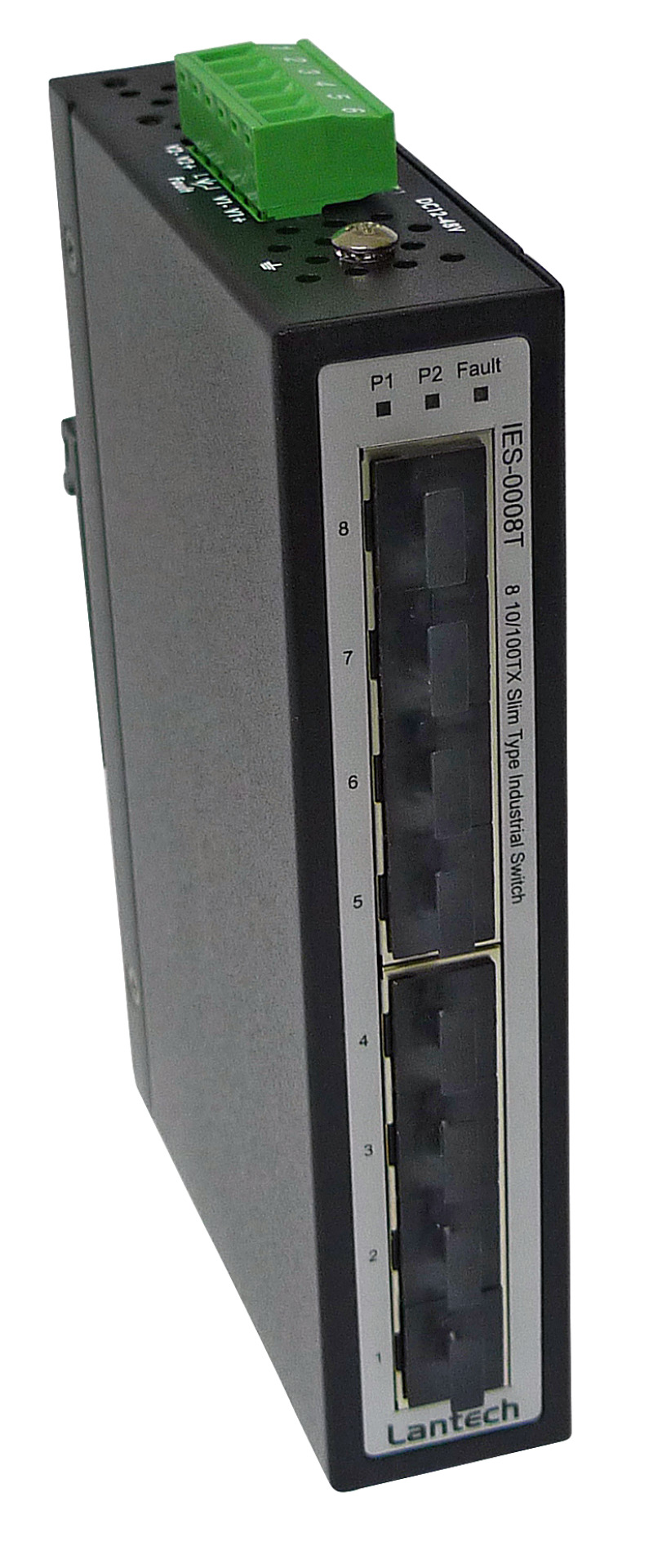

DIN-Rail-Switch 8x10/100TX
Varenummer:
IES-0008T
EAN nr.:
4713072940032
Produktinformation für DIN-Rail-Switch 8x10/100TX
• Auto MDI/MDI-X at each RJ45-port
• Wide range of operation voltage 9 .. 56 V DC
• Redundant power supply input
• Alarm contact for emergency events (e.g. like voltage drop)
• Temperature range -20°C .. 60°C *
• Rugged metal housing, EMV-secure, protection class IP30
• DIN-Rail or wall mounting possible
• Suitable DIN-Rail power supply : DR-15-24
* extended temperature range types (-40°C .. +75°C) available on request
• Wide range of operation voltage 9 .. 56 V DC
• Redundant power supply input
• Alarm contact for emergency events (e.g. like voltage drop)
• Temperature range -20°C .. 60°C *
• Rugged metal housing, EMV-secure, protection class IP30
• DIN-Rail or wall mounting possible
• Suitable DIN-Rail power supply : DR-15-24
* extended temperature range types (-40°C .. +75°C) available on request
Tekniske egenskaber
| Degree of protection: | IP30 |
|---|---|
| Depth: | 95.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Height: | 140.0 mm |
| Manufacturer: | LANTECH |
| Mounting method: | DIN-Rail |
| Number of Copper Ports: | 8 |
| Number of ports 10/100 Mbps RJ45: | 8 |
| Power over Ethernet (PoE): | False |
| Width: | 30.0 mm |
