Duplex Jumper SC-ST, 9/125µ, OS2, steel armored
Priser kun synlige for indloggede brugere

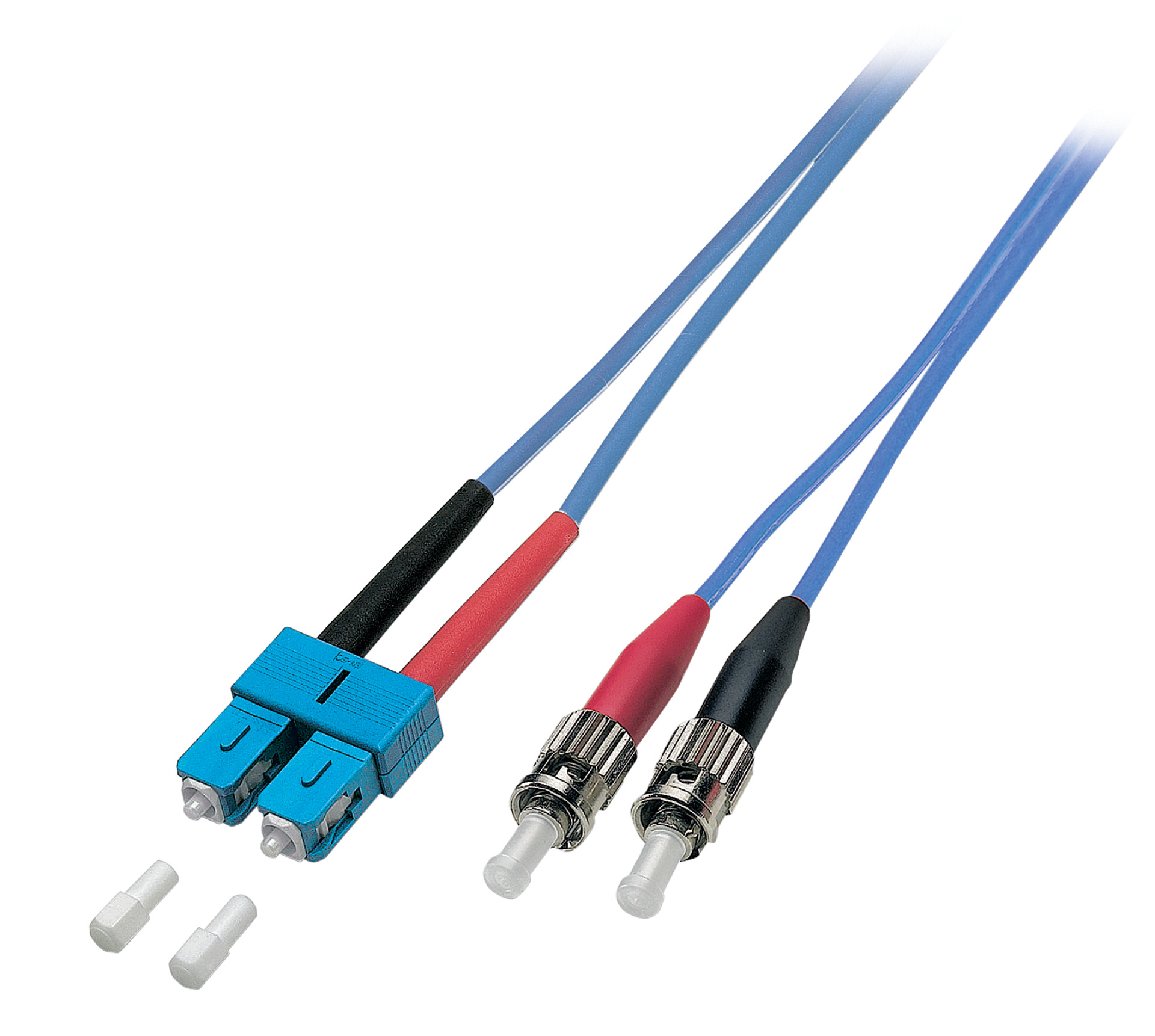

Duplex Jumper SC-ST 9/125µ, OS2, LSZH, armored, blue, 3.0mm, 1m
Varenummer:
O6503.1
EAN nr.:
4049759057725
Produktinformation für Duplex Jumper SC-ST 9/125µ, OS2, LSZH, armored, blue, 3.0mm, 1m
SOLID!
Crush-resistance = 30.000 N per square centimeter
equals 3 tons / cm2
Stainless steel spiral coil and stainless steel braid for high mechanical protection
Non-crushable, shock-proof, bend-resistant
Very high flexibility
High lateral pressure and tensile resistance
Crush-resistance = 30.000 N per square centimeter
equals 3 tons / cm2
Stainless steel spiral coil and stainless steel braid for high mechanical protection
Non-crushable, shock-proof, bend-resistant
Very high flexibility
High lateral pressure and tensile resistance
Tekniske egenskaber
| APC-version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 3.0 mm |
| Cabling Standard: |
EN-50173-1 ISO/IEC 11801 |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | blue |
| Connector colour 1: | blue |
| Fiber type: | Single mode 9/125 |
| Flame-retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket material: | LSZH |
| Number of fibres: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | SC duplex |
| Type of connector connection 2: | ST |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| O6503.1 | Duplex Jumper SC-ST 9/125µ, OS2, LSZH, armored, blue, 3.0mm, 1m | 1.0 m | ±5 % | |
| O6503.2 | Duplex Jumper SC-ST 9/125µ, OS2, LSZH, armored, blue, 3.0mm, 2m | 2.0 m | ±5 % | |
| O6503.3 | Duplex Jumper SC-ST 9/125µ, OS2, LSZH, armored, blue, 3.0mm, 3m | 3.0 m | ±5 % | |
| O6503.5 | Duplex Jumper SC-ST 9/125µ, OS2, LSZH, armored, blue, 3.0mm, 5m | 5.0 m | ±5 % |
