Extension Cable C14 180° - C15 180°, black

Priser kun synlige for indloggede brugere

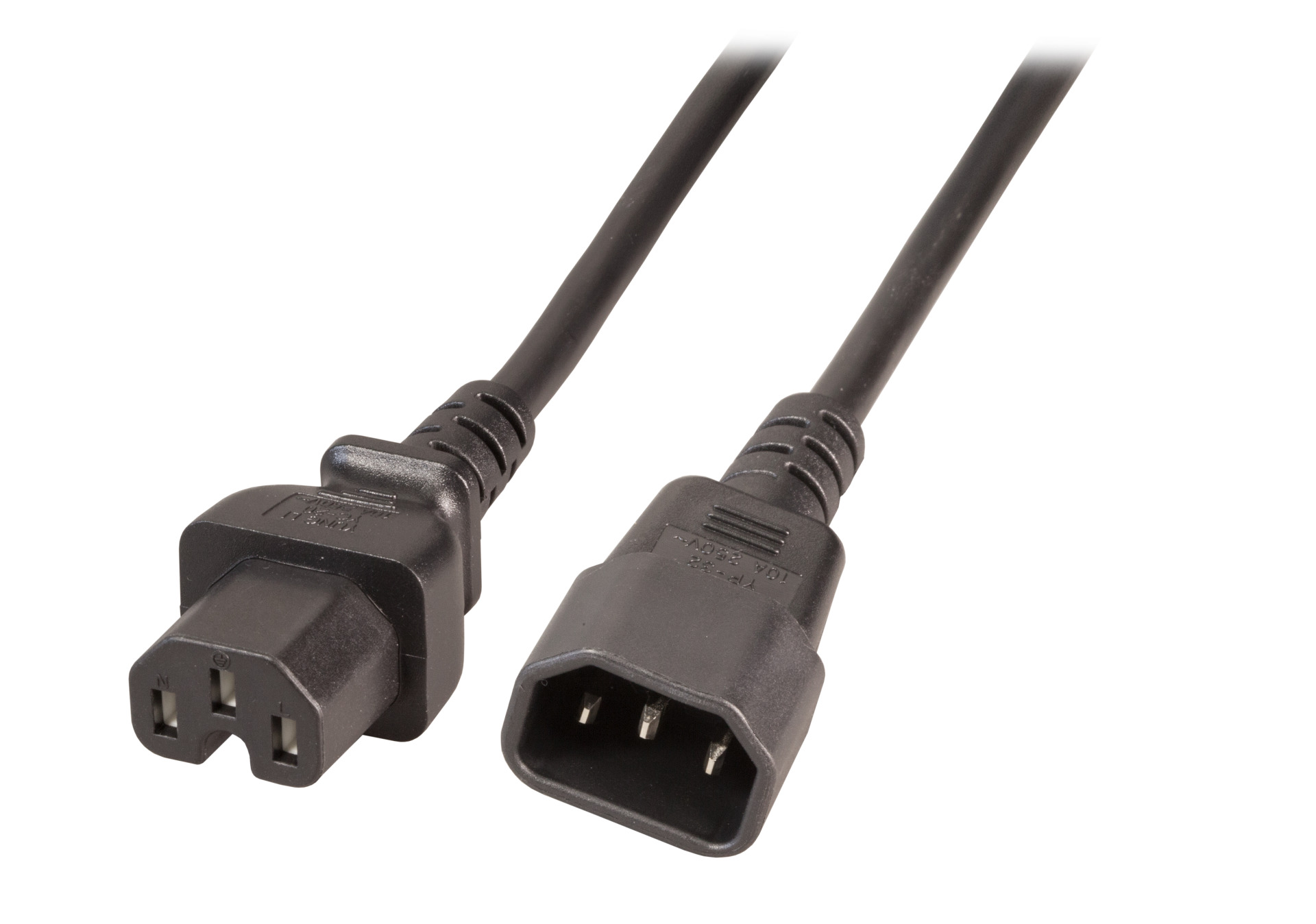

Extension Cable C14 180° - C15 180°, Black, 1.0 m, 3 x 0.75 mm²
Varenummer: EK585.1
EAN nr.: 4049759175085

Produktinformation für Extension Cable C14 180° - C15 180°, Black, 1.0 m, 3 x 0.75 mm²

Plug IEC60320/C14 to jack IEC60320/C15
10 A / 250 V VDE tested

Tekniske egenskaber

Colour outer sheath: black
Connection 1: Cold device plug (IEC 60320)
Connection 2: Hot device plug, female
Jacket material: Polyvinyl chloride (PVC)
Nominal voltage: 250 V
Number of cores: 3
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Protective conductor: True
Spiralized cable: False
Temperature resistance: 70 – 120 °C
With cord switch: False

Varianter

Art. Nej. Betegnelse Colour outer sheath Length Nominal cross section conductor Outer diameter approx.
EK585.1 Extension Cable C14 180° - C15 180°, Black, 1.0 m, 3 x 0.75 mm² black 1.0 m 0.75 mm² 6.8 mm Vælg varianter
EK585.2 Extension Cable C14 180° - C15 180°, Black, 2.0 m, 3 x 1.00 mm² black 2.0 m 0.75 mm² 6.8 mm Vælg varianter
EK585.3 Extension Cable C14 180° - C15 180°, Black, 3.0 m, 3 x 1.00 mm² black 3.0 m 0.75 mm² 6.8 mm Vælg varianter
