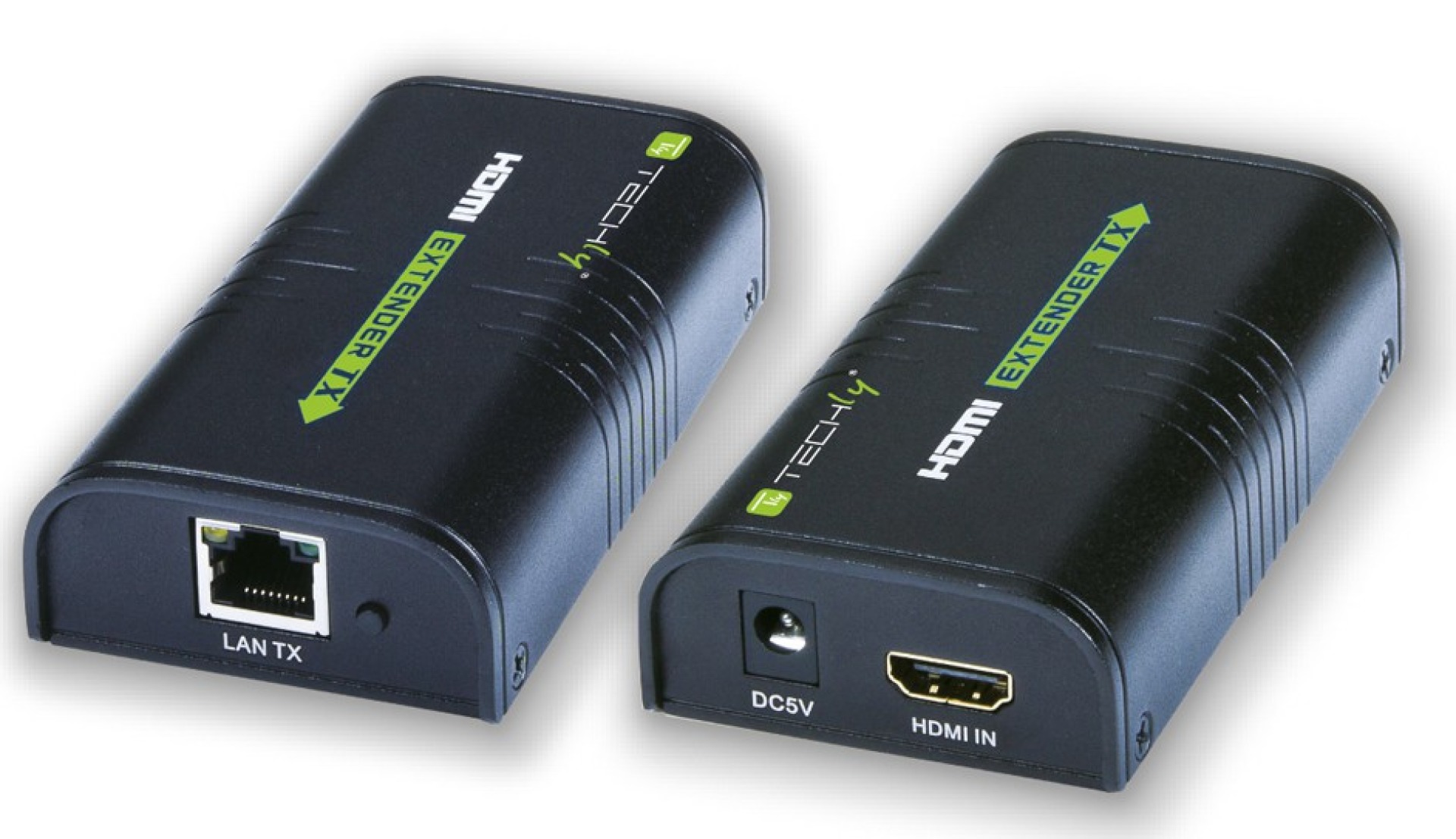

HDMI Extender/Splitter IP (120m)
HDMI Extender/Splitter IP (120m)
Varenummer:
IDATA-EXTIP-373
EAN Nr.:
8057685306004
Produktinformation til HDMI Extender/Splitter IP (120m)

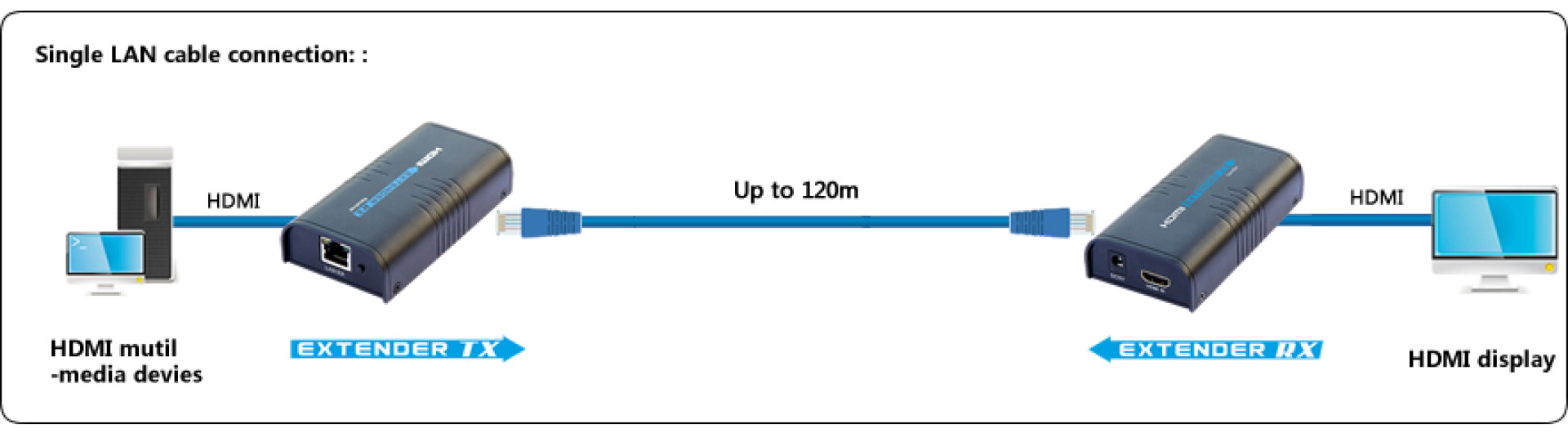

•Carry your HDMI signal up to 120 m using a network cable Cat. 6

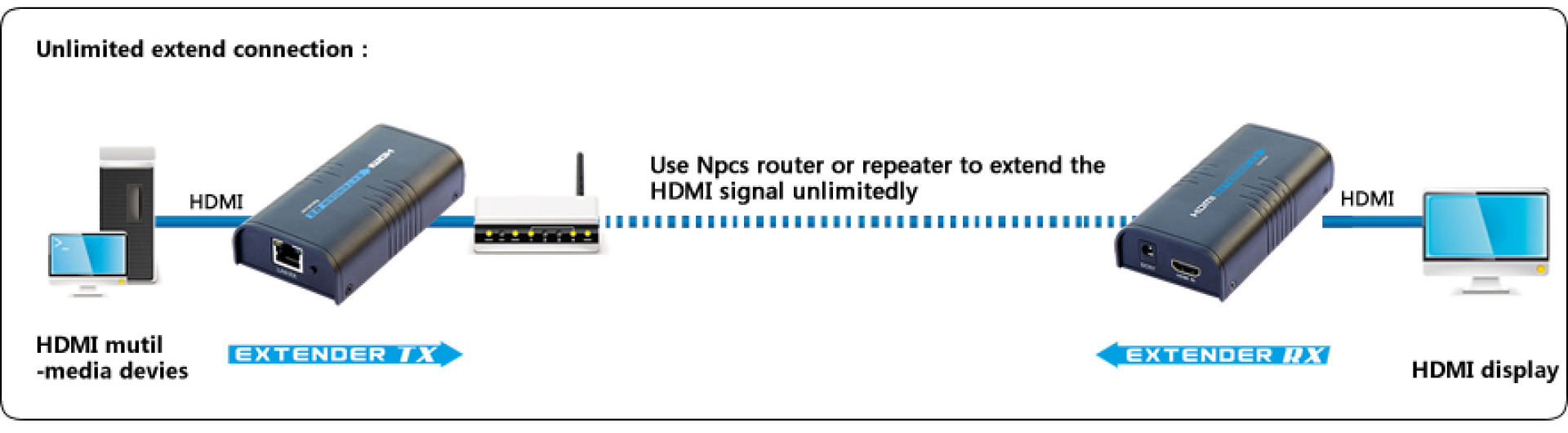

• The local unit enables to share the data to several remote units, if it is connected to those remote units via a switching hub
Specifications
• Supports HDCP 1.2
• Resolution HDMI input: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Resolution HDMI output: 480p / 60Hz, 576p / 50Hz, 720p / 50/60Hz, 1080p / 50/60Hz
• Color Format Video Support: 24bit / 30bit Deep color / Deep color 36bit
• Supported audio format: DTS-HD / Dolby True-HD / LPCM 7.1 / DTS / Dolby-AC3 / DSD
• Maximum Transmission Speed: 10.2Gbps
• TMDS signal: 0.5-1.5Vp-p (TMDS)
• DDC Signal: 5Vp-p (TTL)
• Cable length input: ≤5m (High Speed HDMI Cable AWG26)
• Length of output cable: ≤5m (High Speed HDMI Cable AWG26)
• Connector Type: RJ45
• Interface: Cat. 5e / 6
• Transmission distance: up to 120m Cat. 6 cable (Cat. 5e up to 100m)
• Wiring Standard: TIA / EIA 568 B
• Power supply: DC5V
• Power consumption: <3.6W
• Operating temperature: 0-55℃
• Storage temperature: -20 - 70℃ (non-condensing)
• Dimensions (WxDxH): 5.7 x 10.6 x 2.6 cm
• Package Contents
• Transmitter
• Receiver
• 2x Power
• Instruction Manual
• The local unit enables to share the data to several remote units, if it is connected to those remote units via a switching hub
Specifications
• Supports HDCP 1.2
• Resolution HDMI input: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Resolution HDMI output: 480p / 60Hz, 576p / 50Hz, 720p / 50/60Hz, 1080p / 50/60Hz
• Color Format Video Support: 24bit / 30bit Deep color / Deep color 36bit
• Supported audio format: DTS-HD / Dolby True-HD / LPCM 7.1 / DTS / Dolby-AC3 / DSD
• Maximum Transmission Speed: 10.2Gbps
• TMDS signal: 0.5-1.5Vp-p (TMDS)
• DDC Signal: 5Vp-p (TTL)
• Cable length input: ≤5m (High Speed HDMI Cable AWG26)
• Length of output cable: ≤5m (High Speed HDMI Cable AWG26)
• Connector Type: RJ45
• Interface: Cat. 5e / 6
• Transmission distance: up to 120m Cat. 6 cable (Cat. 5e up to 100m)
• Wiring Standard: TIA / EIA 568 B
• Power supply: DC5V
• Power consumption: <3.6W
• Operating temperature: 0-55℃
• Storage temperature: -20 - 70℃ (non-condensing)
• Dimensions (WxDxH): 5.7 x 10.6 x 2.6 cm
• Package Contents
• Transmitter
• Receiver
• 2x Power
• Instruction Manual
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
