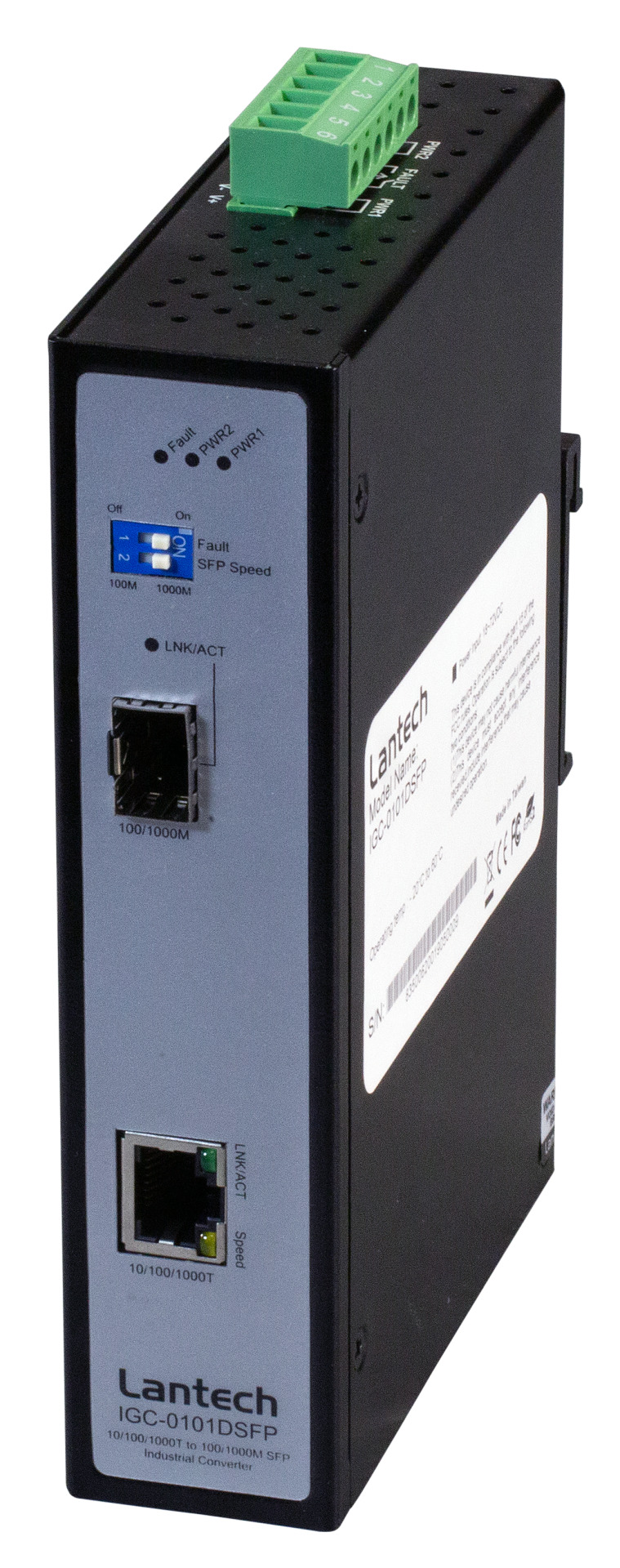

IGC-0101DSFP, Industrial Converter 1x 10/100/1000T - 1x SFP Dual Speed
Priser kun synlige for indloggede brugere
Industrial Converter 1x 10/100/1000T - 1x SFP Gigabit Ethernet
Varenummer:
IGC-0101DSFP
EAN nr.:
4713072943255
Produktinformation für Industrial Converter 1x 10/100/1000T - 1x SFP Gigabit Ethernet
Wide range of operation voltage 18 .. 72 V DC
Auto-MDI/MDI-X function
Dual Speed via DIP Switch
Redundant power supply input
Temperature range -20°C .. +60°C *
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply : DR-15-24
* extended temperature range types (-40°C .. +75°C) available on request
Auto-MDI/MDI-X function
Dual Speed via DIP Switch
Redundant power supply input
Temperature range -20°C .. +60°C *
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply : DR-15-24
* extended temperature range types (-40°C .. +75°C) available on request
Tekniske egenskaber
| LWL-Port: | 1 x MGBIC 1000Mbit/s |
|---|---|
| RJ45-Port: | 10/100/1000 T |
| Degree of protection: | IP30 |
| Depth: | 114.0 mm |
| Design: | Single device |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 163.0 mm |
| Managed: | False |
| Manufacturer: | LANTECH |
| Mode: | MM or SM |
| Number of 10/100/1000 Mbps RJ45-Ports: | 1 |
| Number of Mini-GBIC-Ports: | 1 |
| Power over Ethernet: | False |
| Suitable for 19 inch mounting: | False |
| Width: | 35.0 mm |
