INFRALAN® Splice box sliding version LC OM4
INFRALAN® Splicebox sliding version LC, 12 stripped pigtails/ 6 adapter, OM4
Varenummer:
ISB-LCDU-06-4-SW-ABA
EAN Nr.:
4049759262785
Produktinformation til INFRALAN® Splicebox sliding version LC, 12 stripped pigtails/ 6 adapter, OM4

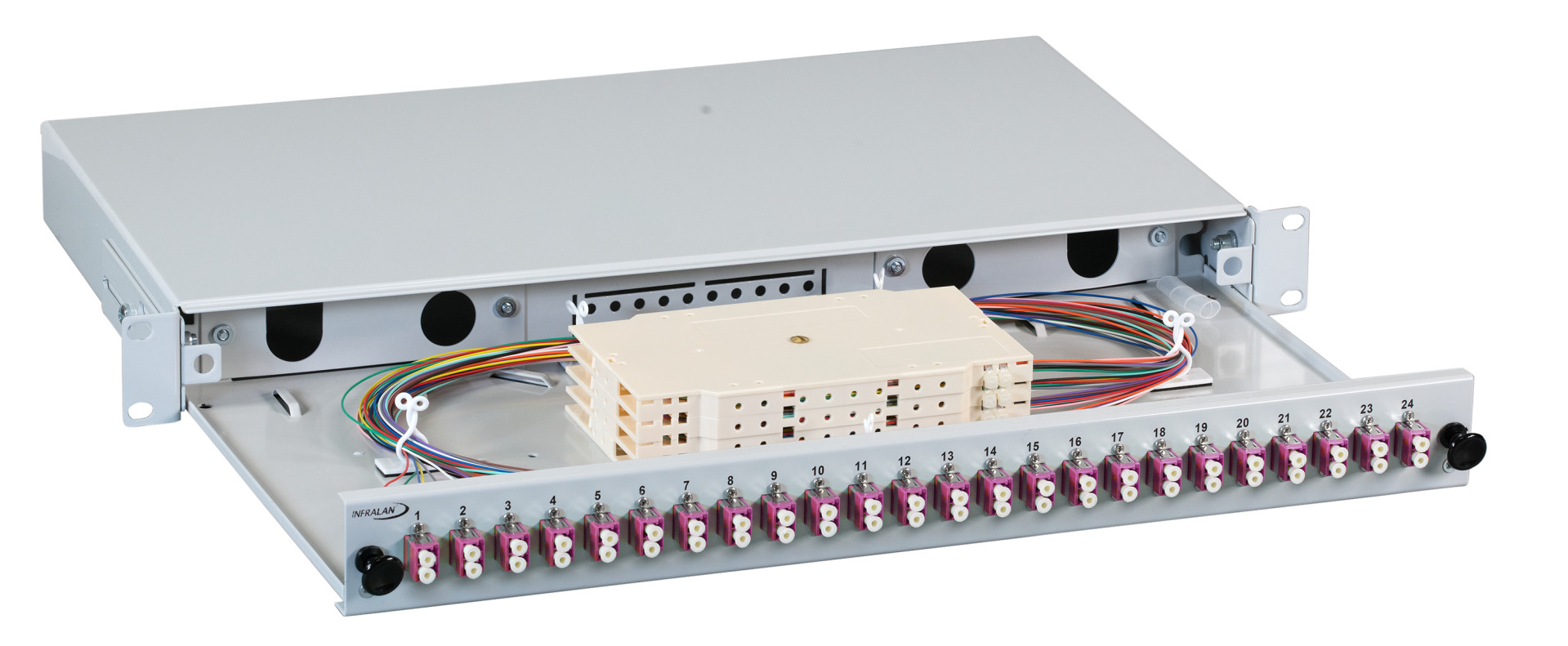

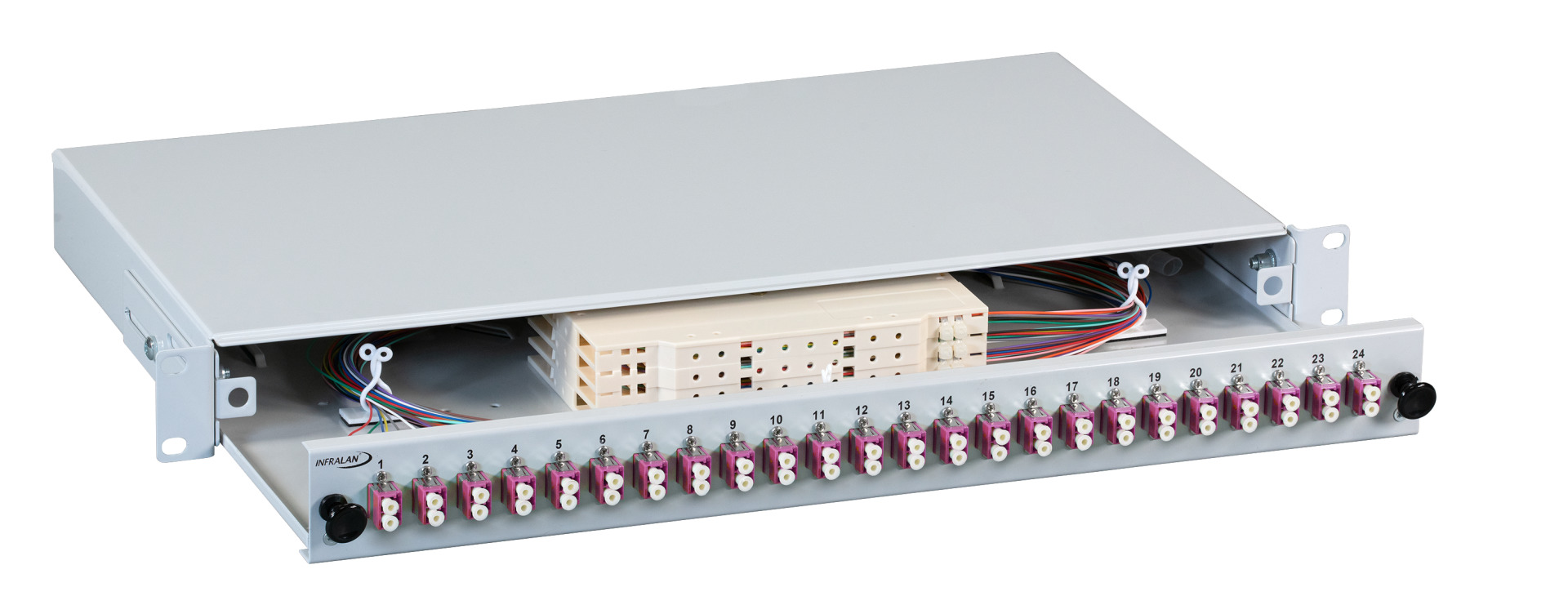

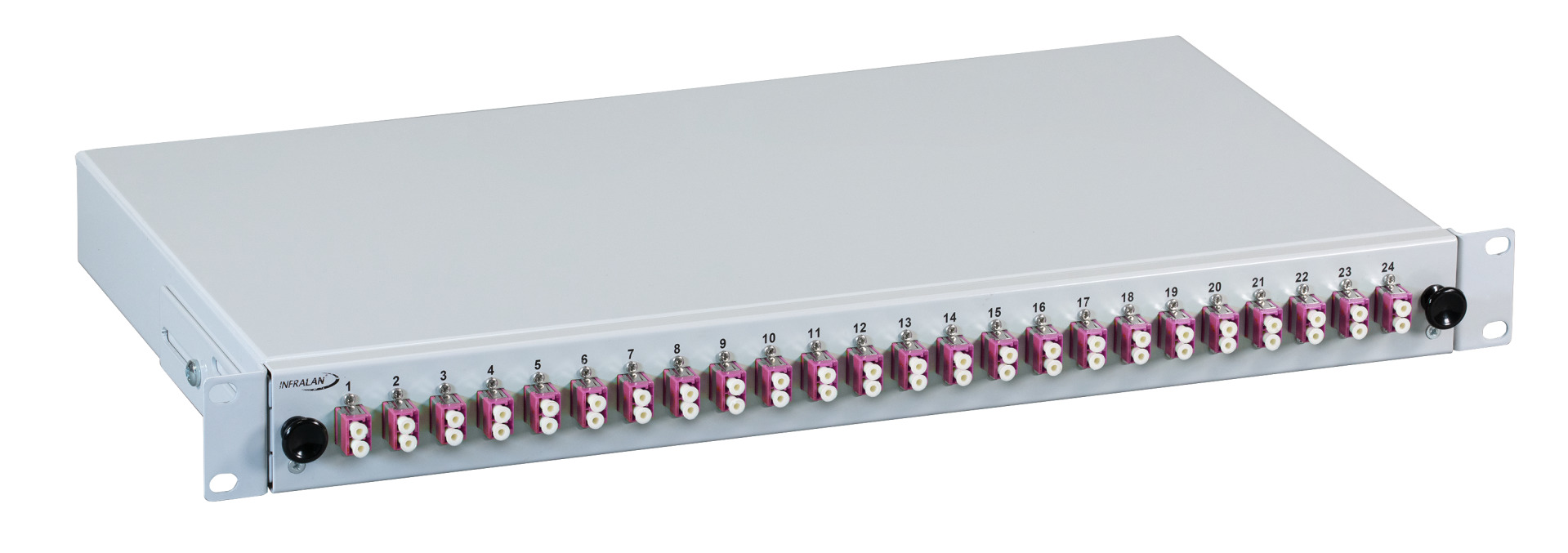

Completely equipped INFRALAN® splice box with adapter and through-dyed pigtails
The LC Pigtails are stripped off and inserted into the splice cassette
Measurement protocols of LC Pigtails are stored in the box
Metal housing depth adjustable (45mm) via 19" mounting bracket
All versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.
Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm).
incl. 1 x PG16
6 x self-adhesive fiber guides
The LC Pigtails are stripped off and inserted into the splice cassette
Measurement protocols of LC Pigtails are stored in the box
Metal housing depth adjustable (45mm) via 19" mounting bracket
All versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.
Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm).
incl. 1 x PG16
6 x self-adhesive fiber guides
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OM4 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianten
| Art. Nr. | Bezeichnung | Type of connector external | Color | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|
| ISB-LCDU-06-4-SW-ABA | INFRALAN® Splicebox sliding version LC, 12 stripped pigtails/ 6 adapter, OM4 | LC-Duplex | black | 12 x LC | 6 | 9005 | LC-Duplex | violet | |
| ISB-LCDU-12-4-SW-ABA | INFRALAN® Splicebox sliding version LC, 24 stripped pigtails/ 12 adapter, OM4 | LC-Duplex | black | 24 x LC | 12 | 9005 | LC-Duplex | violet | |
| ISB-LCDU-24-4-SW-ABA | INFRALAN® Splicebox sliding version LC, 48 stripped pigtails/ 24 adapter, OM4 | LC-Duplex | black | 48 x LC | 24 | 9005 | LC-Duplex | violet | |
| ISB-LCDU-06-4-GR-ABA | INFRALAN® Splicebox sliding version LC, 12 stripped pigtails/ 6 adapter, OM4 | LC-Duplex | grey | 12 x LC | 6 | 7035 | LC-Duplex | violet | |
| ISB-LCDU-12-4-GR-ABA | INFRALAN® Splicebox sliding version LC, 24 stripped pigtails/ 12 adapter, OM4 | LC-Duplex | grey | 24 x LC | 12 | 7035 | LC-Duplex | violet | |
| ISB-LCDU-24-4-GR-ABA | INFRALAN® Splicebox sliding version LC, 48 stripped pigtails/ 24 adapter, OM4 | LC-Duplex | grey | 48 x LC | 24 | 7035 | LC-Duplex | violet |
