LANSmart Netzwerktester
Priser kun synlige for indloggede brugere

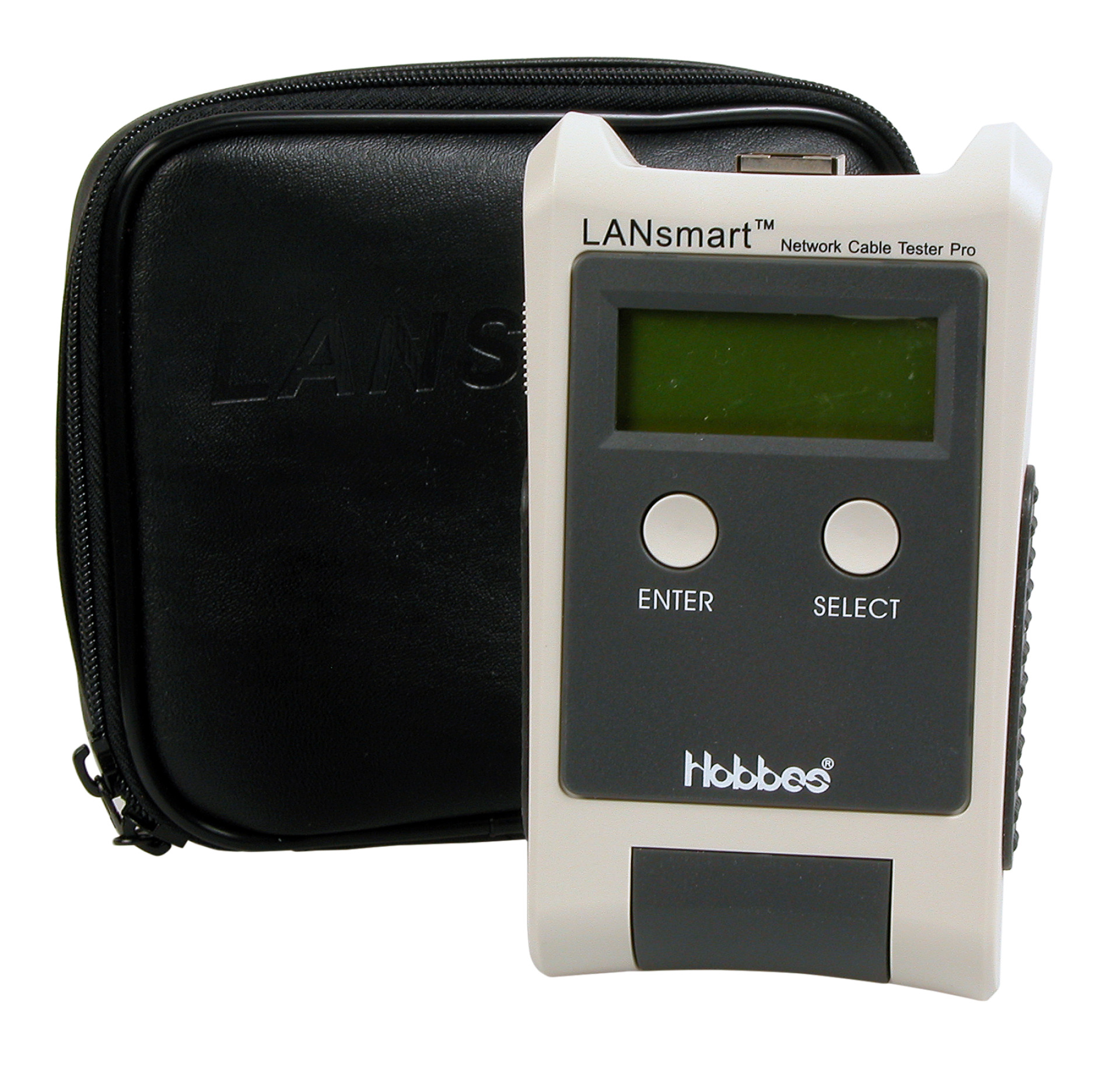

LANSmart network tester with LCD display, TDR technology
Varenummer:
39978.1
EAN nr.:
4049759029005
Produktinformation für LANSmart network tester with LCD display, TDR technology
Handy high-tech measuring for network professionals
Technology: Time-domain reflectometer based
Cable length measurement possible without remote unit
RJ45 patch cable or raw cable measurable
Detects pinning, pair assignment, short-cuts
Port finder function:
LANSmart makes the link LED of the hub/switch/MC/NIC light up
Master and remote unit RJ45, plugable
LCD display: 122x32 dot matrix 56x29mm
Measuring accuracy: Below 10m +-2m, above 10m +-5%
Length measuring range: min.: 1m - max.: 500m
Tone generator: 1kHz
Dimensions: 82x138x32mm, 220g
Power supply: 4.5VDC (3 x AAA micro) (not included)
CE tested
Technology: Time-domain reflectometer based
Cable length measurement possible without remote unit
RJ45 patch cable or raw cable measurable
Detects pinning, pair assignment, short-cuts
Port finder function:
LANSmart makes the link LED of the hub/switch/MC/NIC light up
Master and remote unit RJ45, plugable
LCD display: 122x32 dot matrix 56x29mm
Measuring accuracy: Below 10m +-2m, above 10m +-5%
Length measuring range: min.: 1m - max.: 500m
Tone generator: 1kHz
Dimensions: 82x138x32mm, 220g
Power supply: 4.5VDC (3 x AAA micro) (not included)
CE tested
Tekniske egenskaber
| Dimensions: | 82 x 138 x 32 mm |
|---|---|
| Measured value memory: | False |
| Storage Temperature: | -30 – 50 °C |
| Suitable for network protocol measurement: | False |
| Type of indication: | LCD |
| With PC/printer interface: | False |
