Cat.7 Patch cable Draka UC900 1000 MHz PIMF S/FTP
Priser kun synlige for indloggede brugere

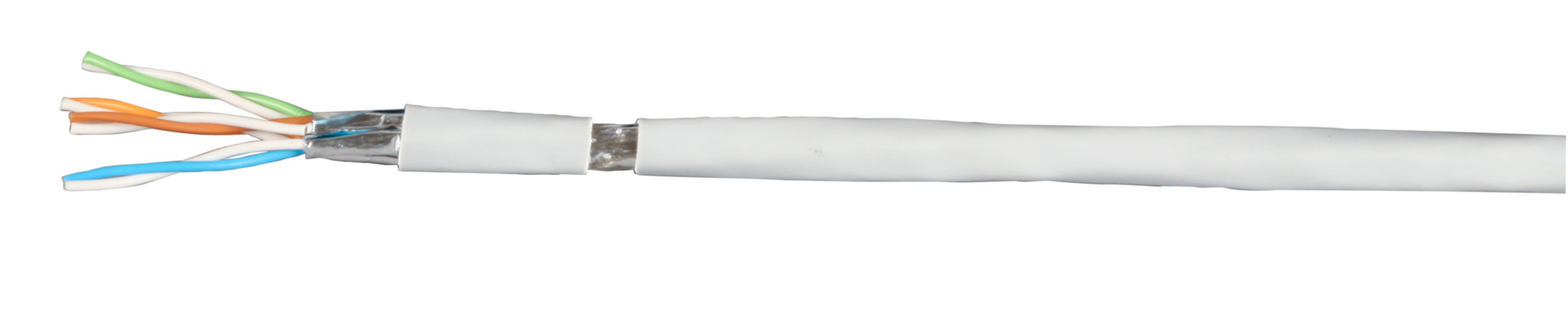

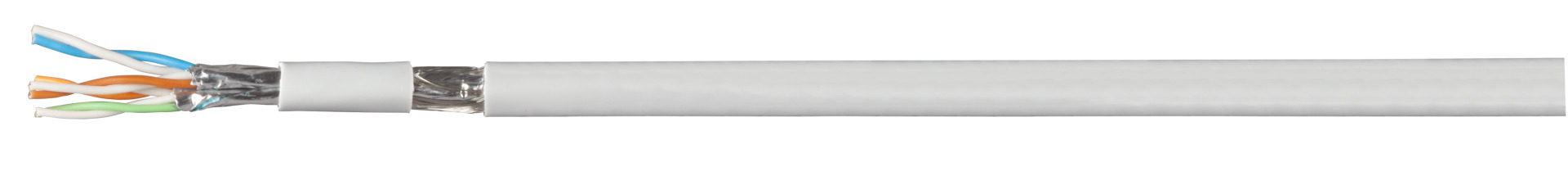

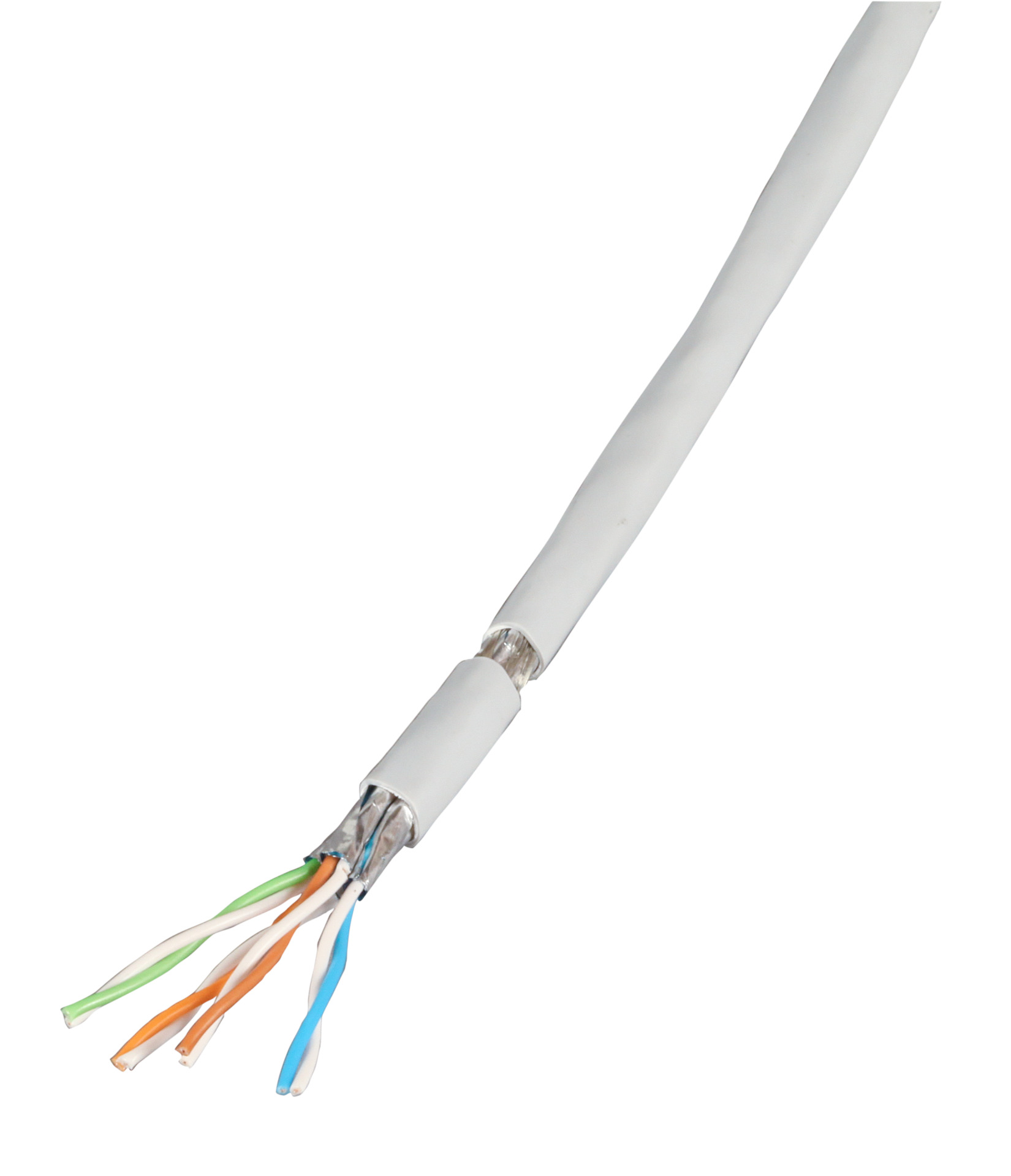

Patch cable Cat.7 PiMF UC900MHz SS27 4P, FRNC-B, grey
Varenummer:
99701.1
EAN nr.:
4049759074609
Produktinformation für Patch cable Cat.7 PiMF UC900MHz SS27 4P, FRNC-B, grey
Cat.7 Patch cable - overtakes the requirements of ISO/IEC 11801, IEC 61156-6, EN 50173-1 and EN 50288-4-2. Useable for all ICT - applications up to class F according to EN 50173-1 and ISO/IEC 11801, furthermore also for multimedia - applications in CATV - frequency range up to 862 MHz according to IEC 15018. Suitable for performance of Power over Ethernet (PoE) / PoE+.
Tekniske egenskaber
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| AWG-size: | 27/7 |
| Bending radius (dynamic): | 50 mm |
| Bending radius (static): | 25 mm |
| Cable: |
EN 50288-4-1 IEC 61156-6 |
| Cable Construction: | S/FTP |
| Cable type: | Draka UC900 SS27 |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Category: | 7 |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Cu, tinned |
| Core identification: | Colour |
| Core insulation: | foam-skin PE |
| Coupling attenuation: | 85 dB |
| Delay skew: | 12 ns/100m |
| Diameter conductor: | 0.42 mm |
| Euro class: | Eca |
| Flame-retardant: | According to IEC/EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ± 5 Ohm |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket material: | FRNC-B |
| Loop resistance: | 340 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Low smoke (acc. EN 61034-2): | True |
| Max. Freuqency: | 1000 MHz |
| NVP value: | 79 % |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ yes |
| Resistance unbalance: | 3 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil + braiding |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | 10 mOhm/m |
| Transfer impedance at 10MHz: | 10 mOhm/m |
| Transfer impedance at 30MHz: | 30 mOhm/m |
| UV resistance: | no |
Varianter
| Art. Nej. | Betegnelse | Length | Number of cores | Type | Colour outer sheath | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 99701.1 | Patch cable Cat.7 PiMF UC900MHz SS27 4P, FRNC-B, grey | 1.0 m | 8 | simplex | grey | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99702.100 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, yellow | 100.0 m | 8 | simplex | yellow | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99703.100 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, red | 100.0 m | 8 | simplex | red | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99704.100 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, blue | 100.0 m | 8 | simplex | blue | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |

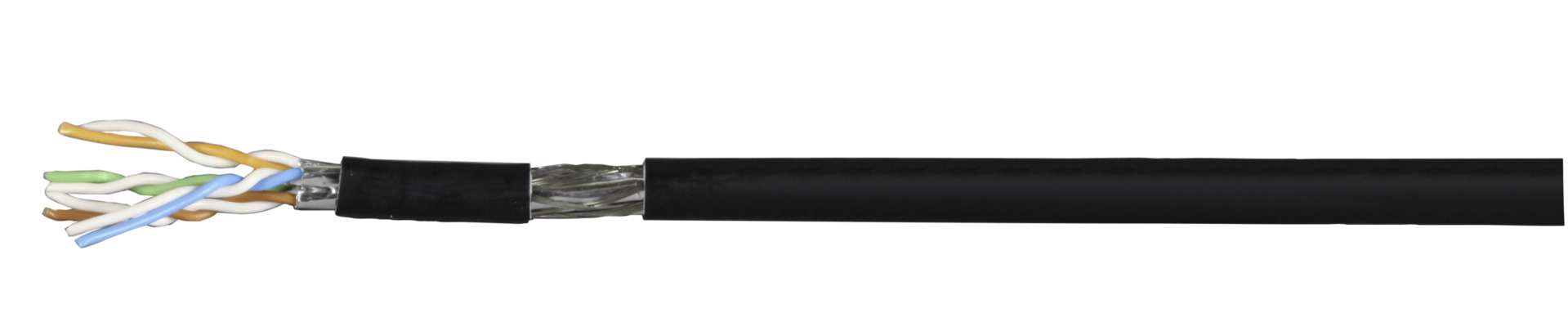

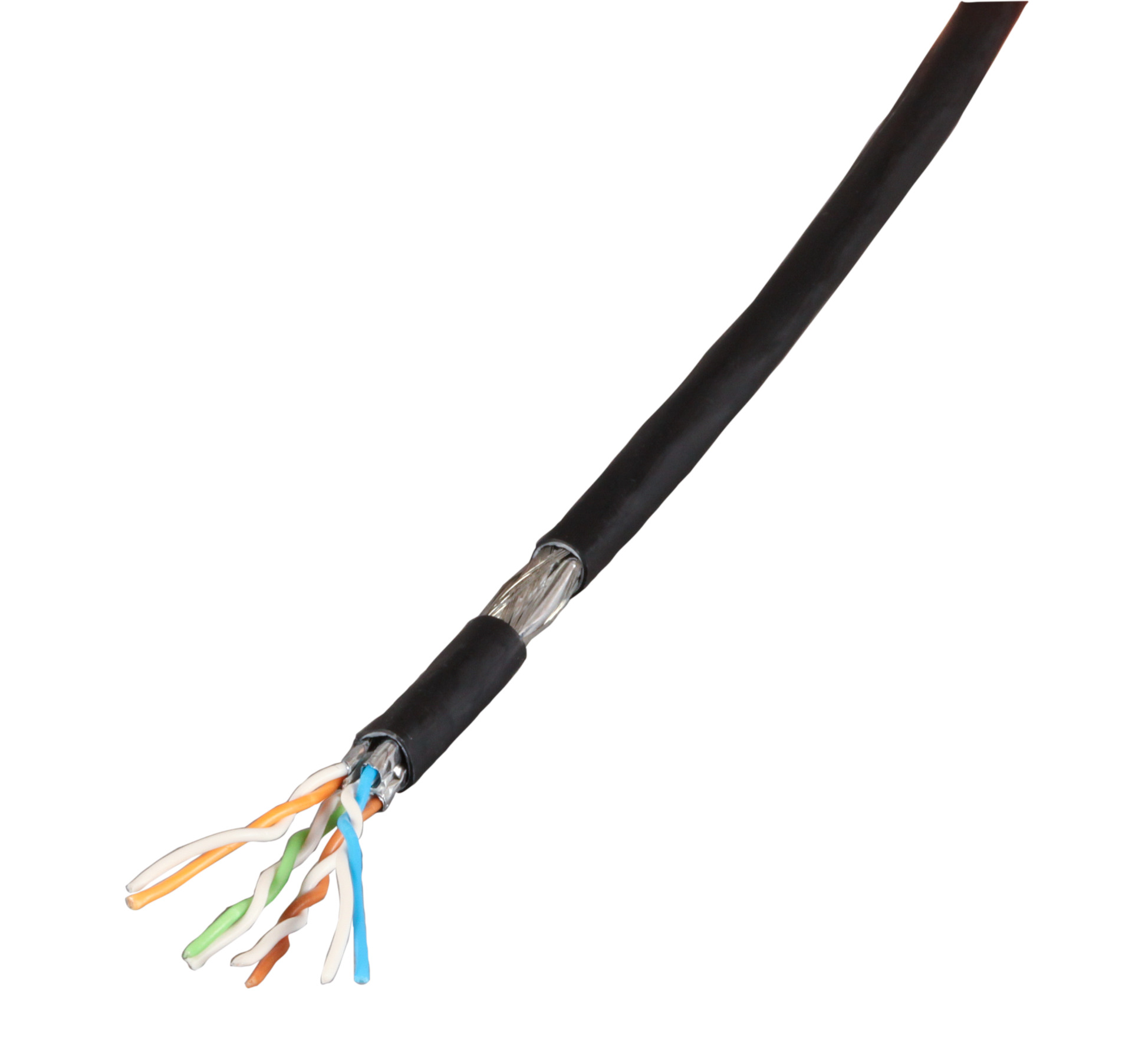

| 99705.1 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, black | 1.0 m | 8 | simplex | black | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99706.100 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, green | 100.0 m | 8 | simplex | green | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99707.1 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, orange | 1.0 m | 8 | simplex | orange | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99708.1 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, white | 1.0 m | 8 | simplex | white | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99709.100 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, erika-violet | 100.0 m | 8 | simplex | magenta | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99702.1 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, yellow | 1.0 m | 8 | simplex | yellow | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99703.1 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, red | 1.0 m | 8 | simplex | red | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99704.1 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, blue | 1.0 m | 8 | simplex | blue | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99706.1 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, green | 1.0 m | 8 | simplex | green | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km | |
| 99709.1 | Patch cable Cat.7 P UC900 Draka 1000MHz, S/FTP, erika-violet | 1.0 m | 8 | simplex | magenta | 24 kg/km | 39 kg/km | 100 N | 5.9 mm | 349 MJ/km |
