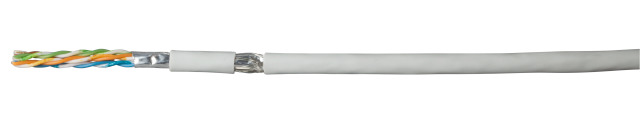

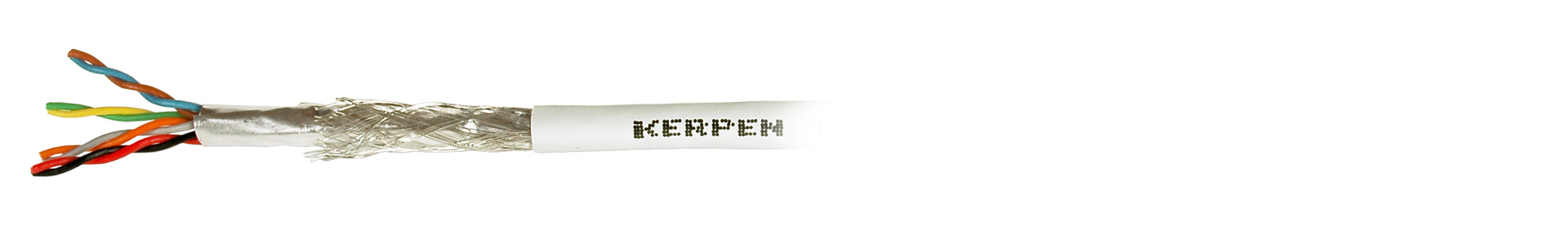

Cat.5e 200 MHz F/UTP Kerpen Megaline D1-20 SF/U flex 4P H, grey

Priser kun synlige for indloggede brugere

PatchC. Cat.5E KML D1-20 SF/U Flex 4P H, 200MHz, grey,100m
Varenummer: 99526.100
EAN nr.: 4049759074524

Produktinformation für PatchC. Cat.5E KML D1-20 SF/U Flex 4P H, 200MHz, grey,100m

MegaLine ® D1-20 SF/U flex. Electrically and mechanically high-quality 200 MHz patch cable.
Especially for application of class D.

Tekniske egenskaber

(Halogenfree): acc. EN 60754-1/2
AWG-size: 26/7
Bending radius (dynamic): 40 mm
Bending radius (static): 20 mm
Cable: EN 50288-2
Cable Construction: SF/UTP
Cable type: Kerpen MegaLine D1-20 SF/U flex
Cabling standards: EN 50173-1, ISO/IEC 11801
Category: 5E
Conductor category: Class 2 = stranded
Conductor material: Cu, tinned
Core identification: colour
Core insulation: PE
Delay skew: 18 ns/100m
Flame-retardant: According to IEC/EN 60332-1-2
Halogen free (acc. EN 50267-2-2): True
Halogen free (according to EN 60754-1/2): True
Impedance: 100 ± 5 Ohm
Installation standard: EN 50174
Insulation resistance (500V): 500 MOhm/km
Jacket material: FRNC-B
Loop resistance: 290 Ohm/km
Low smoke: acc. EN 61034
Low smoke (acc. EN 61034-2): True
Max. Freuqency: 200 MHz
NVP value: 69 %
Operating temperature, fix: -20 – 60 °C
Operating temperature, flexible: 0 – 50 °C
PoE: acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, yes
Resistance unbalance: 3 %
Screen over stranding: foil + braid
Screen over stranding element: without
Stranding element: Pairs
Test voltage DC, 1 min: 1000 V
Transfer impedance at 10MHz: 10 mOhm/m
UV resistance: no
