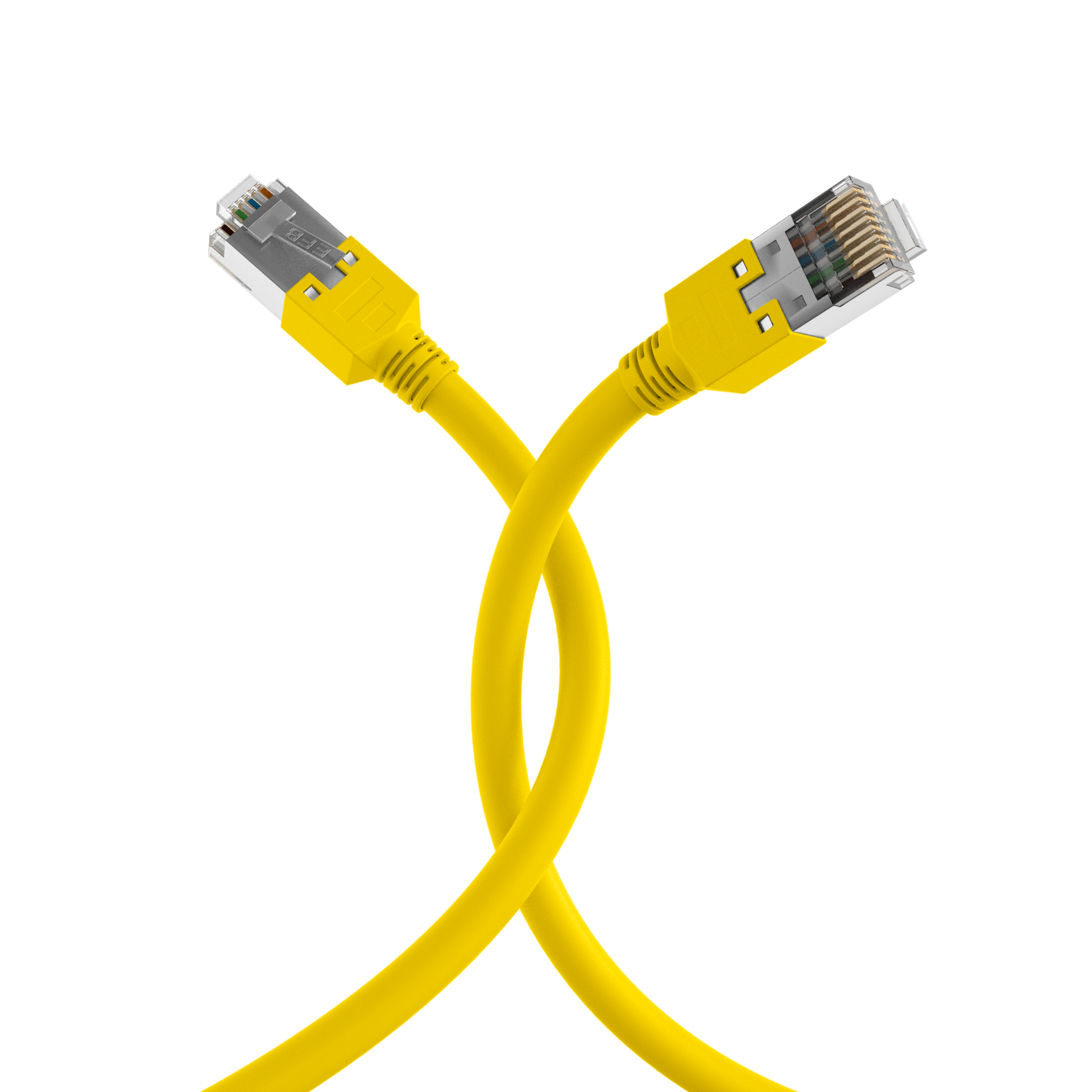

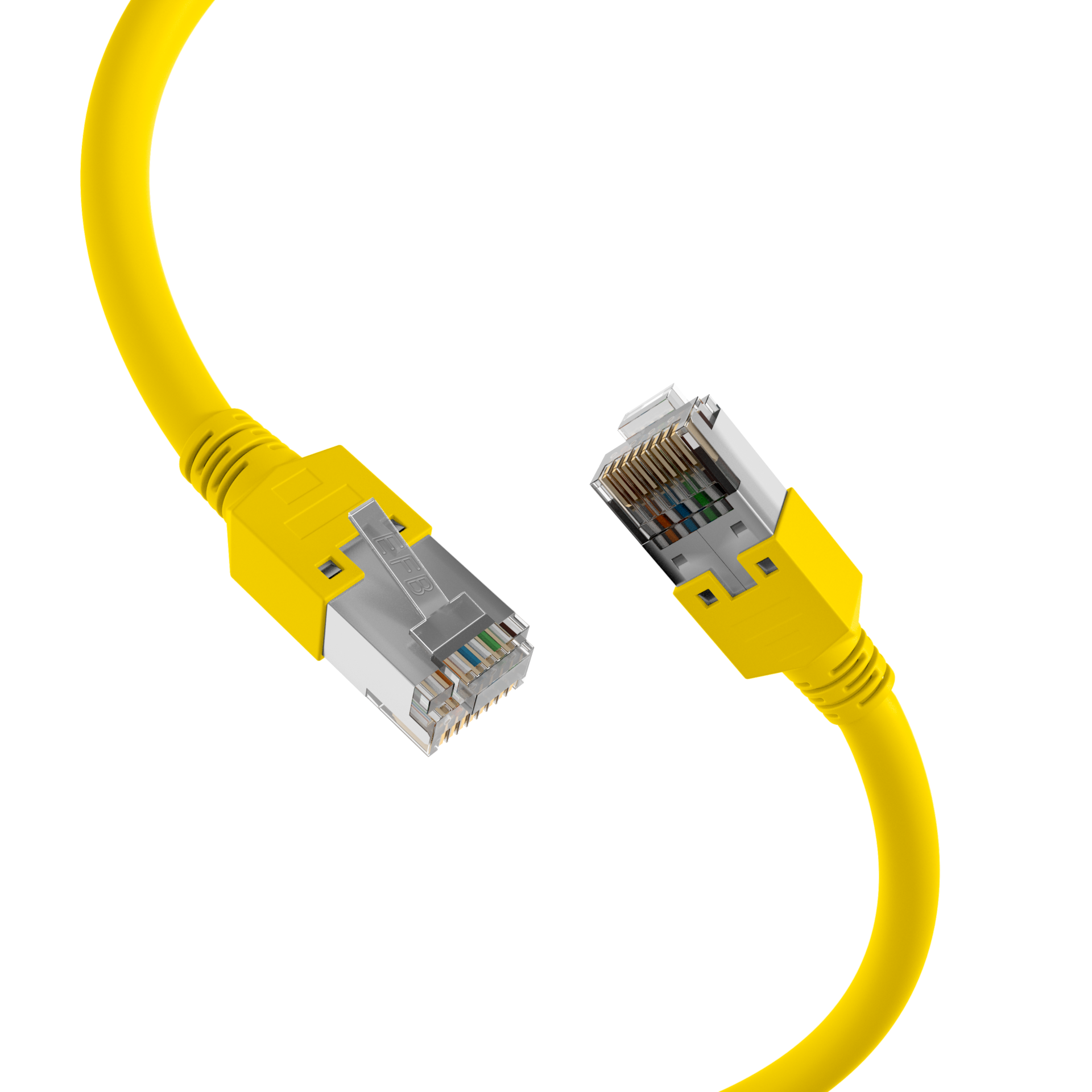

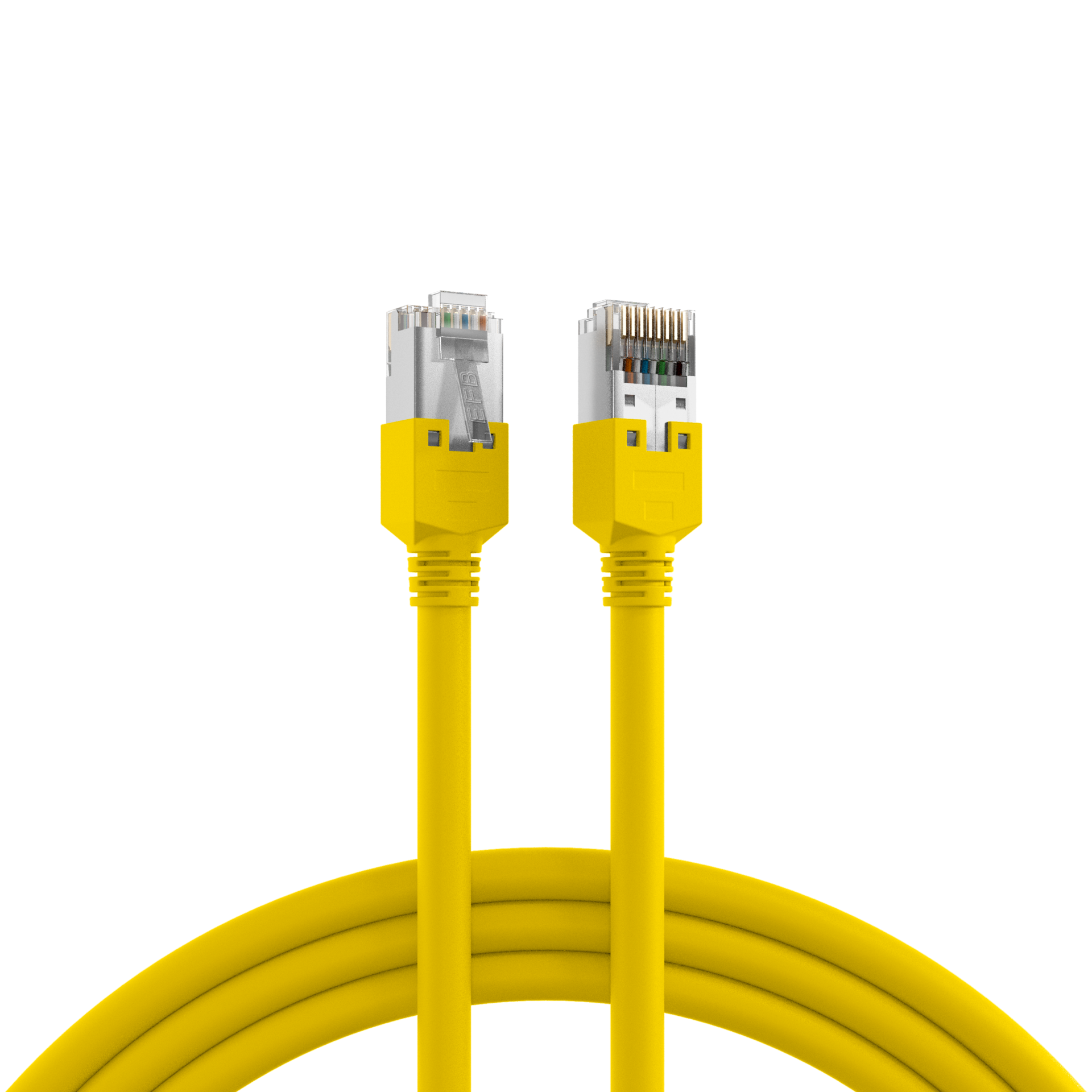

RJ45 Patch Cord Cat.5e F/UTP LSZH Draka UC300 TM11 yellow
RJ45 Patch Cord Cat.5e F/UTP LSZH Draka UC300 TM11 yellow
Varenummer:
K8075.0,15
EAN Nr.:
4049759236557
Produktinformation til RJ45 Patch Cord Cat.5e F/UTP LSZH Draka UC300 TM11 yellow
RJ45 patch cable Cat.5e F/UTP LSZH Draka UC300 TM11
The Cat.5e patch cable has gold-plated contacts and enables 2.5Gbit Ethernet as a transmission standard.
Technical product properties
• Cat.5e
• F/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is according to TIA/EIA 568B and is 1:1 .
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
The Cat.5e patch cable has gold-plated contacts and enables 2.5Gbit Ethernet as a transmission standard.
Technical product properties
• Cat.5e
• F/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is according to TIA/EIA 568B and is 1:1 .
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 26/7 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | nach IEC60332-1 |
| Außendurchmesser des Kabels: | 5,4 mm |
| Bandbreite: | 100MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >20 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Farbe der Knickschutztülle: | gelb |
| Geeignet für Schutzart (IP): | IP20 |
| Halogenfrei: | nach IEC60754-2 |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±15 Ω |
| Isolationswiderstand: | > 2000 MΩ |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | F/UTP |
| Kabeltyp nach Hersteller: | Draka UC300 S26 |
| Kategorie: | 5E |
| Knickschutztülle: | aufgesteckt |
| Kontakte: | Vergoldet |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 130 Ω/km |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | gelb |
| Mantel-Material: | LSZH |
| NVP-Wert: | 67 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Nein |
| Raucharm: | nach IEC61034 |
| Schirmkontaktierung: | 360° Schirmbefestigung |
| Schleifenwiderstand: | < 260 Ω/km |
| Steckertyp: | TM11 |
| Steckverbinder: | IEC 60603-7-3 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | -20 – 60 °C |
| Temperaturbereich (Betrieb): | -20 – 60 °C |
| Temperaturbereich (Installation): | 0 – 50 °C |
| UL approbiert: | Nein |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Widerstandsunsymmetrie: | 3 % |
| Ölbeständig: | Nein |
| Übertragung: | 2,5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K8075.0,50 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.1 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.1,5 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 1,5m | 1,5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.2 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.3 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.5 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.7,5 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.10 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.15 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 15m | 15,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.20 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8075.25 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 25m | 25.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at | ±5 % | |
| K8075.30 | RJ45 Patch Cord Cat.5e F/UTP LSZHDraka UC300 TM11 yellow 30m | 30,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at | ±5 % | |
| K8075.0,15 | RJ45 Patch Cord Cat.5e F/UTP LSZH Draka UC300 TM11 yellow | 0.15 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8075.0,25 | RJ45 Patch Cord Cat.5e F/UTP LSZH Draka UC300 TM11 yellow | 0.25 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8075.40 | RJ45 Patch Cord Cat.5e F/UTP LSZH Draka UC300 TM11 yellow | 40.0 m | PoE nach IEEE802.3af | ±5 % | |
| K8075.50 | RJ45 Patch Cord Cat.5e F/UTP LSZH Draka UC300 TM11 yellow | 50.0 m | Nein | ±5 % |
