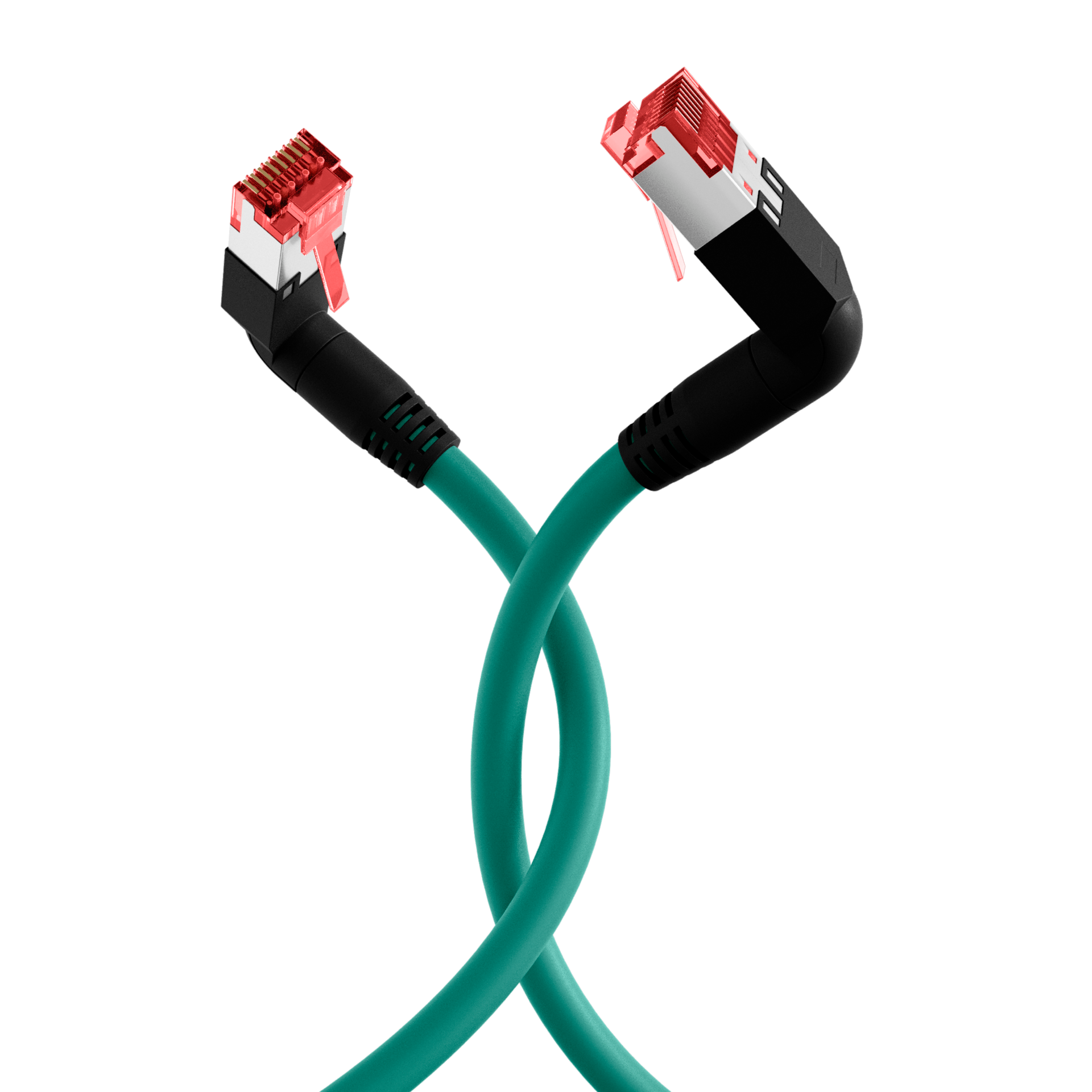

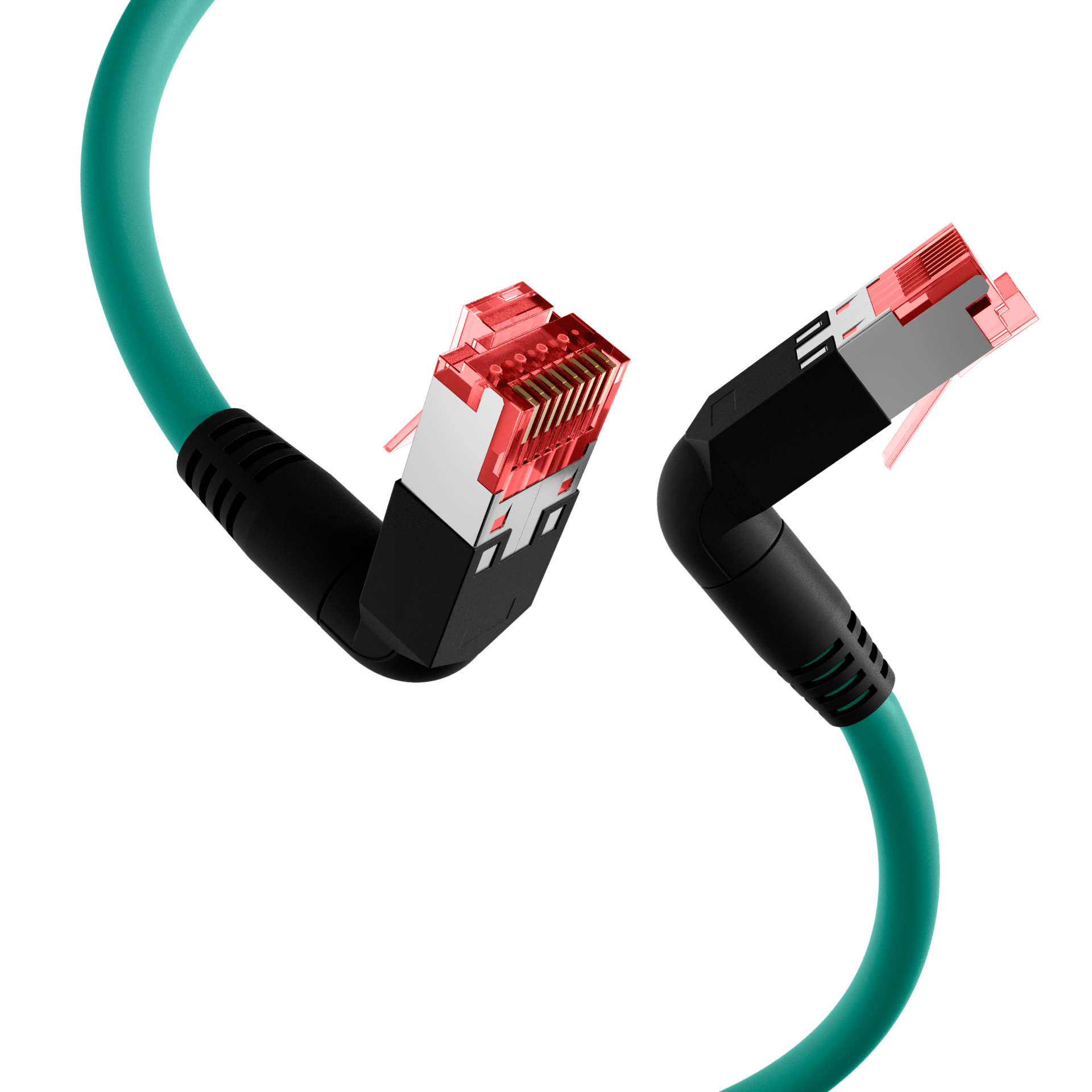

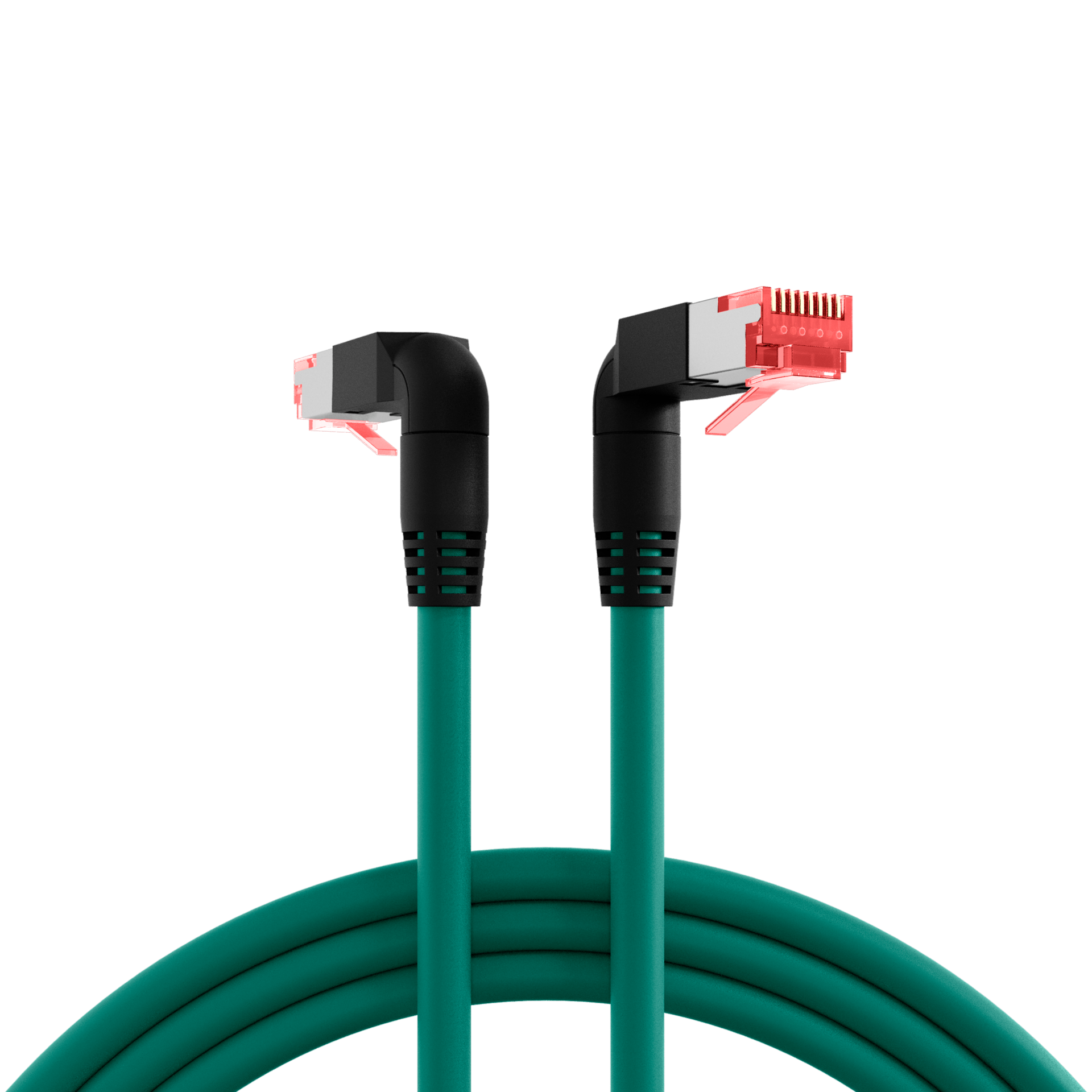

RJ45 Patch cable S/FTP, Cat.6A, 2x TM21 90°, UC900, green
Priser kun synlige for indloggede brugere

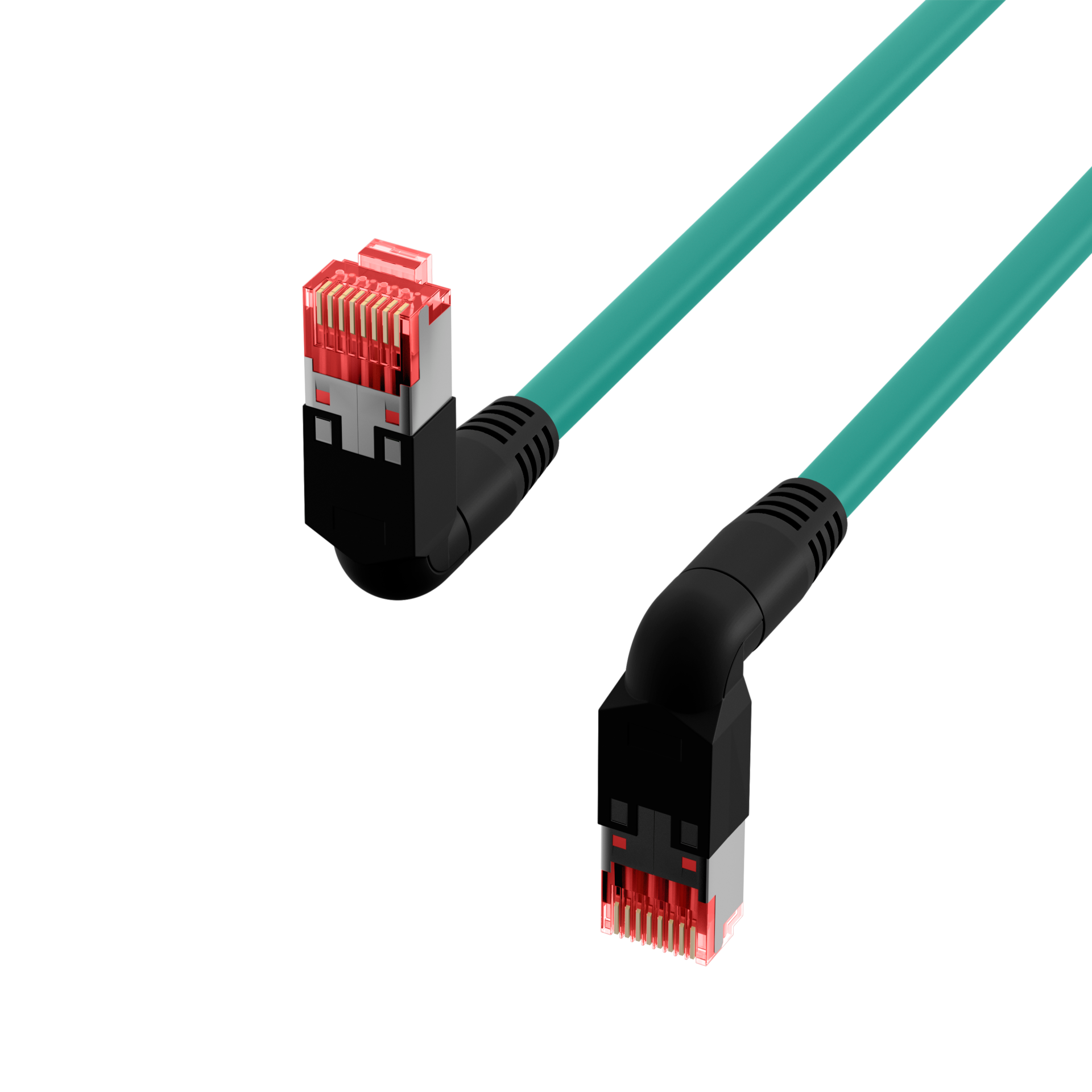

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 0,5m
Varenummer:
K4137GN.0,50
EAN nr.:
4049759011499
Produktinformation für RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 0,5m
The Cat.6A RJ45 patch cable manufactured in Europe guarantees very good characteristics for 10 Gigabit Ethernet applications. The patch cable is composed of the Cat.7 raw cable UC900 SS27 from Draka and TM21 connectors from Hirose. Due to the 90° angled grommet, the patch cable is well suited for limited space conditions.
Cross section 4 x 2 x AWG27/7
Mounted bend protection grommet 90° angled
Cross section 4 x 2 x AWG27/7
Mounted bend protection grommet 90° angled
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 27/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Draka UC900 SS27 Cat.7 PUR |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | green |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 170 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM21 red |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Euro class: | Eca |
| Fire retardant version: | True |
| Flame-retardant: | acc. IEC60332-1 |
| Halogen-free: | yes |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±25 Ω |
| Insulation resistance: | > 2000 MΩ |
| Jacket material: | LSZH |
| Locking lever: | True |
| Loop resistance: | < 340 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 79 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 5.9 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistance unbalance: | < 3 % |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Installation): | 0 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Test voltage: | 1000 V DC, 1min |
| Total screening: | ca. 45 % |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| K4137GN.0,50 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 0,5m | 0.5 m | ±5 % | |
| K4137GN.1 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 1m | 1.0 m | ±5 % | |
| K4137GN.1,5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 1,5m | 1.5 m | ±5 % | |
| K4137GN.2 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 2m | 2.0 m | ±5 % | |
| K4137GN.3 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 3m | 3.0 m | ±5 % | |
| K4137GN.5 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 5m | 5.0 m | ±5 % | |
| K4137GN.10 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 10m | 10.0 m | ±5 % | |
| K4137GN.15 | RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 2x90° green 15m | 15.0 m | ±5 % |
