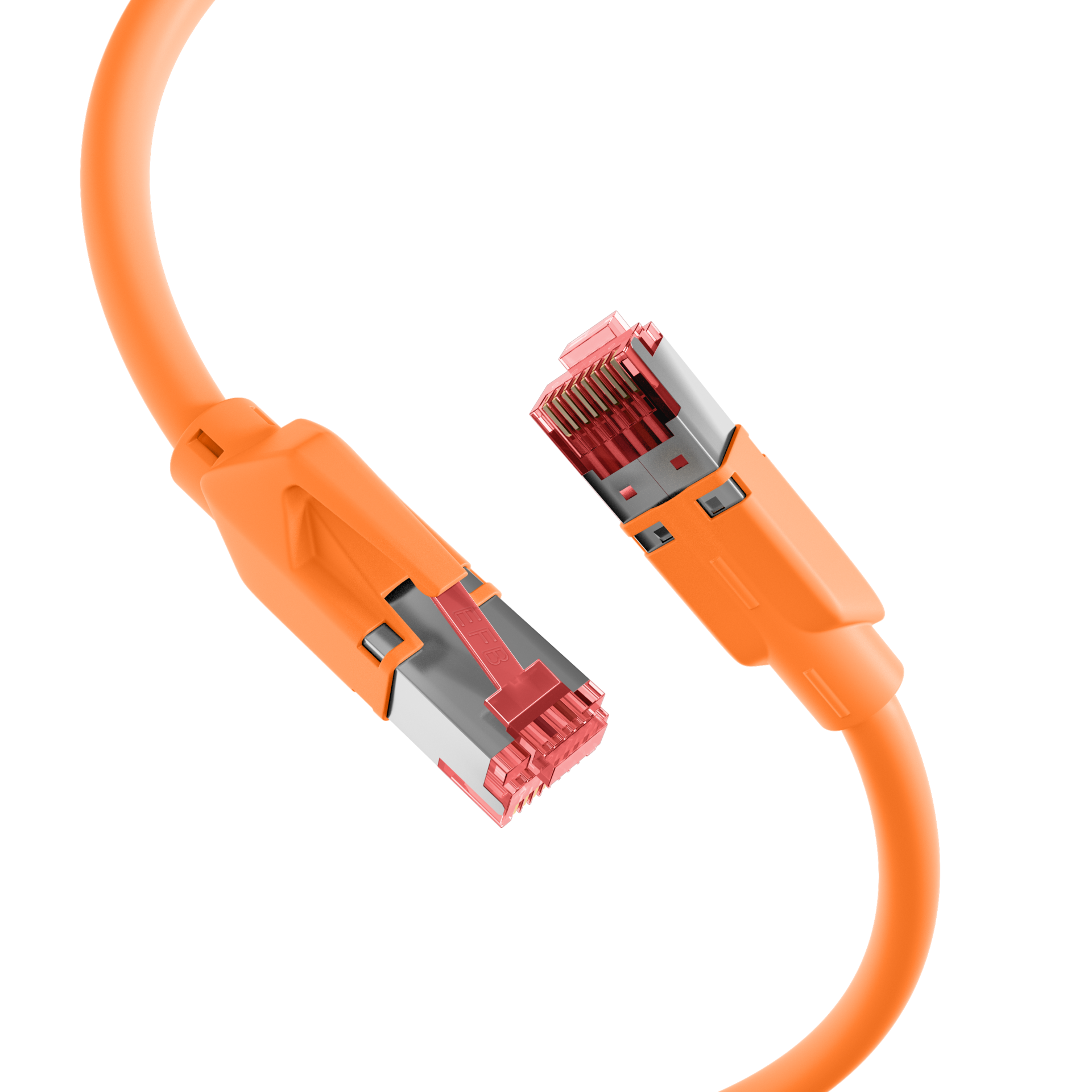

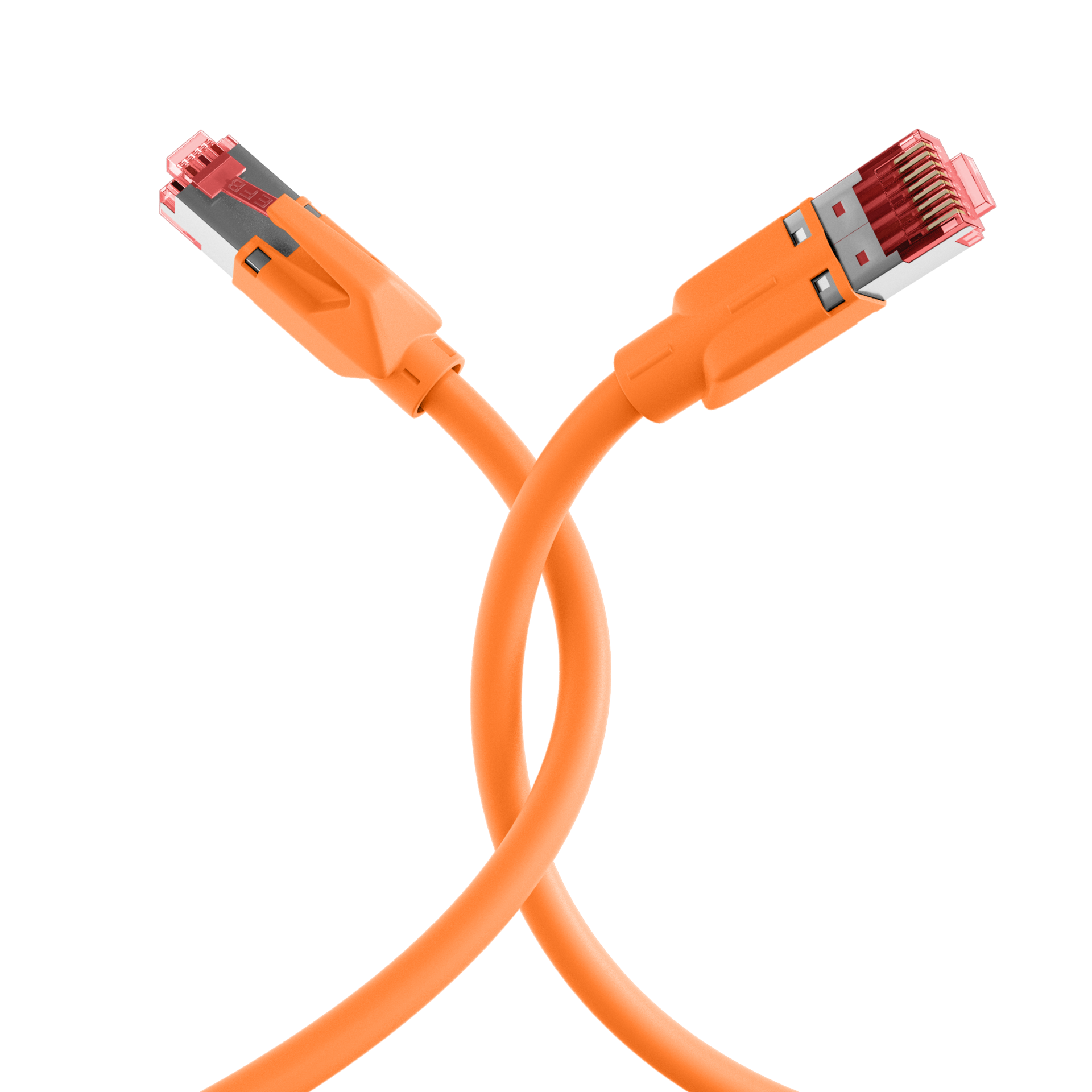

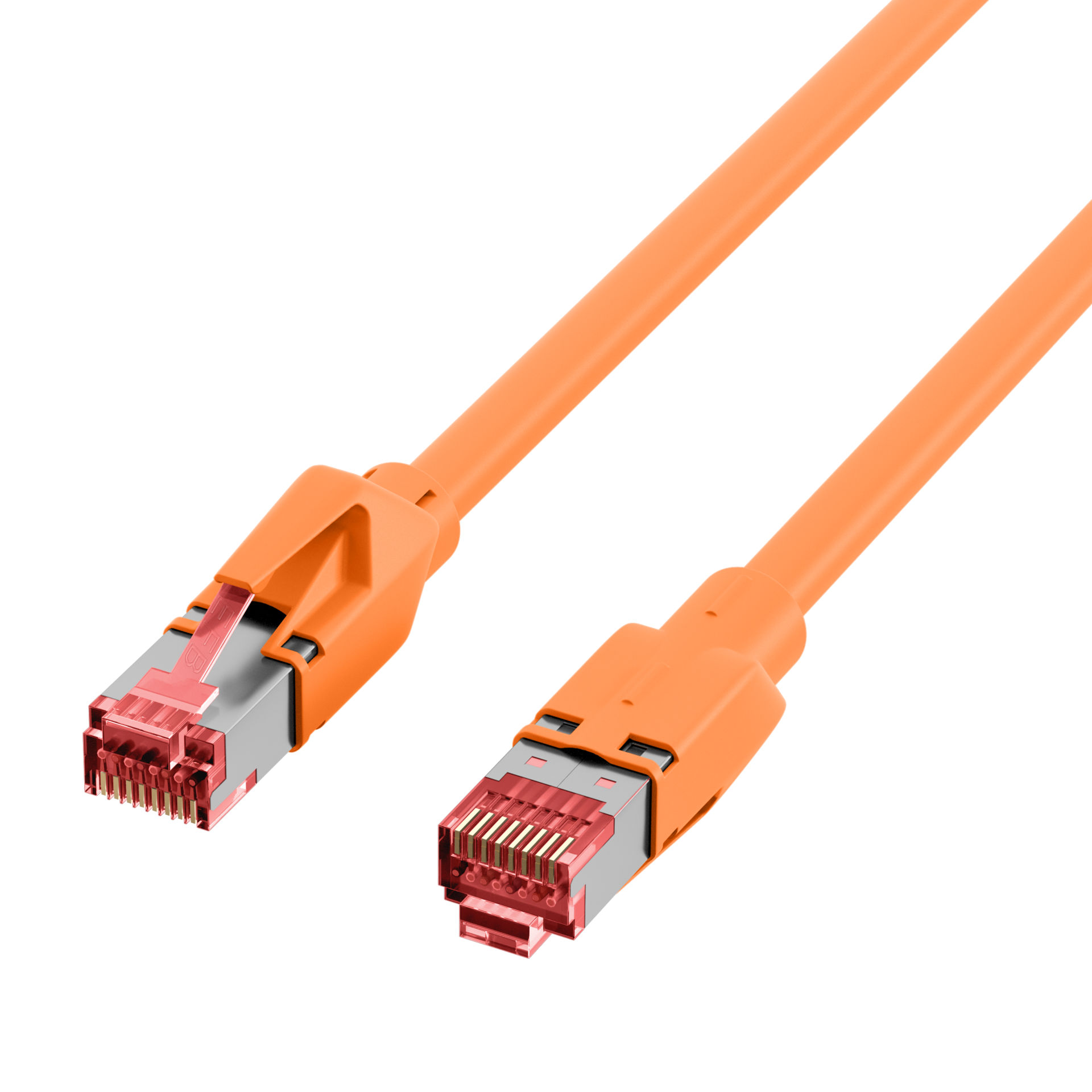

Name: RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange
Brand: EFB-Elektronik
SKU: K8056.0,25
Availability: InStock

RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange

Varenummer: K8056.0,25

EAN Nr.: 4049759199234

Length

Log ind for at se priser og bestille.

Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:

Piece

Log ind som kunde

Bitte erlauben Sie die Ausführung von JavaScript

Für dieses Formular benötigen Sie auf Grund der CAPTCHA-Verifikation JavaScript.

Beskrivelse

Produktinformation til RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange

RJ45 patch cable Cat.6A S/FTP LSZH Draka UC900 TM21

The Cat.6A (TIA) patch cable enables 10Gbit Ethernet as a transmission standard and has gold-plated contacts.

Technical product properties
• Cat. 6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts

The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

The assignment of the red TM21 plugs is according to TIA/EIA 568B and is 1: 1.

The Ethernet cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 500 MHz.

Tekniske egenskaber

AWG-size:	26/7
Allocation:	acc. TIA/EIA 568B
Anti-kink sleeve:	put-on
Area of application:	Industrial Ethernet
Area of application:	Structured cabling
Area of application:	Data center
Bending radius:	>25 mm
Cable construction:	4x2
Cable shape:	rund
Cable type:	S/FTP
Cabling standard:	EN50173
Cabling standard:	ISO/IEC 11801
Cabling standard:	ANSI/TIA-568
Category:	6A (TIA)
Colour anti-kink sleeve:	orange
Colour outer sheath:	orange
Conductive shield:	360° shield contact
Conductor Material:	Copper
Conductor resistance DC:	170 Ω/km
Connector:	IEC 60603-7-51
Connector type:	TM21 red
Contacts:	Gold plated
Current capacity:	max. 1 A
Euro class:	Eca
Fire retardant version:	acc. IEC60332-1
Halogen free:	acc. IEC60754-2
Harmonised Standard:	EN 50575
Impedance:	100 ±25 Ω
Insulation Resistance:	> 2000 MΩ
Jacket material:	LSZH
Length imprint:	False
Locking lever:	True
Loop resistance:	< 340 Ω/km
Low smoke:	acc. IEC61034
Mating cycles:	≥750
Model:	shielded
NVP value:	79 %
Oil resistant:	no
Operating-/ tempering voltage:	max. 50 V DC
Operating Temperature:	-20 – 60 °C
Outer diameter of the cable:	5.9 mm
Ozone resistance:	No
Pin assignment:	1:1
Raw cable:	Cat.7
Resistance unbalance:	< 3 %
Resistant to chemicals:	False
Suitable for degree of protection (IP):	IP20
Tape width:	500MHz
Temperature Range (Installation):	0 – 50 °C
Temperature Range (Operation):	-20 – 60 °C
Test voltage:	1000 (V DC, 1min) core/core und core/screen
Total screening:	ca. 45 %
Transmission:	10Gbit
Type of connector connection 1:	RJ45 8(8)
Type of connector connection 2:	RJ45 8(8)
UL approbated:	False
UV resistant:	no

Varianten

Art. Nr.	Bezeichnung	Length	POE class	Length tolerance
K8056.0,50	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 0,5m	0.5 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.1	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 1m	1.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.1,5	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 1,5m	1.5 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.2	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 2m	2.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.3	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 3m	3.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.5	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 5m	5.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.7,5	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 7,5m	7.5 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.10	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 10m	10.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.15	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 15m	15.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at	±5 %	Vælg varianter
K8056.20	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 20m	20.0 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at	±5 %	Vælg varianter
K8056.25	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 25m	25.0 m	PoE acc. to IEEE802.3af	±5 %	Vælg varianter
K8056.30	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange 30m	30.0 m	PoE acc. to IEEE802.3af	±5 %	Vælg varianter
K8056.0,15	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange	0.15 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.0,25	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange	0.25 m	PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt	±5 %	Vælg varianter
K8056.50	RJ45 Patch Cord Cat.6A S/FTP LSZH Draka UC900 TM21 orange	50.0 m	No	±5 %	Vælg varianter
