SC / PC Singlemode
Priser kun synlige for indloggede brugere

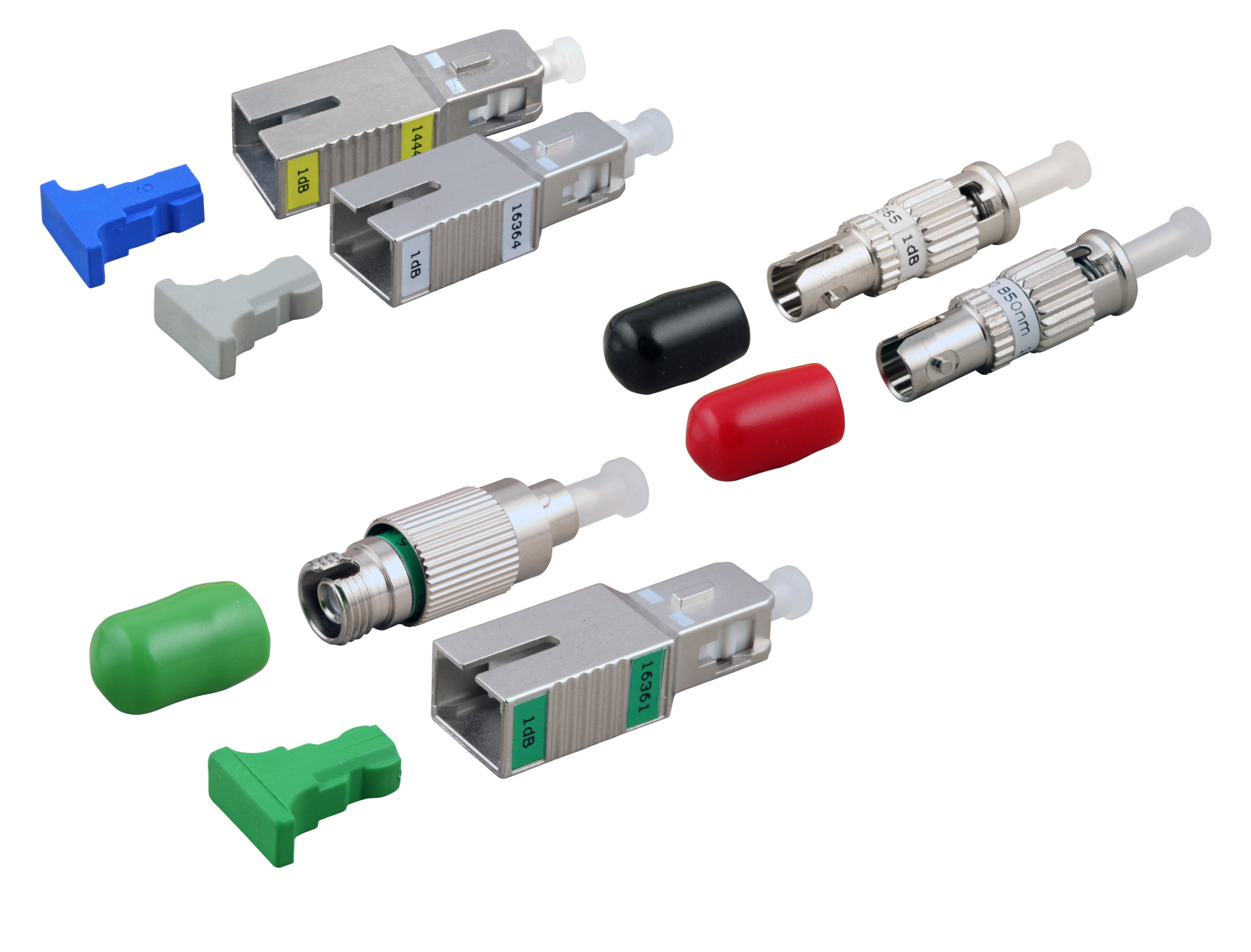

SM Attenuators SC/SPC 1 dB Return Loss 45 dB, SM
Varenummer:
53360.1
EAN nr.:
4049759071196
Produktinformation für SM Attenuators SC/SPC 1 dB Return Loss 45 dB, SM
Attenuators are used to increase the attenuation of fiber optic lines. This can be necessary at short distances to prevent overmodulation of the receiver. SPC = Return Loss max. 45 dB
APC = Return Loss max. 60 dB
Suitable for CWDM !
Attenuation in dB:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 15 - 20
APC = Return Loss max. 60 dB
Suitable for CWDM !
Attenuation in dB:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 15 - 20
Tekniske egenskaber
| Conform to Standard: | IEC61754-4 |
|---|---|
| Dust cover: | True |
| Height: | 9.3 mm |
| Internal Shutter: | False |
| Length: | 32.8 mm |
| Material housing: | Metal |
| Material sleeve: | Ceramics |
| Operating Temperature: | -20 – 75 °C |
| Storage Temperature: | -40 – 75 °C |
| Type of connector connection 1: | SC |
| Type of connector connection 2: | SC |
| Type of housing: | flangeless |
| Width: | 12.7 mm |
Varianter
| Art. Nej. | Betegnelse | Model | Suitable for type of fibre | Insertion loss 1310nm | |
|---|---|---|---|---|---|
| 53360.10 | SM Attenuators SC/SPC 10 dB Return Loss 45 dB, SM | SC / SPC | Singlemode | 10 dB | |
| 53360.20 | SM Attenuators SC/SPC 20 dB Return Loss 45 dB, SM | SC / SPC | Singlemode | 20 dB | |
| 53360.3 | SM Attenuators SC/SPC 3 dB Return Loss 45 dB, SM | SC / SPC | Singlemode | 3 dB | |
| 53360.4 | SM Attenuators SC/SPC 4 dB Return Loss 45 dB, SM | SC / SPC | Singlemode | 4 dB | |
| 53360.5 | SM Attenuators SC/SPC 5 dB Return Loss 45 dB, SM | SC / SPC | Singlemode | 5 dB | |
| 53360.15 | SM Attenuators SC/SPC 15 dB Return Loss 45 dB, SM | SC / SPC | Singlemode | 15 dB | |
| 53360.1 | SM Attenuators SC/SPC 1 dB Return Loss 45 dB, SM | SC / SPC | Singlemode | 1 dB | |
| 53360.2 | SM Attenuators SC/SPC 2 dB Return Loss 45 dB, SM | SC / SPC | Singlemode | 2 dB |
