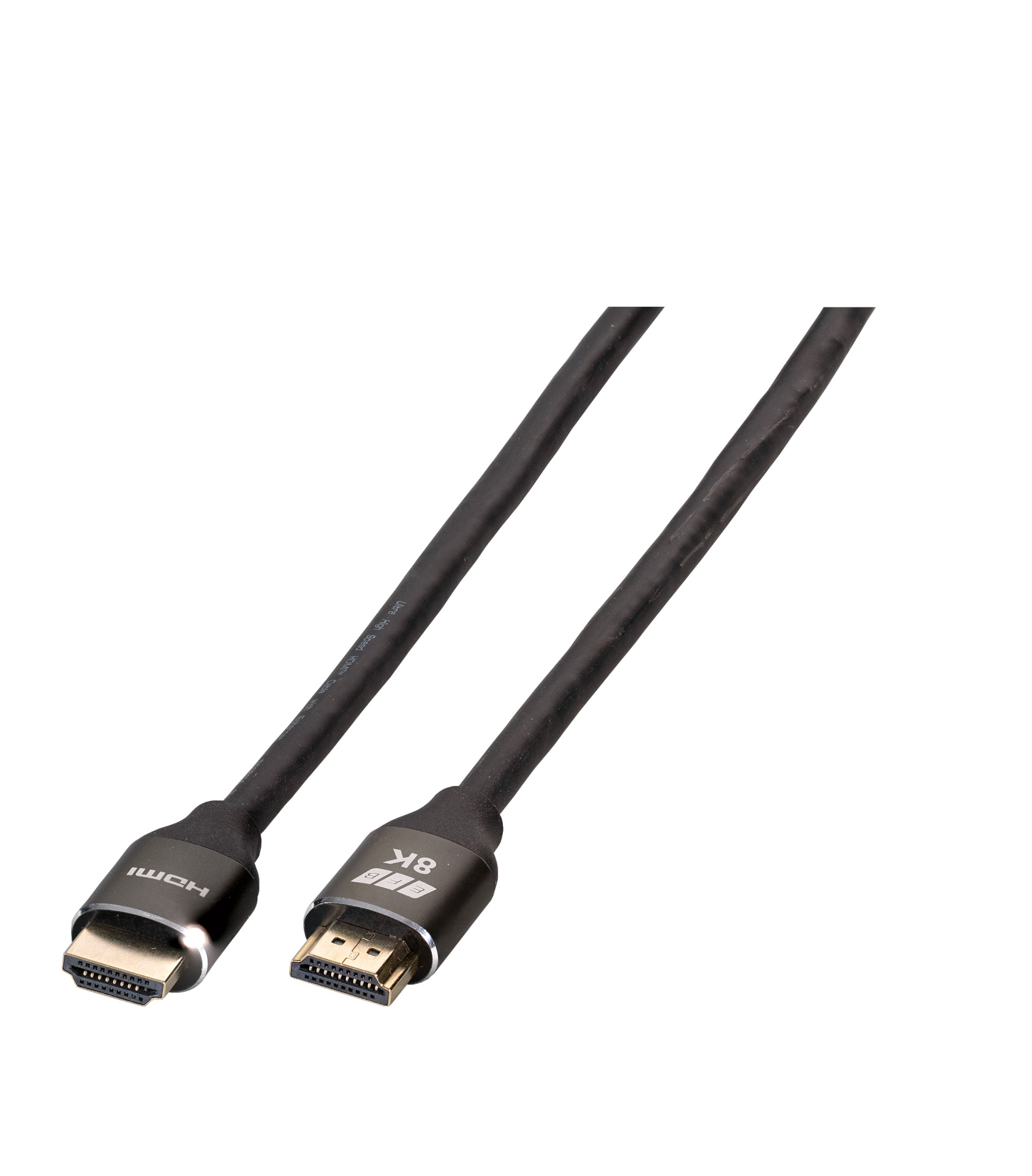

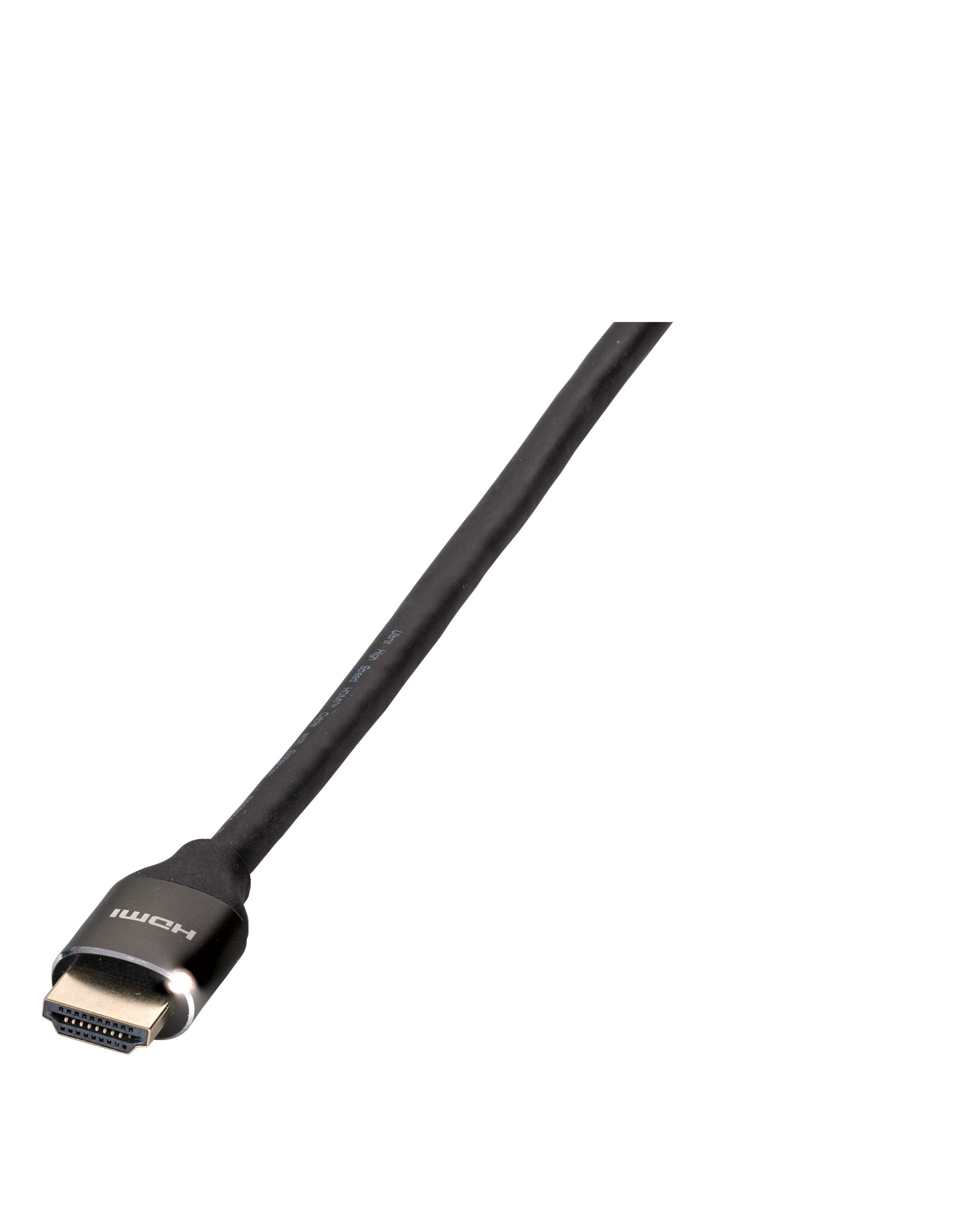

Ultra HighSpeed HDMI Cable with Ethernet 8K 60Hz, AL Housing
Ultra HighSpeed HDMI Kabel with Ethernet 8K60Hz,A-A M-M, 2m, black
Varenummer:
K5440HQSW.2
EAN Nr.:
4049759228972
Produktinformation til Ultra HighSpeed HDMI Kabel with Ethernet 8K60Hz,A-A M-M, 2m, black
The new generation of HDMI-Cable with a bandwith of up to 48Gbit.
Supports Features as Dynamic HDR, Dolby Vision und eARC. Also compatible to older HDMI standards.
Supports Ultra High Speed HDMI Video up to 8k 60Hz eg. 4K 120Hz Auflösung
Dynamic HDR, HDCP2.2, 3D, Ethernet Channel, eARC
Tripple shielding: Foil + Braid + PIMF
Conductor material: Bare copper, Jacket: PVC
Gold plated HDMI™ plugs and contacts, Premium EFB Aluminium housing for excellent EMC shielding
Supports Features as Dynamic HDR, Dolby Vision und eARC. Also compatible to older HDMI standards.
Supports Ultra High Speed HDMI Video up to 8k 60Hz eg. 4K 120Hz Auflösung
Dynamic HDR, HDCP2.2, 3D, Ethernet Channel, eARC
Tripple shielding: Foil + Braid + PIMF
Conductor material: Bare copper, Jacket: PVC
Gold plated HDMI™ plugs and contacts, Premium EFB Aluminium housing for excellent EMC shielding
Tekniske egenskaber
| 3D: | True |
|---|---|
| ARC: | True |
| Backwards compatible: | True |
| Beding radius (dynamic/static): | 40 mm |
| CEC: | True |
| Cable and plug compatibility: | Ultra High-Speed HDMI |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Color depth: | 12-Bit |
| Compliant with: | TV |
| Compressions technologies: | DSC |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | True |
| Dust cover: | true |
| Enhanced Color: | HighDynamicRange |
| HDCP Version: | HDCP 2.3 |
| HDMI Power: | True |
| HDMI certified: | True |
| HDR: | HDR10 |
| HEC (Ethernet channel): | True |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | Aluminium |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Max. mating cycles: | 5000 |
| Max. resolution: | 8K@60Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 19 |
| Number of poles connection 2: | 24+5 |
| Number of shieldings: | triple |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 18.6*11*53mm |
| Plug dimensions Side 2: | 18.6*11*53mm |
| Printing: | ULTRA HIGH SPEED HDMI® CABLE |
| Scope of delivery: | 1 x HDMI Cable |
| Shielded: | True |
| Speed: | 48 Gbit/s |
| Storage Temperature: | -20 – 70 °C |
| Supported audio formats: | compressed Audio format (Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos) |
| Supported video standards: | 8K UHD |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | HDMI Type A |
| Type of connector connection 2: | HDMI Type A |
| Type of locking: | Screw Locking |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | True |
| Various lengths cable set: | 1x1m |
| Version: | HDMI Version 2.1a |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | True |
Varianten
| Art. Nr. | Bezeichnung | Color | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5440HQSW.1 | Ultra HighSpeed HDMI Kabel with Ethernet 8K60Hz,A-A M-M, 1m, black | black | 1.0 m | 7.3 mm | 30AWG | |
| K5440HQSW.2 | Ultra HighSpeed HDMI Kabel with Ethernet 8K60Hz,A-A M-M, 2m, black | black | 2.0 m | 6.0 mm | 30AWG |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
