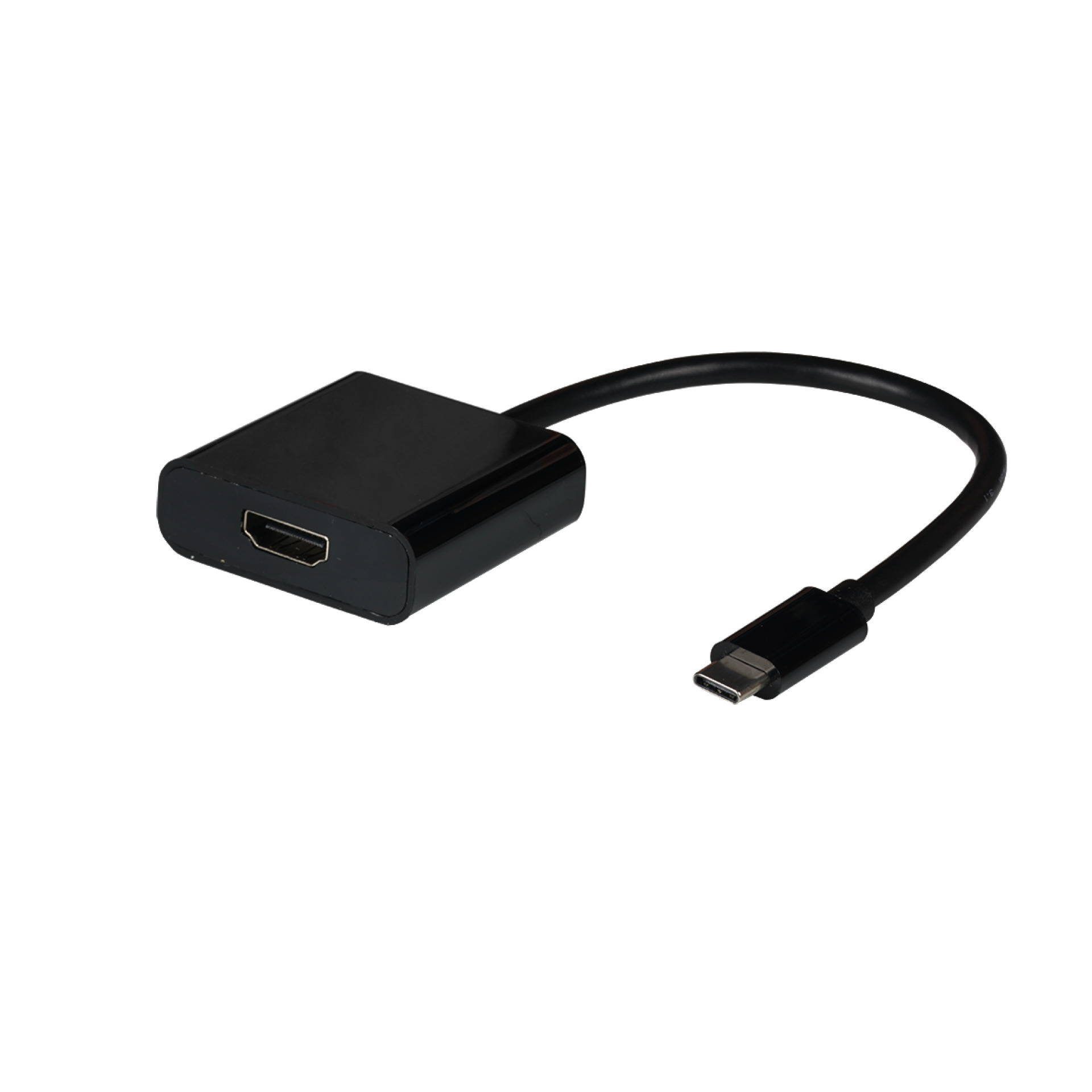

USB Type-C - HDMI Adapter, 4K30Hz
USB Type-C - HDMI Adapter, 4K30Hz, black
Varenummer:
EBUSBC-HDMI-4K30
EAN Nr.:
4049759271763
Produktinformation til USB Type-C - HDMI Adapter, 4K30Hz, black
With the USB Type-C to HDMI adapter (DP Alternate mode) you can connect a monitor with an HDMI port to the Type-C port of your PC / laptop / tablet.
Supports the DP1.2 alternate mode with a max. resolution of 4K30Hz
Supports RGB4: 4: 4 / YCbCr4: 4: 4 / YCbCr4: 2: 2 and HDCP1.4
Thunderbolt3 compatible
USB bus powered (no external power supply)
Supports the DP1.2 alternate mode with a max. resolution of 4K30Hz
Supports RGB4: 4: 4 / YCbCr4: 4: 4 / YCbCr4: 2: 2 and HDCP1.4
Thunderbolt3 compatible
USB bus powered (no external power supply)
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 480 Mbit/s |
| Beding radius (dynamic/static): | 12 mm |
| CEC: | False |
| Cable and plug compatibility: | Standard HDMI |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Compliant with: | USB Charger, USB PSU, Powerbank, Smartphone |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Jack |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Max. resolution: | 4K@30Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 19 |
| Number of shieldings: | single |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 27mm x12.5mm x 7mm |
| Plug dimensions Side 2: | 50.6mm x25.3mm x 12.6mm |
| Scope of delivery: | 1 x USB Cable |
| Shielded: | True |
| Speed: | 480 Mbit/s |
| Storage Temperature: | -10 – 60 °C |
| Supported video standards: | 4K UHD - Ultra High Definition |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | HDMI Type A |
| Type of packaging: | recycled plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Version: | USB 2.0 High-Speed |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
Sikkerhedsanvisninger
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
