Wall Distributor Splice Housing RAL7035
Priser kun synlige for indloggede brugere
Wall distribution, splice hou. W=445 x H=445 x D=95mm
Varenummer:
53604.1V1
EAN nr.:
4049759036423
Produktinformation für Wall distribution, splice hou. W=445 x H=445 x D=95mm

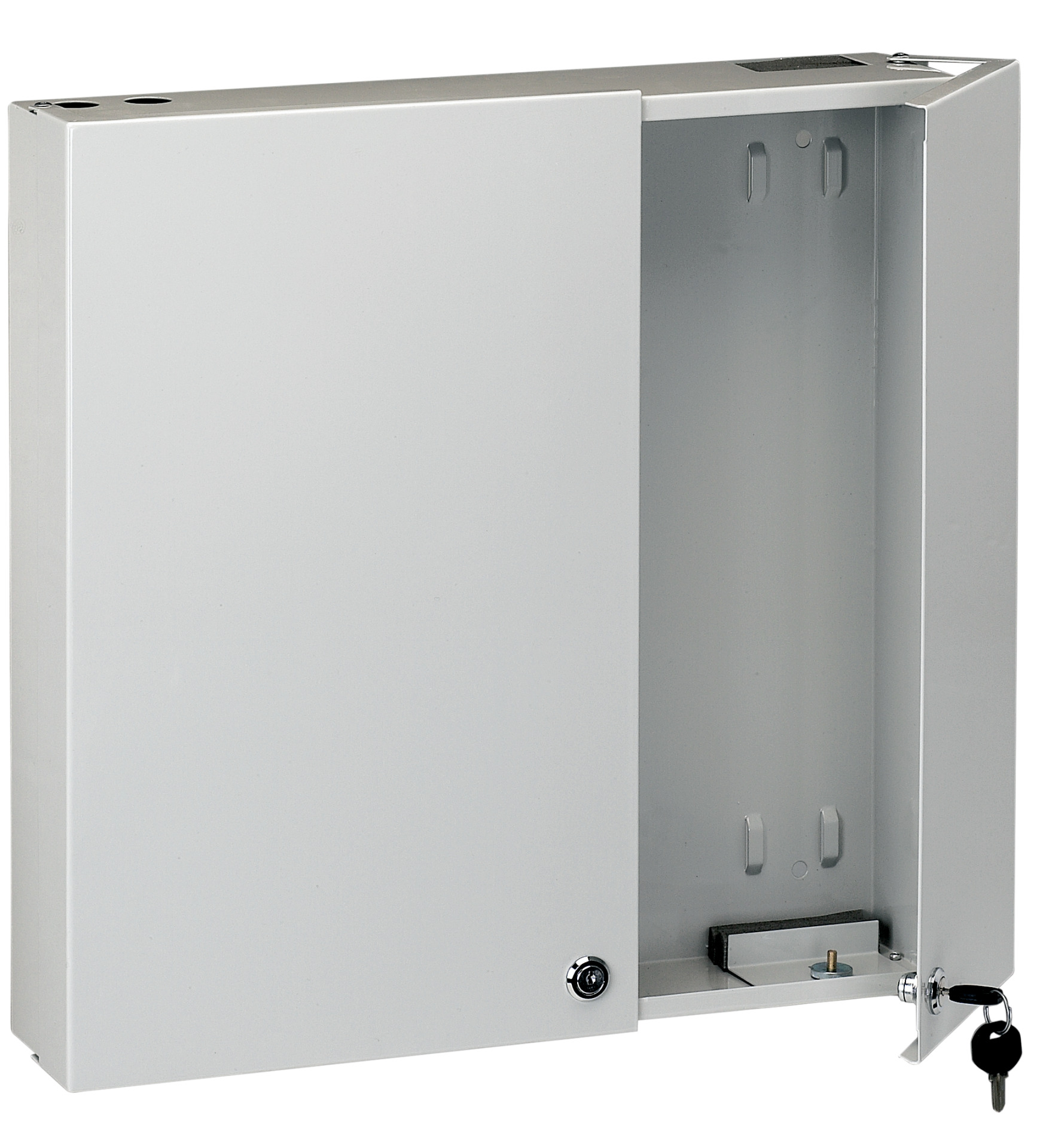

Housing with two swivel doors, lockable
2 different locks each with 2 keys
with each 2 cable entries on top and bottom for PG16
2 further cable entries with sealing strip

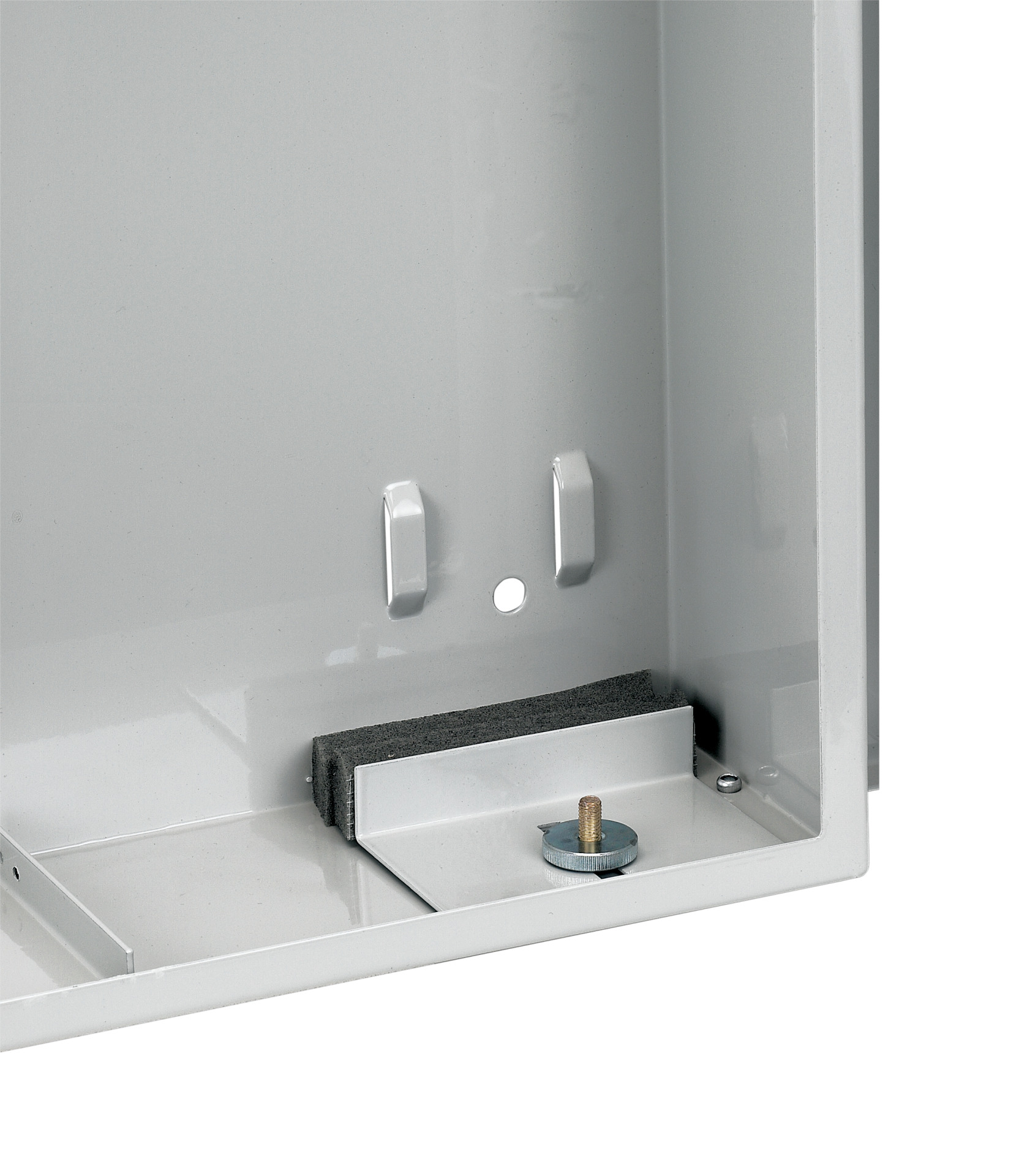

Additional strain relief clamps and guiding clips for pigtails or cables for fixing with cable ties

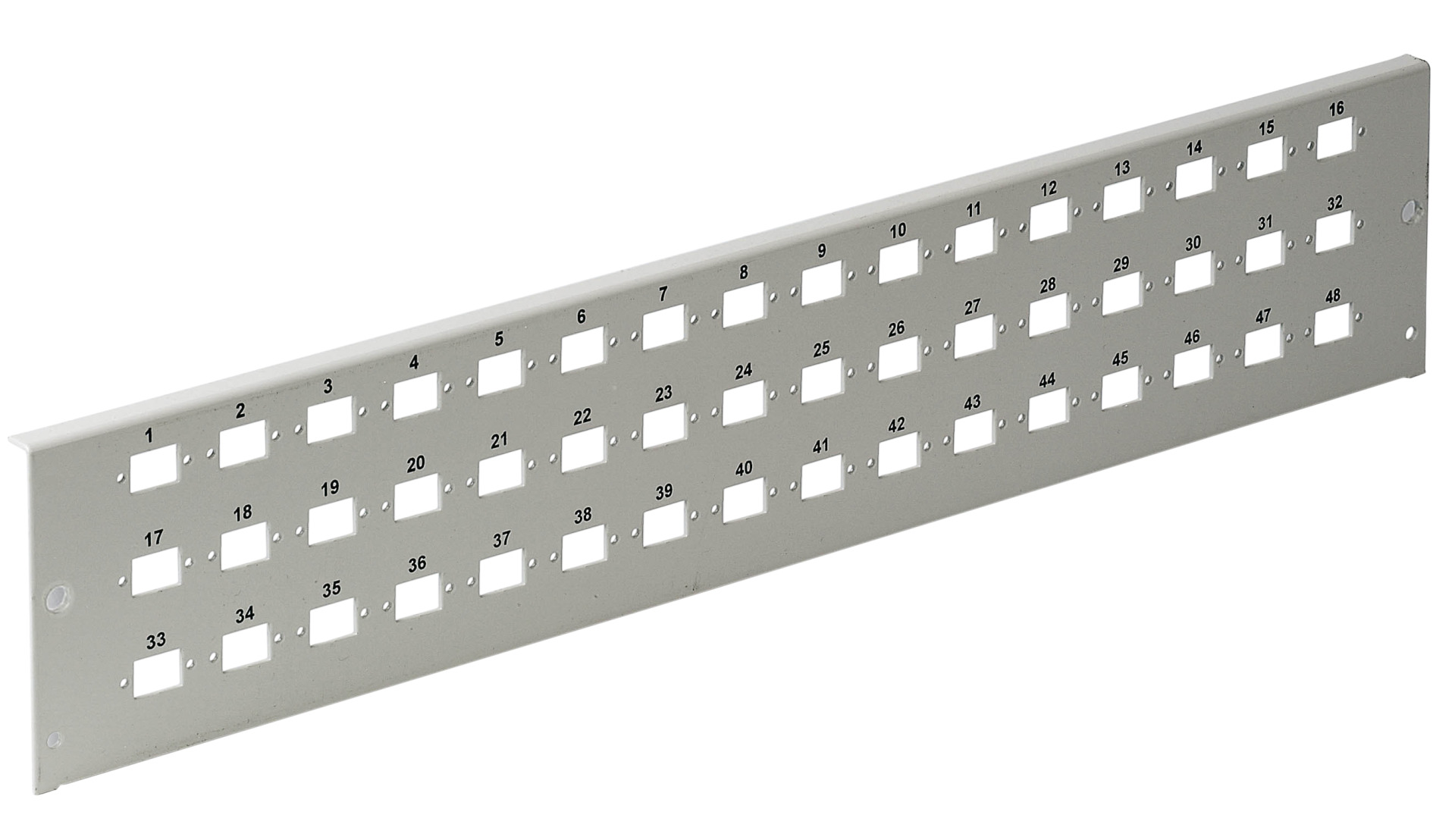

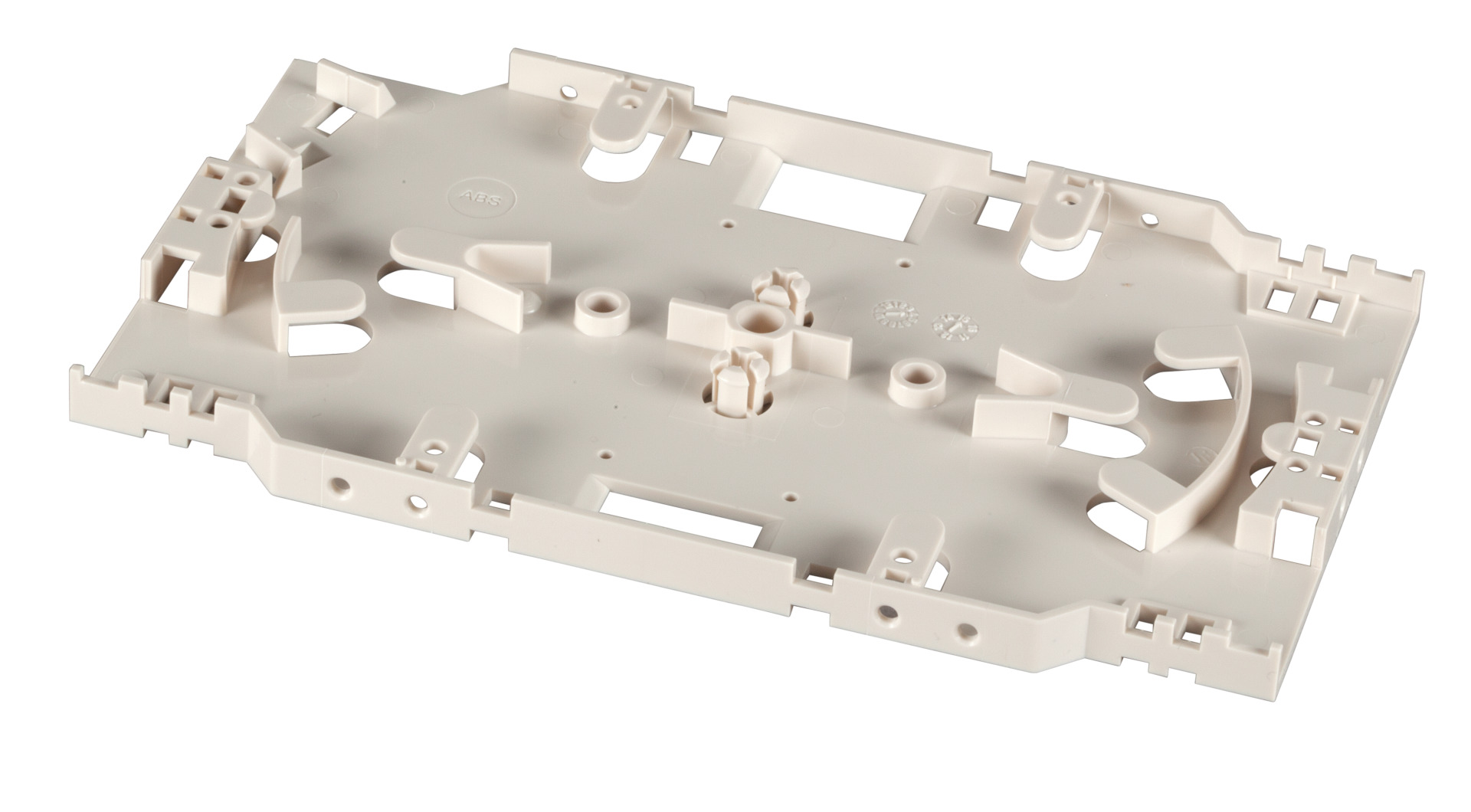

Max. 5 splice cassettes and one mountable distribution plate
Fixing of distribution plate with two M3-screws and two quick locks
Steel sheet 1.5 mm
Weight 5.2 kg

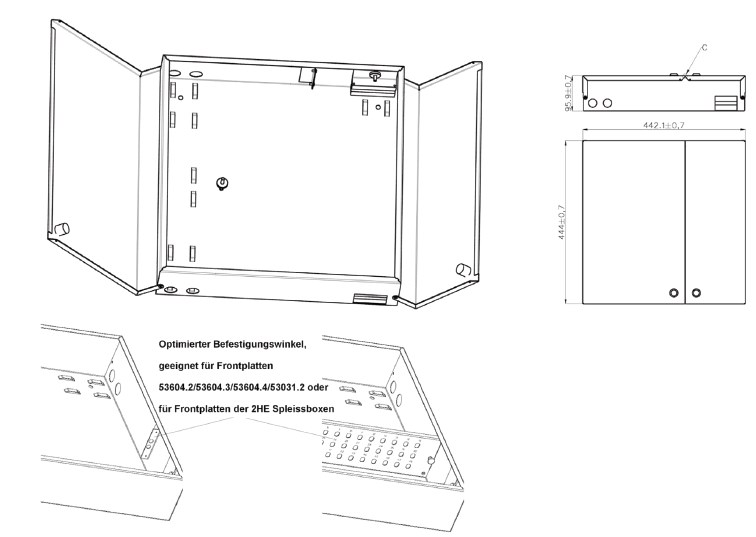

Dimensions: 445x445x95mm
2 different locks each with 2 keys
with each 2 cable entries on top and bottom for PG16
2 further cable entries with sealing strip
Additional strain relief clamps and guiding clips for pigtails or cables for fixing with cable ties
Max. 5 splice cassettes and one mountable distribution plate
Fixing of distribution plate with two M3-screws and two quick locks
Steel sheet 1.5 mm
Weight 5.2 kg
Dimensions: 445x445x95mm
Tekniske egenskaber
| Depth: | 95.0 mm |
|---|---|
| Height: | 445.0 mm |
| Mounting method: | Wall mounting |
| Number of height units: | - |
| Suitable for number of module inserts: | 5 |
| Width: | 445.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | False |
accessory
