Field Installable SC Connector with Fiber holder
12er Set field installable SC connectors OS2 blue, with Fiber holder
Varenummer:
53199.1
EAN Nr.:
4049759114992
Produktinformationen für 12er Set field installable SC connectors OS2 blue, with Fiber holder
Compatible with all standard SC connectors and adapter
Easy installation in less than 2 minutes
No need for glue
No need of electrical power

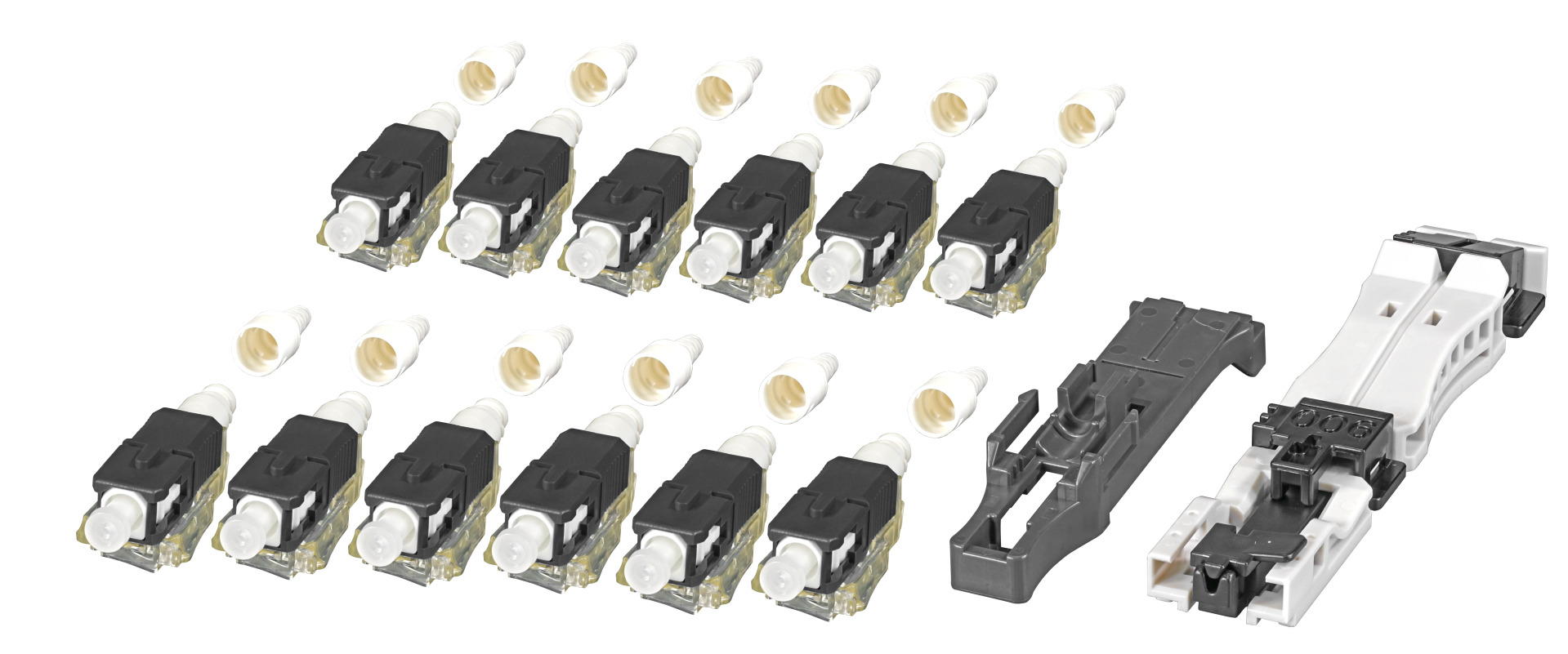

One set field installable connectors contains:
12 x connectors with wedge
12 x boots
12x protection tube for 250µ fiber
1 x Assembling jig
1 x Fiber holder
Typical specification values are at 23°C ±5°C
Recommended Tools (not included in scope of delivery):
HS18-CLEAVER - Cleaver

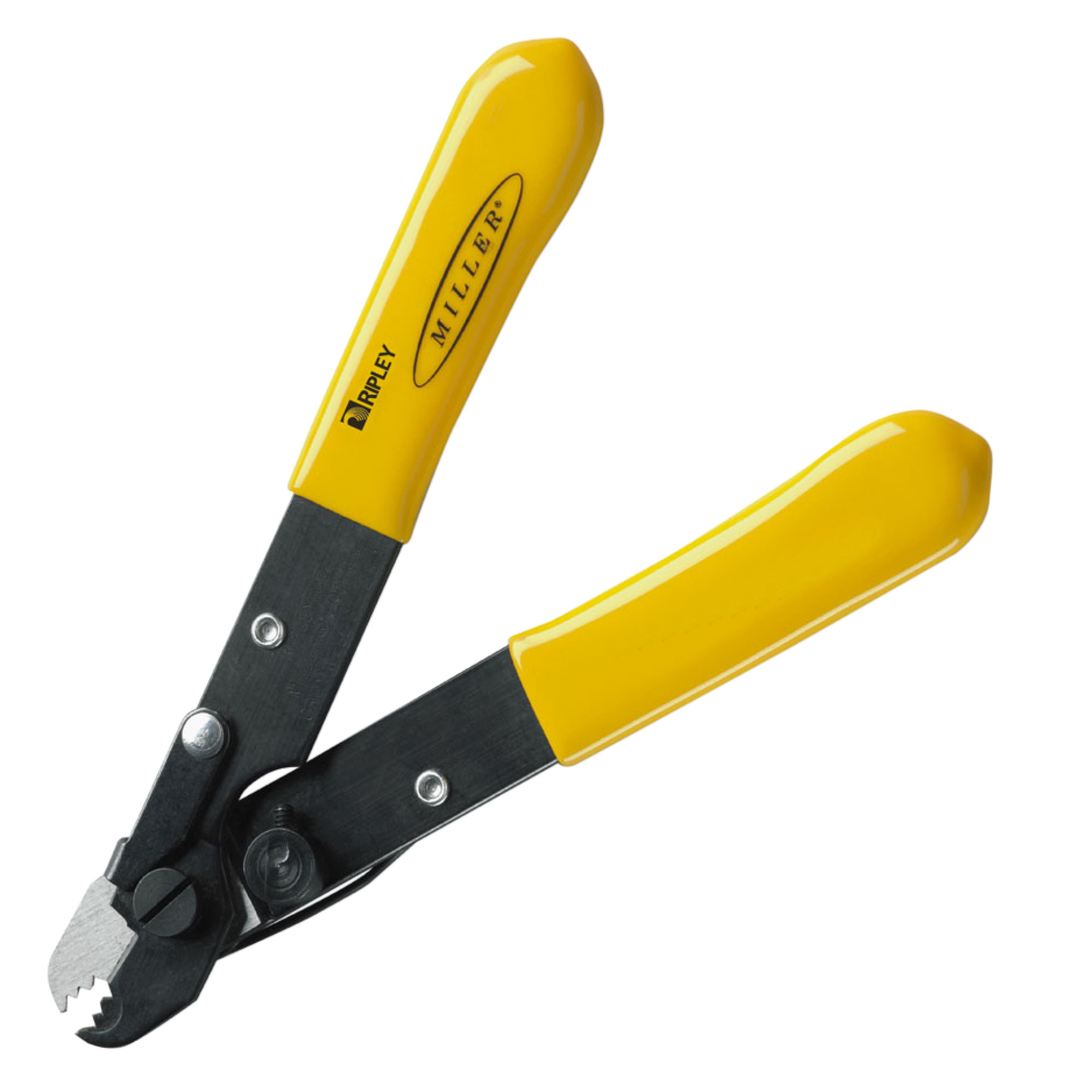

39901.1 - Miller® Fiber Stripper "Tri-Hole"
Easy installation in less than 2 minutes
No need for glue
No need of electrical power
One set field installable connectors contains:
12 x connectors with wedge
12 x boots
12x protection tube for 250µ fiber
1 x Assembling jig
1 x Fiber holder
Typical specification values are at 23°C ±5°C
Recommended Tools (not included in scope of delivery):
HS18-CLEAVER - Cleaver
39901.1 - Miller® Fiber Stripper "Tri-Hole"
Technische Eigenschaften
| Connection type: | Clamping |
|---|---|
| Durability: | < 0.1dB change, 500 matings |
| Material of ferrule: | Ceramics |
| Model: | Plug |
| Operating Temperature: | -40 – 75 °C |
| Plug: | IEC 61754-4 |
| Tensile: | TIA/EIA 568-C.3 |
| Type of connector: | SC |
Varianten
| Art. Nr. | Bezeichnung | Cable Ø | Suitable for type of fibre | APC-version | Colour | Insertion Loss | Return Loss | |
|---|---|---|---|---|---|---|---|---|
| 53199.1 | 12er Set field installable SC connectors OS2 blue, with Fiber holder | 0.9 mm | Singlemode | False | blue | 0.5 dB | >55 dB | |
| 53200.1 | 12er Set field installable SC connectors OM3 aqua, with Fiber holder | 0.9 mm | Multimode | False | turquoise | 0.3 dB | >35 dB | |
| 53204.1 | 12er Set field installable SC/APC connectors OS2 green, with Fiber holder | 0.9 mm | Singlemode | True | green | 0.3 dB | >55 dB |
necessary tools
