IP-beskyttelses-
klasser: Sikker mod støv og vand
Uanset om det er vedvarende regn, sandstorm eller snestorm: elektronik skal beskyttes mod støv og vand, især udendørs. Til anvendelser udenfor eller i fugtige rum, støvede fabrikshaller eller endda under vand finder du passende produkter hos EFB-Elektronik. Vi forklarer, hvad IP-beskyttelsesklasserne går ud på, og hvad IP-betegnelserne betyder.
Få rådgivning nu
Få rådgivning nu
Anvendelser med IP-beskyttelsesgrader
IP-beskyttelsesgraden beskriver produktets beskyttende effekt, mod fremmedlegemer og fugt. I barske miljøer er det særligt vigtigt at beskytte mod ydre påvirkninger, for at opretholde en pålidelig datatransmission. Det være sig i støvede miljøer som industrihaller eller udendørs, hvor komponenterne er udsat for sol, vind og regn. Dette gælder også for FTTH installationer.
Sikker beskyttelse i forskellige miljøer
Beskyttelse mod berøring, fremmedlegemer eller endda støv
Beskyttelse mod vand
Industri, udendørs eller FTTH
IP-beskyttelsesgrader i henhold til IEC 60 529 (EN 60 529)
Forkortelsen IP står for International Protection. Alle komponenter er opdelt efter deres egnethed til forskellige miljøforhold, i henhold til en IP-kode i form af et tocifret tal. Det første ciffer står for graden af beskyttelse af en kapsling med hensyn til berøring eller fremmedlegemer, og det andet ciffer klassificerer beskyttelsen mod fugt.
Alle IP-beskyttelsestyper: Forklaring

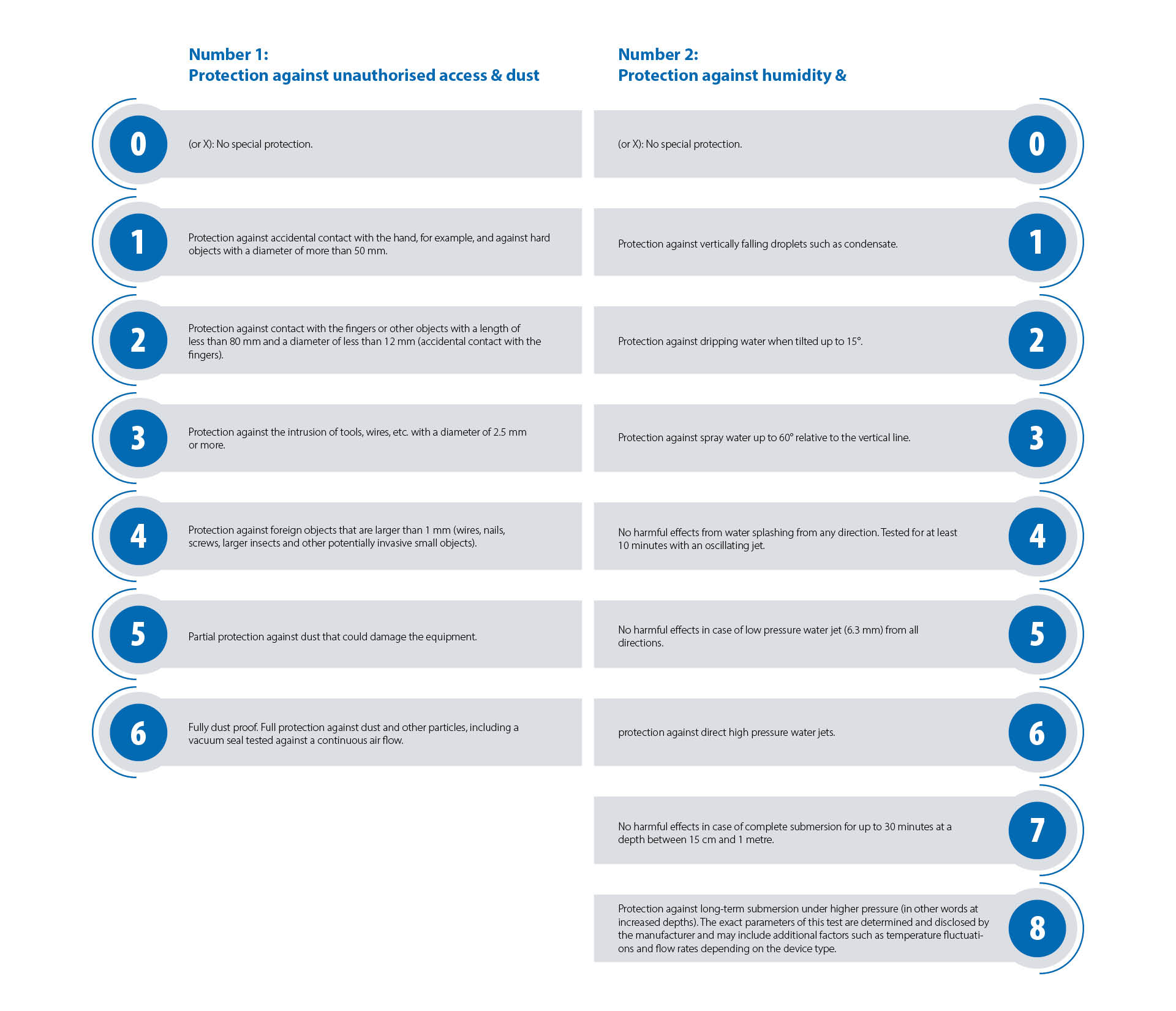

Der Staubschutz (erste Kennziffer) kann einen Wert von 1 bis 6 haben. Mit steigender Zahl nimmt die Fähigkeit des Produkts zu, dem Eindringen von Fremdkörpern und Staub zu widerstehen. Ein Produkt mit der Schutzart IP2X kann beispielsweise Fremdkörpern ab einer Größe von 12,5 mm oder mehr standhalten, während ein Objekt mit der Schutzart IP6X staubdicht ist.
Die zweite Kennziffer, der Flüssigkeitsschutz, folgt dem gleichen Format, kann aber einen Wert von 1 bis 8 haben. Je höher die Zahl, desto höher der Schutz vor dem Eindringen von Flüssigkeiten. Ein Beispiel: Geräte mit einer IPX4-Schutzklasse können 5 Minuten lang ununterbrochen Spritzwasser standhalten. Zur Einstufung müssen bei der Prüfung bestimmte Winkel, physikalischer Druck und Volumenanforderungen eingehalten werden. Das strenge Prüfverfahren des IP-Einstufungssystems gewährleistet eine Standardisierung zwischen den Prüfeinrichtungen auf der ganzen Welt.
Die zweite Kennziffer, der Flüssigkeitsschutz, folgt dem gleichen Format, kann aber einen Wert von 1 bis 8 haben. Je höher die Zahl, desto höher der Schutz vor dem Eindringen von Flüssigkeiten. Ein Beispiel: Geräte mit einer IPX4-Schutzklasse können 5 Minuten lang ununterbrochen Spritzwasser standhalten. Zur Einstufung müssen bei der Prüfung bestimmte Winkel, physikalischer Druck und Volumenanforderungen eingehalten werden. Das strenge Prüfverfahren des IP-Einstufungssystems gewährleistet eine Standardisierung zwischen den Prüfeinrichtungen auf der ganzen Welt.

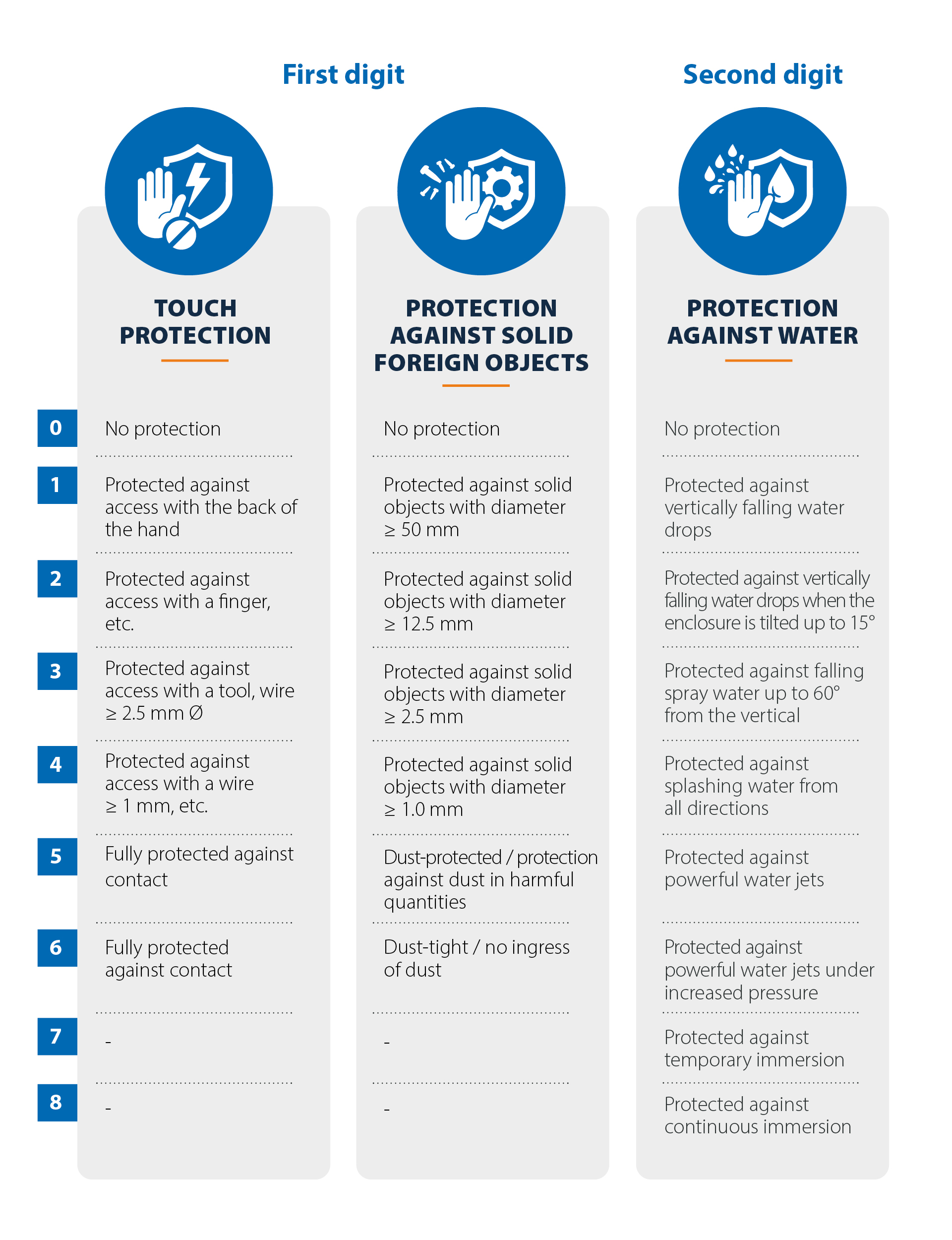

| Første Ciffer: Beskyttelse mod emner | Andet Ciffer: Beskyttelse mod fugt | ||
|---|---|---|---|
| Ingen beskyttelse: Ingen beskyttelse mod kontakt eller indtrængende emner |
0 | 0 | Ingen beskyttelse: Ingen beskyttelse mod vandindtrængning |
| >50mm i diameter: Alle enhedens større overflader. Ingen beskyttelse mod fortsætlig kontakt |
1 | 1 | Vanddryp: mod lodret faldende vanddryp |
| >12,5mm i diameter: Beskyttelse mod fingre eller lignende emner |
2 | 2 | Vanddryp <15°: mod lodret faldende vanddryp i en vinkel mindre end 15° |
| >2,5mm i diameter: Beskyttelse mod værktøj, kraftig wire osv. |
3 | 3 | Vandsprøjt: mod vandsprøjt fra en vinkel mindre end 60° fra lodret position |
| >1mm i diameter: De fleste typer af skruer, wire osv. |
4 | 4 | Vandstænk: Mod vandstænk mod den lukkede enhed fra alle retninger |
| Beskyttelse mod støv: Beskyttelse mod støv, i en mængde som ikke beskadiger udstyr. Fuld beskyttelse mod kontakt. |
5 | 5 | Vandstråle: Mod vandstråle fra en dyse (6,3mm) mod den lukkede enhed fra alle retninger |
| Støvtæt: Ingen støvindtrængning. Fuld beskyttelse mod kontakt. |
6 | 6 | Højtryksvandstråle: Mod højtryksvandstråle fra en dyse (12,5mm) mod den lukkede enhed fra alle retninger |
| |
7 | Nedsænkning i vand <1mtr.: Mod vandindtrængning ved midlertidig nedsænkning i op til 1 meter. | |
| |
8 | Nedsænkning i vand >1mtr.: Mod vandindtrængning ved midlertidig nedsænkning over 1 meter | |
| |
9K | Højtryksvandstråle med høj temperatur: Mod højtryksvandrensning med varmtvandsrenser på kort afstand (Angivelse med ”K” er defineret i ISO 20653 standarden) |
De mest almindelige IP-beskyttelsesklasser for EFB-Elektronik-produkter
- IP40: Komponenter med IP40-beskyttelse er beskyttet mod fremmedlegemer med en diameter, der er større end 1 mm.
- IP54 og IP55: IP54- og IP55-klassificerede produkter er støvtætte og giver beskyttelse mod vand. Med IP54 er der beskyttelse mod vandsprøjt fra alle retninger. Produkter med beskyttelsesklasse IP55 beskytter endda mod en vandstråle fra en dyse, der rammer produktet fra alle retninger.
- IP65: Beskyttelsesklasse IP65 giver beskyttelse mod vandstråler og indtrængning af støv (støvtæt).
- IP67 og IP68: IP67- og IP68-klassificerede produkter er støv- og vandtætte. Giver 100% beskyttelse mod berøring og fugt og vejr. Vores IP67-stikforbindere beskytter mod vand, når de er nedsænket. IP68-stiksystemer sikrer endda beskyttelse i tilfælde af konstant nedsænkning.
IK-beskyttelsesgrad i henhold til IEC 62262
IK-graden af beskyttelse angiver beskyttelse mod stød eller slag. I henhold til EN 50102 og EN 62262 eller internationalt i henhold til IEC 62262 beskrives de slagenergier, som en genstand/boks kan modstå. I praksis handler det for eksempel om udendørsbokses modstandsdygtighed over for hærværk.
| IK-kode | Slagenergi i joule |
|---|---|
| IK00 |
Ingen beskyttelse |
| IK01 |
0,14 joule, knytnæveslag |
| IK02 |
0,2 joule, knytnæveslag |
| IK03 |
0,35 joule, knytnæveslag |
| IK04 |
0,5 joule, knytnæveslag |
| IK05 |
0,7 joule, knytnæveslag |
| IK06 |
1,0 joule, slå med en hammer på 500 gram fra en afstand på 20 cm. |
| IK07 |
2,0 joule, Slå med en hammer på 500 gram fra en afstand på 40 cm. |
| IK08 |
5,0 joule, slå med en hammer på 1,7 kg fra en afstand på 30 cm |
| IK09 |
10,0 joule, slå med en hammer på 5 kg fra en afstand på 20 cm |
| IK10 |
20,0 joule, slag med en hammer på 5 kg, et baseballbat, spark eller kast af projektiler fra en afstand på 40 cm. |
| IK10+ |
50,0 joule, vandalsikret, f.eks. til lagerhaller, sportshaller, overvågningskameraer |

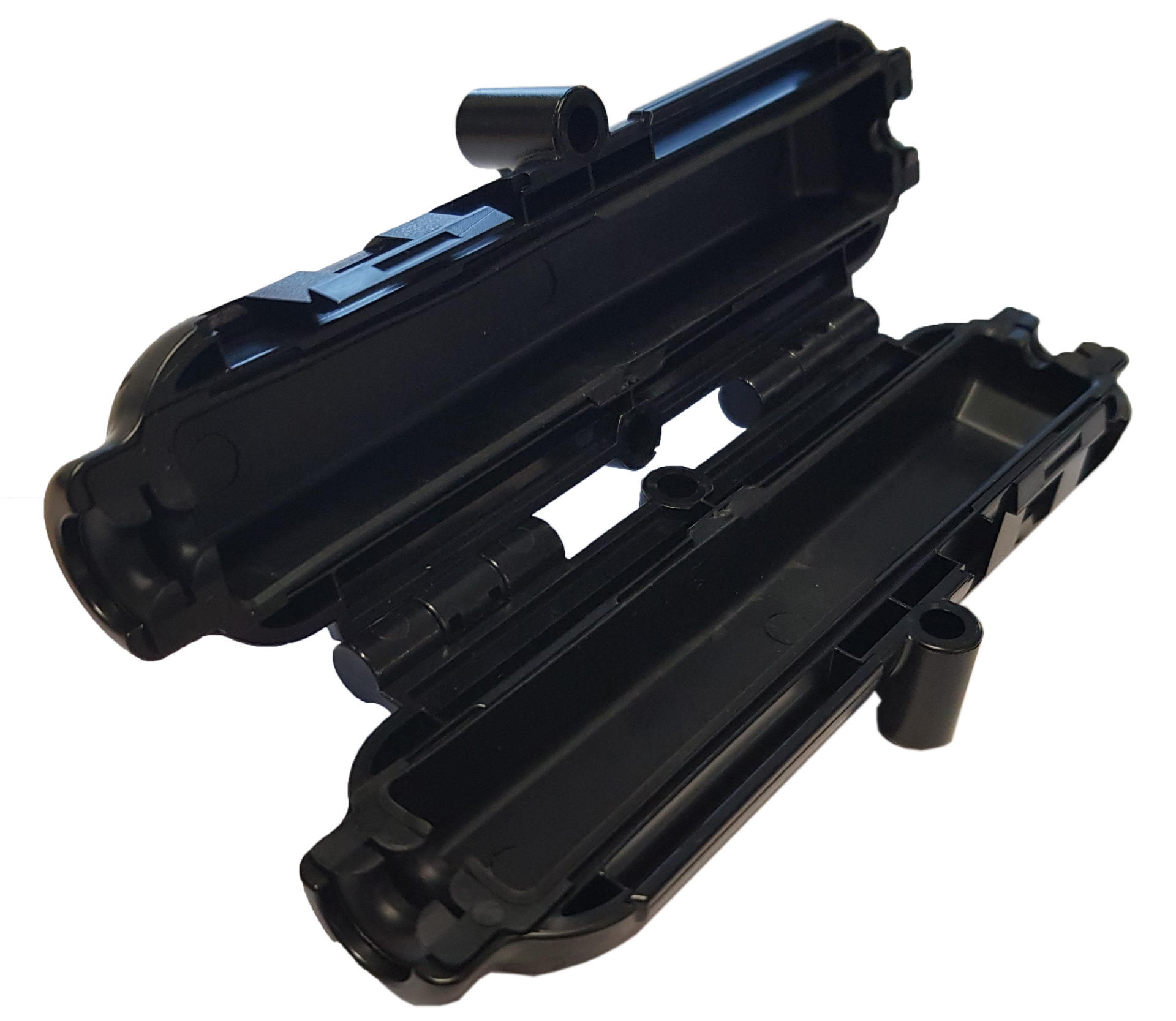

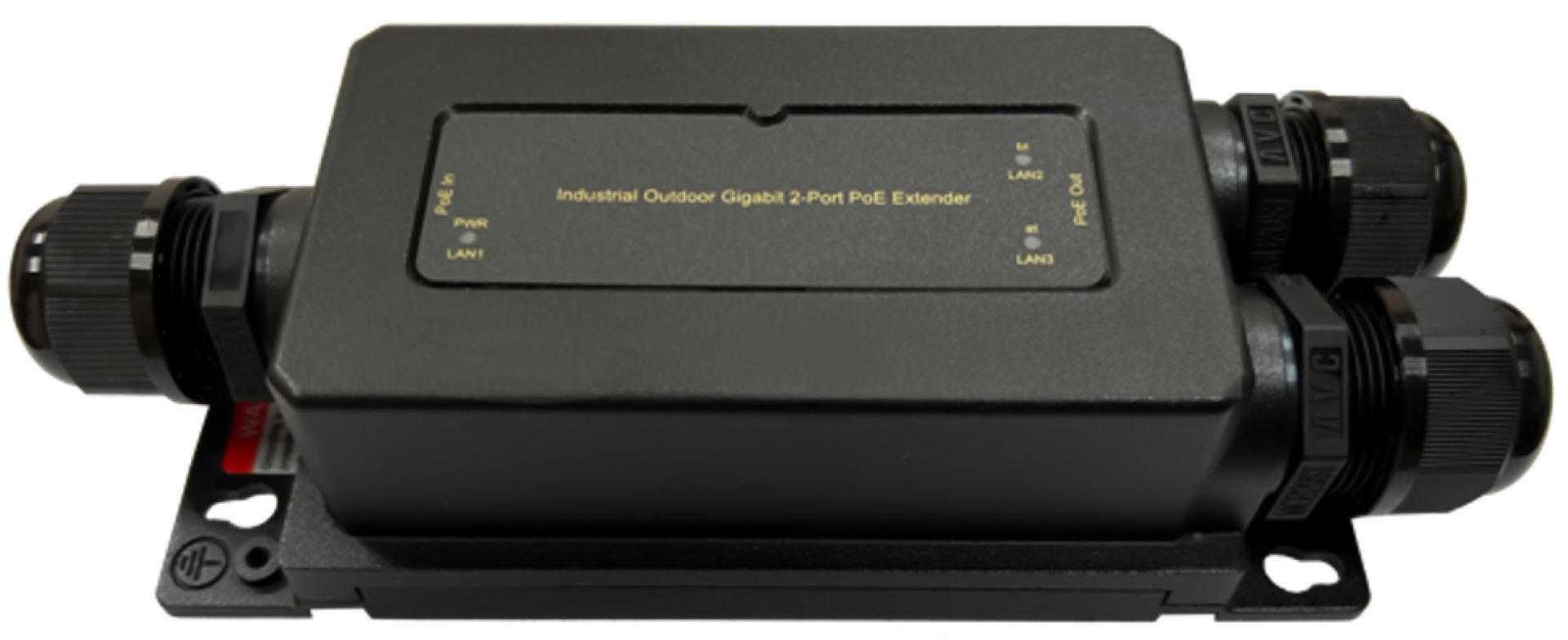

Vores produkter med IP-beskyttelsesgrad

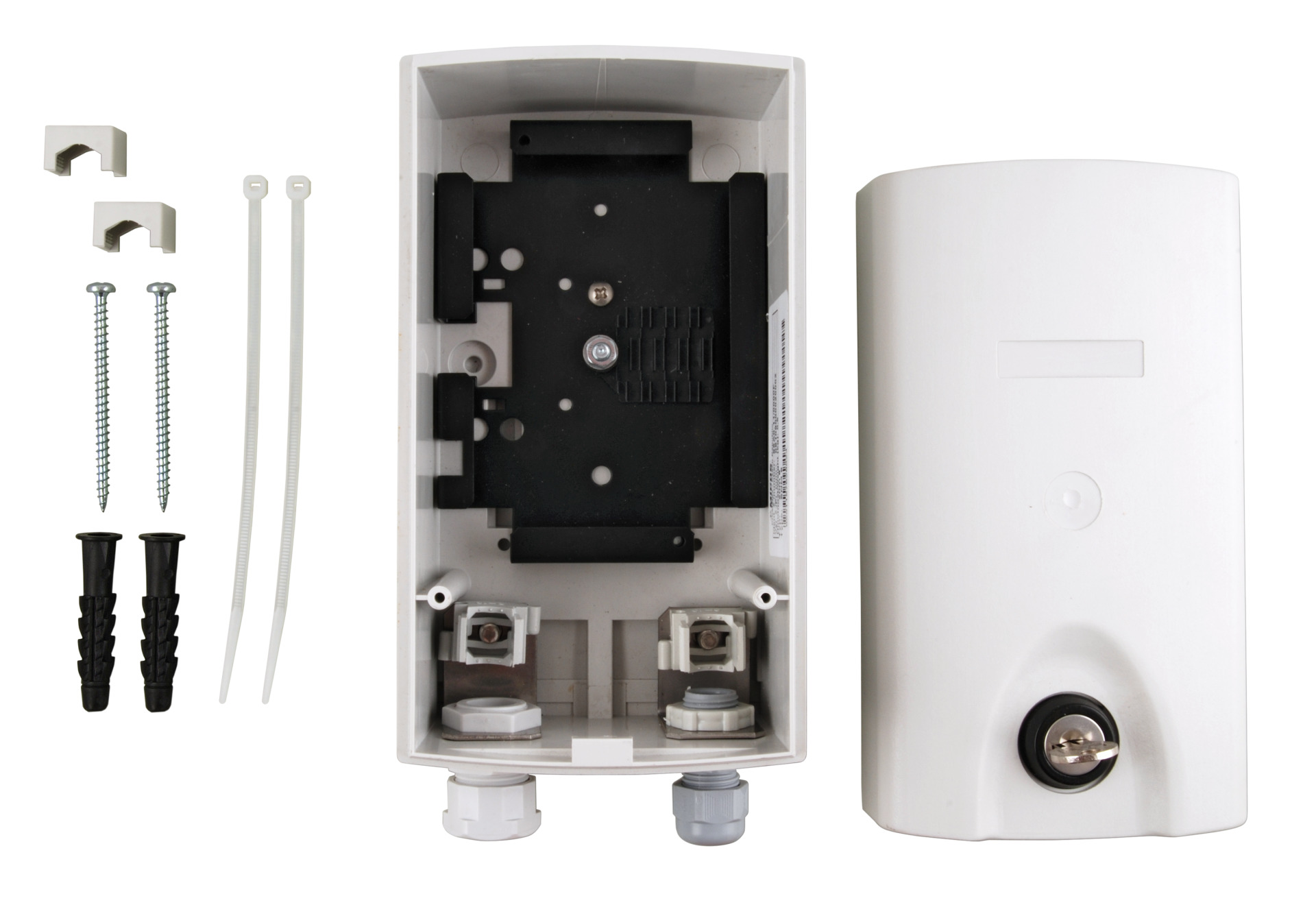

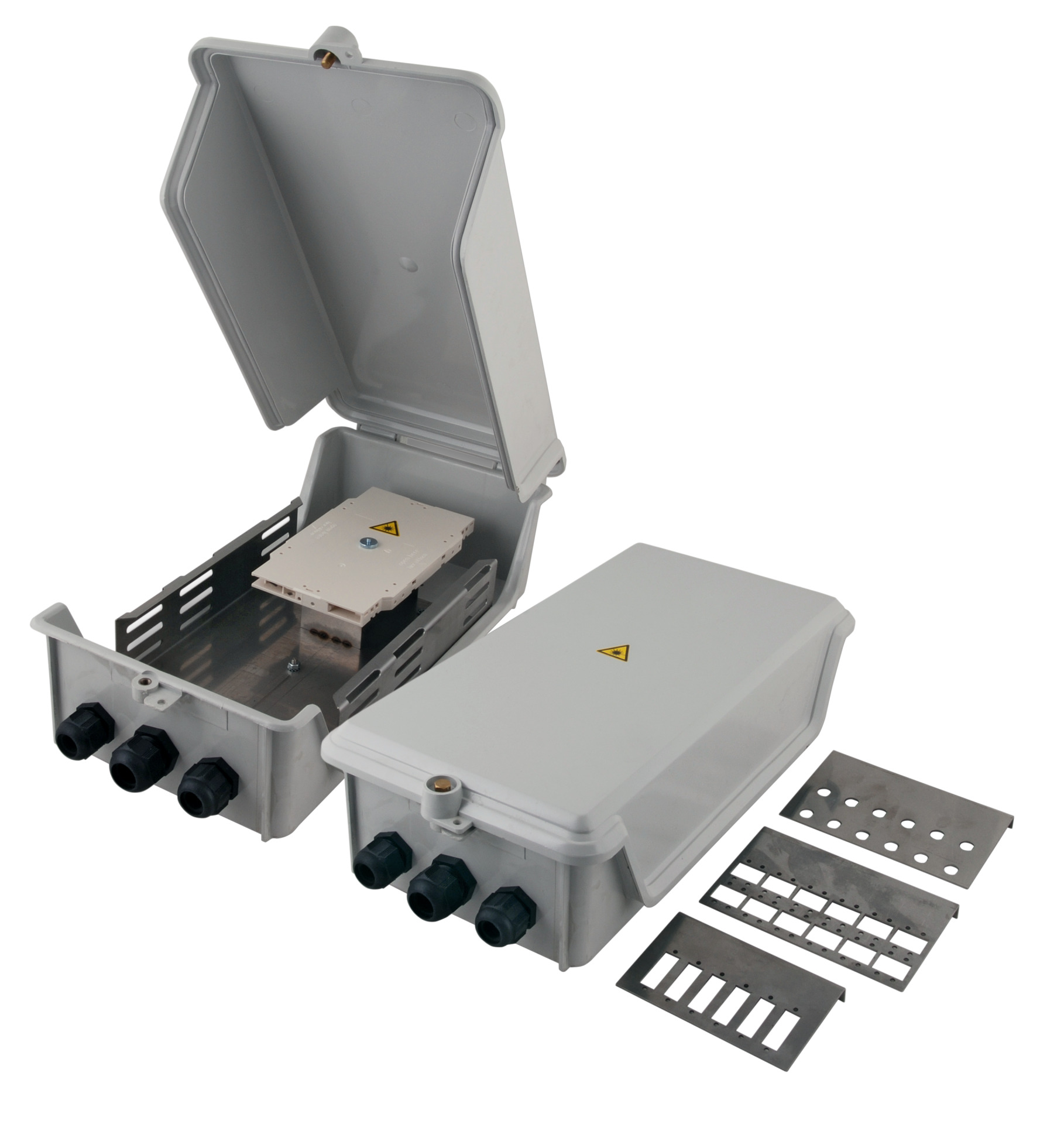

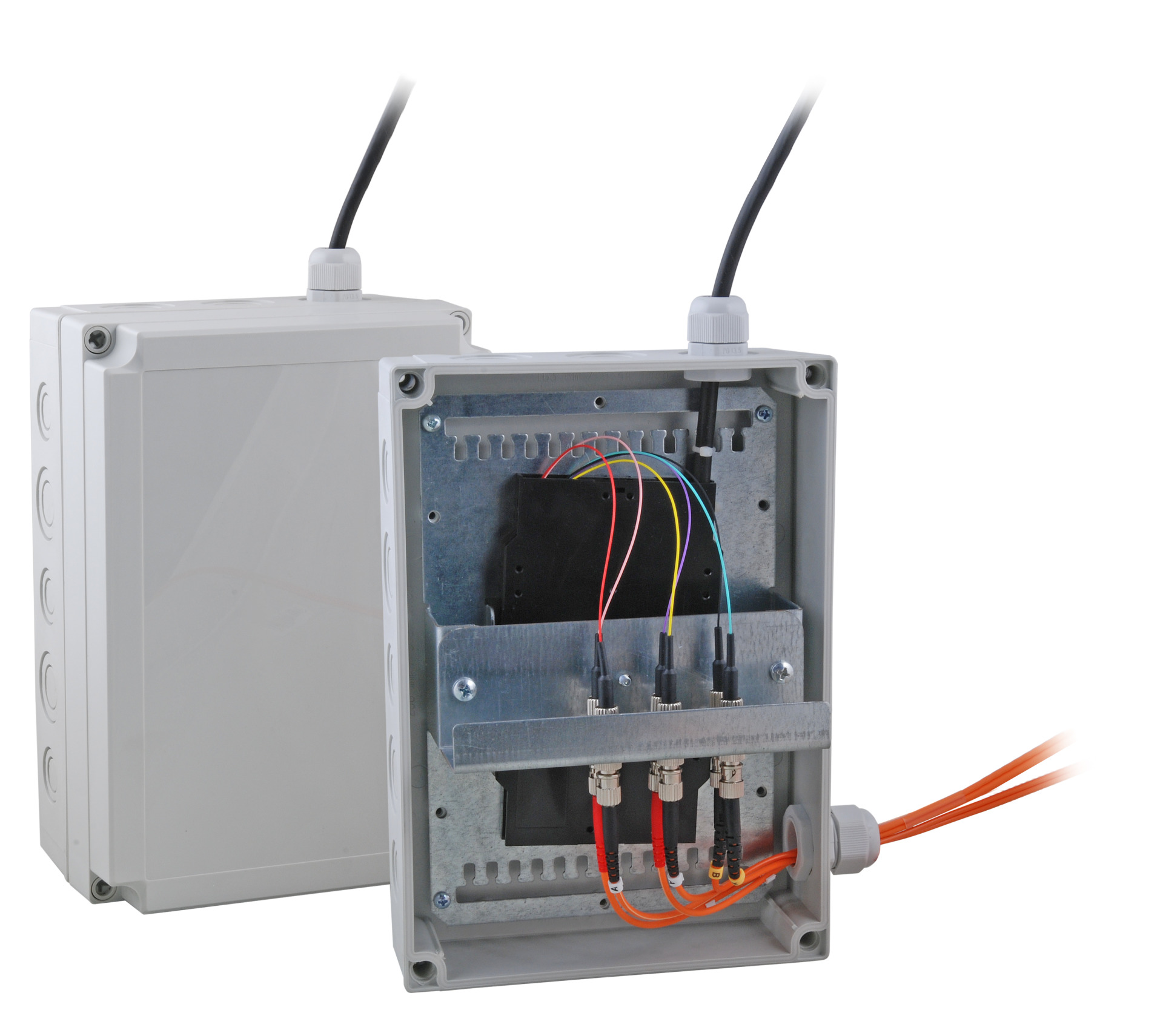

Splice box housing IP66, grey
IP66 Plastic housing RAL7035Suitable for wall mountingIncluded:Distributor board for fixing of 3 splice cassettes or 2 splice cassettes (53100.200 ) and 1 mounting bracket1 mounting bracket for 6 x SC duplex / LC quad adapters1 mounting bracket for 12 x ST simplex / FC simplex adapters (D-hole)Prepared cable entries for 2 x M16/M25 and 4 x M20/M32Delivery unassembledDimensions: 255 x 180 x 100 mm

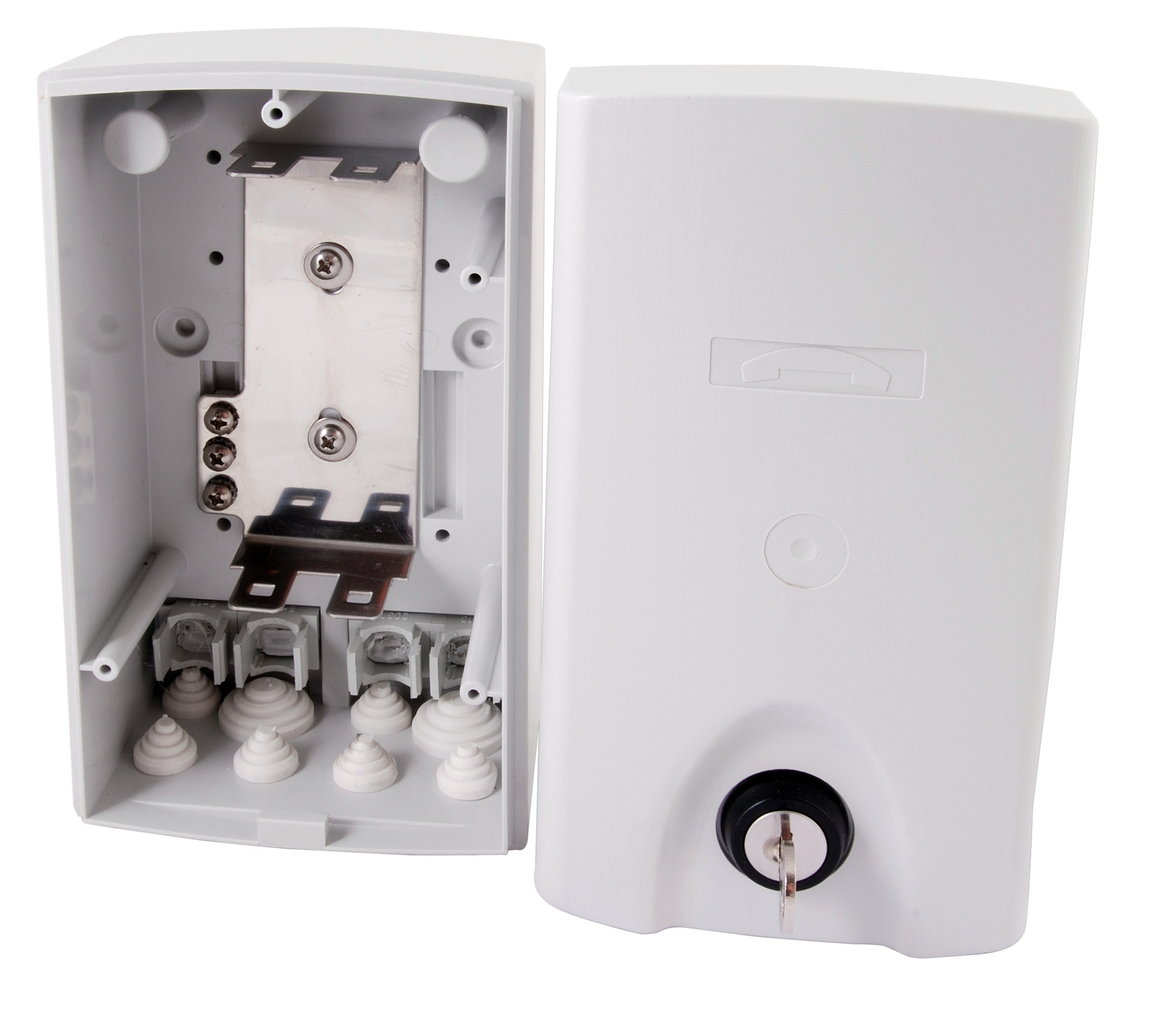

TT Distribution Box 4 20pairs IP54, WxHxD = 103x185x90mm
With LSA backmount frame for LSA connection modules 2/10 10pairsWith lockProtection degree IP54

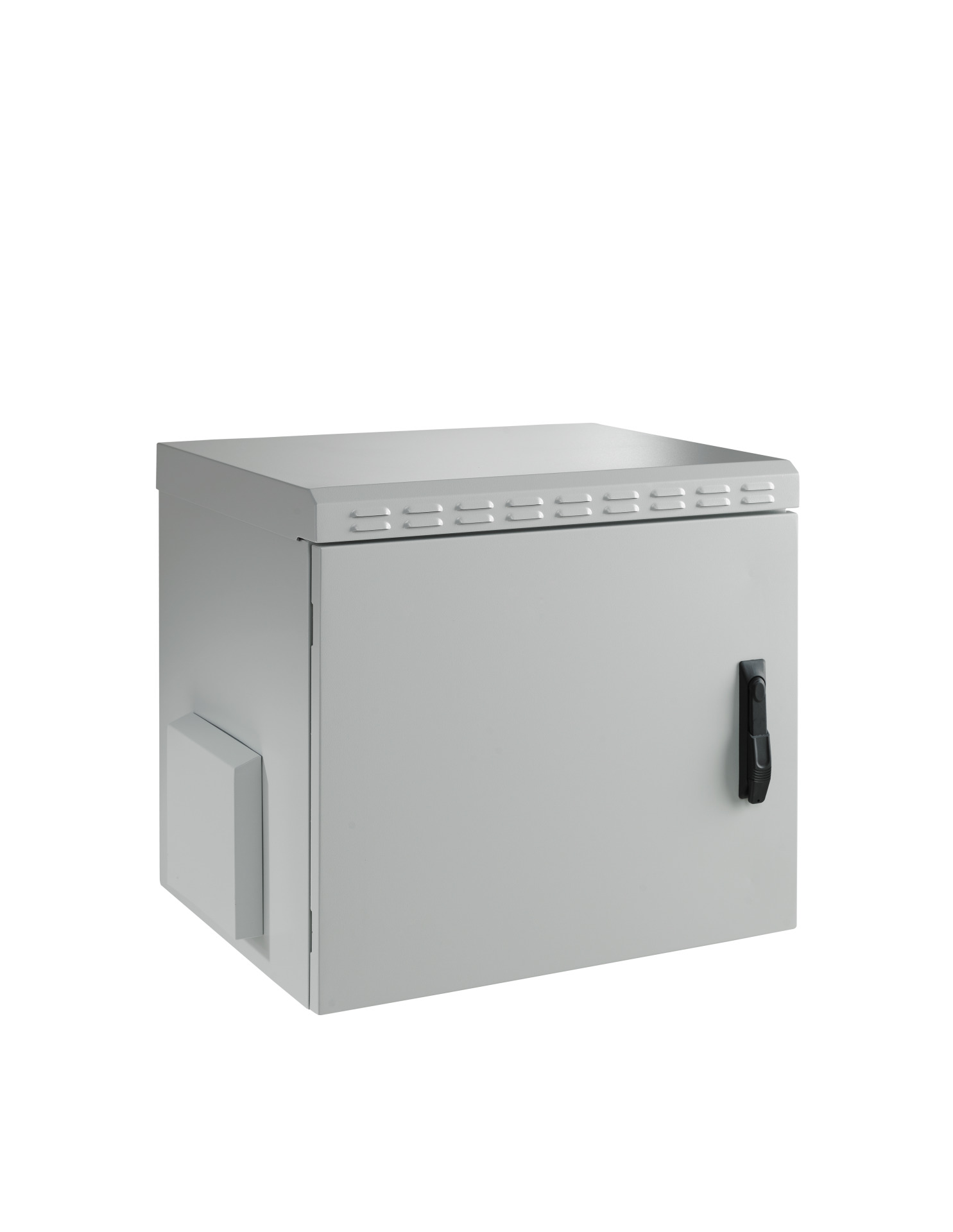

19" Wall Housing IP55, 9U, Steel Door, Depth 600 mm, RAL7035
Steel sheet housing with welded corpus, completely pre-assembledRight- and left-sided metal covered air inlets for passive ventilationSide walls not detachableRoof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommetsFor depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)Front door steel sheet with reinforcement and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303Profile half-cylinder exchangeable by customerCabinet parts inside completely earthedMax. load 100 kgPaint finish RAL7035, light greyProtection degree IP55Plinth for use as standing cabinet available as optionIncluded accessories: 4 x Wall mount angle, 2 x key

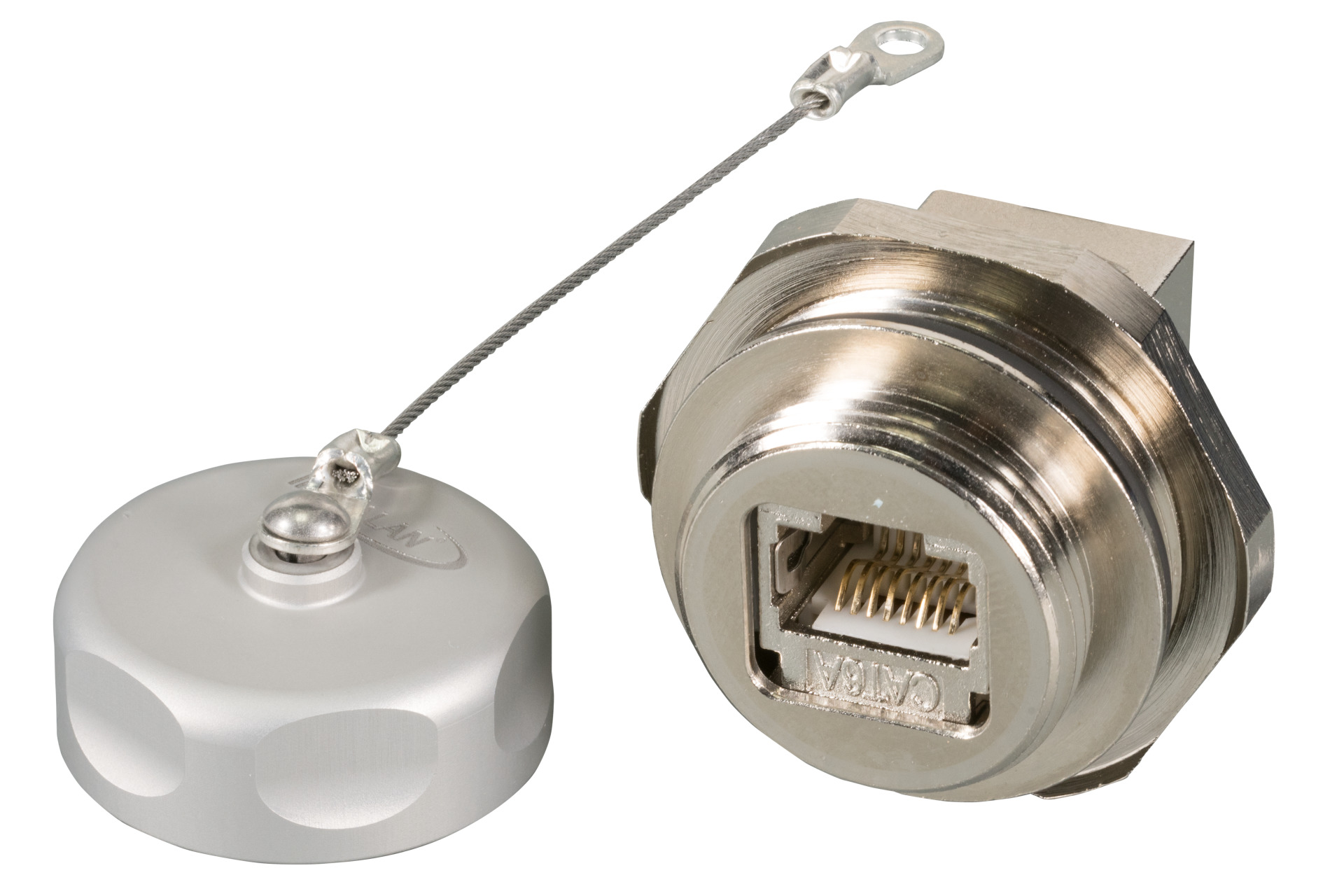

IP67 Metal adapter, M25, RJ45 Cat.6A, F-F, service port, guy rope
IP67 feed-through coupling for installation in distributor boxes with M25 cut-out. With built-in Cat.6A RJ45 adapter socket / socket Material: brass With captive dust cap

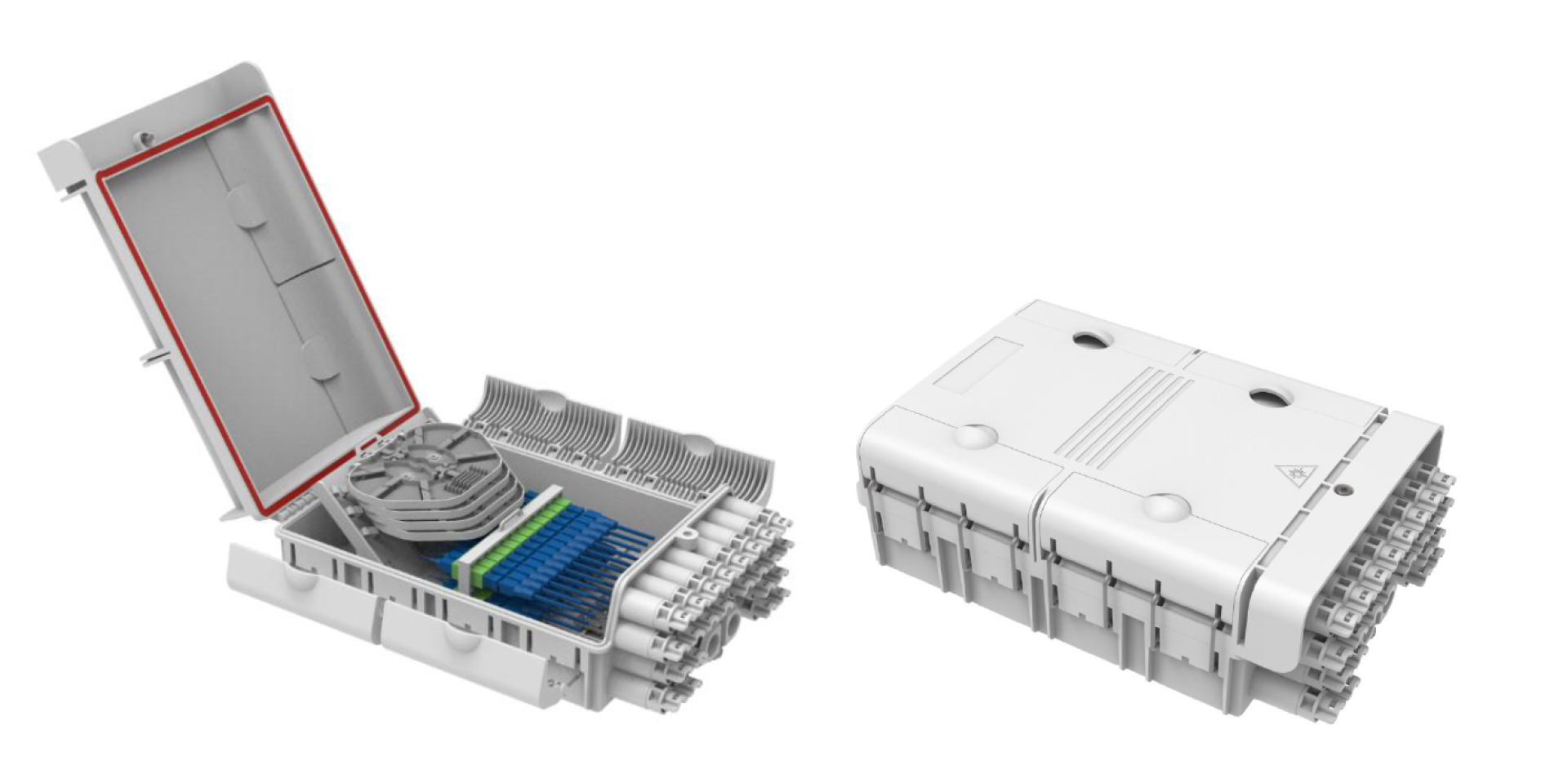

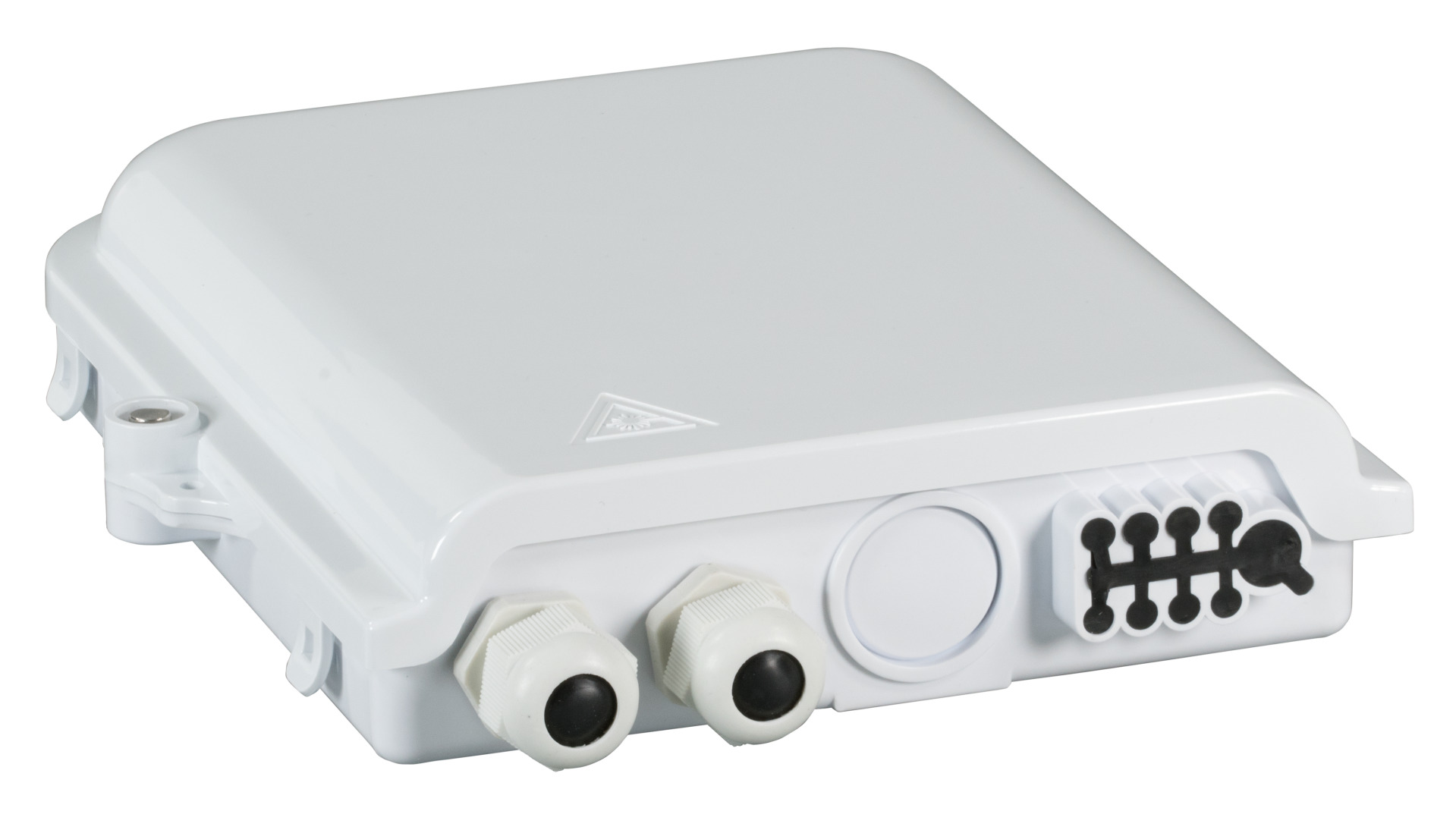

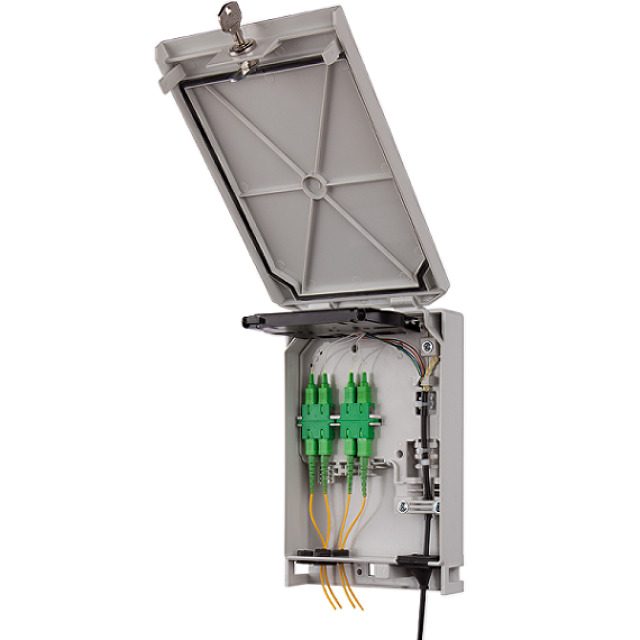

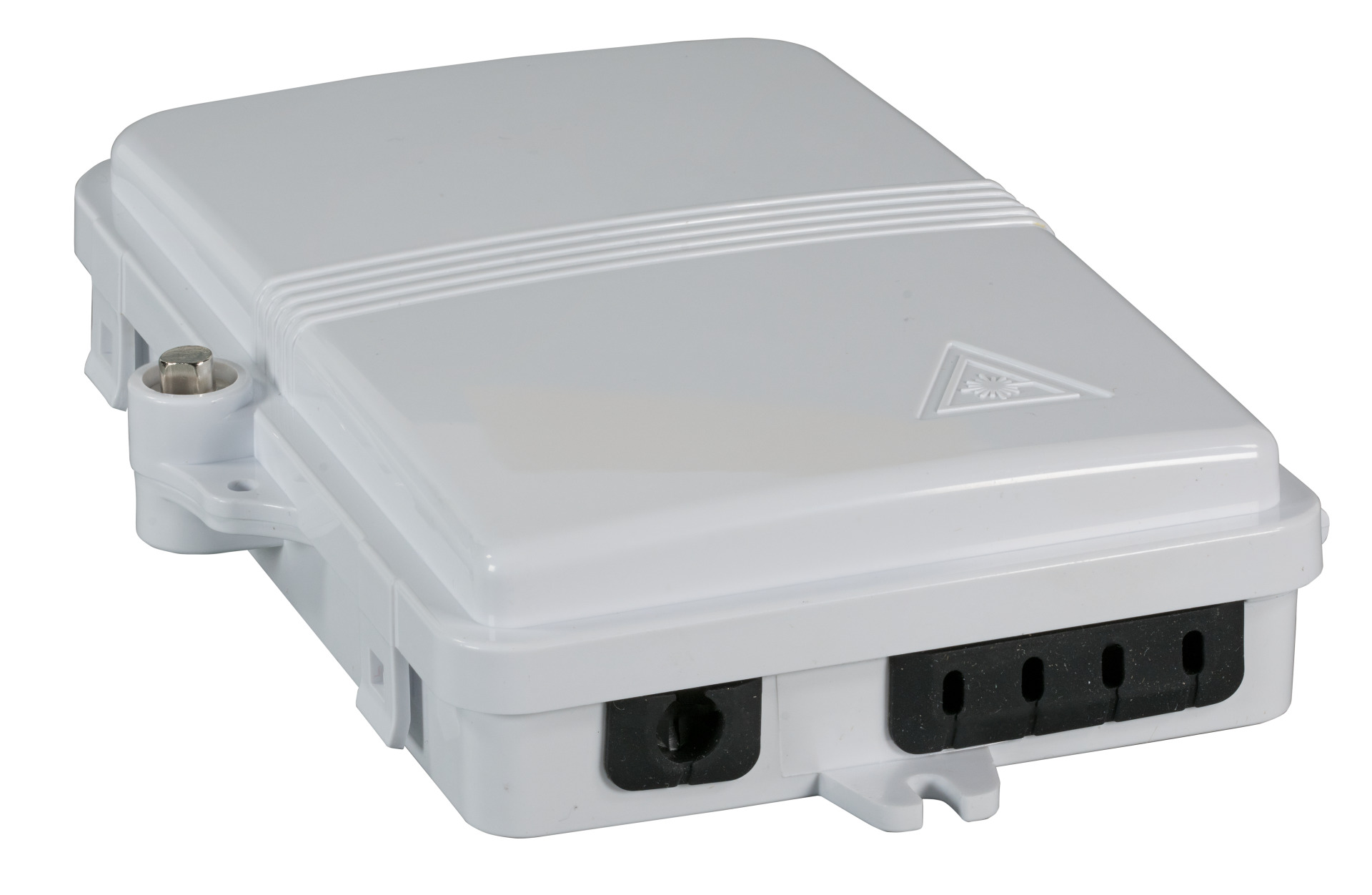

FTTH IP65 Connectionbox for 8fiber, 4adapter and Fiber overlength box
Application:Optical Telecommunication NetworksLAN, Optical fiber Communication NetworkCATV NetworksFTTH access NetworkPON, G-PONConfiguration in LC with duplex adapters for 8 ports/ fibersConfiguration in SC with simplex adapters for 4 ports/ fibersDelivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 8 splices double layed), 4x shrink protection and material for wall mounting included)

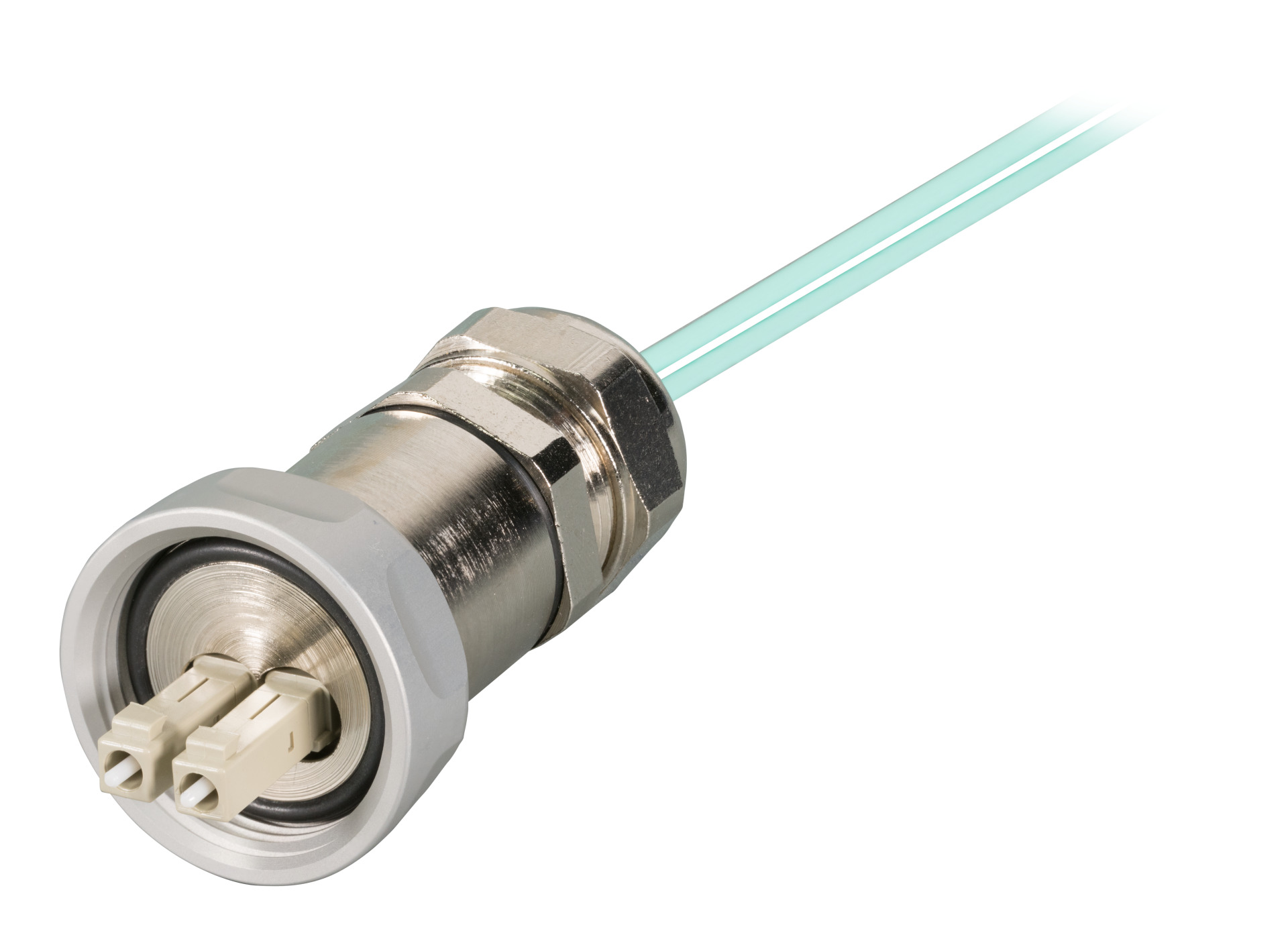

IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OM3, 5m
IP67 cable gland with pre-installed LC duplex fiber optic cable For installation in housings with M25 cut-out Material gland: brass

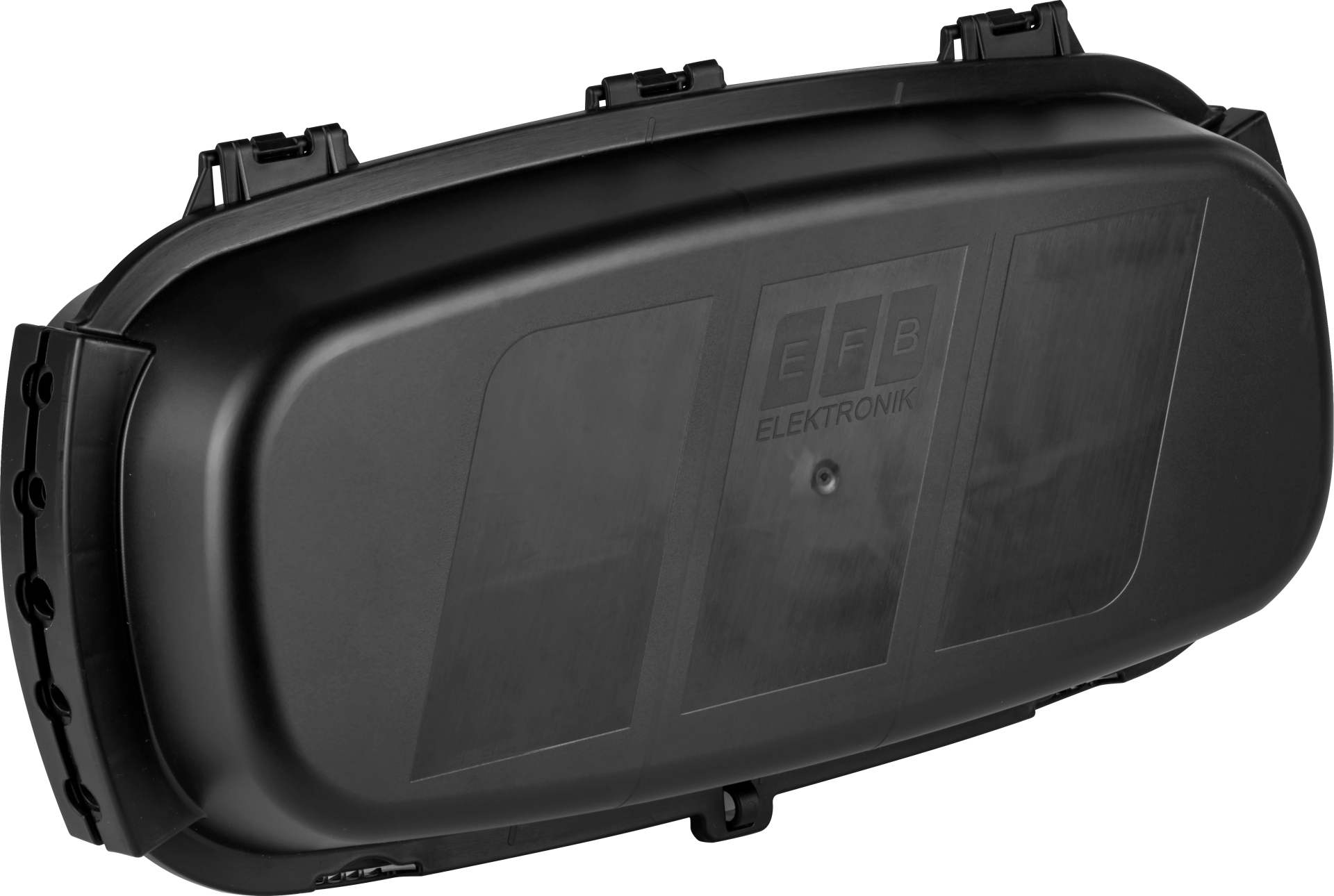

FTTH IP65 Connectionbox for 144 fiber and Fiber overlength box
Application:Optical Telecommunication NetworksLAN, Optical fiber Communication NetworkCATV NetworksFTTH access NetworkPON, G-PONDelivery unassembled (shrink splice holder, shrink protection and material for wall mounting included)

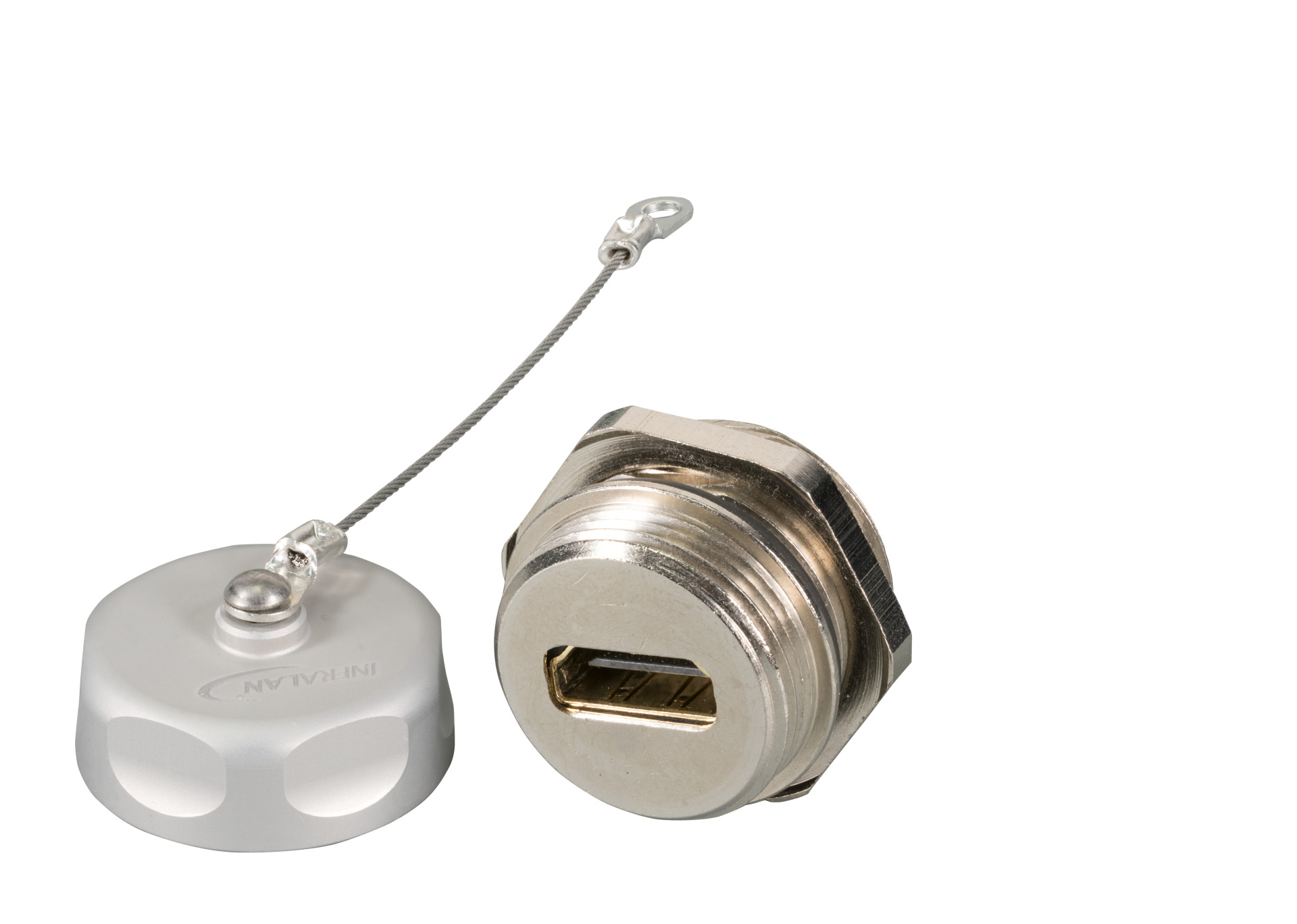

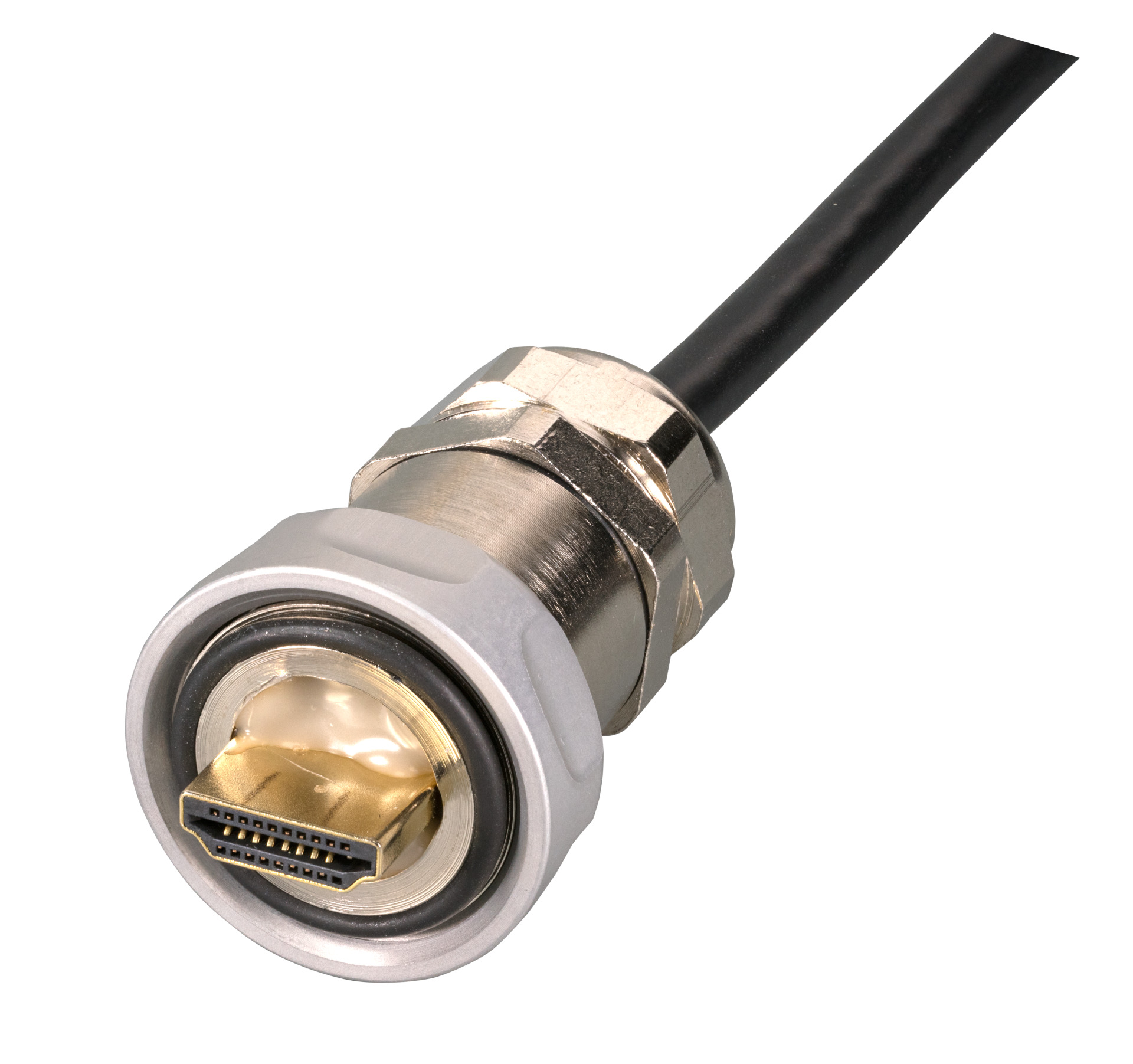

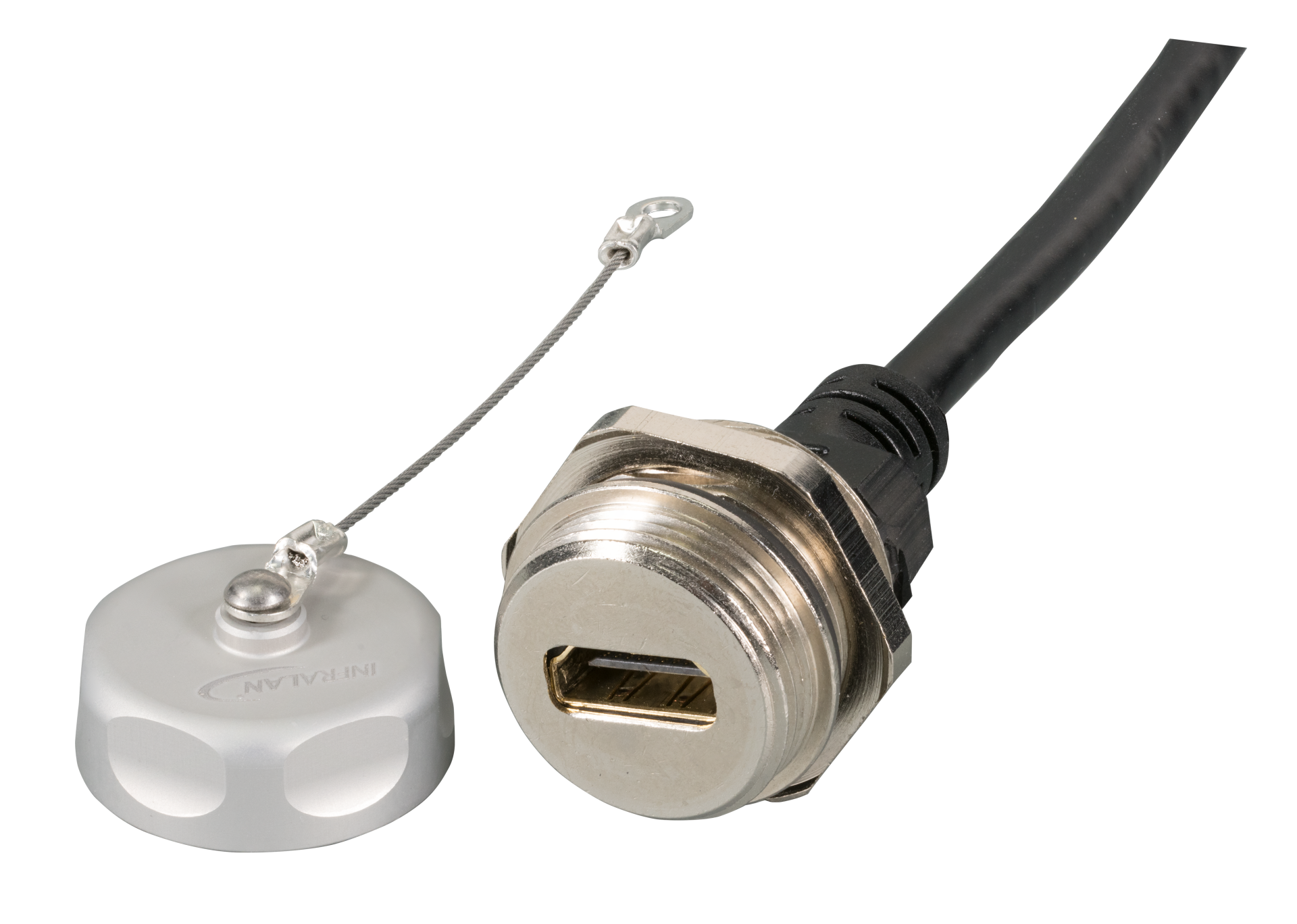

IP67 Metal adapter, M25, HDMI, F-F, A-A
IP67 feed-through coupling for installation in distributon boxes with M25 cut-out. With built-in HDMI socket / socket coupling Material: brass For resolutions up to 4K 60Hz With dust protection cap
%

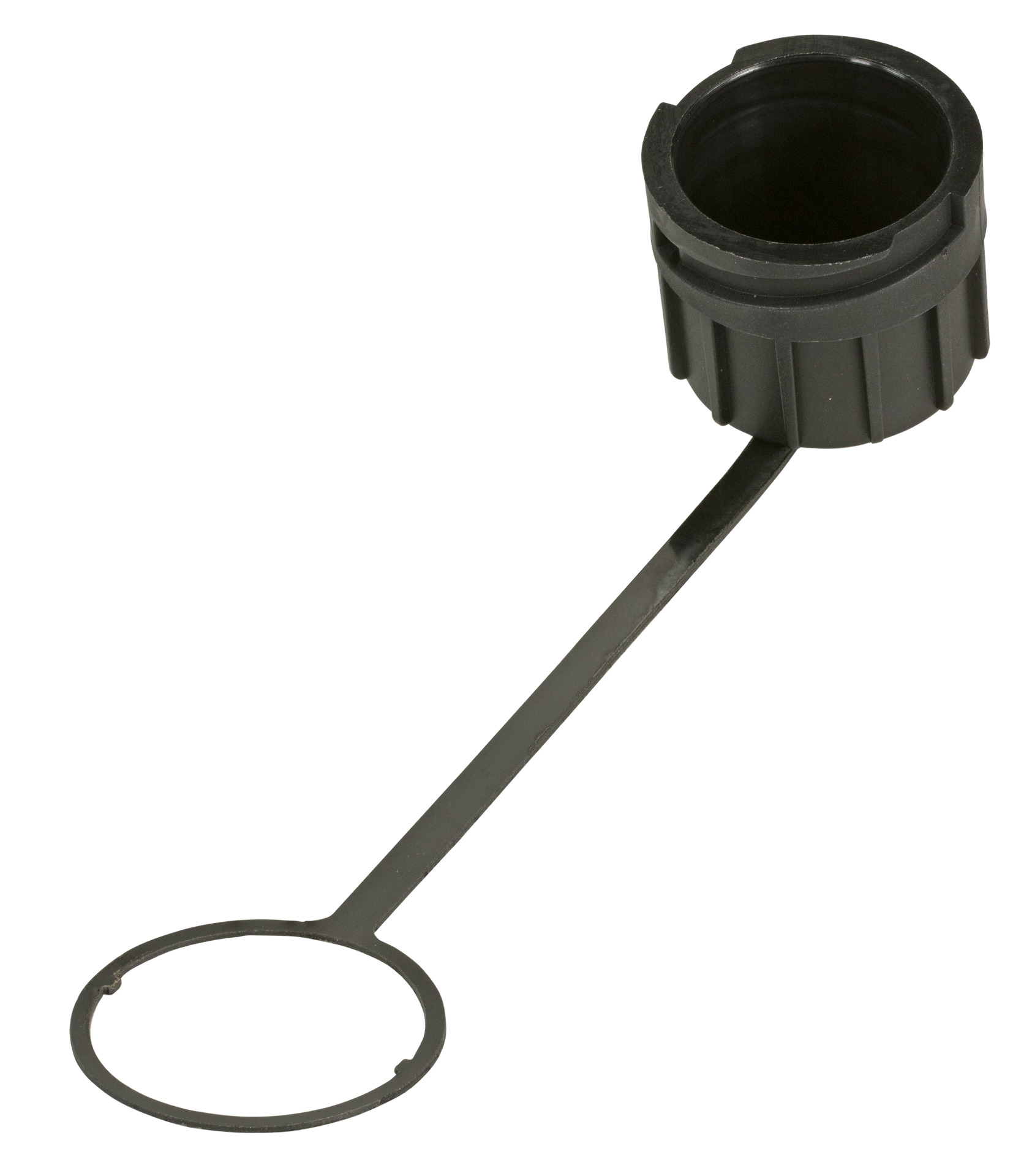

IP68 Verschlusskappe für Kabelverschr., Bajonettverschluss nach IEC61076-3-106
IP68 Verschlusskappe für KabelverschraubungMit Bajonettverschluss nach IEC61076-3-106Befestigungsring - unverlierbar (verschraubbar an der Kabelverschraubung)Material: Kunststoff schwarzZubehör für:IP68 Kabelverschraubung: IP68FST6AA, IP68FST6AB, IP68ST6ATM

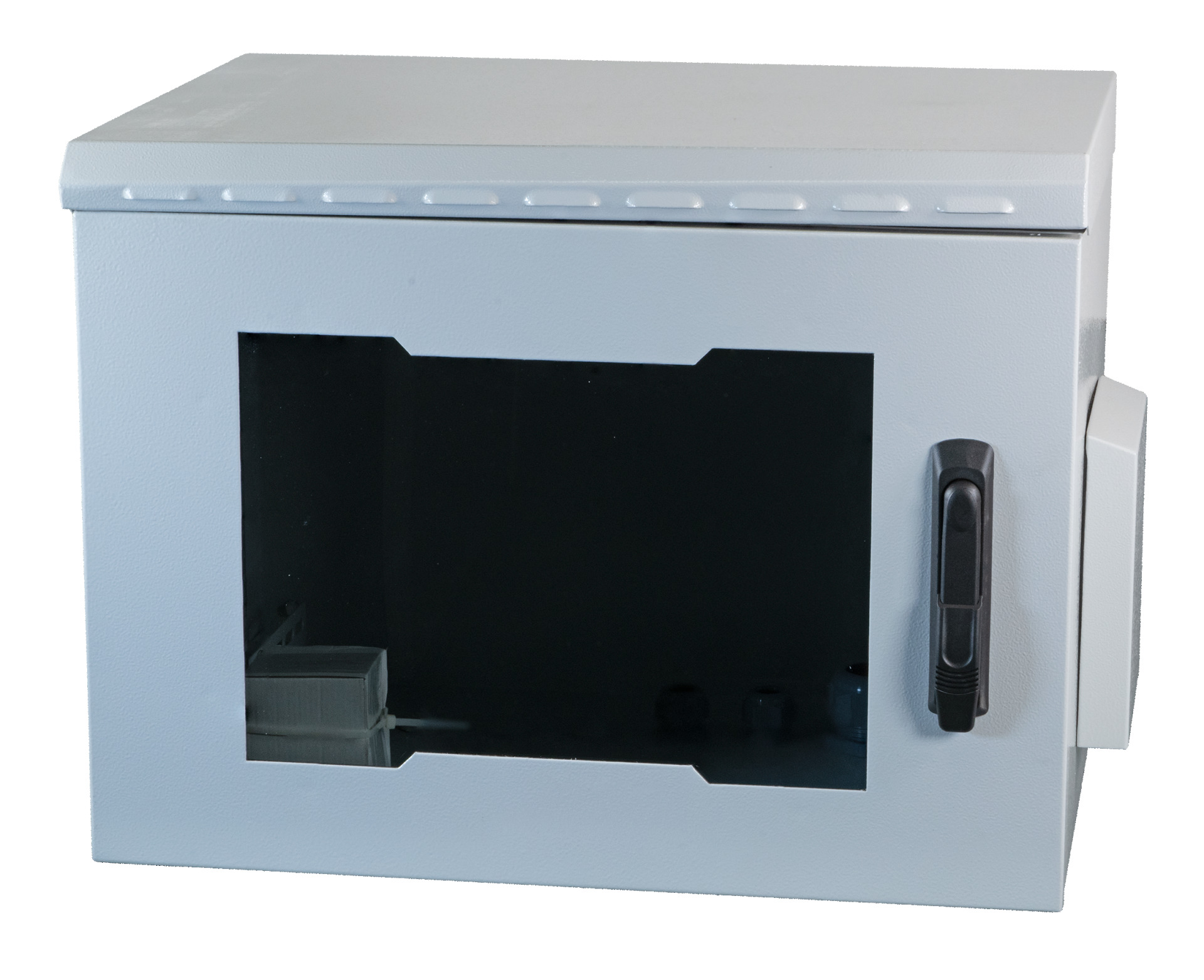

19" Wall Housing IP55, 9U, Glass Door, Depth 600 mm, RAL7035
Steel sheet housing with welded corpus, completely pre-assembledRight- and left-sided metal covered air inlets for passive ventilationSide walls not detachableRoof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommetsFor depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)Front door with window of certified safety glass and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303Profile half-cylinder exchangeable by customerCabinet parts inside completely earthedMax. load 100 kgPaint finish RAL7035, light greyProtection degree IP55Plinth for use as standing cabinet available as optionIncluded accessories: 4 x Wall mount angle, 2 x key

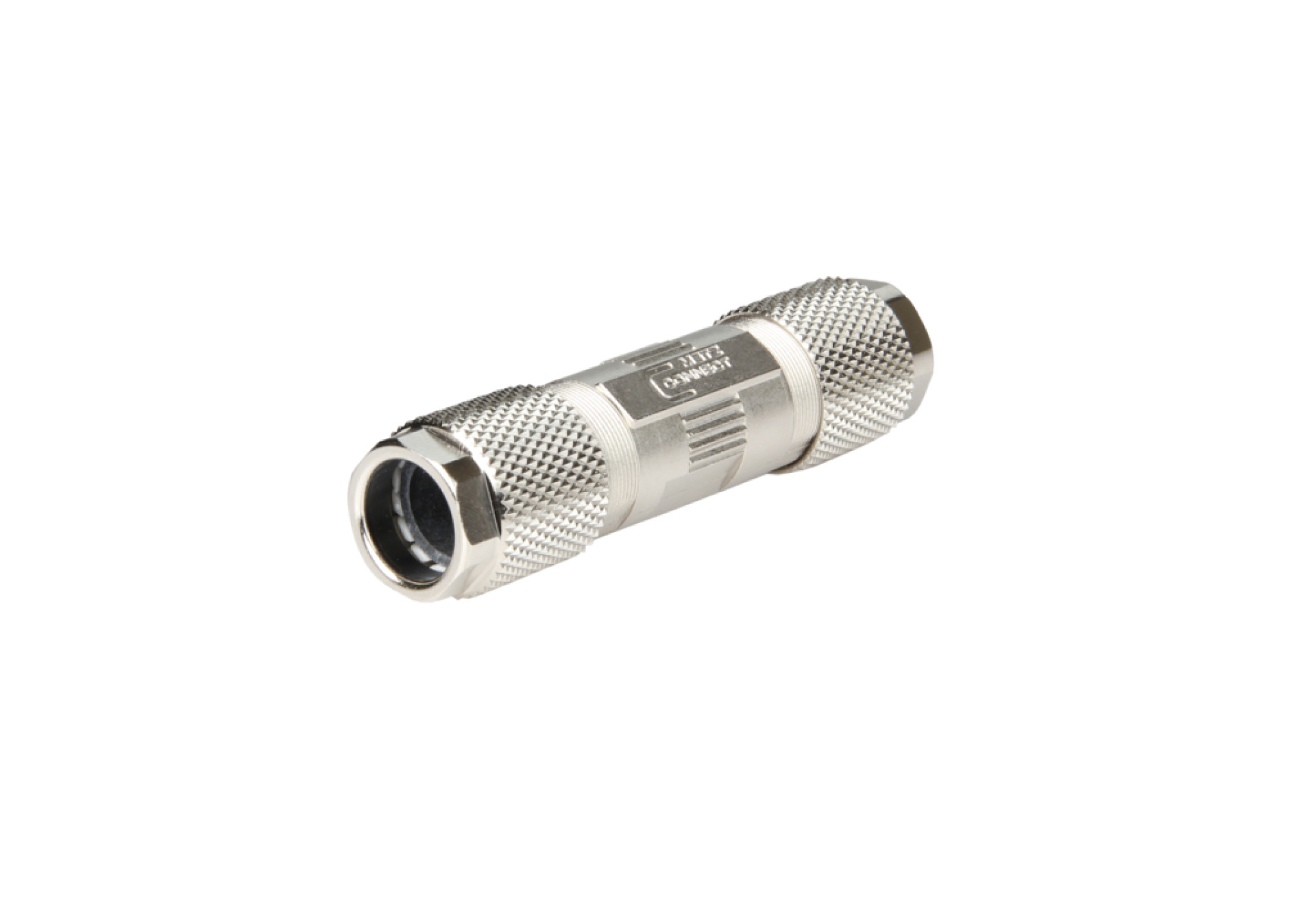

Cable Connector Cat 7A/Class Fa IP67
Cable connector for field assembly Class Fa 8 wire cablesTo connect, extend, repair, relocate copper data cables up to Cat.7aCompliances to Class Fa up to 1000Mhz according to ISO/IEC 11801 Ed.2.2:2011-06 in cooection with Cat.7a copper cableGhmT certified to ISO/IEC 11801 Ed.2.2:2011-06 and IEC61156-5 Ed2.1:2012-12Suitable for 10Gbit Ethernet (IEEE 802.3an), Remote powering (PoE, PoE+ and UPoE) and HDBaseTCompact design, diameter 16,8mm x lenght 64mmIP67 protected housing in combination with IP67 appropriate cablesRefined zinc die-cast housingEasy and fast assembly without special toolsShield connection and strain relief integratedSuitable for solid wire AWG 26/1 to AWG 22/1 and stranded wire AWG 26/7 to AWG 22/7Solid copper wire diameter 0,4 to 0,64mmStranded wire diameter 0,48 to 0,76mmConductor diameter up to 1,6mmSuitable for cables with an overall diameter of 5,0 to 9,7mmFully shielded version according to DIN EN50173-1

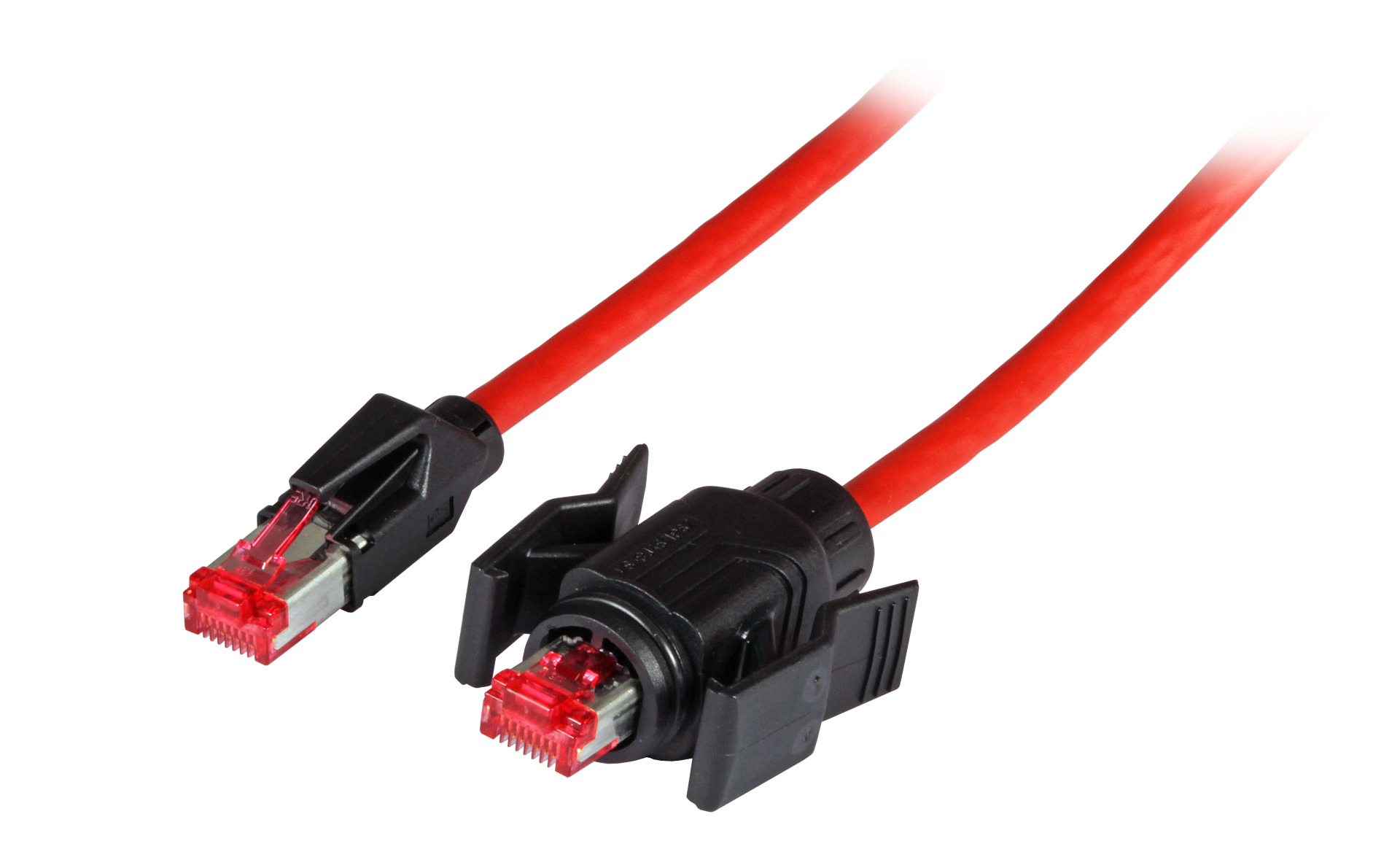

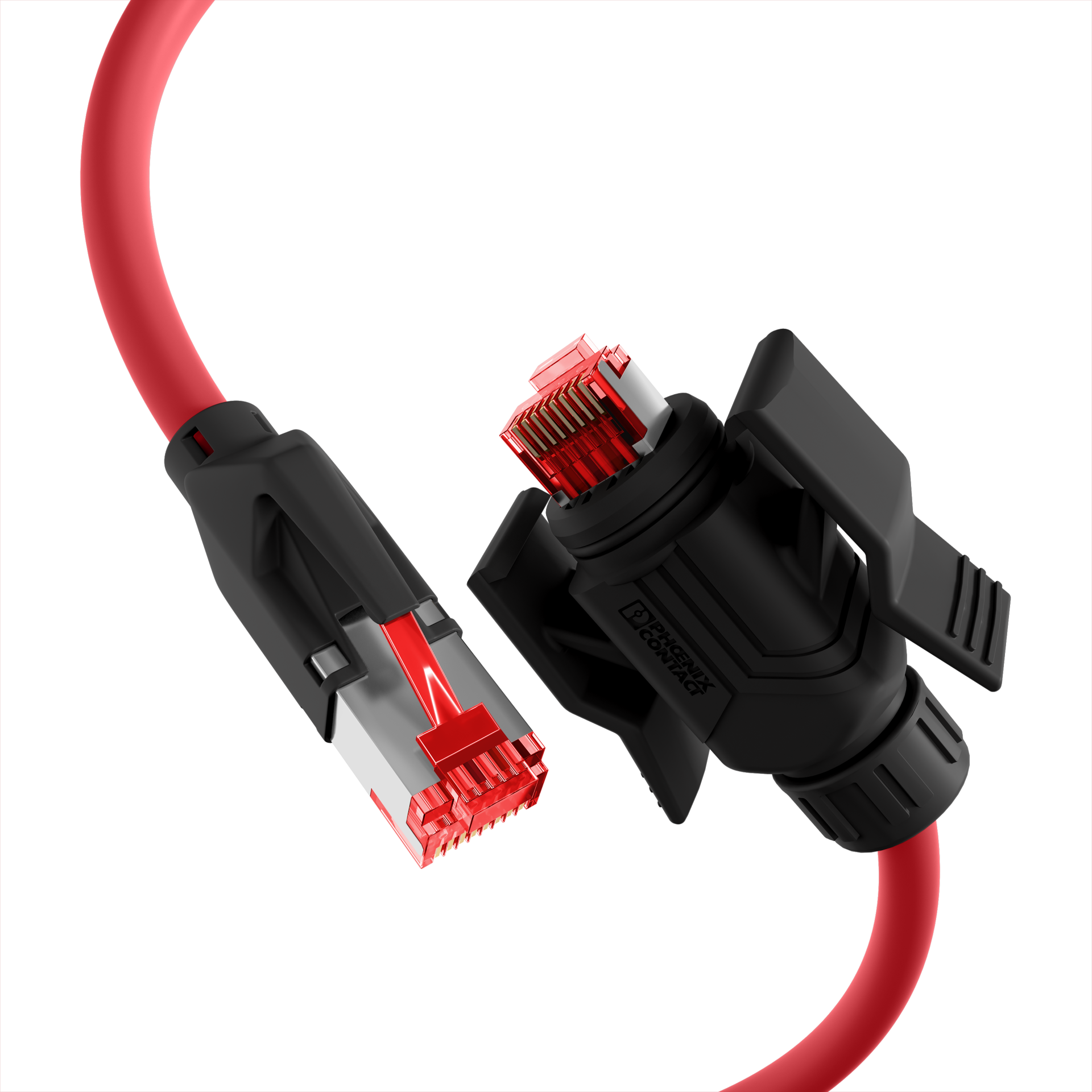

RJ45 Patch Cord Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2 1m
RJ45 patch cable Cat. 6A S/FTP PUR TM21 1xIP67 PUR for 53730.1V2The Cat.6A (IEC) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.Technical product features• Cat.6A (IEC)• S/FTP cable with AWG27/7• Sheath material made of polyurethane (PUR)• Fire protection: flame-retardant, halogen-free, low-smoke• Sheath properties: oil-resistant, ozone-resistant, UV-resistant• Plug connection: RJ45 to RJ45• With locking lever protection• Has gold-plated contactsThe sheath of the shielded patch cable is made of polyurethane (PUR) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.The red TM21 connectors are assigned 1:1 and are in accordance with TIA/EIA 568B.The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. A frequency range of 500 MHz is achieved.

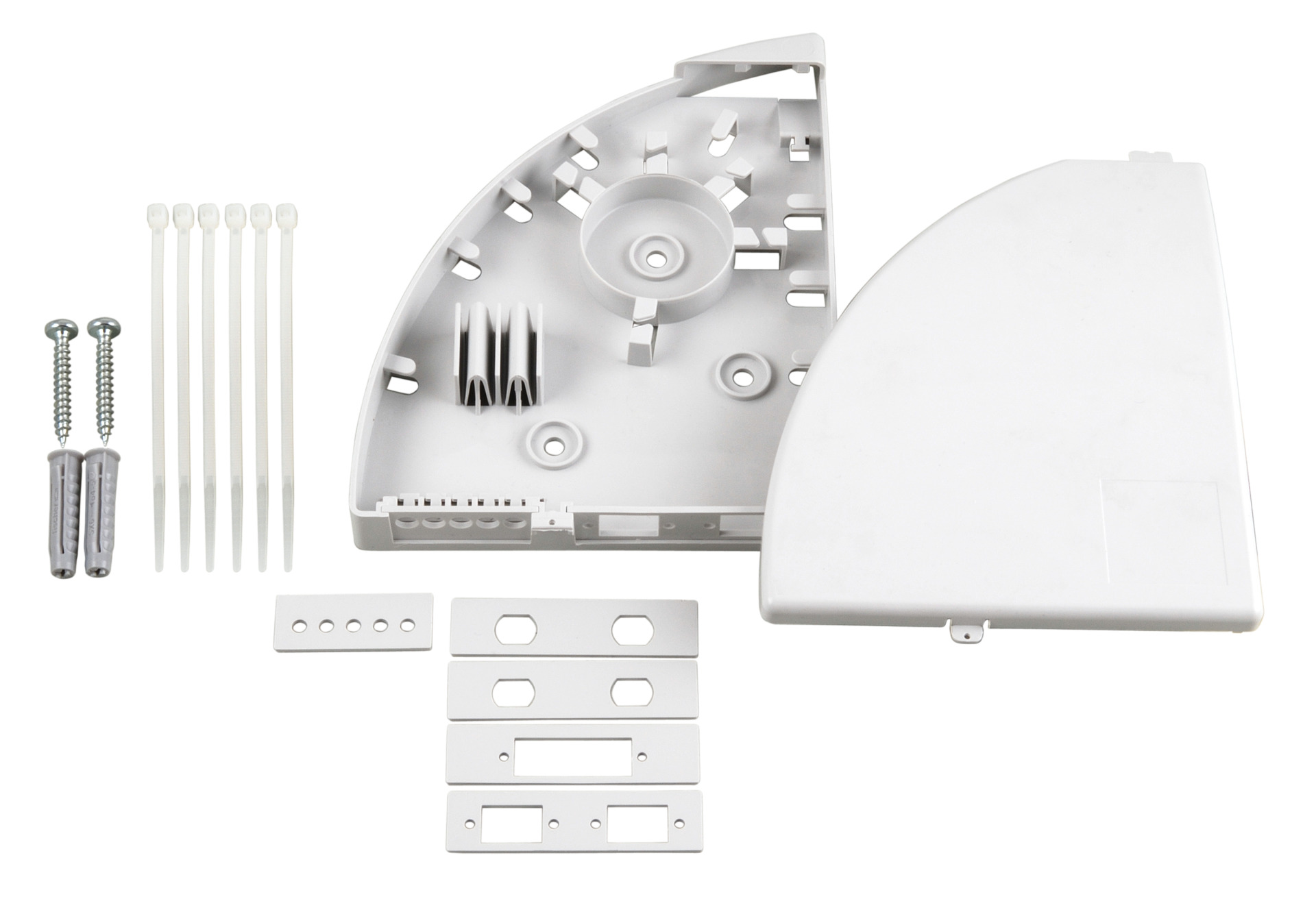

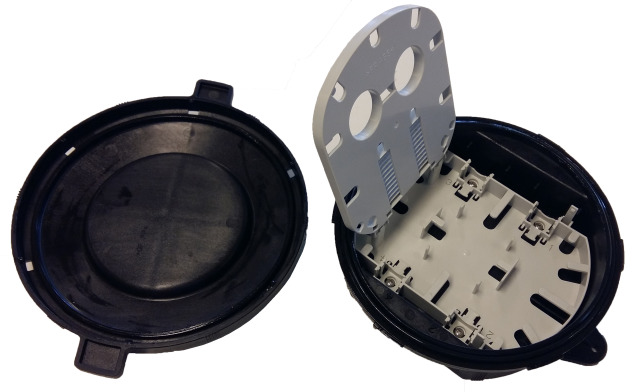

FTTH IP65 Connectionbox for 4fiber, 2adapter and Fiber overlength box
Application:Optical Telecommunication NetworksLAN, Optical fiber Communication NetworkCATV NetworksFTTH access NetworkPON, G-PONConfiguration in LC with duplex adapters for 4 ports/ fibersConfiguration in SC with simplex adapters for 2 ports/ fibersDelivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 4 splices double layed), 2x shrink protection and material for wall mounting included)

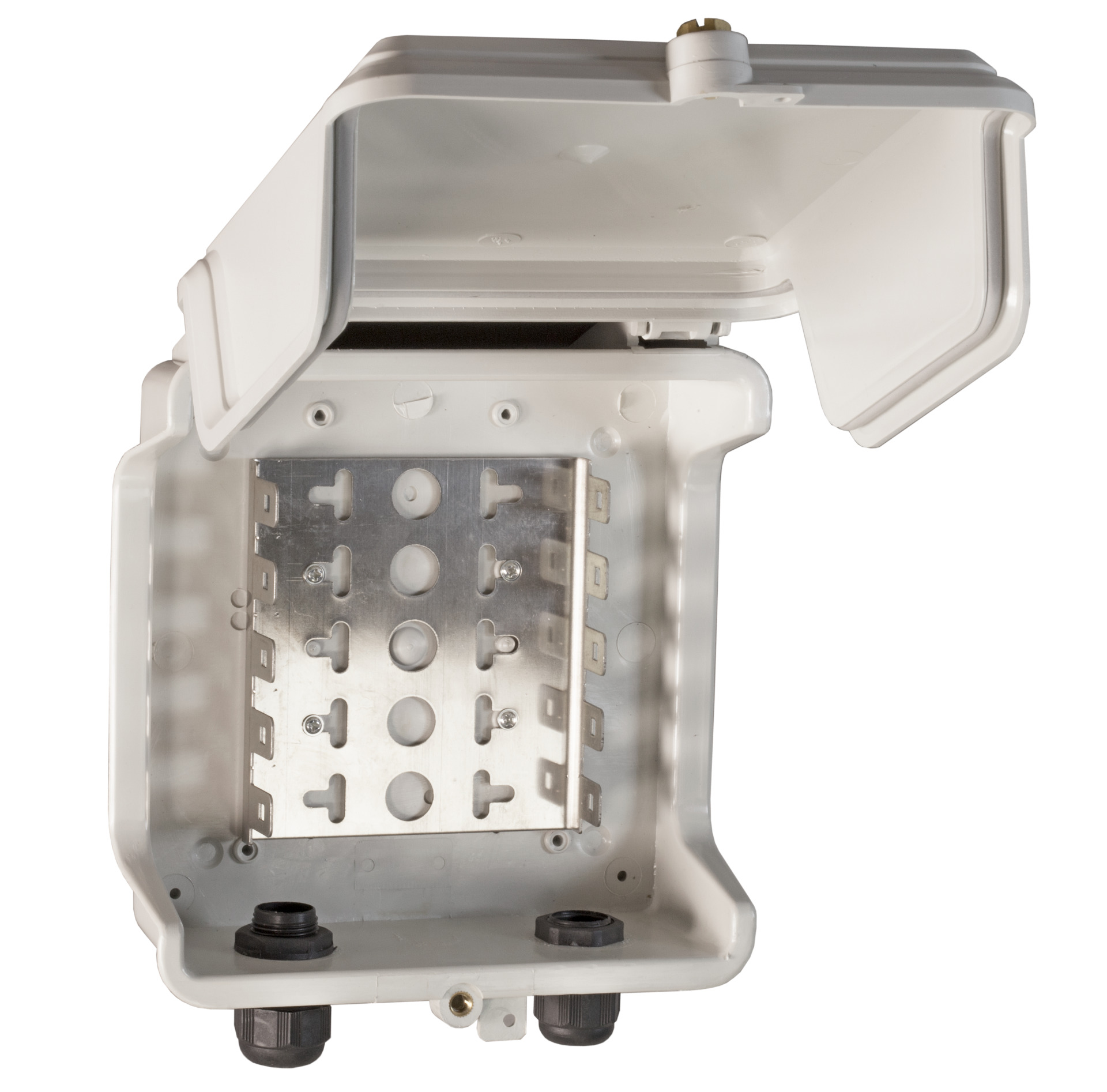

TT Distribution Box 2 50pairs IP54, WxHxD = 190x215x90mm
With LSA backmount frame for LSA connection modules 2/10 10pairsWith screw closureProtection degree IP54
%
Klein-Spleißverteiler I, RAL7035, IP54, abschließbar
IP54 Kunststoffgehäuse RAL7035Zur Aufnahme von 6 SchrumpfspleißenVerschließbarer DeckelLieferumfang:Metallplatte zur SpleißablageSchrumpfspleißhalter 6-fachTabellenaufkleber1 x Schlüssel1 x PG13.5 Verschraubung1 x PG9 Verschraubung2 x Dübel M82 x Schrauben 2.9x9.5mmAbmessungen: 103x185x100mm
%

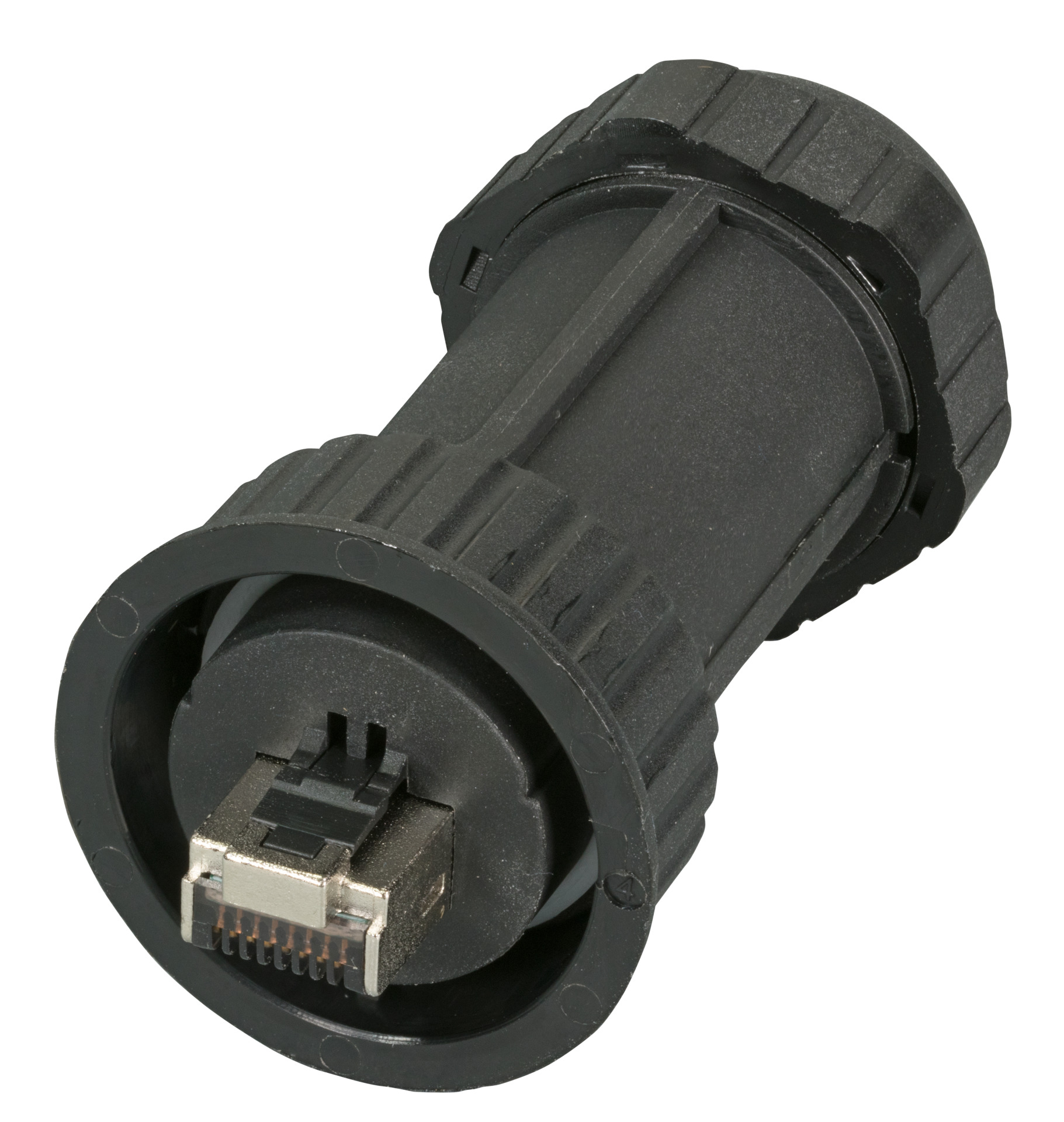

IP68 Kabelverschraubung für RJ45 feldkonf. Stecker, Kabel-Durchm.: 4,5 - 6,5 mm
IP68 Kabelverschraubung für feldkonfektionierbare SteckerMit Bajonettverschluss nach IEC61076-3-106Gerader Auslass 180°Lieferung unbestücktLieferumfang: 3-Teilig bestehend aus:1x IP68 Kabelverschraubungsgehäuse (ohne Stecker)1x Kabeldichtung: 4,5-6,5mm1x ZugentlastungsverschraubungZubehör: IP68 Verschlusskappe: IP68STCAPFeldkonfektionierbarer Stecker: 88035.1, 88035P8.1, 88035UTP.1, 88035AV.1, IVB-6A-S
%
Sockel für 19" Wandgehäuse IP55, Tiefe 450 mm, RAL7035
Zur Nutzung der IP55 Wandgehäuse (Art.-Nr. 6917xxIP55.x) als StandgehäuseSockelhöhe 100 mm, Tiefe 450 mmGeeignet für ebene Oberflächen wie z.B. FundamentbödenSchraubmontage am WandgehäuseMit Öffnungen zur Befestigung am BodenMaterial StahlblechLackierung RAL7035, lichtgrau
19" Wall Housing IP55, 20U, Glass Door, Depth 450 mm, RAL7035
Stahlblechgehäuse mit geschweißtem Korpus, komplett vormontiertRechts- und linksseitig metallgeschützte Luftzuführungen zur passiven BelüftungDichtungen an Dach und Tür für Staub- und WasserschutzSeitenwände nicht abnehmbarDach klappbar, Innendach vorbereitet für Einbau von Plug&Play Lüftereinheit Art.-Nr. 691656GR (Netzkabel nicht enthalten, bitte separat bestellen, z.B. Art.-Nr. EK504.x)Boden mit PG Verschraubungen 1 x PG48, 2 x PG21 sowie 3 x Ø 20 mm PVC KabeltüllenBei Tiefe 450 mm innen 2 x 19" Streben vorn, verzinkt, mit Nummerierung der HöheneinheitenBei Tiefe 600 mm innen 4 x 19" Streben (2 vorn, 2 hinten), verzinkt, mit Nummerierung der HöheneinheitenFronttür mit Fenster aus zertifiziertem SIcherheitsglas, und 3-Punkt-Stangenverschluss, abschließbar, mit Profilhalbzylinder nach DIN 18252 / EN1303Profilhalbzylinder bauseitig austauschbarSchrankteile innenseitig komplett geerdetTraglast 100 kgLackierung RAL7035, lichtgrauSchutzart IP55Sockel zur Aufstellung optional erhältlichInklusive Zubehör: 4 x Wandhalter, 2 x Schlüssel
19" Wall Housing IP55, 12U, Glass Door, Depth 450 mm, RAL7035
Steel sheet housing with welded corpus, completely pre-assembledRight- and left-sided metal covered air inlets for passive ventilationSide walls not detachableRoof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommetsFor depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)Front door with window of certified safety glass and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303Profile half-cylinder exchangeable by customerCabinet parts inside completely earthedMax. load 100 kgPaint finish RAL7035, light greyProtection degree IP55Plinth for use as standing cabinet available as optionIncluded accessories: 4 x Wall mount angle, 2 x key

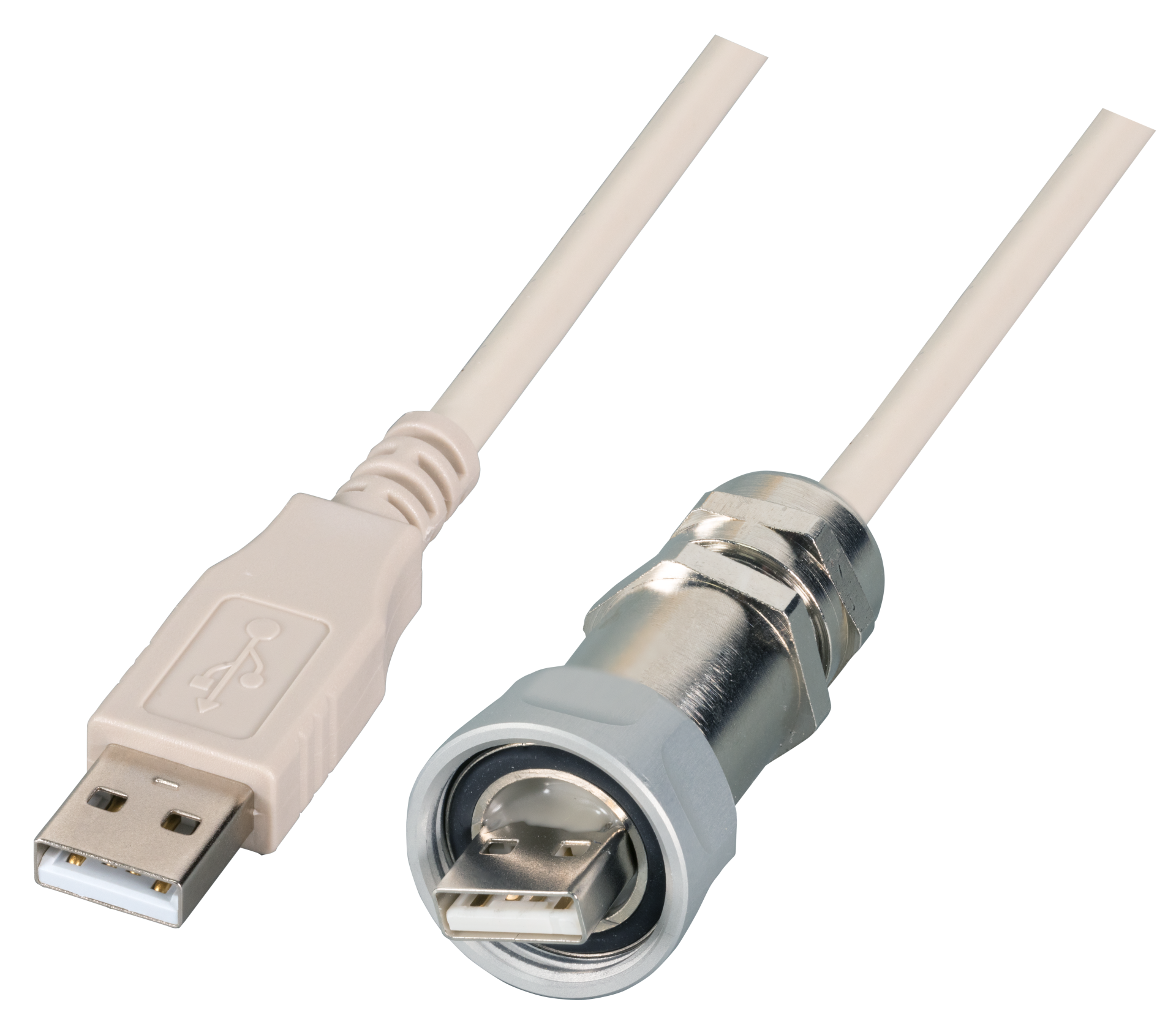

IP67 Cable gland, M20, USB2.0 Plug Type-A to Plug Type-A, 1,0m
IP67 cable gland with pre-installed USB2.0 plug/plug cableFor installation in housings with M25 knockoutMaterial gland: brass

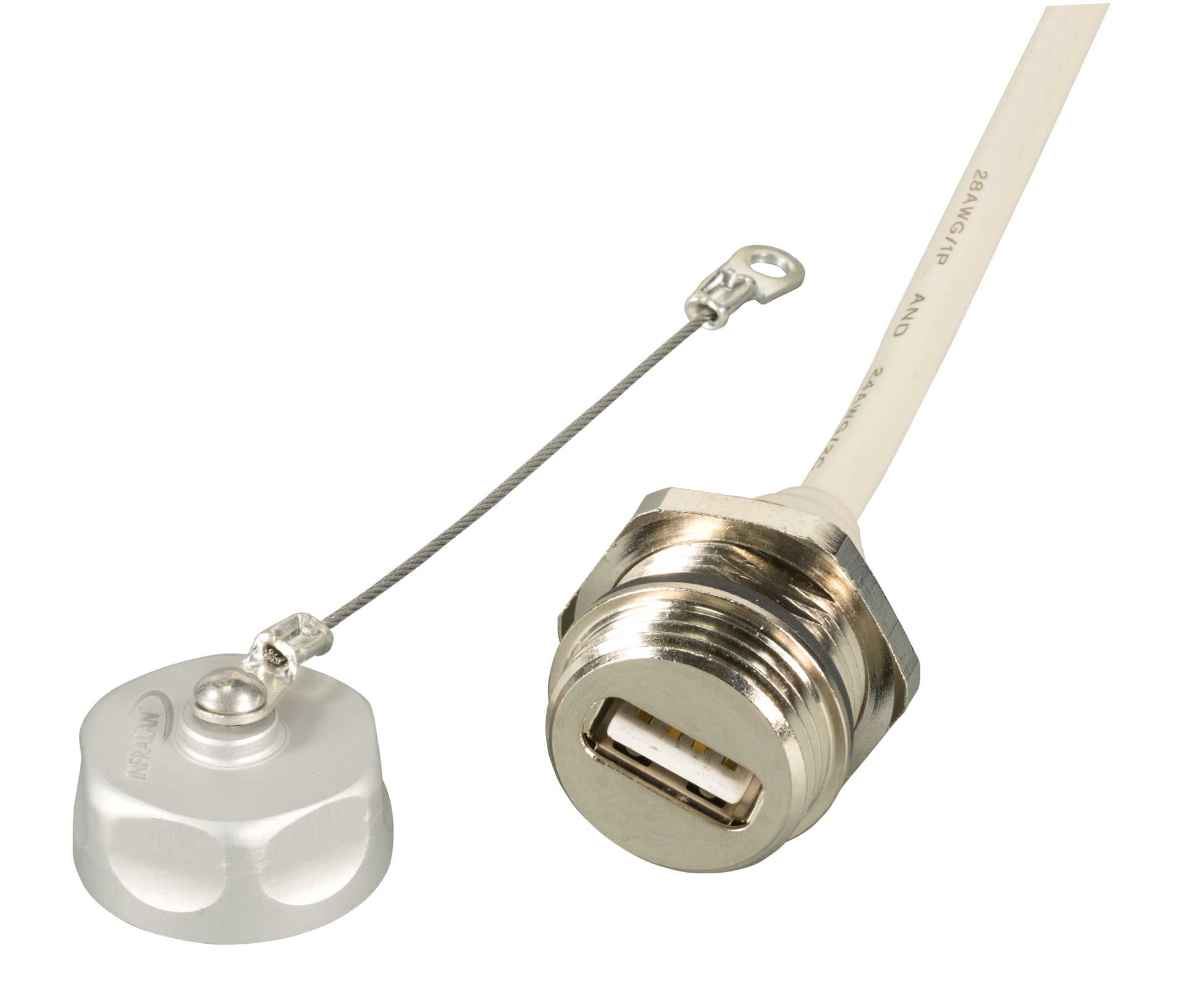

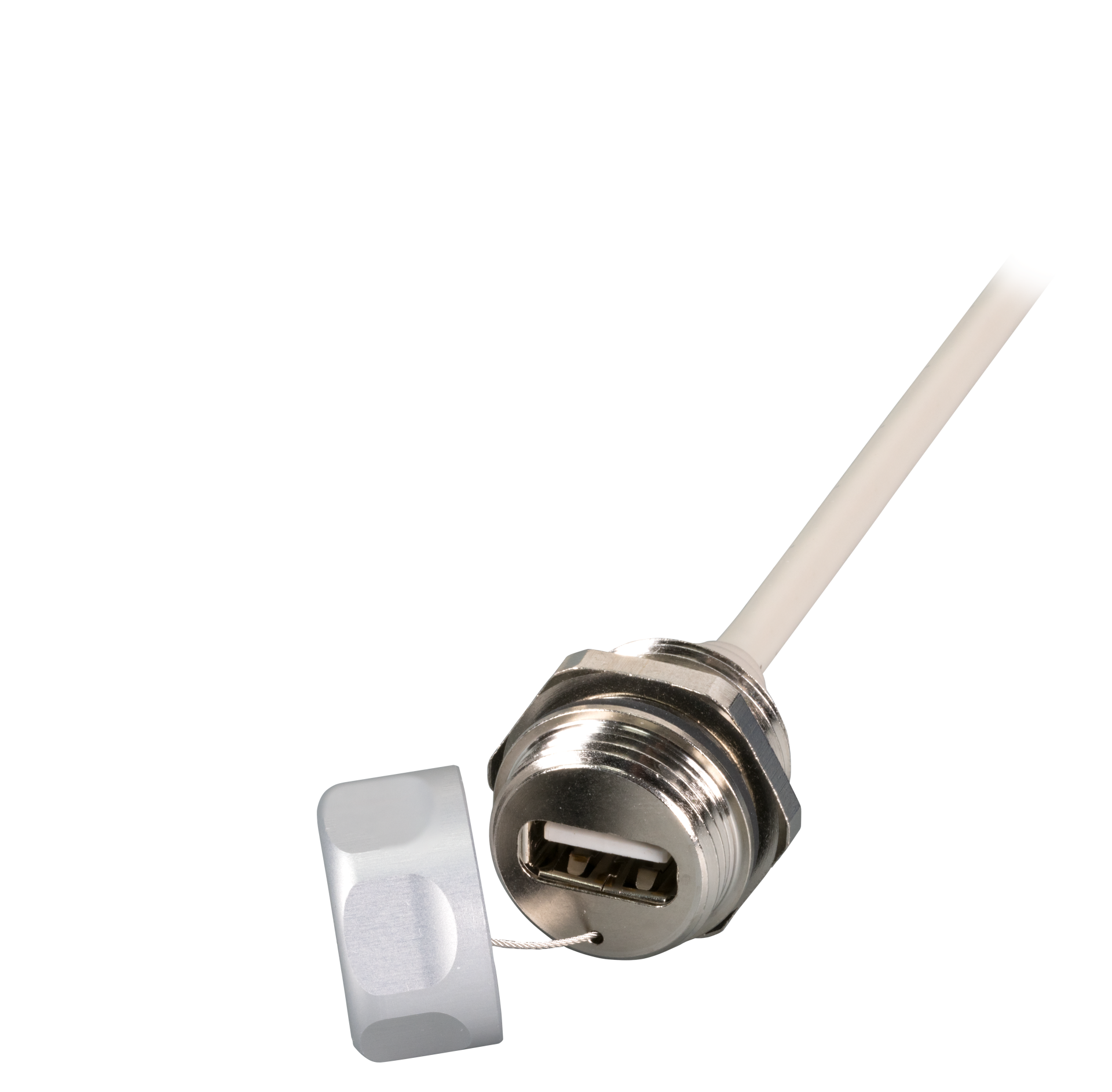

IP67 Receptacle, M20, USB2.0, F-M, A-A, service port, guy rope, 0.5m
IP67 panel socket for installation in distributor boxes with M25 cut-out. With built-in USB2.0 socket / plug A-A cable Material: brass With captive dust protection cap
%
IP68 Kabelverschraubung für RJ45 feldkonf. Stecker, Kabel-Durchm.: 6,5 - 9,0 mm
IP68 Kabelverschraubung für feldkonfektionierbare SteckerMit Bajonettverschluss nach IEC61076-3-106Gerader Auslass 180°Lieferung unbestücktLieferumfang: 3-Teilig bestehend aus:1x IP68 Kabelverschraubungsgehäuse (ohne Stecker)1x Kabeldichtung: 6,5 - 9,0 mm1x ZugentlastungsverschraubungZubehör: IP68 Verschlusskappe: IP68STCAPFeldkonfektionierbarer Stecker: 88035.1, 88035P8.1, 88035UTP.1, 88035AV.1, IVB-6A-S

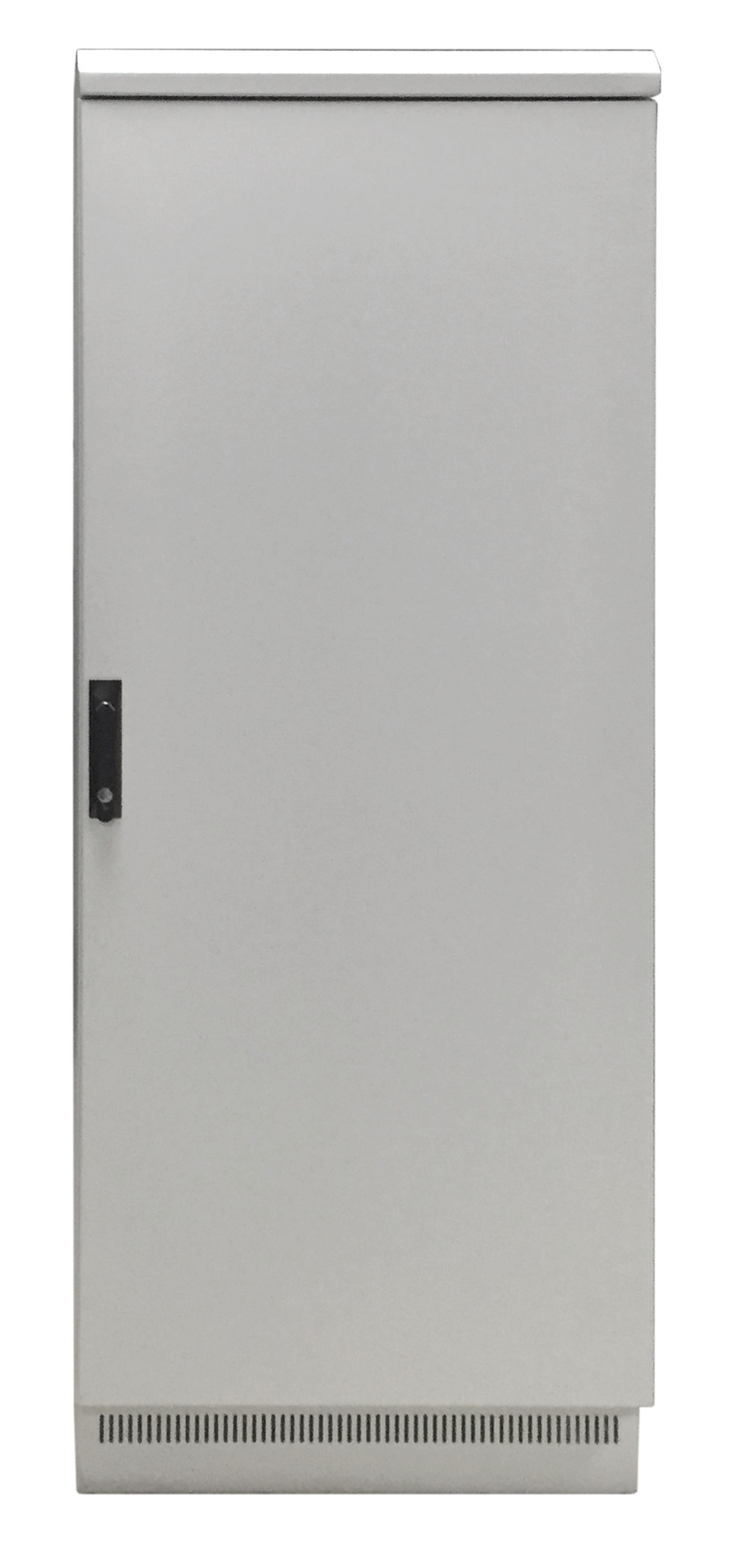

19" Network Cabinet 42U 800x800, IP55, with Pre-Assembled Plinth, RAL7035
19" Network cabinet according to DIN 41494Steel sheet housing with welded frame, completely pre-assembledPre-assembled plinth 100 mmInside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm rasterNumbering of rack units at the 19" profilesFront an rear door steel, 1-partFront and rear door with 2-point locking with turning handle, lockableDoor opening angle front and rear > 120°Side walls not detachableInner roof pre-punched openings for fan units CLASSICBottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entryInternal earthing of all cabinet sectionsMax. load 1000 kgPaint finish RAL7035, light greyProtection degree IP55Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x keyDelivery in transport packaging on disposable pallet

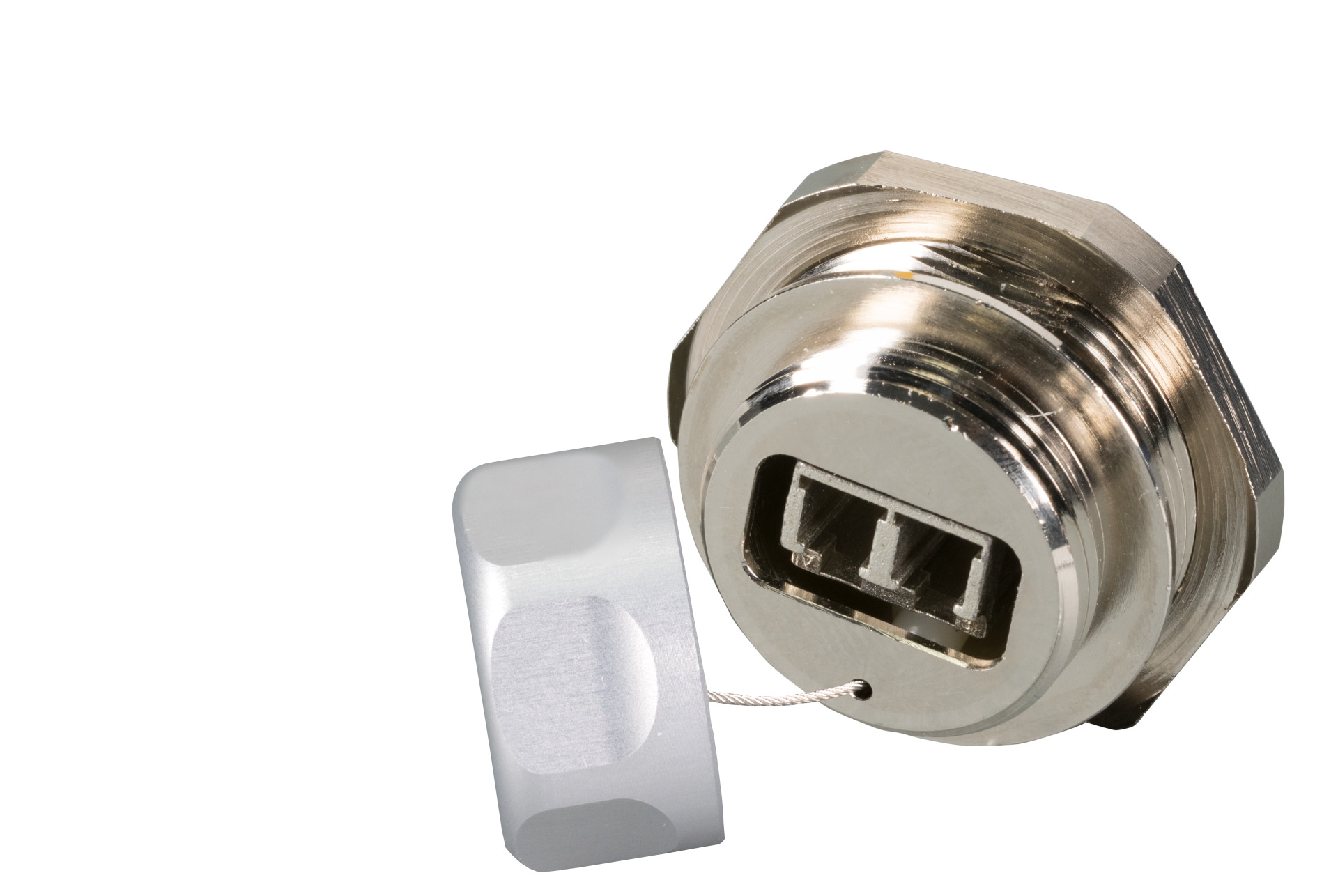

IP67 Metal adapter, M25, LC Duplex ceramic sleeve, service port, guy rope
IP67 feed-through coupling for installation in distributor boxes with M25 cut-out. With built-in LC duplex socket / socket coupling Material: brass With captive dust protection cap

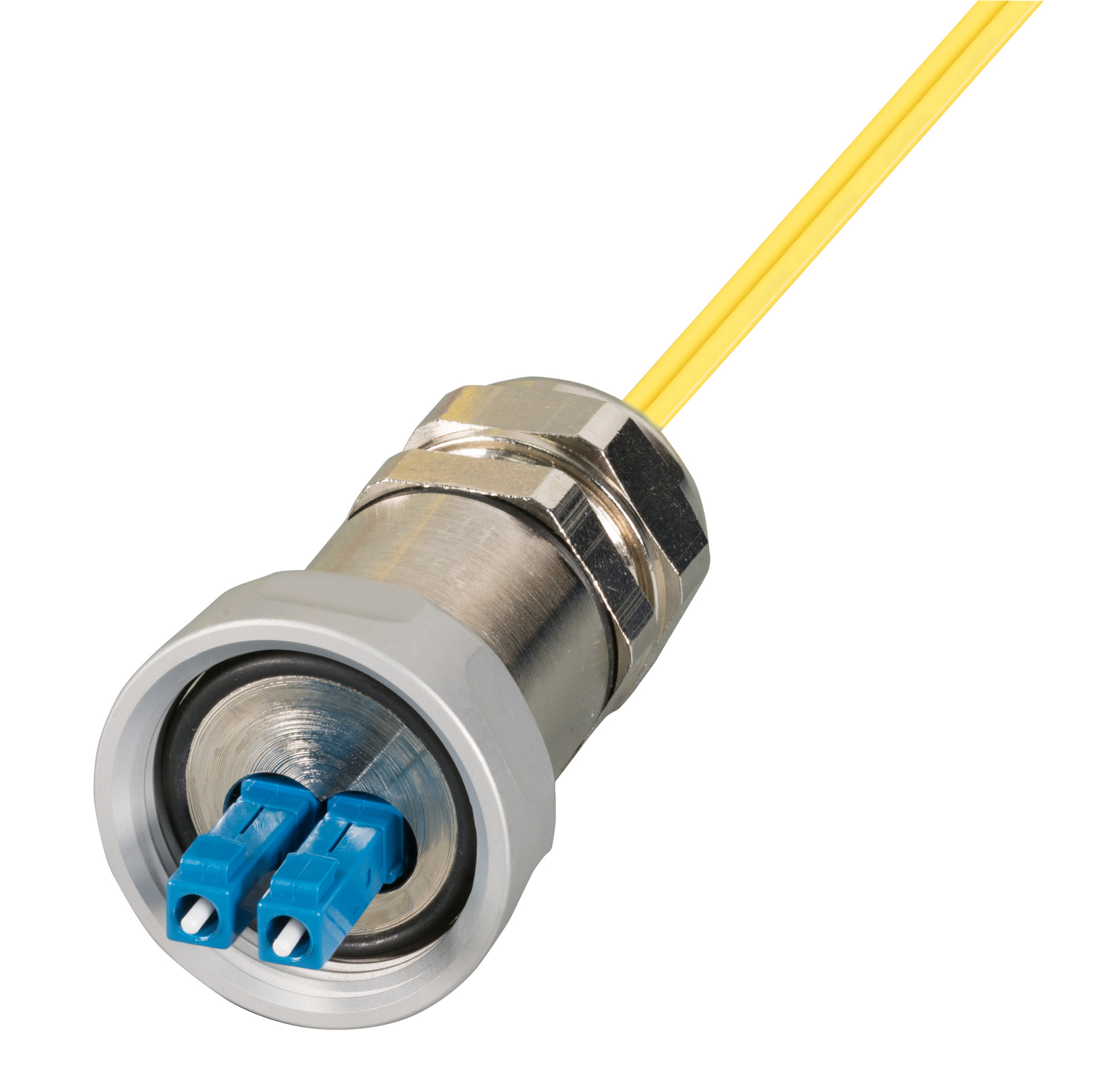

IP67 Cable gland, M25, LC-D Plug to LC-D Plug, OS2, 5.0m
IP67 cable gland with pre-installed LC duplex fiber optic cable For installation in housings with M25 cut-out Material gland: brass

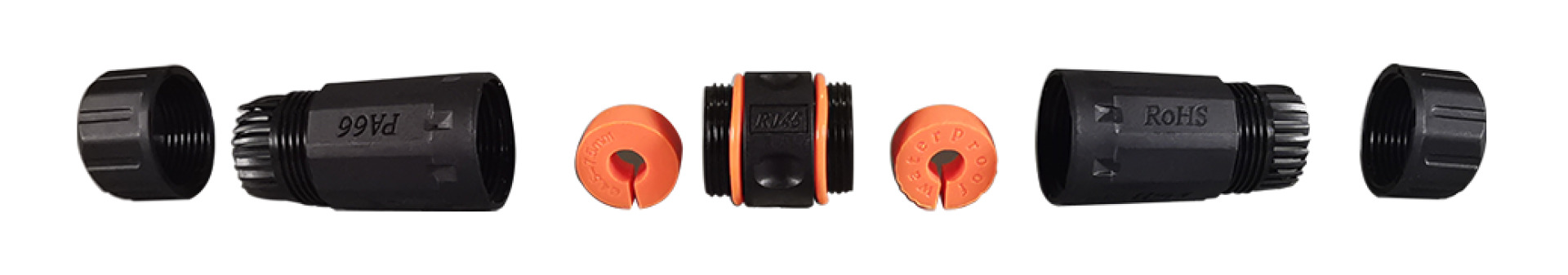

RJ45 Cat.6A IP68 adapter, Jack/Jack Connection module
IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6A RJ45 jack to facilitate connection. Designed for transmissions up to 500MHz according to ISO/IEC 11801 ClassEA and Data transmission rate up to 10 Gbit/s.- Easy installation- Waterproof cable connector of protection class IP68- Max. Voltage of 125V and max. current of 1.5A- Cable gland in PG16- For cables with a diameter of 4,5 mm- 10 mm- L x D 121.5mm x 28 mm
19" Wall Housing IP55, 7U, Steel Door, Depth 450 mm, RAL7035
Steel sheet housing with welded corpus, completely pre-assembledRight- and left-sided metal covered air inlets for passive ventilationSide walls not detachableRoof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommetsFor depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)Front door steel sheet with reinforcement and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303Profile half-cylinder exchangeable by customerCabinet parts inside completely earthedMax. load 100 kgPaint finish RAL7035, light greyProtection degree IP55Plinth for use as standing cabinet available as optionIncluded accessories: 4 x Wall mount angle, 2 x key
IP67 Receptacle, M20, USB2.0, F-M, A-A, 0.5m
IP67 mounting socket for mounting in distribution boxes with M25 cut-outWith pre-installed USB2.0 Jack/Jack A-A cableMaterial: brassWith dust cap

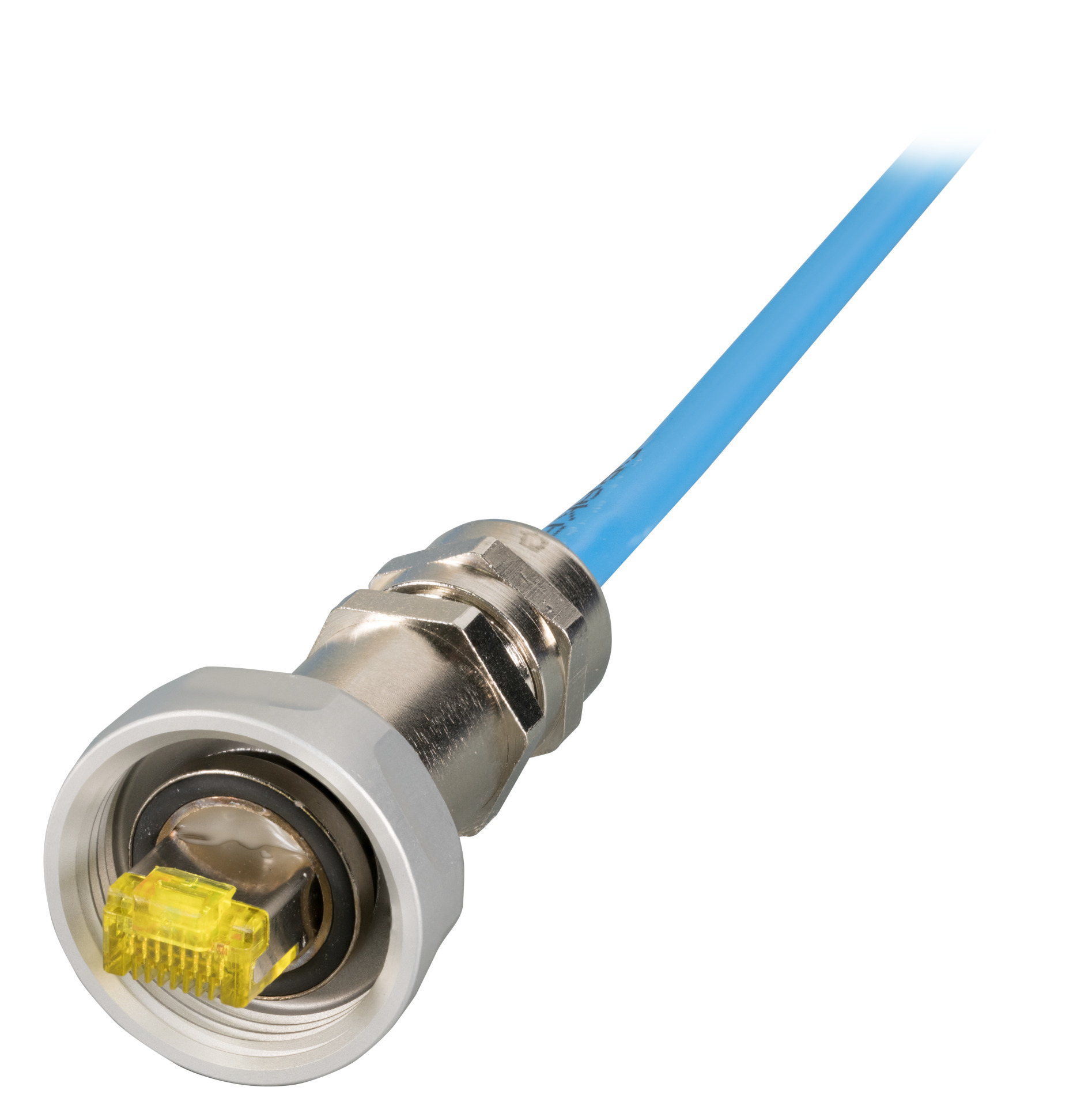

IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 5.0m
IP67 cable gland with pre-installed Cat.6A TM31 RJ45 S/FTP cable plug / plug For installation in housings with M25 cut-out Gland material: brass

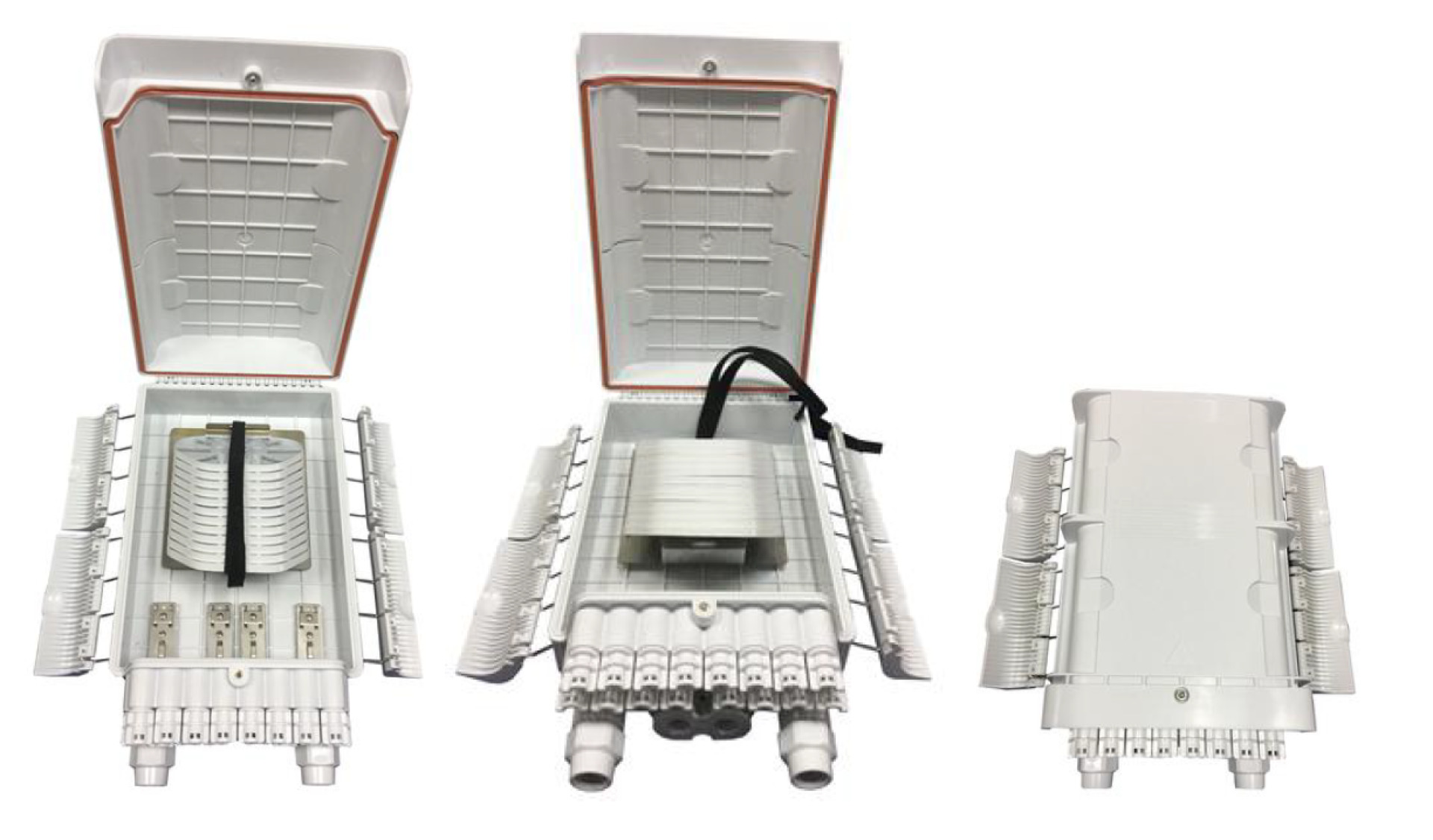

FTTH IP65 Connectionbox for 48 fiber, 24 adapter and Fiber overlength box
Application:Optical Telecommunication NetworksLAN, Optical fiber Communication NetworkCATV NetworksFTTH access NetworkPON, G-PONDelivery unassembled (shrink splice holder, max. 48 splices double layed, 24 x shrink protection and material for wall mounting included)
19" Network Cabinet 42U 800x1000, IP55, with Pre-Assembled Plinth, RAL7035
19" Network cabinet according to DIN 41494Steel sheet housing with welded frame, completely pre-assembledPre-assembled plinth 100 mmInside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm rasterNumbering of rack units at the 19" profilesFront an rear door steel, 1-partFront and rear door with 3-point locking with turning handle, lockableDoor opening angle front and rear > 120°Side walls not detachableInner roof pre-punched openings for fan unitsBottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entryInternal earthing of all cabinet sectionsMax. load 1000 kgPaint finish RAL7035, light greyProtection degree IP55Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x keyDelivery in transport packaging on disposable pallet

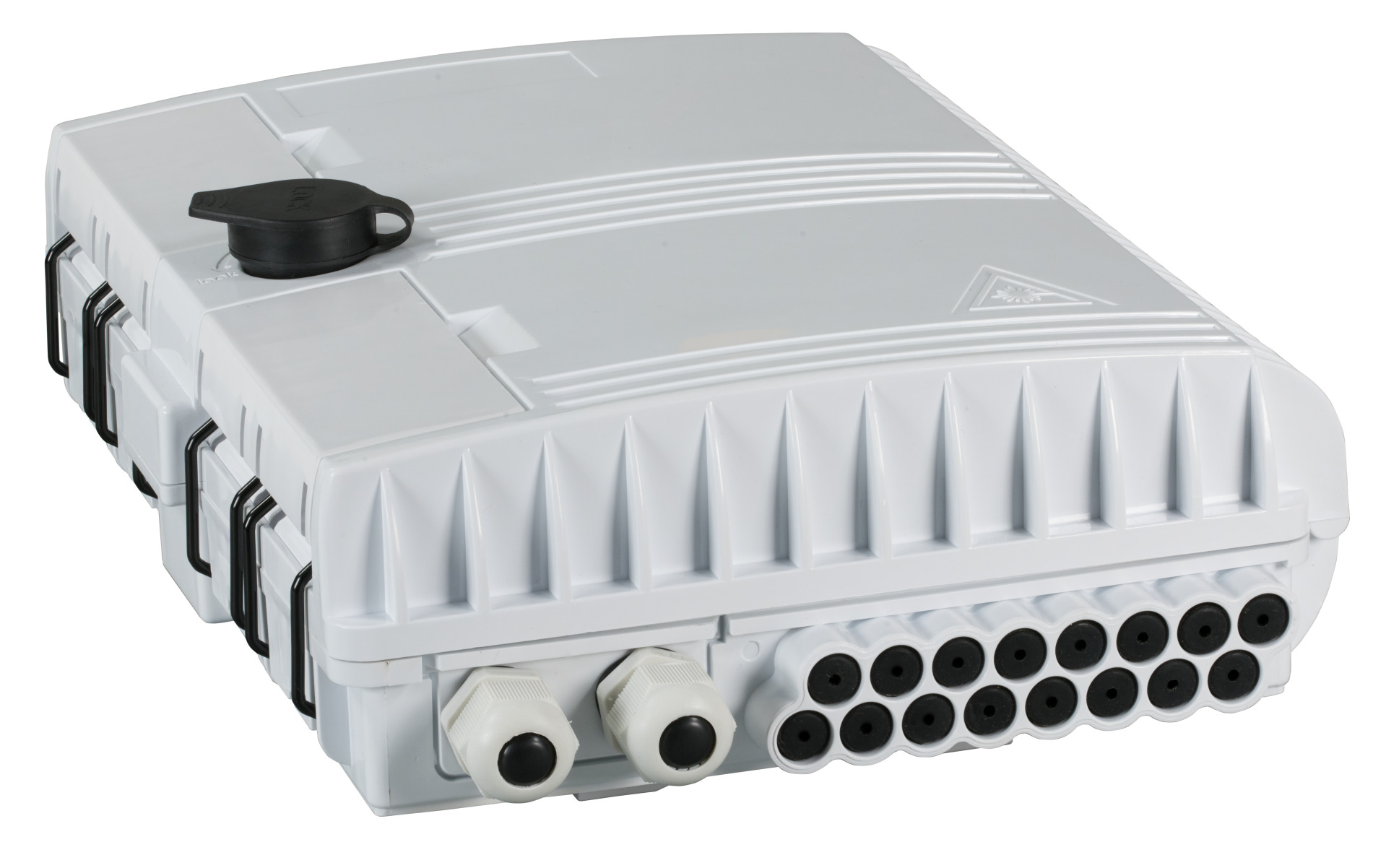

FTTH IP65 Connectionbox for 32fiber, 16adapter and Fiber overlength box
Application:Optical Telecommunication NetworksLAN, Optical fiber Communication NetworkCATV NetworksFTTH access NetworkPON, G-PONConfiguration in LC with duplex adapters for 32 ports/ fibersConfiguration in SC with simplex adapters for 16 ports/ fibersDelivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 24 splices double layed), 16x shrink protection and material for wall mounting included)

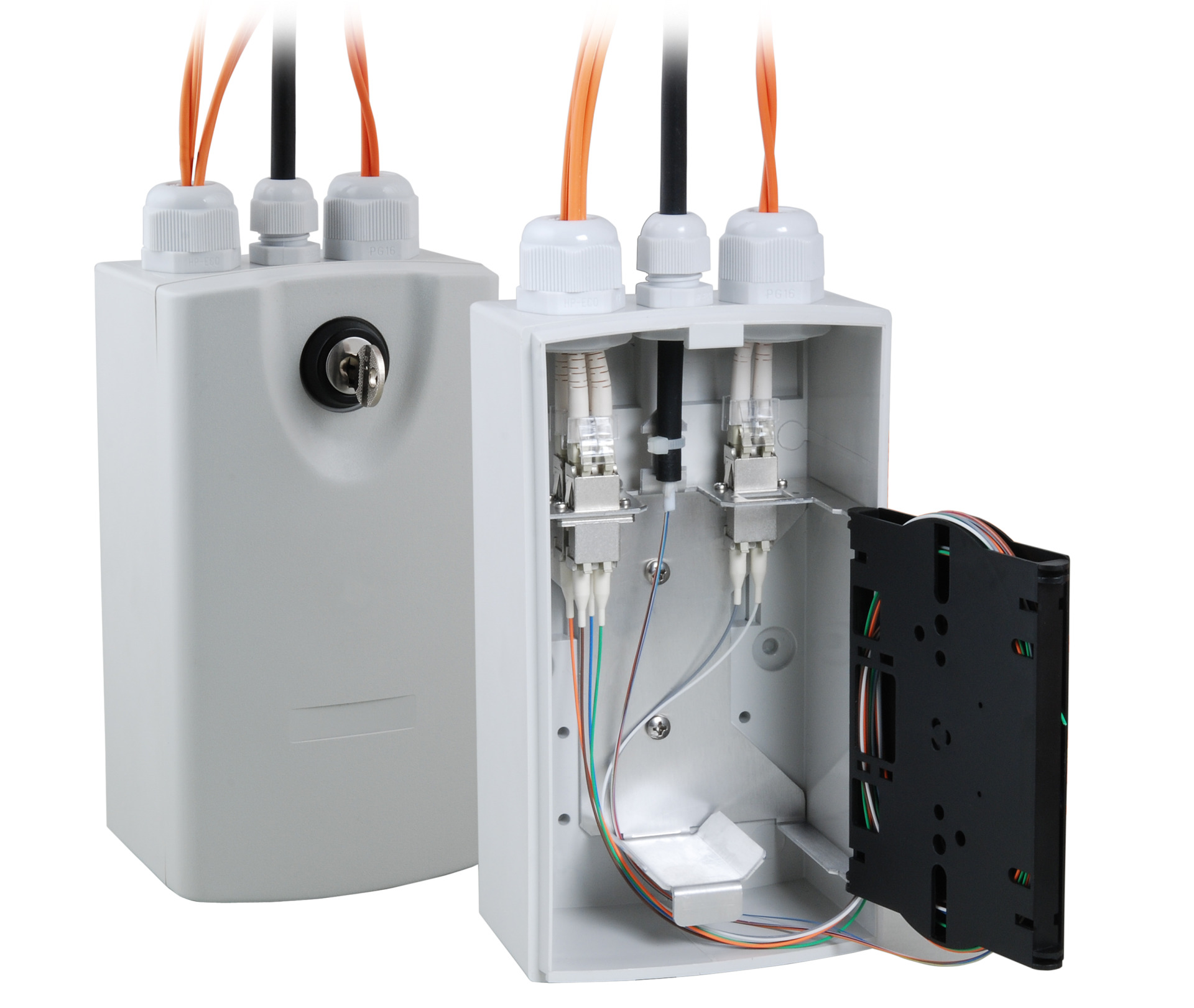

Micro Splice distributor II IP54, RAL7035
IP54 Plastic housing RAL7035For 4 x SC simplex / LC duplex adaptersLockable coverIncluded:Metal bracket for adaptersSplice cassetteChart labelHolder for 6 shrink splices1 x key2 x PG16 gland1 x PG9 gland2 x dowel M82 x screws 2.9x9.5mmDelivery unassembledDimensions: 103x185x93mm
IP67 Metal adapter, M25, LC Duplex ceramic sleeve
IP67 feed-through coupling for installation in distributor boxes with M25 cut-out. With built-in LC duplex socket / socket coupling Material: brass With dust protection cap
TT Distribution Box 3 100pairs IP54, WxHxD = 190 x 375 x 115 mm
With LSA backmount frame for LSA connection modules 2/10 10pairsWith screw closureProtection degree IP54
19" Network Cabinet 42U 800x800, IP55, with Pre-Assembled Plinth, RAL9005
19" Network cabinet according to DIN 41494Steel sheet housing with welded frame, completely pre-assembledPre-assembled plinth 100 mmInside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm rasterNumbering of rack units at the 19" profilesFront an rear door steel, 1-partFront and rear door with 3-point locking with turning handle, lockableDoor opening angle front and rear > 120°Side walls not detachableInner roof pre-punched openings for fan unitsBottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entryInternal earthing of all cabinet sectionsMax. load 1000 kgPaint finish RAL9005, jet blackProtection degree IP55Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x keyDelivery in transport packaging on disposable pallet
FTTH IP65 Connectionbox for 16fiber, 8adapter and Fiber overlength box
Application:Optical Telecommunication NetworksLAN, Optical fiber Communication NetworkCATV NetworksFTTH access NetworkPON, G-PONConfiguration in LC with duplex adapters for 16 ports/ fibersConfiguration in SC with simplex adapters for 8 ports/ fibersDelivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 16 splices double layed), 8x shrink protection and material for wall mounting included)
%
19" Netzwerkschrank 42HE 800x1000, IP55, mit vormontiertem Sockel, RAL9005
19" Netzwerkschrank entsprechend DIN 41494Stahlblechgehäuse mit geschweißtem Rahmengestell, komplett vormontiertVormontierter Sockel 100 mmInnenseitig vorne und hinten 4 x 19" Streben (2 vorn, 2 hinten), verzinkt, tiefenverstellbar im 25 mm RasterNummerierung der Höheneinheiten an den ProfilenFront- und Rücktür Stahl, einteiligFront- und Rücktür mit 3-Punkt-Schwenkhebelgriff, abschließbarFront- und Rücktür mit Türöffnungswinkel > 120°Seitenwände nicht abnehmbarInneres Dach mit Aussparung zur Aufnahme von LüftereinheitenBoden vorbereitet mit Einlassfiltern und Kabeleinführungstüllen Ø 80 mmAlle Schrankteile innenseitig komplett geerdetTraglast 1000 kgLackierung RAL9005, tiefschwarzSchutzart IP55Inklusive Zubehör: 1 x Käfigmutternsatz (VPE 20 Stk.), Sockel vormontiert, 2 x SchlüsselLieferung in Transportverpackung auf Einwegpalette

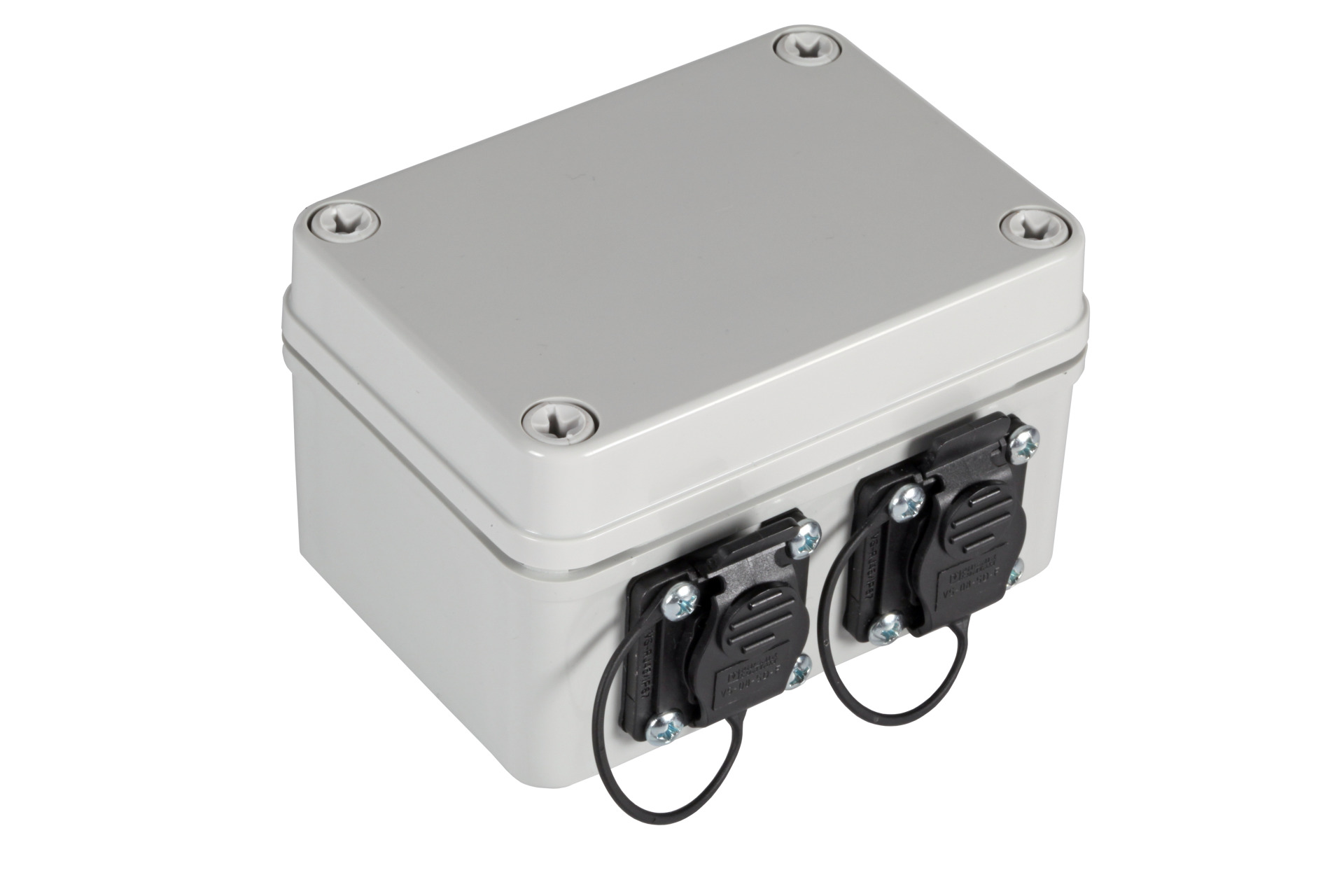

IP67 Distribution Box with 2xRJ45 Ports, Cat.6A, 2xM16 couplings
Housing: Complete with 2 x Cat.6A RJ45 Keystone, IP67 strip for patch cable IP67 (K8670.x) and 2 x cable glands M16Housing entry: 2 x cable glands M16 for data cable (reference Cat.7 UC900)Housing outlet: 2 x Cat.6A RJ45 Keystone with IP67 stripPlastic housingDimension W x H x D: 80 x 45 x 110 mmUV resistant acc. to UL508impact resistant(EN62262): IK08Fire classification(UL746C5):94V5Recommended Patch Cable: K8670.x

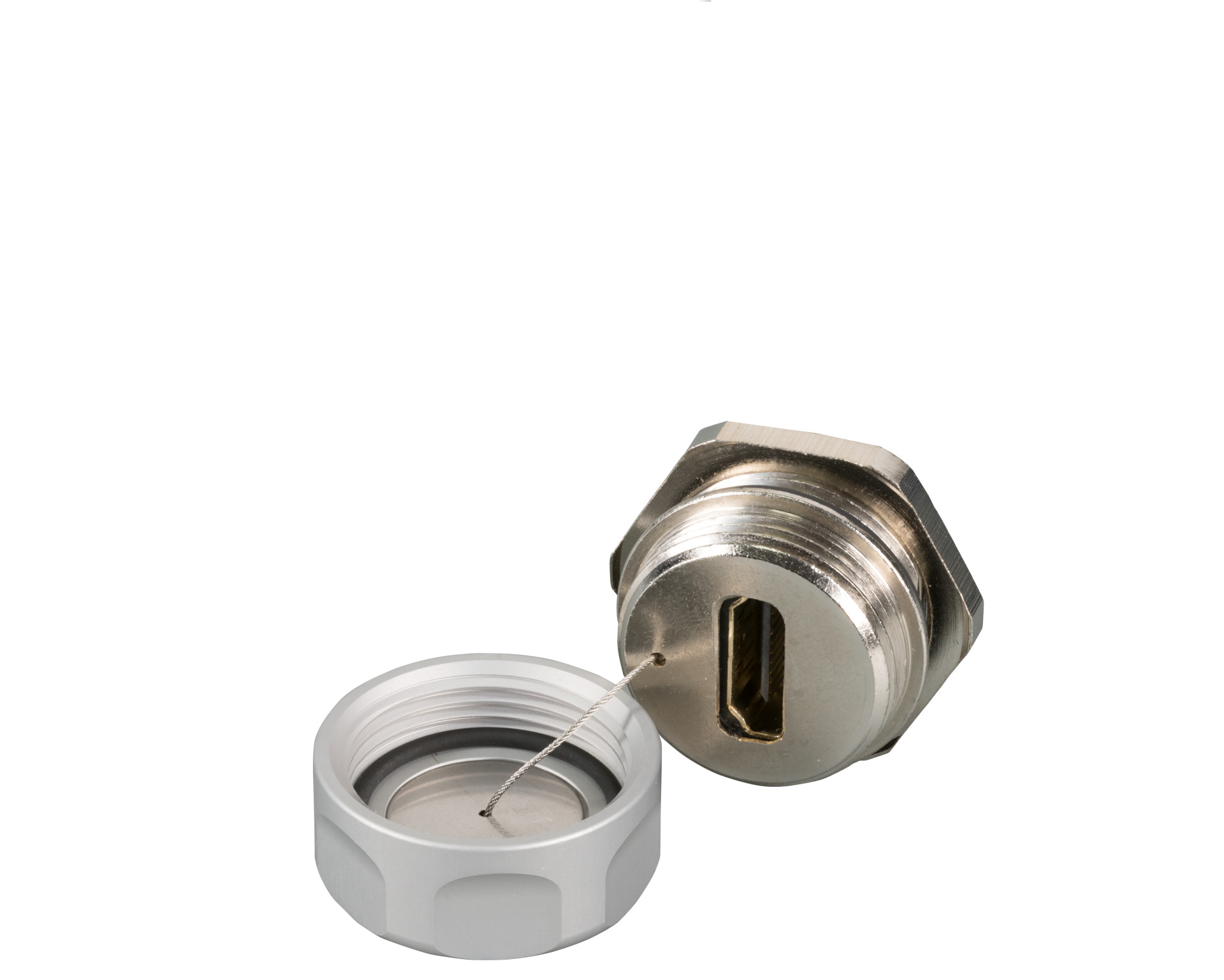

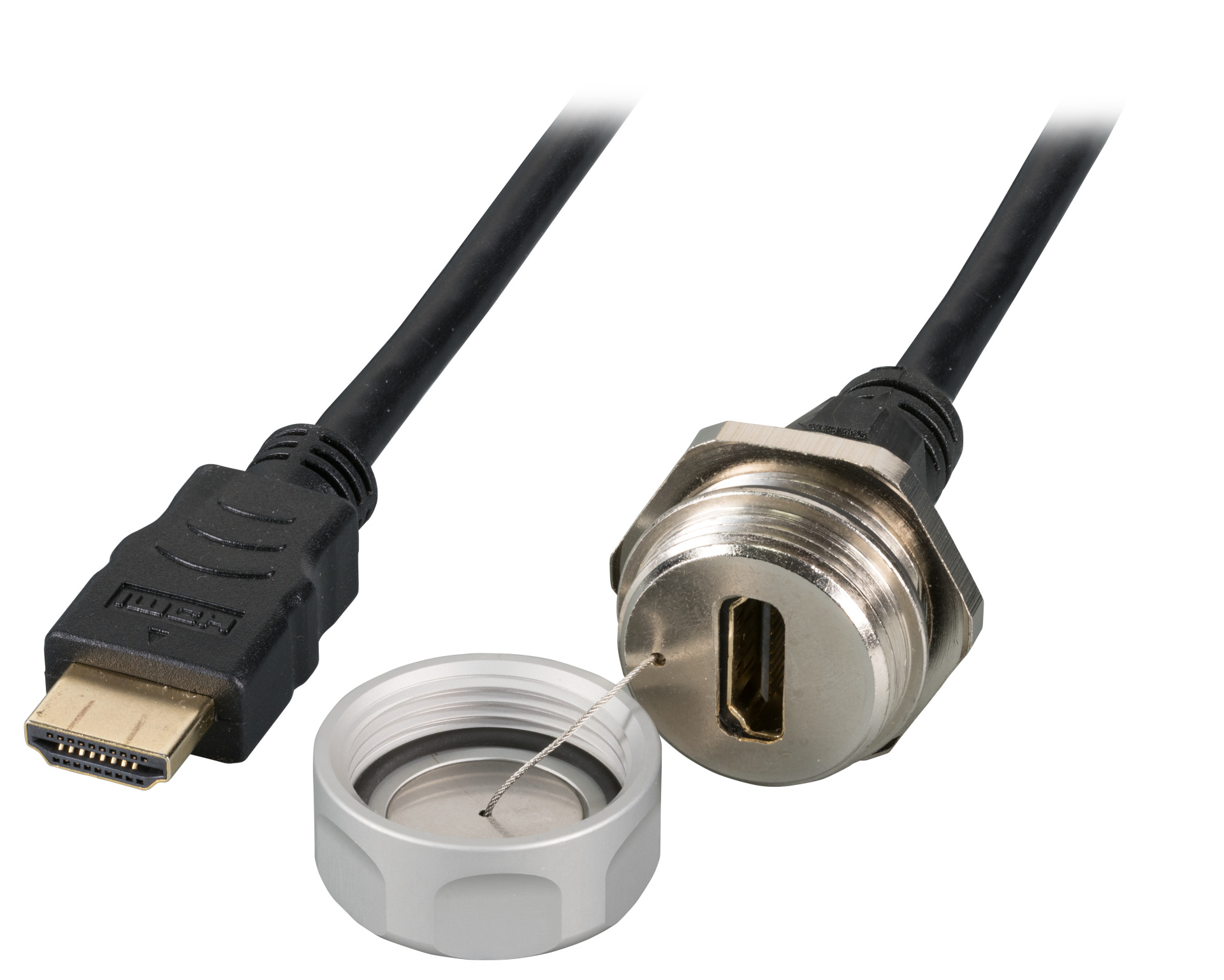

IP67 Metal adapter, M25, HDMI, F-F, A-A, service port, guy rope
IP67 feed-through coupling for installation in distributon boxes with M25 cut-out. With built-in HDMI socket / socket coupling Material: brass For resolutions up to 4K 60Hz With captive dust cap

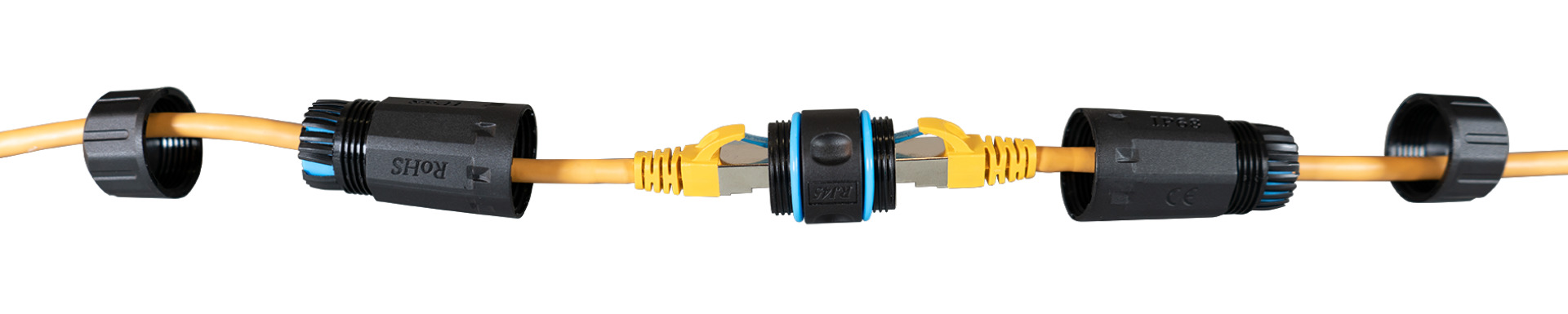

RJ45 Cat.6 IP68 adapter,Jack/Jack Connection module
IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6 RJ45 jack to facilitate connection. Designed for transmissions up to 250MHz according to ISO/IEC 11801 ClassE and Data transmission rate up to 5 Gbit/s.- Easy installation- Waterproof cable connector of protection class IP68- Max. Voltage of 125V and max. current of 1.5A- Cable gland in PG16- For cables with a diameter of 4,5 mm- 10 mm- L x D 121.5mm x 28 mm
IP68 Connection module Cat.6A 10Gbit/s for AWG22/1-26/1
IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6A insulation displacement technology to facilitate connection. Designed for transmissions up to 500MHz according to ISO/IEC 11801 ClassEA and Data transmission rate up to 10 Gbit/s.- Easy installation- Waterproof cable connector of protection class IP68- Max. Voltage of 125V and max. current of 1.5A- Cable gland in PG16- For cables with a diameter of 4,5 mm- 10 mm- L x D 121.5mm x 28 mm

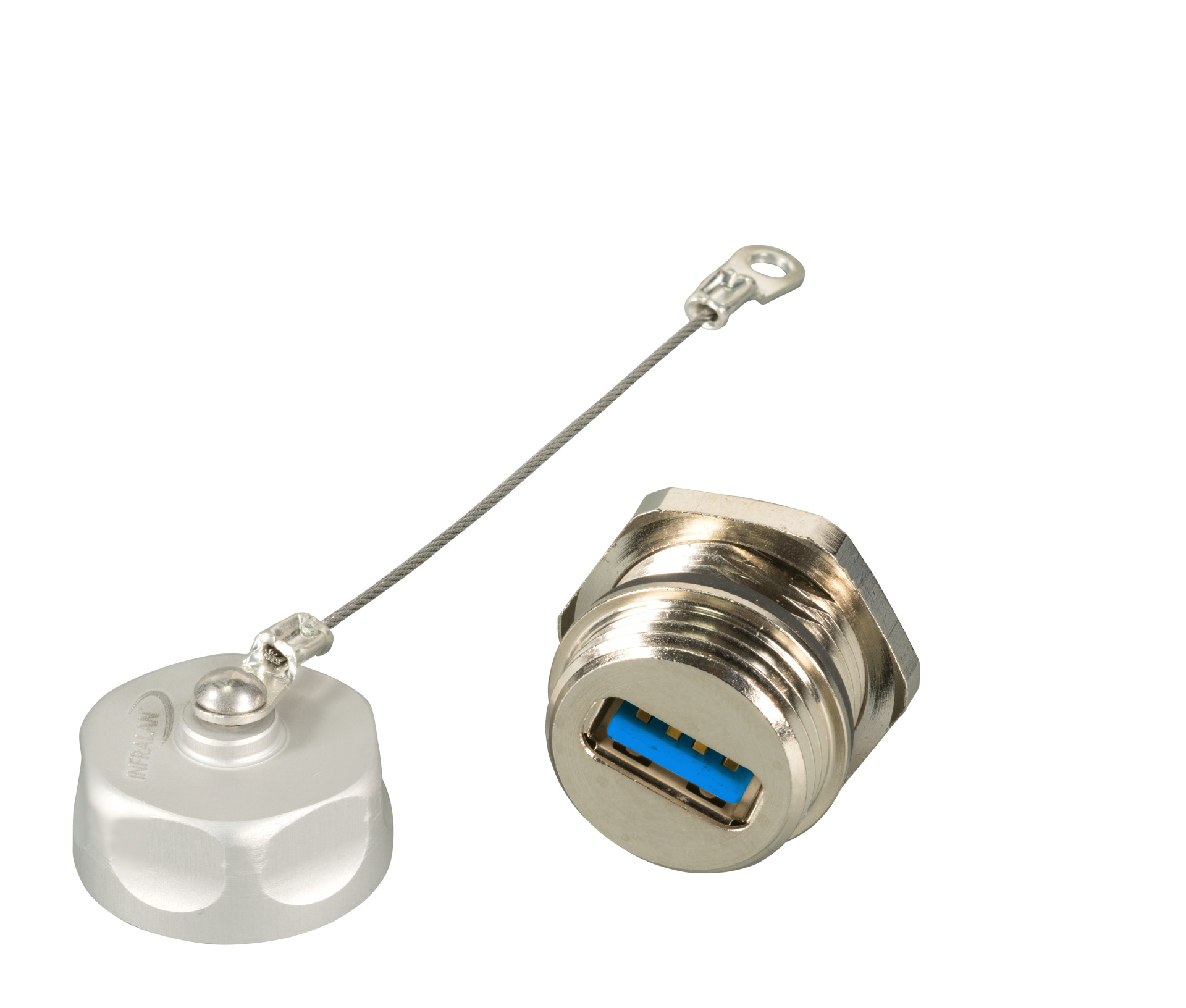

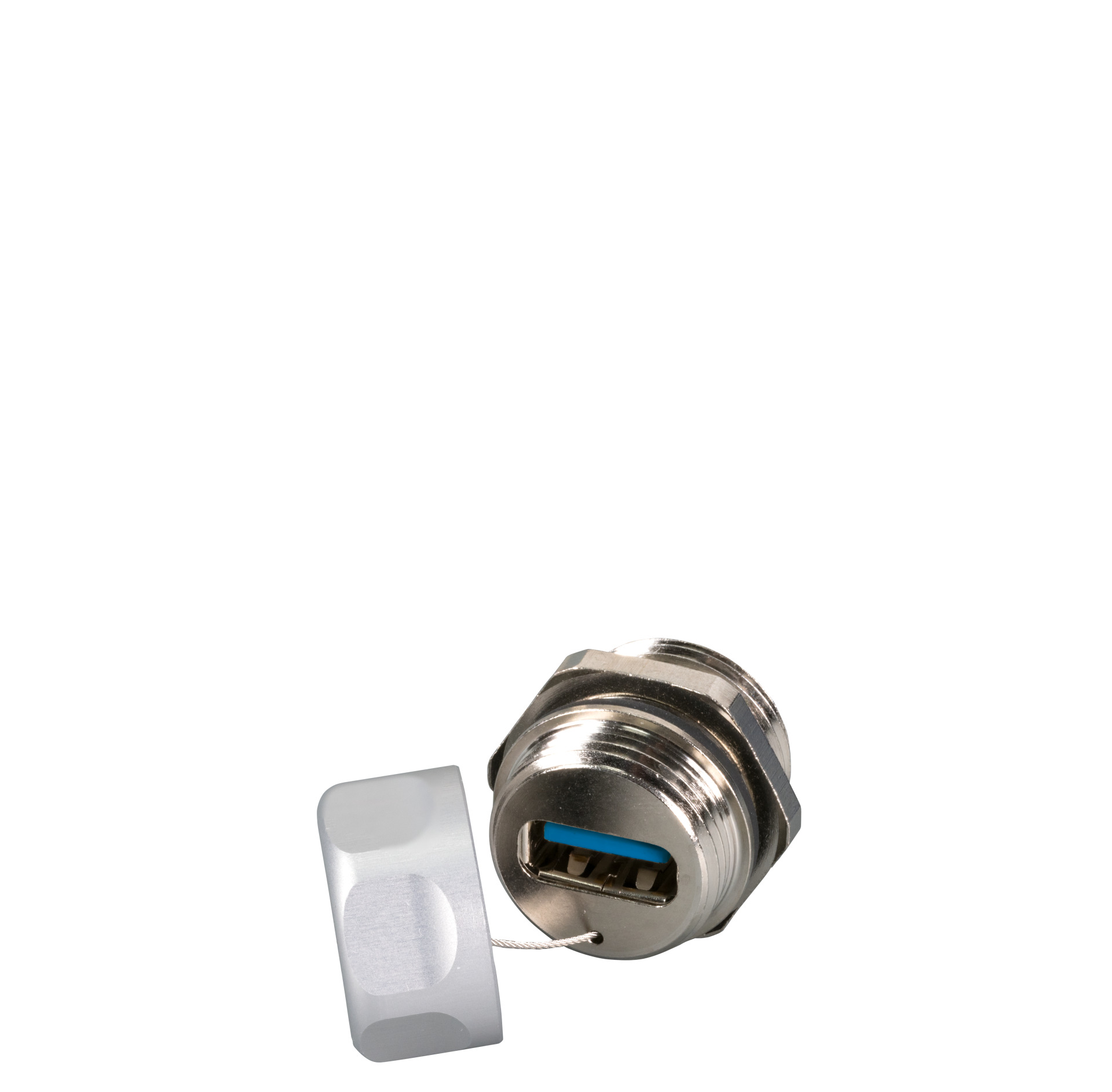

IP67 Metal adapter, M20, USB3.0 jack Type-A to jack Type-A
IP67 feed-through coupling for installation in distributor boxes with M25 cut-out. With built-in USB3.0 socket / socket coupling Material: brass > With dust protection cap

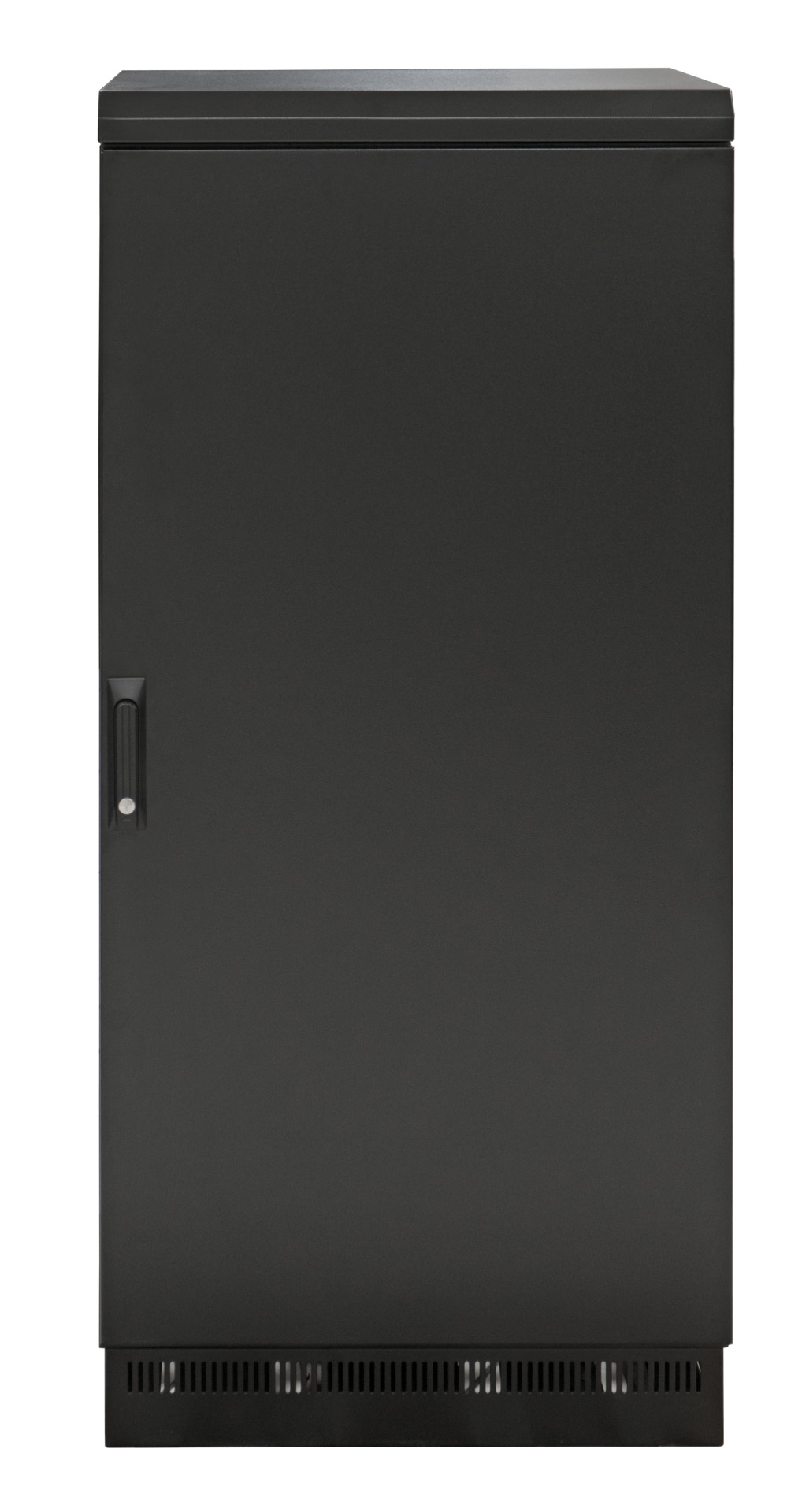

19" Network Cabinet 24U 800x800, IP55, with Pre-Assembled Plinth, RAL9005
19" Network cabinet according to DIN 41494Steel sheet housing with welded frame, completely pre-assembledPre-assembled plinth 100 mmInside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm rasterNumbering of rack units at the 19" profilesFront an rear door steel, 1-partFront and rear door with 3-point locking with turning handle, lockableDoor opening angle front and rear > 120°Side walls not detachableInner roof pre-punched openings for fan unitsBottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entryInternal earthing of all cabinet sectionsMax. load 1000 kgPaint finish RAL9005, jet blackProtection degree IP55Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x keyDelivery in transport packaging on disposable pallet
%

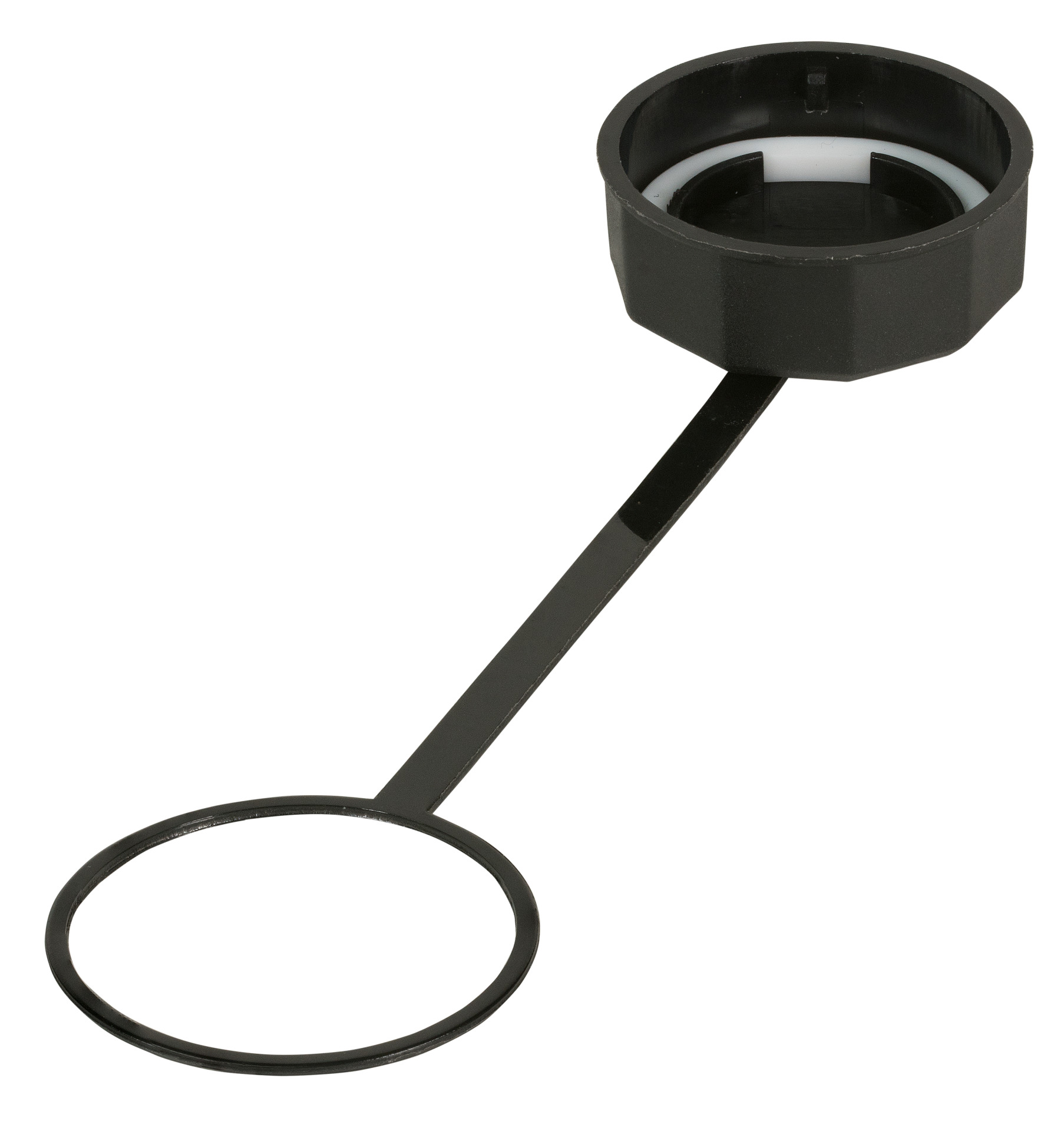

IP68 Verschlusskappe für Buchsengehäuse, Bajonettverschluss nach IEC61076-3-106
IP68 Verschlusskappe für BuchsengehäuseMit Bajonettverschluss nach IEC61076-3-106Befestigungsring - unverlierbar (verschraubbar am Buchsengehäuse)Material: Kunststoff schwarzZubehör für:IP68 Buchsengehäuse: IP68EBKS
%

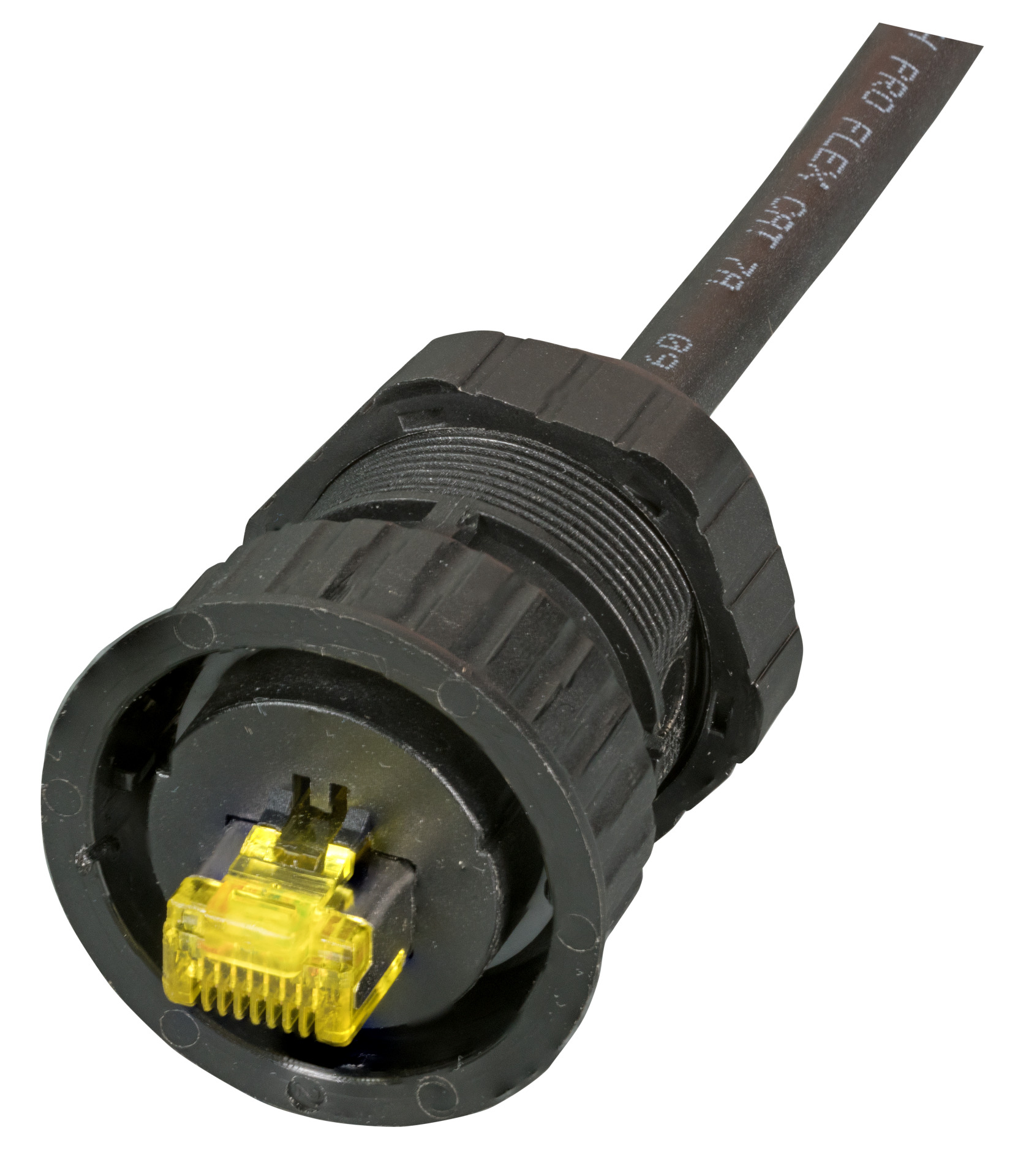

IP68 Kabelverschraubung für RJ45 HRS TM11/21/31 St, Bayonettverschluss
IP68 Kabelverschraubung für RJ45 Stecker: Hirose TM11/21/31Mit Bajonettverschluss nach IEC61076-3-106Gerader Auslass 180°Lieferung unbestücktLieferumfang: 3-Teilig bestehend aus:1x IP68 Kabelverschraubungsgehäuse (ohne Stecker)1x Kabeldichtung 4,5-6,5mm1x ZugentlastungsverschraubungZubehör:IP68 Verschlusskappe: IP68STCAP

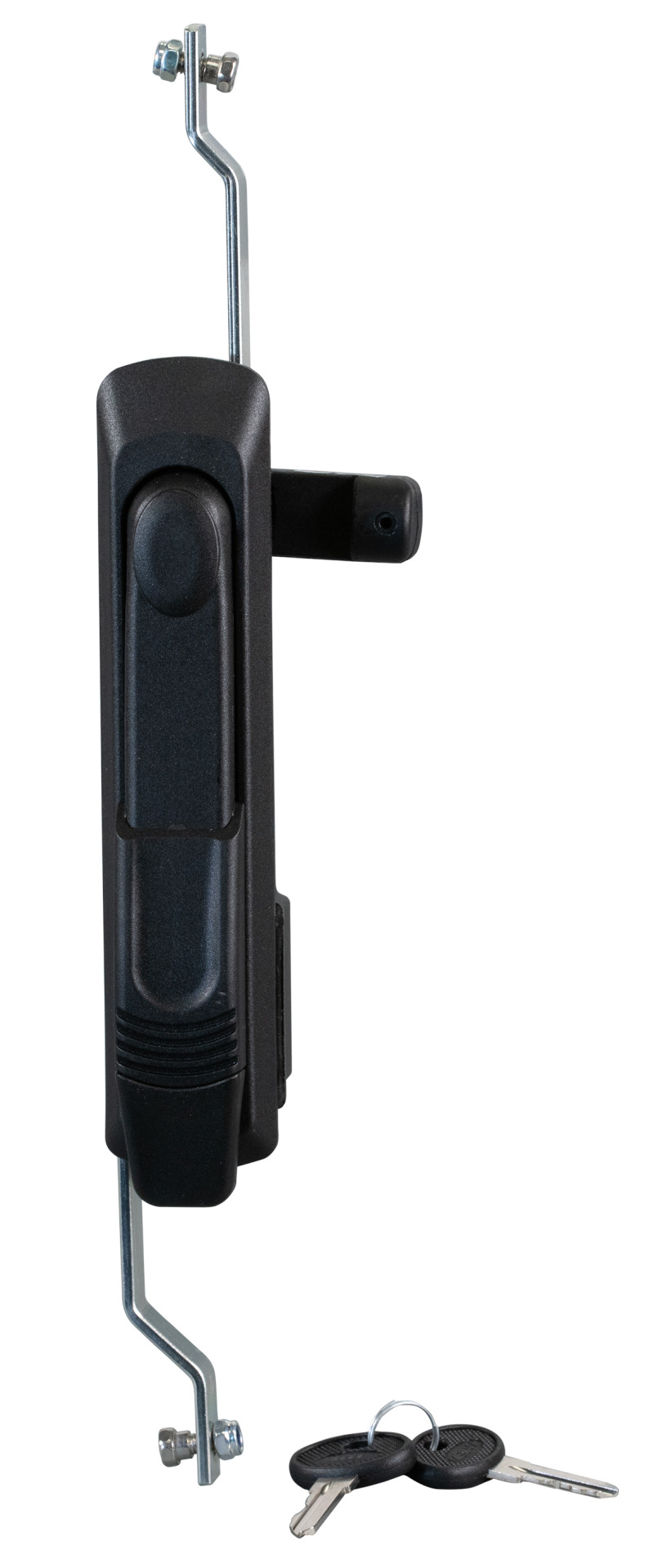

Spare Key for Standing Cabinets IP55, 2 Pieces
2 spare keys for lockingSuitable for all standing cabinets with protection degree IP55 (Art.-No. 69xxxxIP55.x)Not for wall housings, Flat Pack and standing cabinets PRO/Classic/ESV/ISR/
%

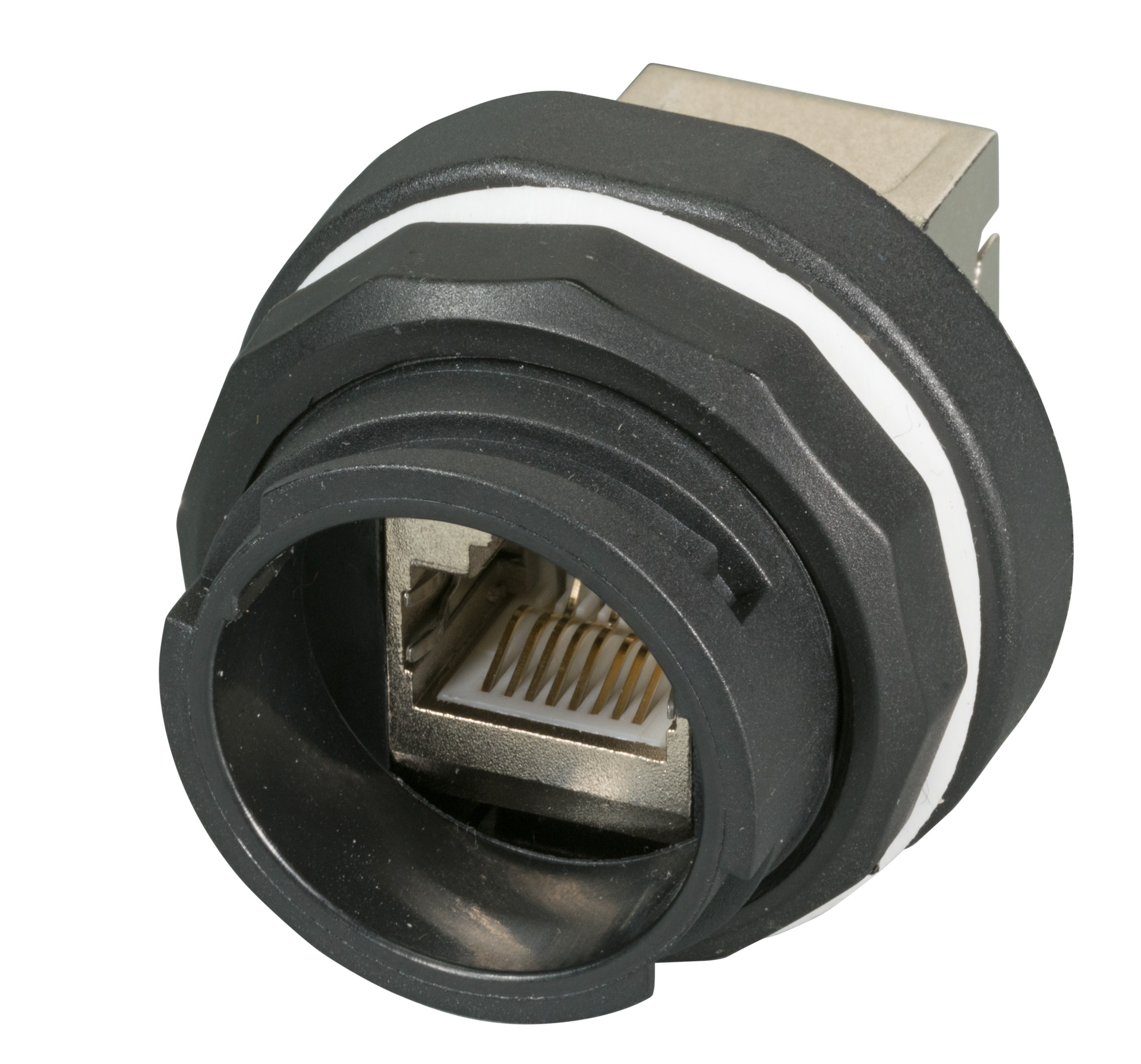

IP68 Buchsengehäuse für Keystone Module und Bajonettverschluss nach IEC6107
IP68 Buchsengehäuse für alle EFB-Elektronik Keystone ModuleMit Bajonettverschluss nach IEC61076-3-106M30 Befestigung mit Silikon-DichtungEinbaudurchmesser: 30mmGeeignet für Verwendung von Keystone Modulen, Snap-In und Einbauadaptern im Keystone-Format( außer 37521.1V2)Gerader Auslass 180°Lieferung unbestücktZubehör:IP68 Verschlusskappe: IP68EBCAP

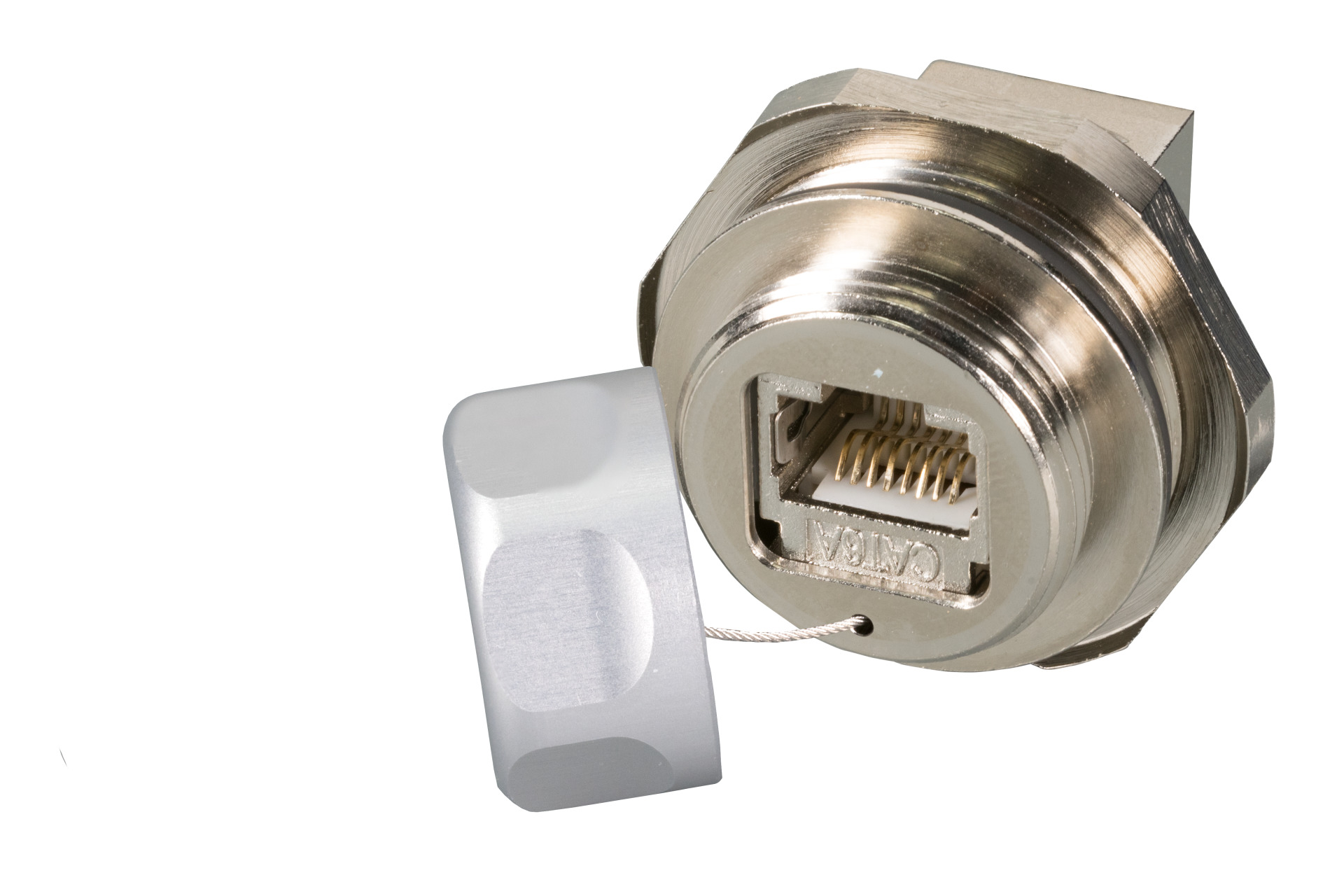

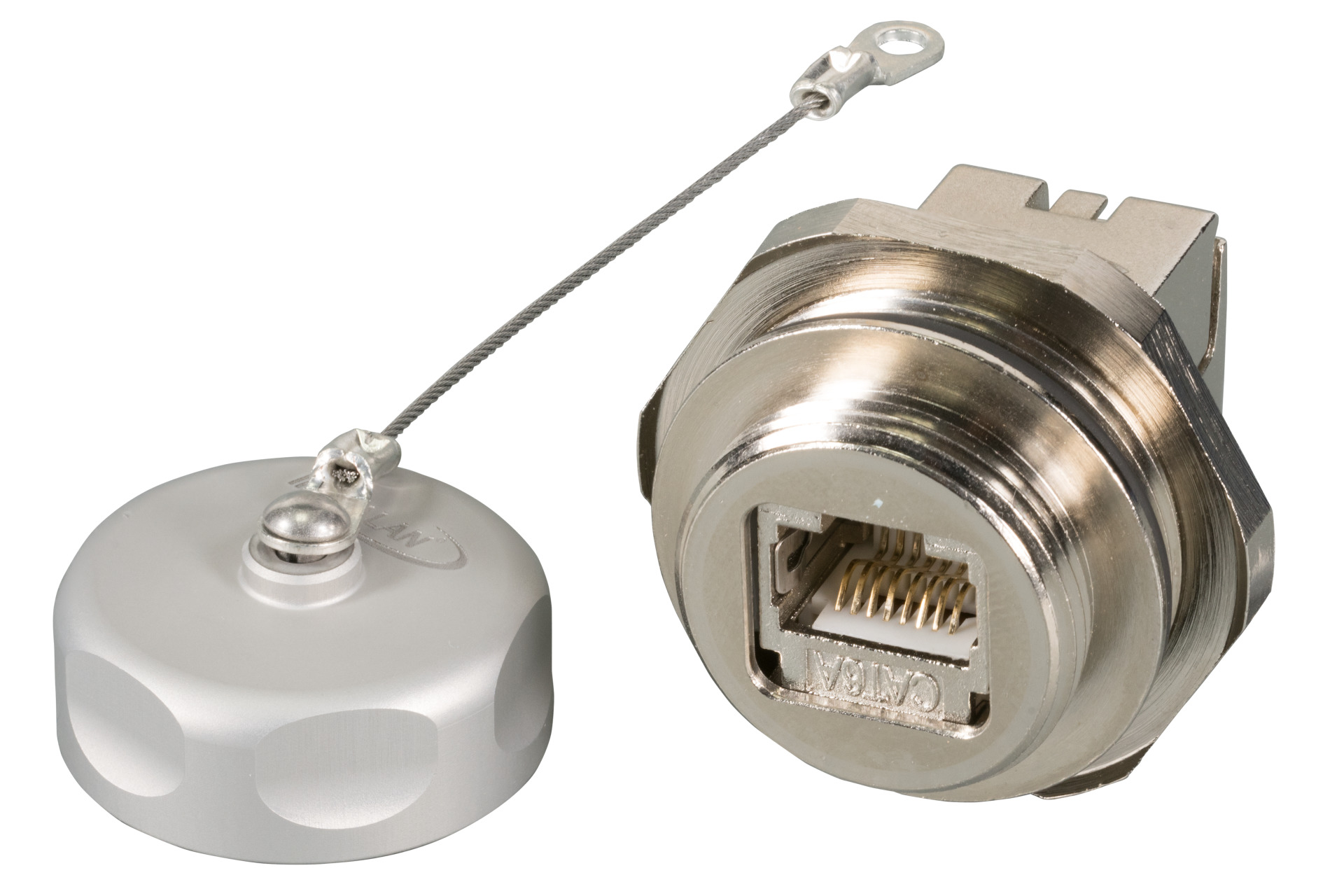

IP67 Receptacle, M25, RJ45 Cat.6A E-20070, for Cat.5/6/7 cable
IP67 panel socket for installation in distributor boxes with M25 cut-out. With built-in Cat.6A RJ45 Keystone (E-20070) for the installation of network installation cables Material: brass With captive dust protection cap
Få rådgivning nu om den rigtige IP-beskyttelse
