19" Wall Housing IP55, Glass Door, Depth 600 mm, RAL7035

Priser kun synlige for indloggede brugere

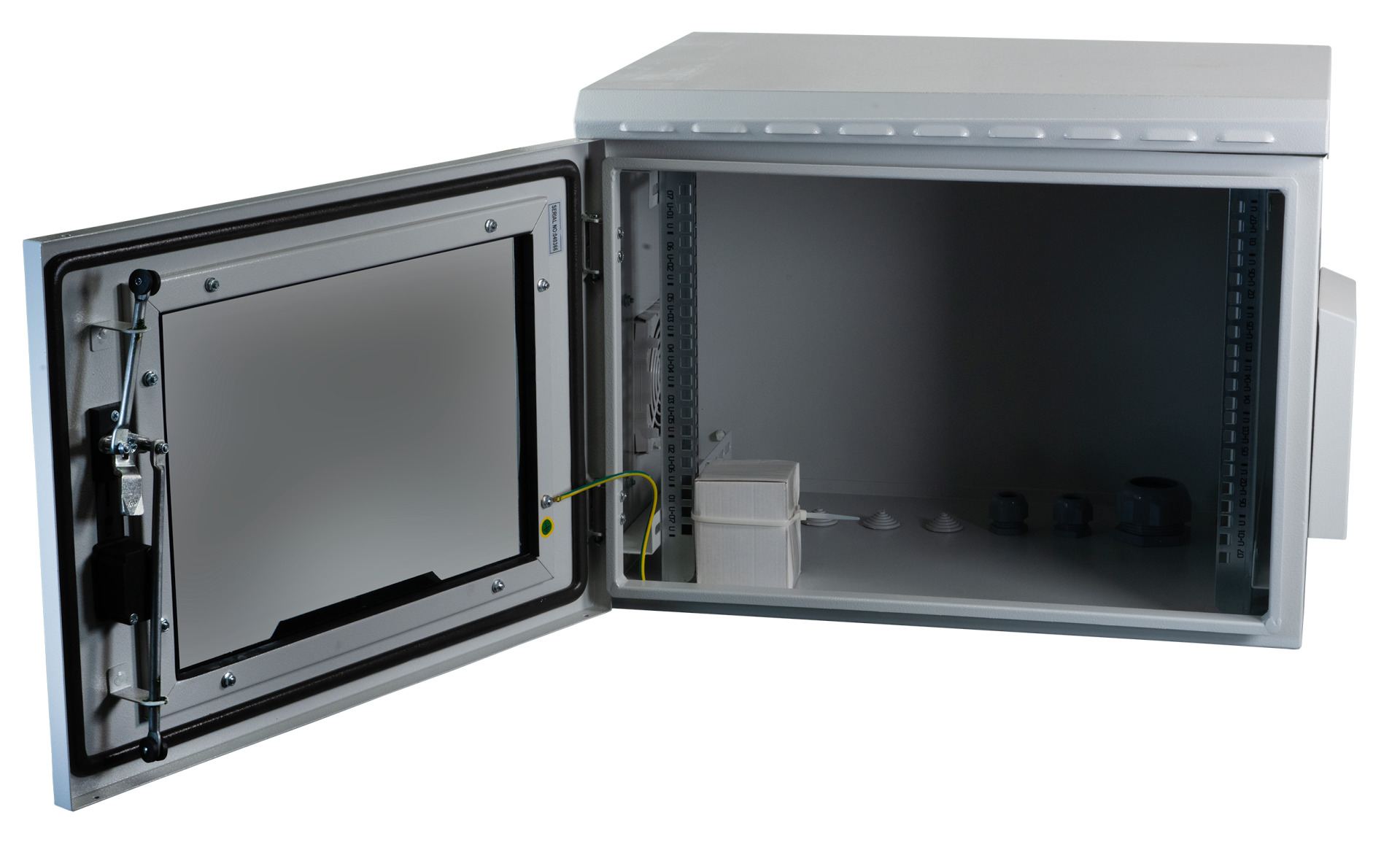

19" Wall Housing IP55, 9U, Glass Door, Depth 600 mm, RAL7035
Varenummer: 691709IP55.2G
EAN nr.: 4049759222024
Piece

Produktinformation für 19" Wall Housing IP55, 9U, Glass Door, Depth 600 mm, RAL7035

Steel sheet housing with welded corpus, completely pre-assembled
Right- and left-sided metal covered air inlets for passive ventilation
Side walls not detachable
Roof hinged, inner roof prepared for mounting of Plug&Play fan unit Art.-No. 691656GR (cable not included, please order separately, e.g. Art.-No. EK504.x)
Bottom with PG glands 1 x PG48, 2 x PG21 and 3 x Ø 20 mm PVC blind grommets
For depth 450 mm inside 2 x 19" profile rails front-sided, galvanised, with numberung of rack units (U)
For depth 600 mm inside 4 x 19" profile rails (2 front, 2 rear), galvanised, with numberung of rack units (U)

Front door with window of certified safety glass and 3-point bar locking, lockable, with profile half-cylinder acc. to DIN 18252 / EN1303
Profile half-cylinder exchangeable by customer
Cabinet parts inside completely earthed
Max. load 100 kg
Paint finish RAL7035, light grey
Protection degree IP55
Plinth for use as standing cabinet available as option
Included accessories: 4 x Wall mount angle, 2 x key

Tekniske egenskaber

Degree of protection: IP55
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front and rear
Number of cartons: 1
Number of doors: 1
Surface finishing: powder coating
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: True
With front door: True
With roof plate: True
With sidewall: True

Varianter

Art. Nej. Betegnelse Width Max. Load Depth Colour Max. load capacity Height Number of height units RAL-number
691707IP55.2G 19" Wall Housing IP55, 7U, Glass Door, Depth 600 mm, RAL7035 600 mm 100 kg 600 mm grey 100 kg 450 mm 7 U 7035
691709IP55.2G 19" Wall Housing IP55, 9U, Glass Door, Depth 600 mm, RAL7035 600 mm 100 kg 600 mm grey 100 kg 540 mm 9 U 7035
691712IP55.2G 19" Wall Housing IP55, 12U, Glass Door, Depth 600 mm, RAL7035 600 mm 100 kg 600 mm grey 100 kg 670 mm 12 U 7035
691716IP55.2G 19" Wall Housing IP55, 16U, Glass Door, Depth 600 mm, RAL7035 600 mm 100 kg 600 mm grey 100 kg 850 mm 16 U 7035
691720IP55.2G 19" Wall Housing IP55, 20U, Glass Door, Depth 600 mm, RAL7035 600 mm 100 kg 600 mm grey 100 kg 1040 mm 20 U 7035

accessory

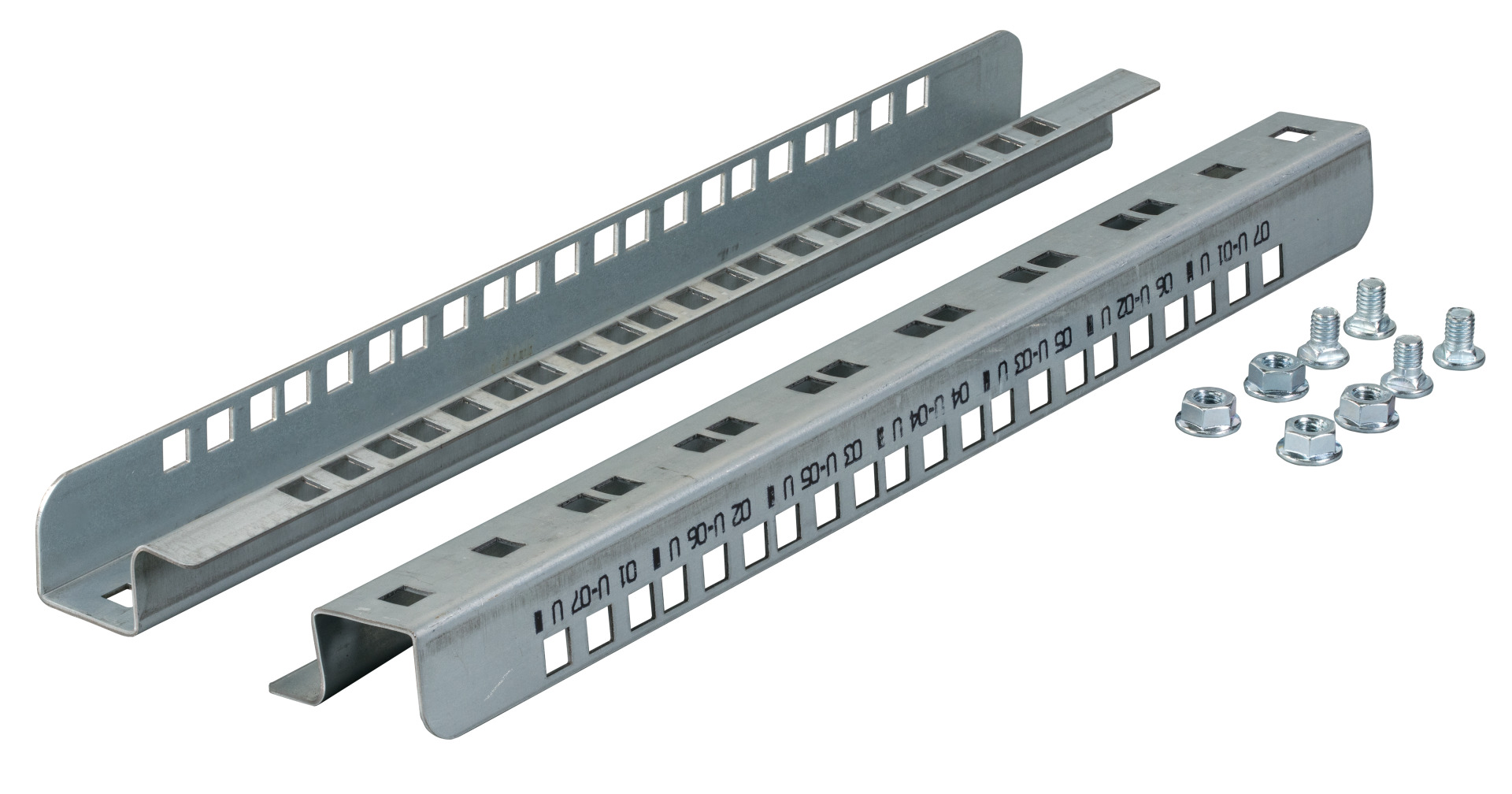

19" Mounting Rails for 9U, Set of 2 Pieces

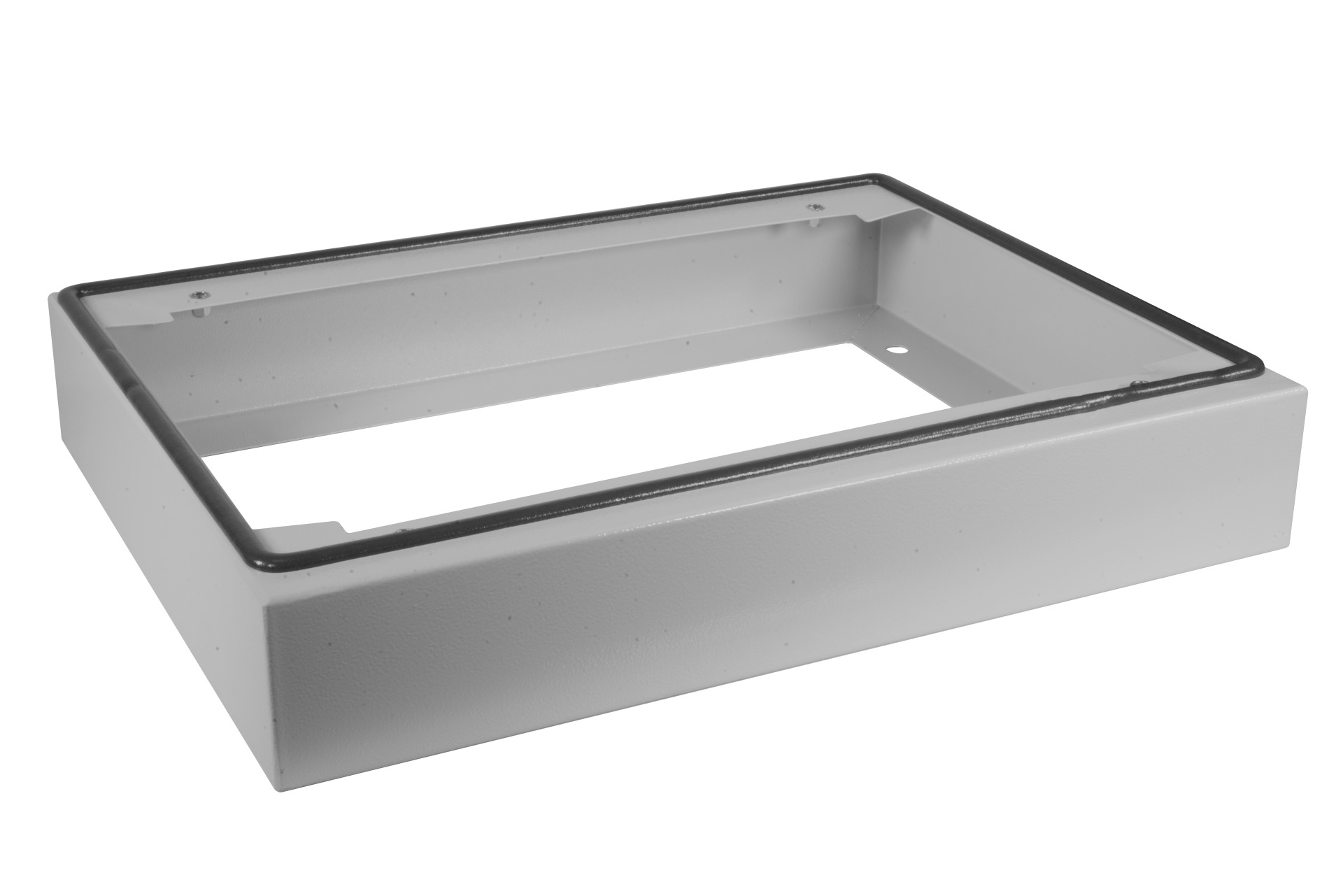

Plinth for 19" Wall Housing IP55, Depth 600 mm, RAL7035
