Fiber Optic Closures
Fiber Optic Closure for 24 splices IP68
Varenummer:
JTSC02335
Produktinformationen für Fiber Optic Closure for 24 splices IP68

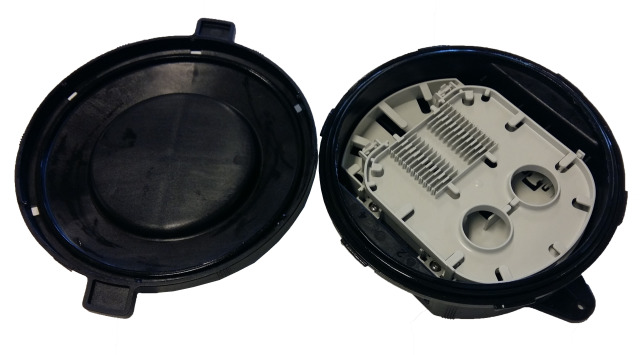

The SJC Closure is a splice closure that is used for track or branch applications. It has 4 cable entry ports, a splice
cassette for 24 splices and a cable management and storage area. The closure is sealed to IP68 for water and dust
tightness. The closure is supplied with four knock-out ports and two entry glands. Up to two additional entry
glands can be ordered separately.
A compact closure for track & branch applications
Four knock out ports
Each port accommodates a cable gland for 5-9mm or 6-12mm OD

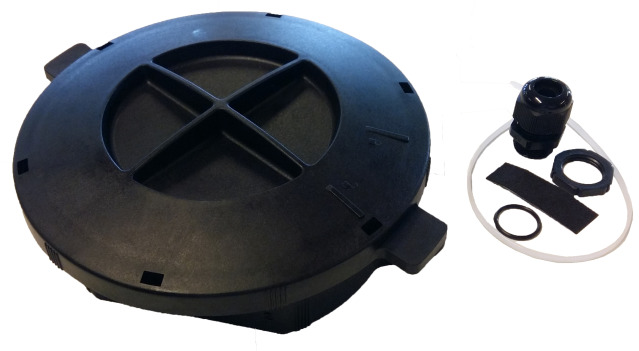

Closure are supplied with two glands 5-9mm. Additional glands as accessories
Single splice tray for up to 24 splices
For 2,2mm splice pretectors
Cable management plate to secure cables and route fibers
Robust construction enable direct buried applications
Underground or wall mounting
IP68 at 5mtr and UV resistant
