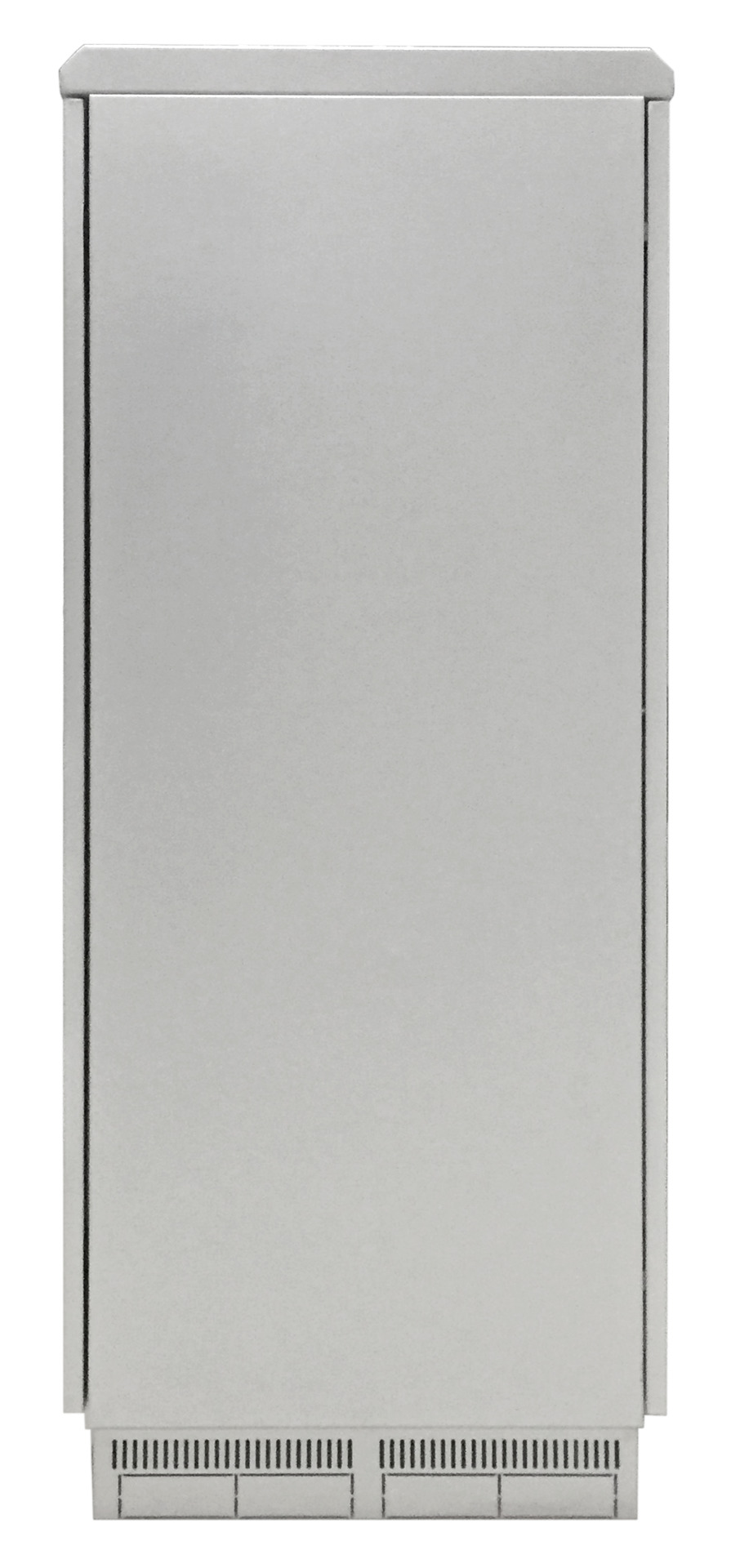

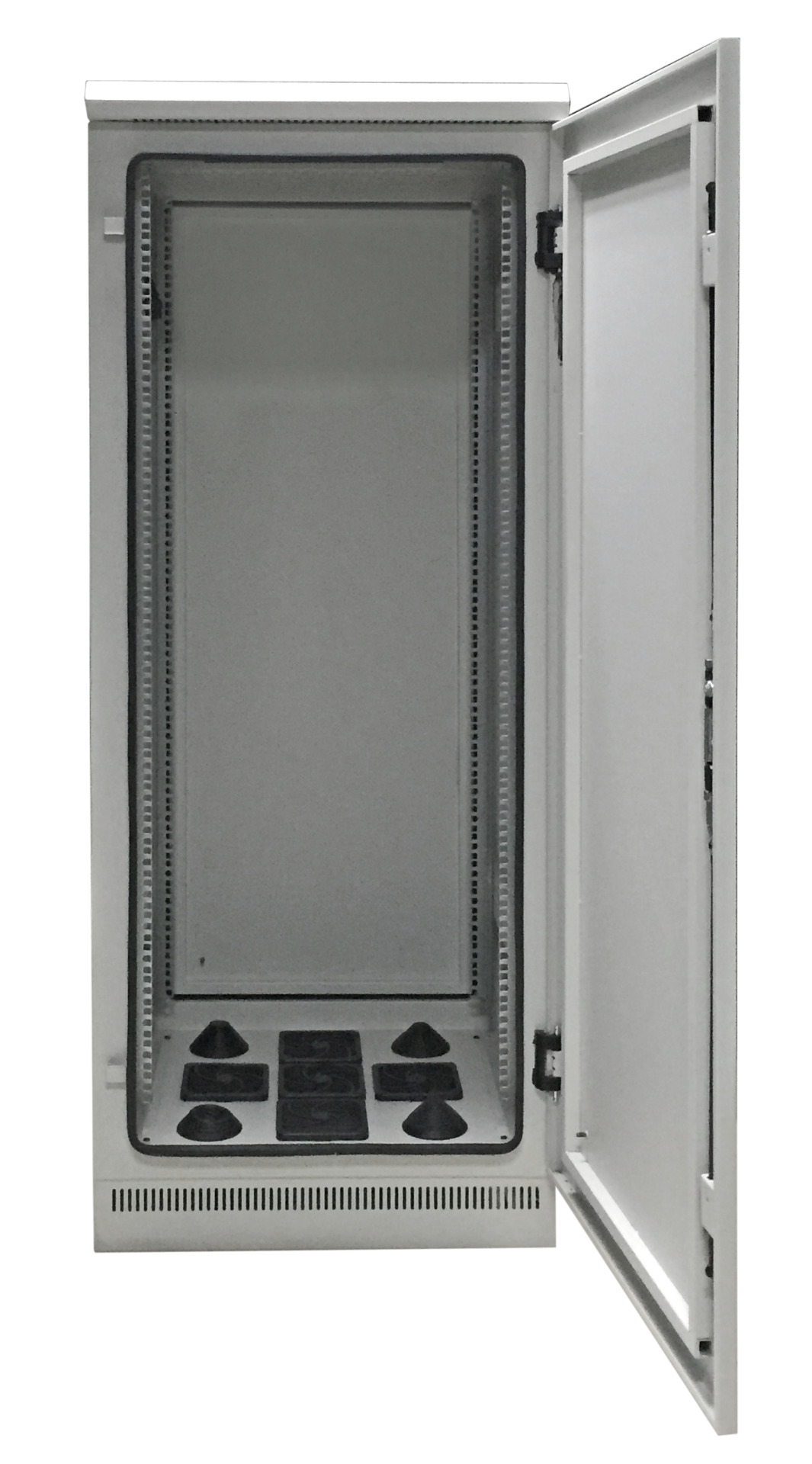

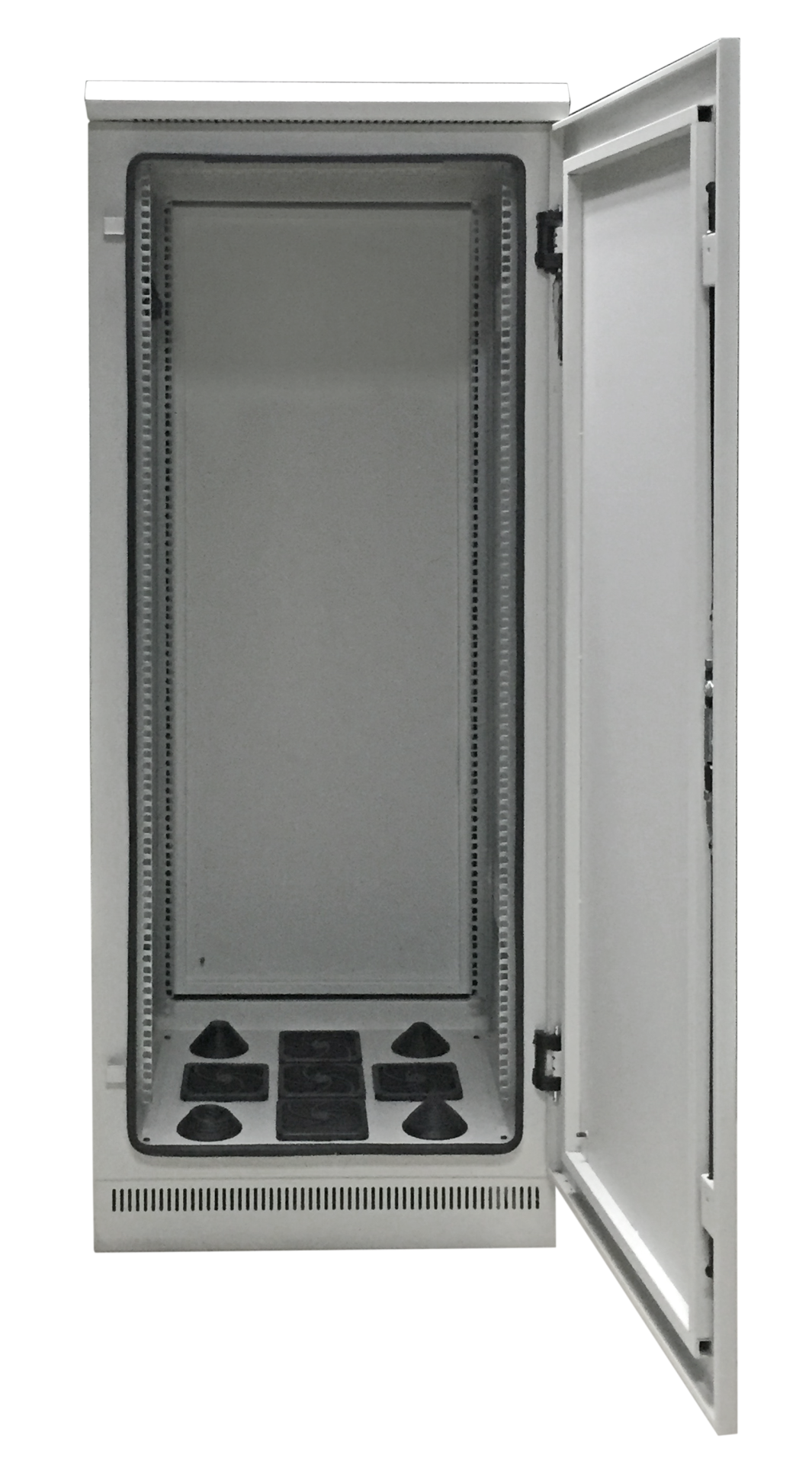

19" Network Cabinet 42U 800x1000, IP55, RAL7035
19" Network Cabinet 42U 800x1000, IP55, with Pre-Assembled Plinth, RAL7035
Varenummer:
692442IP55.GR
EAN Nr.:
4049759185909
Produktinformation til 19" Network Cabinet 42U 800x1000, IP55, with Pre-Assembled Plinth, RAL7035
19" Network cabinet according to DIN 41494
Steel sheet housing with welded frame, completely pre-assembled
Pre-assembled plinth 100 mm
Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the 19" profiles
Front an rear door steel, 1-part

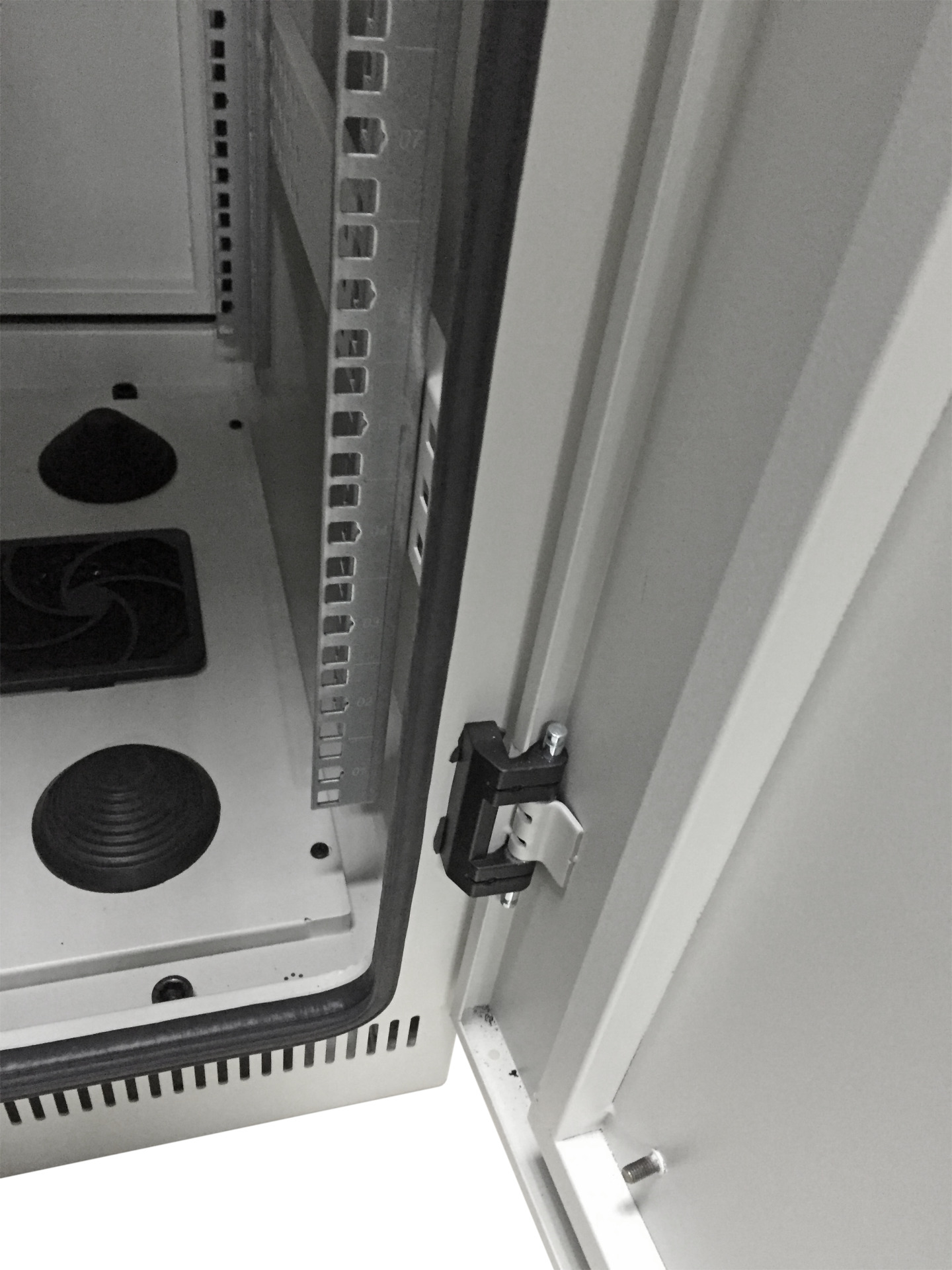

Front and rear door with 3-point locking with turning handle, lockable
Door opening angle front and rear > 120°
Side walls not detachable
Inner roof pre-punched openings for fan units

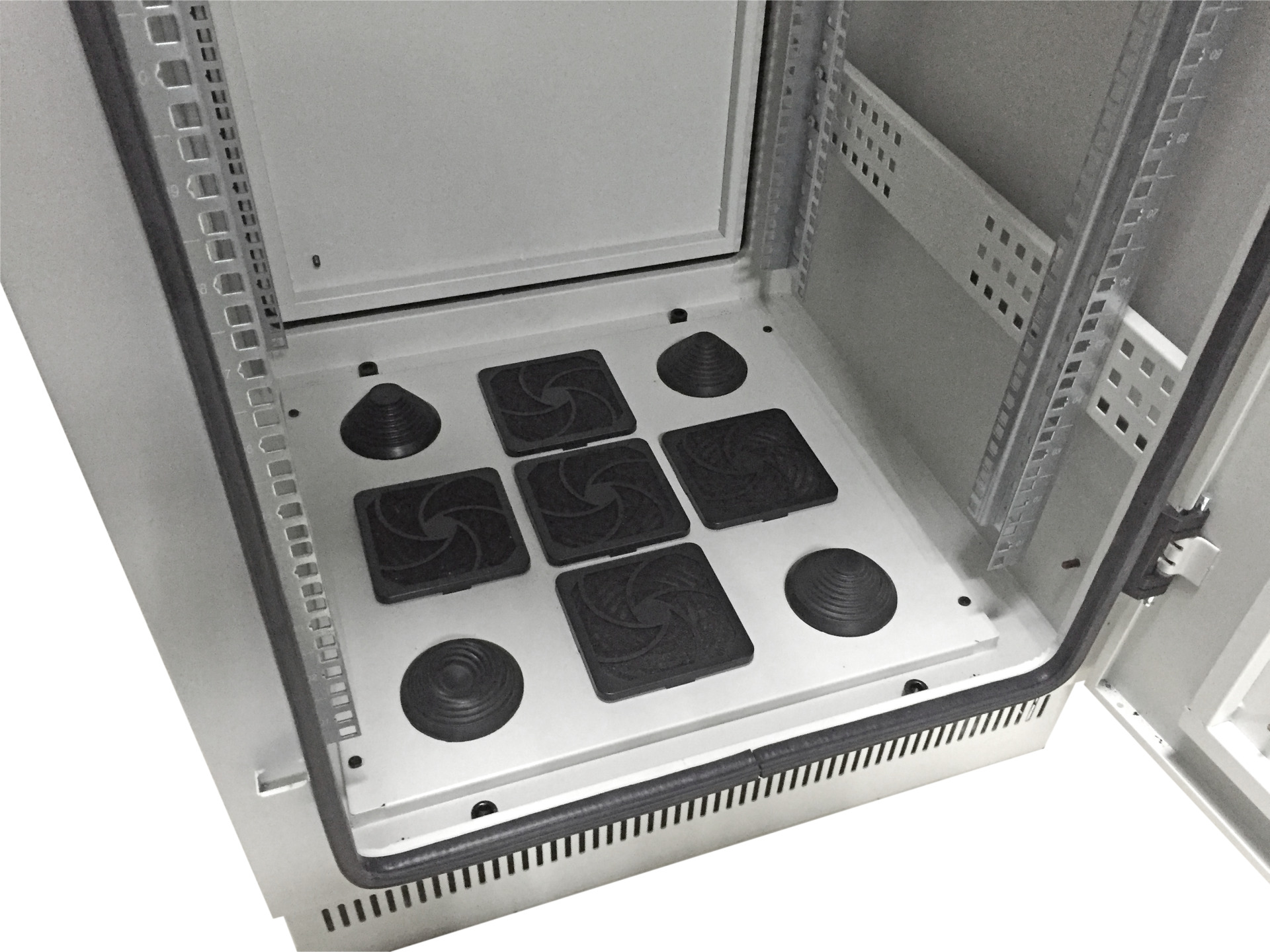

Bottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entry
Internal earthing of all cabinet sections
Max. load 1000 kg
Paint finish RAL7035, light grey
Protection degree IP55
Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with welded frame, completely pre-assembled
Pre-assembled plinth 100 mm
Inside front and rear 4 x 19" profiles (2 front, 2 rear-sided), galvanised, depth-adjustable in 25 mm raster
Numbering of rack units at the 19" profiles
Front an rear door steel, 1-part
Front and rear door with 3-point locking with turning handle, lockable
Door opening angle front and rear > 120°
Side walls not detachable
Inner roof pre-punched openings for fan units
Bottom prepared with air inlet filters and rubber grommets Ø 80 mm for cable entry
Internal earthing of all cabinet sections
Max. load 1000 kg
Paint finish RAL7035, light grey
Protection degree IP55
Included accessories: 1 x set of captive nuts (PU 20 pcs.), pre-installed plinth, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Art der Lüftung: | passiv |
|---|---|
| Ausführung: | mit Festrahmen |
| Ausführung Fronttür: | Stahltür einteilig |
| Ausführung Rücktür: | Stahltür einteilig |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Mit Sockel: | Ja |
| Mit rückseitiger Tür: | Ja |
| Montage-Ebene: | vorne und hinten |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schrankserie: | IP / Klima |
| Schutzart: | IP55 |
| Werkstoff: | Stahl |
| Zerlegbar: | Nein |
