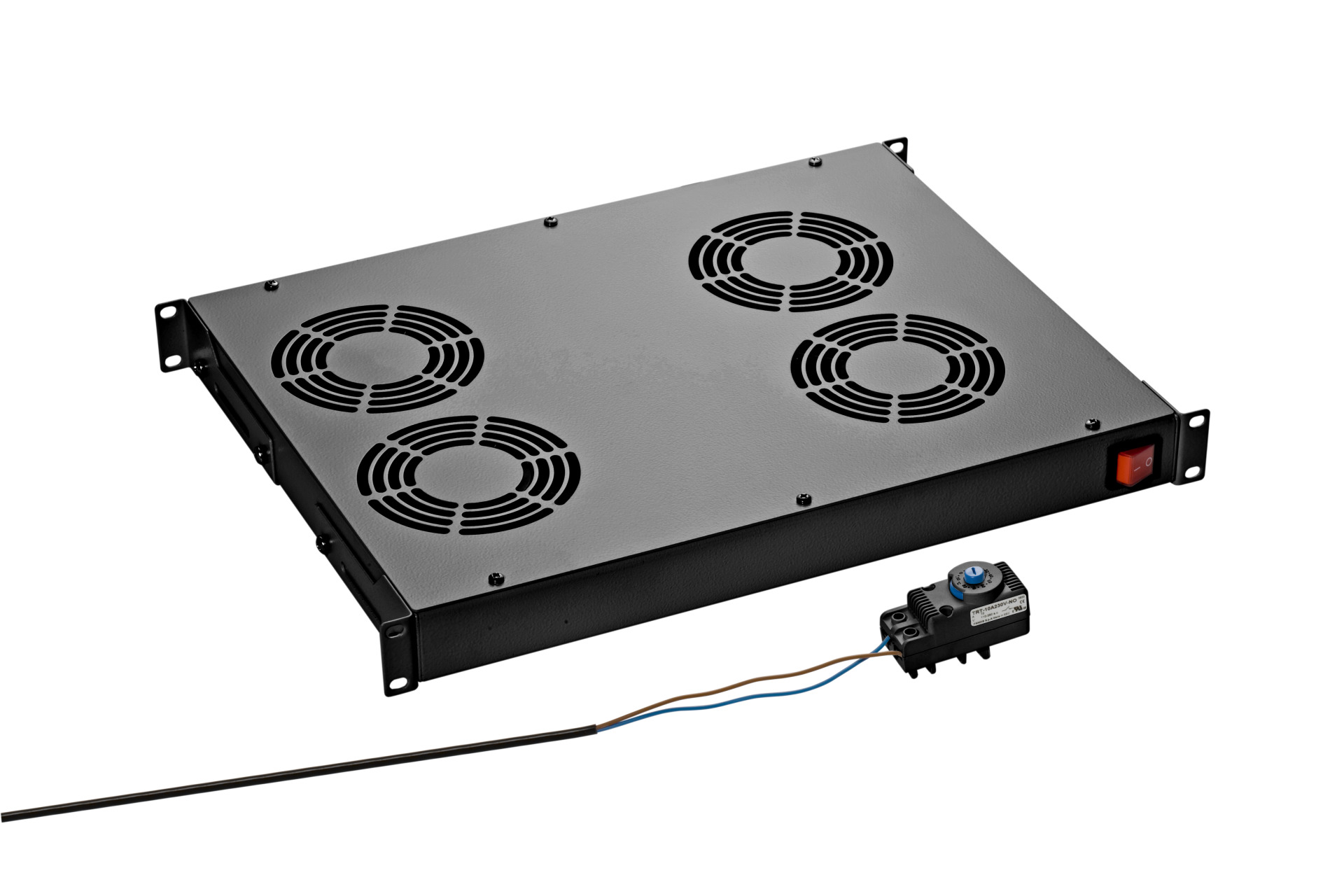

Roof Fan Unit, 4 x Fan, 1U, RAL7035
Roof Fan Unit, 4 x Fan, for Network and Server Cabinets
Varenummer:
691655V3
EAN Nr.:
4049759051594
Produktinformation til Roof Fan Unit, 4 x Fan, for Network and Server Cabinets
For installation in roof of all network and server cabinets Classic
19" Mounting possible with optional mounting set (Art.-No. 691654MS / 691654MSTS)
Control via connected thermostat (Art.-No. 691642)
Thermostat and mounting material included
Rear-sided power connection via IEC C14 socket (power cable not included, e.g. Art.-No. EK504.x)
Rated voltage 230 V, 50 Hz
Illuminated switch ON/OFF
Rear sided earth connection via earth jack
Material: steel sheet
Paint finish: RAL7035 light grey / RAL9005 jet black
19" Mounting possible with optional mounting set (Art.-No. 691654MS / 691654MSTS)
Control via connected thermostat (Art.-No. 691642)
Thermostat and mounting material included
Rear-sided power connection via IEC C14 socket (power cable not included, e.g. Art.-No. EK504.x)
Rated voltage 230 V, 50 Hz
Illuminated switch ON/OFF
Rear sided earth connection via earth jack
Material: steel sheet
Paint finish: RAL7035 light grey / RAL9005 jet black
Tekniske egenskaber
| Air circulator: | True |
|---|---|
| Built as slide-in ventilator: | True |
| Degree of protection: | IP20 |
| EMC-version: | True |
| Mounting method: | Screw mounting |
| Operating voltage at AC 50 Hz: | 230 – V |
| Roof ventilator: | True |
| Suitable for 19 inch rack mounting: | True |
| Suitable for wall built-in: | False |
| Voltage type: | AC |
| With filter: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
