19" Network Cabinet 24U 600x600, IP55,with Pre-Assembled Plinth, RAL7035
EFB-Elektronik
19" Network Cabinet 24U 600x600, IP55,with Pre-Assembled Plinth, RAL7035
Varenummer:
692524IP55V2.GR
EAN nr.:
4049759339289
Produktinformation til 19" Network Cabinet 24U 600x600, IP55,with Pre-Assembled Plinth, RAL7035
The 19" PRO 24 U network cabinet from EFB-Elektronik in 600 x 600 mm and RAL 7035 is designed for demanding network and IT environments. It combines a robust, fully pre-assembled construction with IP55 protection and practical equipment for the structured installation of active and passive components.
• IP55 protection and enclosed steel construction – Reliably protects installed technology in environments with increased requirements for sealing and robustness.
• 24 height units in a compact 600 x 600 mm format – Creates structured installation space in limited space and supports clear rack organization.
• Pre-assembled fixed frame with 1000 kg load capacity – Reduces assembly effort and provides stable reserves for heavy loading.
The cabinet is designed for use with passive ventilation and combines this with a closed design for controlled operation. The welded frame, the powder-coated surface and the front and rear doors on both sides support a robust and maintenance-friendly installation. The cable entry via roof and floor with four conical rubber grommets up to a maximum diameter of 70 mm facilitates clean cable feeding. With mounting levels arranged at the front and rear, pre-assembled base and earthing, the system is suitable for structured installation in network infrastructures with high cabling requirements.
Technical details
• Number of doors: 2
• Degree of protection: IP55 according to EN 60529
• Type of ventilation: passive
• With earthing: Yes
• With roof panel: Yes
• With front door: Yes
• With side panels: Yes
• With rear door: Yes
• Mounting level: front and rear
• Front door design: one-piece steel door
• Front door opening angle: 120°
• Rear door opening angle: 120 °
• Front door locking: 2-point rod closure with swing handle
• Rear door locking: 2-point rod closure with swing handle
• Scope of delivery: 1x cabinet, delivery incl. base 100 mm (pre-assembled), 2 x keys
• Packaging: Delivered in transport packaging on a one-way pallet
• IP55 protection and enclosed steel construction – Reliably protects installed technology in environments with increased requirements for sealing and robustness.
• 24 height units in a compact 600 x 600 mm format – Creates structured installation space in limited space and supports clear rack organization.
• Pre-assembled fixed frame with 1000 kg load capacity – Reduces assembly effort and provides stable reserves for heavy loading.
The cabinet is designed for use with passive ventilation and combines this with a closed design for controlled operation. The welded frame, the powder-coated surface and the front and rear doors on both sides support a robust and maintenance-friendly installation. The cable entry via roof and floor with four conical rubber grommets up to a maximum diameter of 70 mm facilitates clean cable feeding. With mounting levels arranged at the front and rear, pre-assembled base and earthing, the system is suitable for structured installation in network infrastructures with high cabling requirements.
Technical details
• Number of doors: 2
• Degree of protection: IP55 according to EN 60529
• Type of ventilation: passive
• With earthing: Yes
• With roof panel: Yes
• With front door: Yes
• With side panels: Yes
• With rear door: Yes
• Mounting level: front and rear
• Front door design: one-piece steel door
• Front door opening angle: 120°
• Rear door opening angle: 120 °
• Front door locking: 2-point rod closure with swing handle
• Rear door locking: 2-point rod closure with swing handle
• Scope of delivery: 1x cabinet, delivery incl. base 100 mm (pre-assembled), 2 x keys
• Packaging: Delivered in transport packaging on a one-way pallet
| Active air conditioning: | False |
|---|---|
| Cabinet Series: | IP / Climatic |

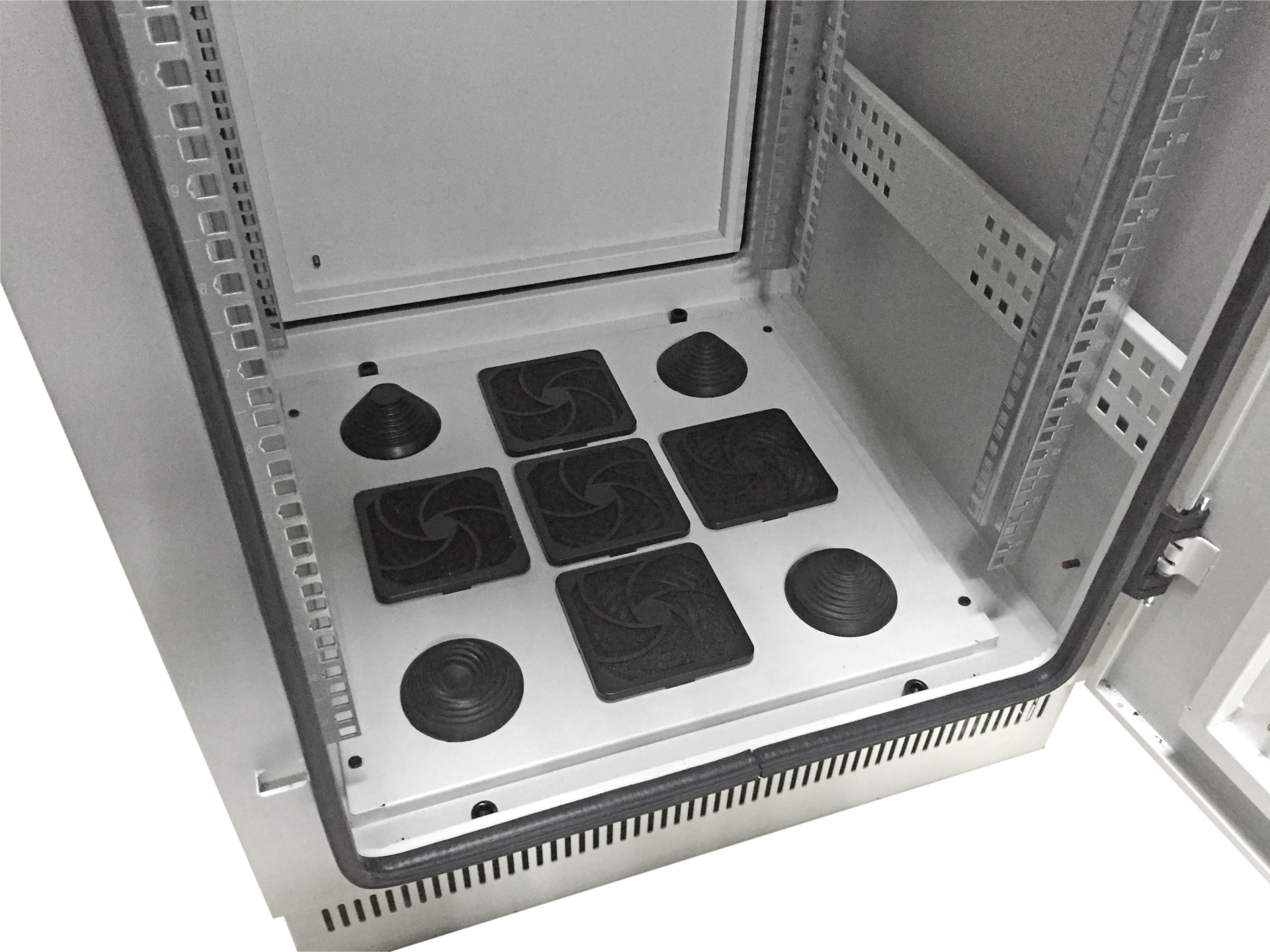

| Cable entry roof/floor: | 4 x conical rubber grommets, max. Ø 70 mm |
| Category: | 19" network cabinet according to DIN41494 |
| Degree of protection: | IP55 according to EN60529 |
| Demountable: | False |
| Door hinge reversible front door: | False |
| Door hinge reversible rear door: | False |
| Door opening angle front door: | 120 ° |
| Door opening angle rear door: | 120 ° |
| Frame: | welded, completely pre-assembled |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482,6 mm (19 inch) |
| Mounting level: | Front and rear |
| PHC replaceable front door: | False, |
| PHC replaceable rear door: | False |
| Packaging: | Delivery in transport packaging on a disposable pallet |
| Scope of delivery: | 1x cabinet, Delivery includes 100 mm base (pre-assembled), 2 x keys |
| Stackable: | False |
| Surface finishing: | Powder coating |
| Type of back door: | Steel door 1-part |
| Type of front door: | Steel door 1-part |
| Type of profile rail: | Crank, powder-coated, ascending U numbering |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | True |
Tekniske egenskaber
| Active air conditioning: | False |
|---|---|
| Cabinet Series: | IP / Climatic |
| Cable entry roof/floor: | 4 x conical rubber grommets, max. Ø 70 mm |
| Category: | 19" network cabinet according to DIN41494 |
| Degree of protection: | IP55 according to EN60529 |
| Demountable: | False |
| Door hinge reversible front door: | False |
| Door hinge reversible rear door: | False |
| Door opening angle front door: | 120 ° |
| Door opening angle rear door: | 120 ° |
| Frame: | welded, completely pre-assembled |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482,6 mm (19 inch) |
| Mounting level: | Front and rear |
| PHC replaceable front door: | False, |
| PHC replaceable rear door: | False |
| Packaging: | Delivery in transport packaging on a disposable pallet |
| Scope of delivery: | 1x cabinet, Delivery includes 100 mm base (pre-assembled), 2 x keys |
| Stackable: | False |
| Surface finishing: | Powder coating |
| Type of back door: | Steel door 1-part |
| Type of front door: | Steel door 1-part |
| Type of profile rail: | Crank, powder-coated, ascending U numbering |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | True |
