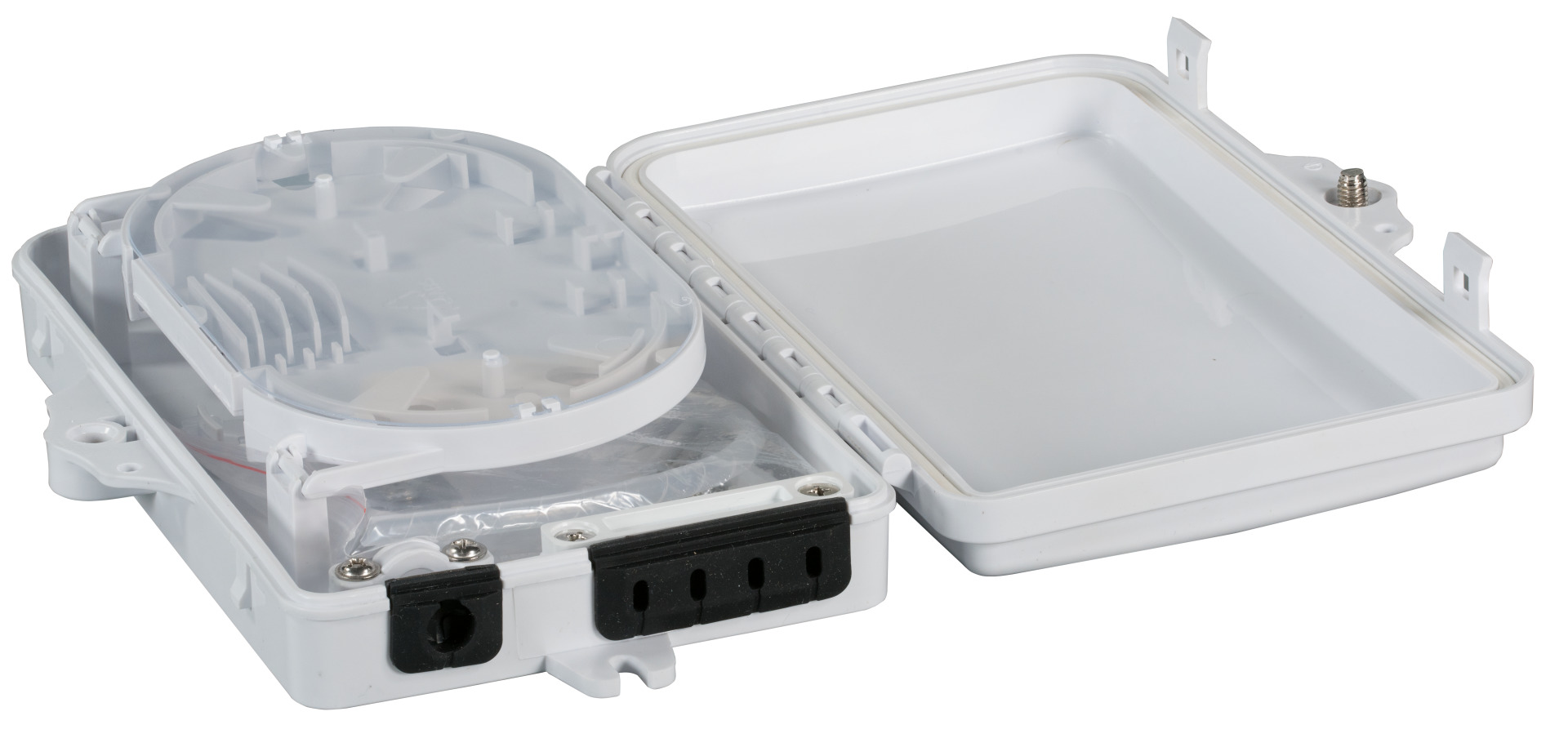

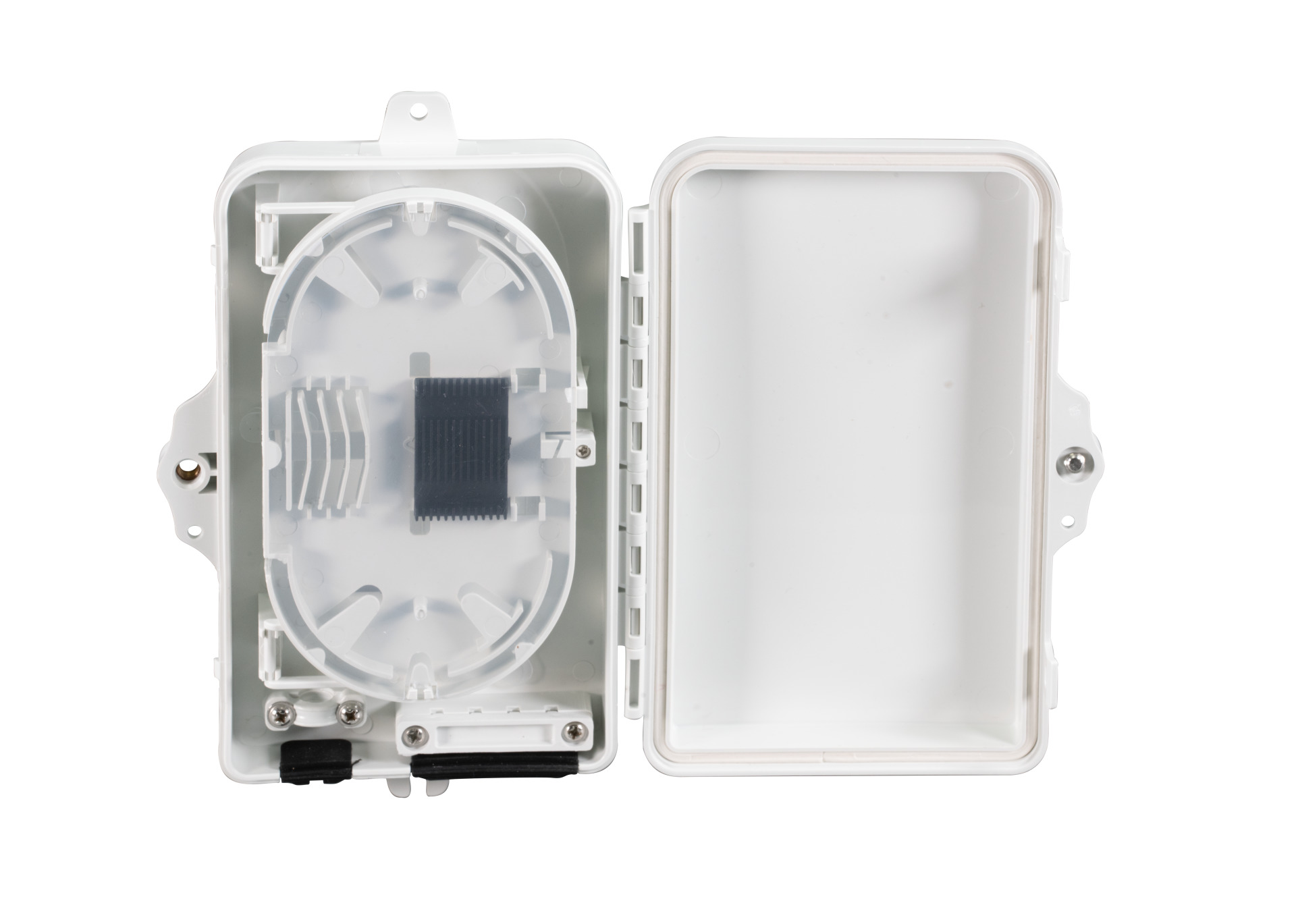

FTTH IP65 Connection Box 4 adapter
FTTH IP65 Connectionbox for 8fiber, 4adapter and Fiber overlength box
Varenummer:
FTTH-BOX-OUT-3
EAN Nr.:
4049759189716
Produktinformation til FTTH IP65 Connectionbox for 8fiber, 4adapter and Fiber overlength box
Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON

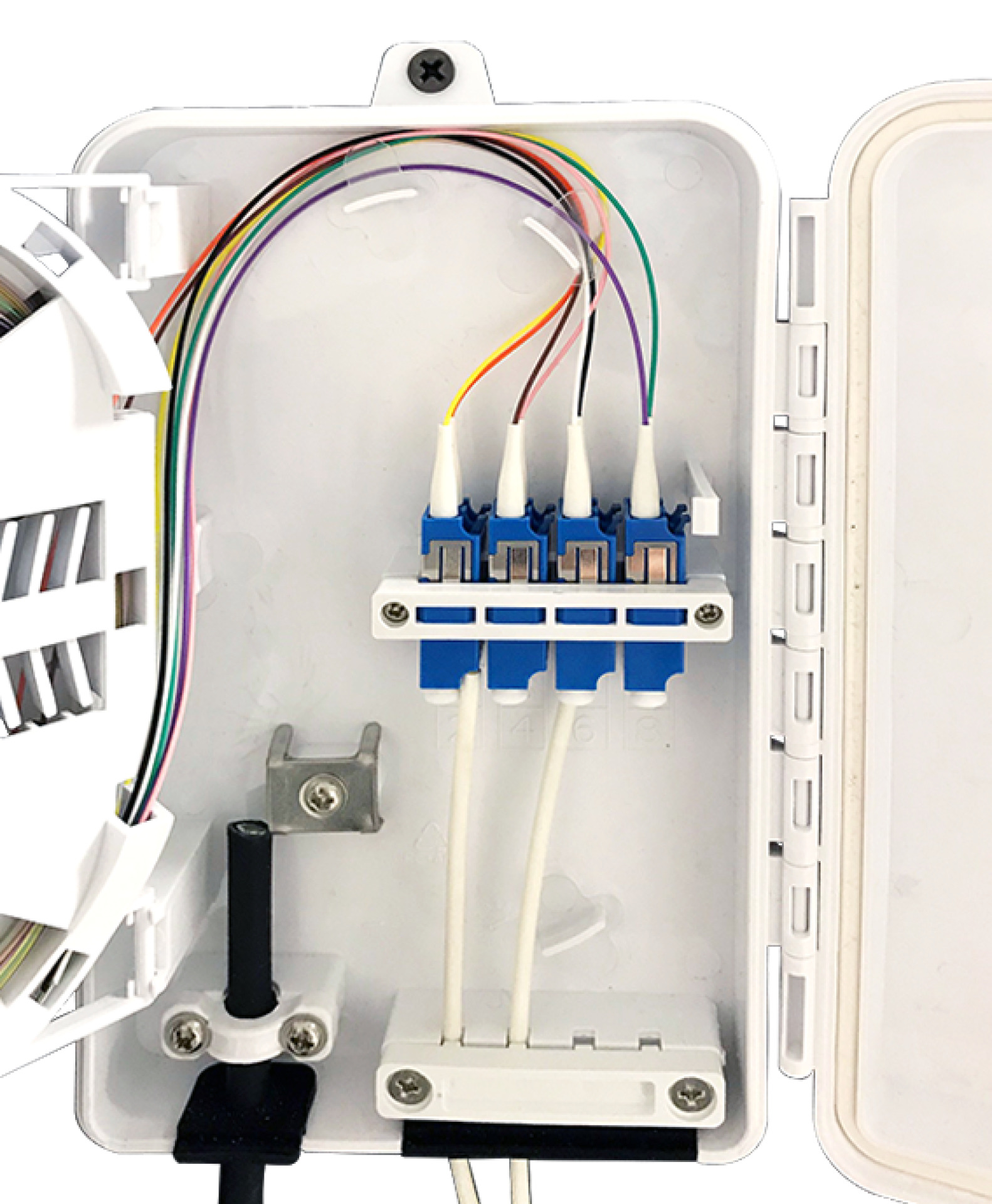

Configuration in LC with duplex adapters for 8 ports/ fibers
Configuration in SC with simplex adapters for 4 ports/ fibers
Delivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 8 splices double layed), 4x shrink protection and material for wall mounting included)
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Configuration in LC with duplex adapters for 8 ports/ fibers
Configuration in SC with simplex adapters for 4 ports/ fibers
Delivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 8 splices double layed), 4x shrink protection and material for wall mounting included)
Tekniske egenskaber
Cable entry without cable gland: | 1x max. 10mm / 4x max. 4mm |
---|---|
Cable sheath support: | True |
Colour: | white |

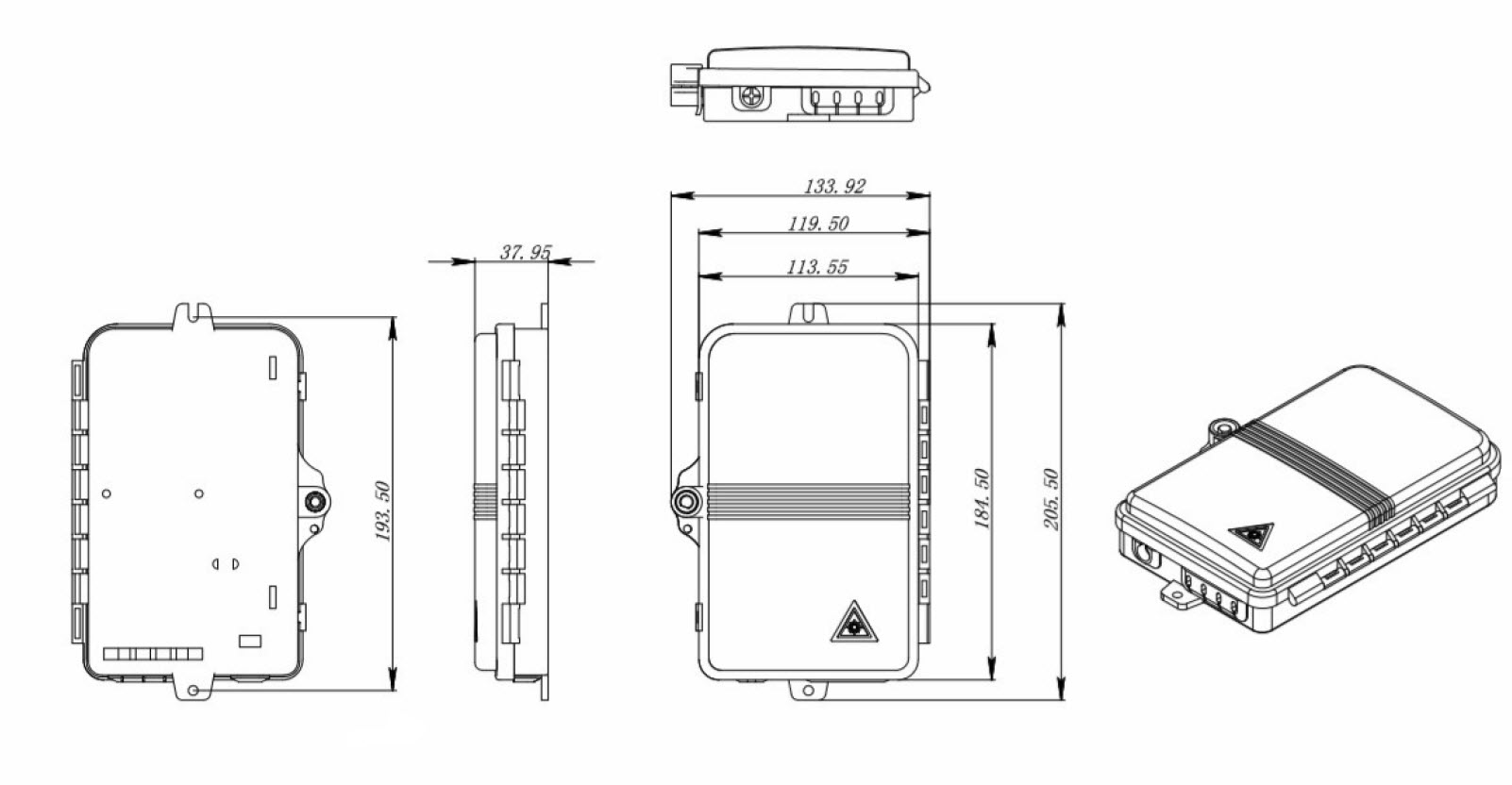

Dimensions: | 172x136x40 mm |
Foreign body and contact protection: | Protection against ingrees of dust |

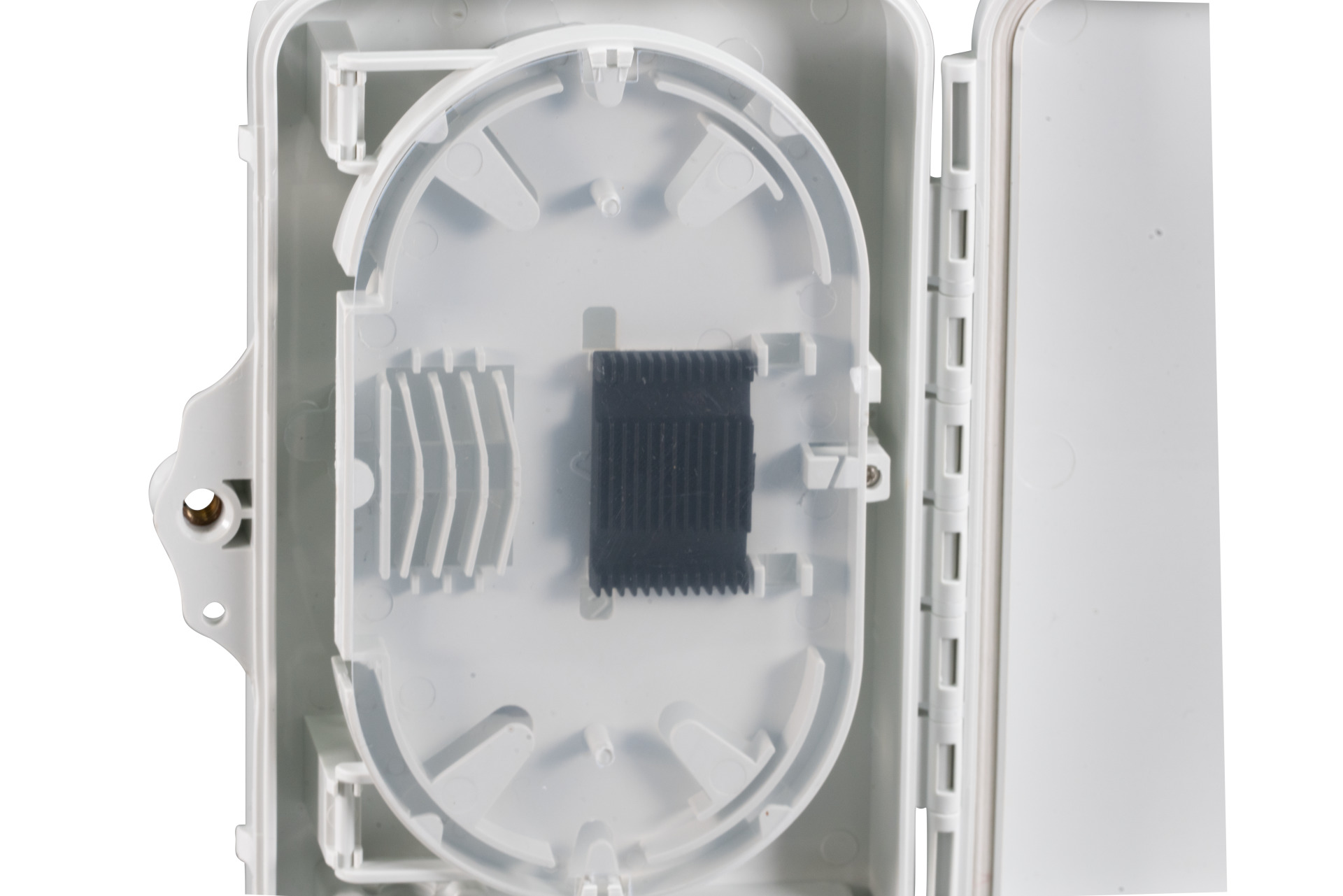

Hinged splice cassette: | True |
Holder for gas blocker: | False |
Holder for splitter: | False |
IP Protection: | IP65 |
Material: | Plastic |
Max. Assembly (Adapter): | 4 |
Mounting method: | Wall mounting |
Number of Fibres: | 8 |
Possibility of mast mounting: | False |
Scope of application: | Outdoor |
Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
Temperature range: | -25 – 70 °C |
Type of Splice protection: | Crimp & Thermo |
UV-resistant: | True |
Water protection: | Protection against jet water |

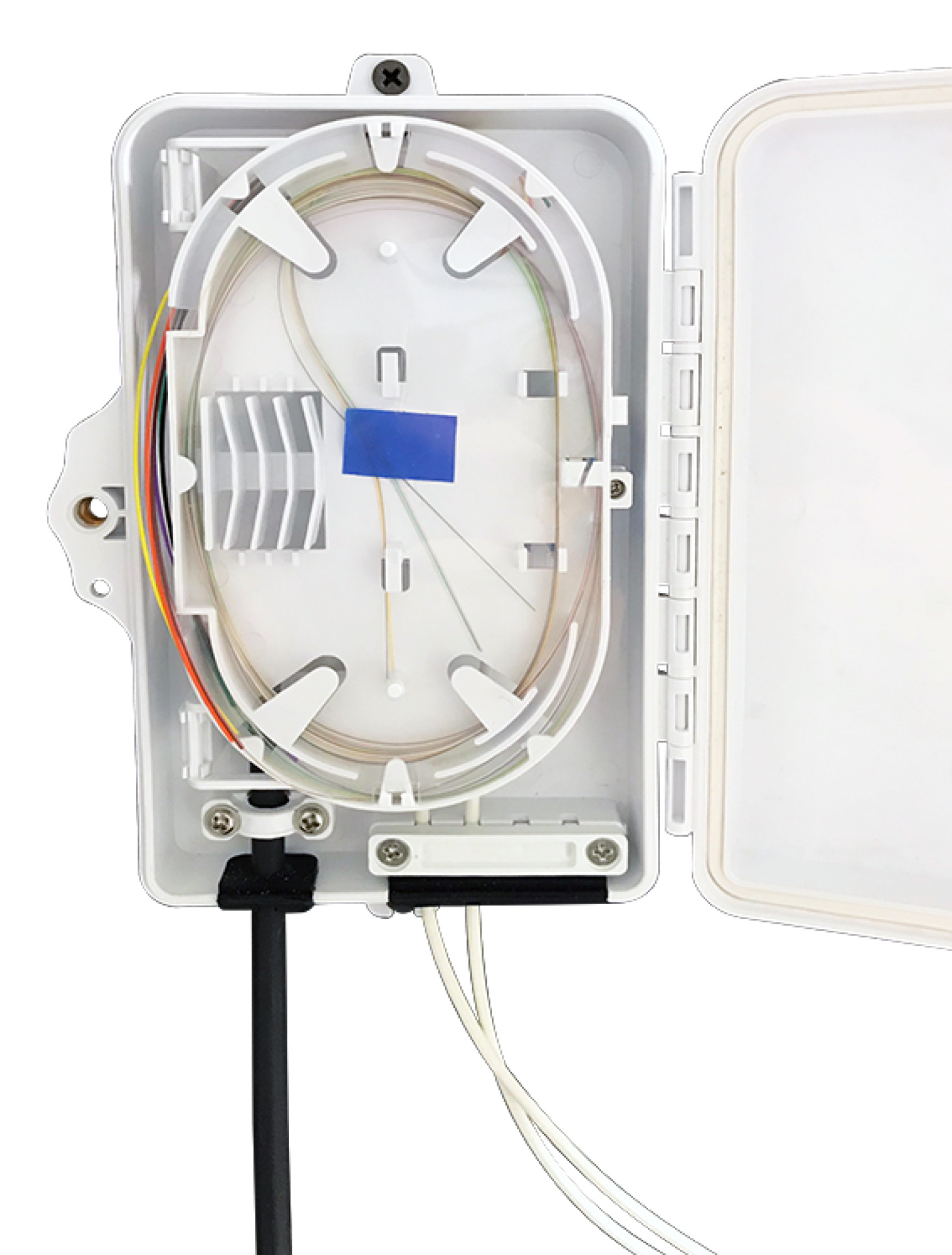

With Fiber overlength cassette: | True |
