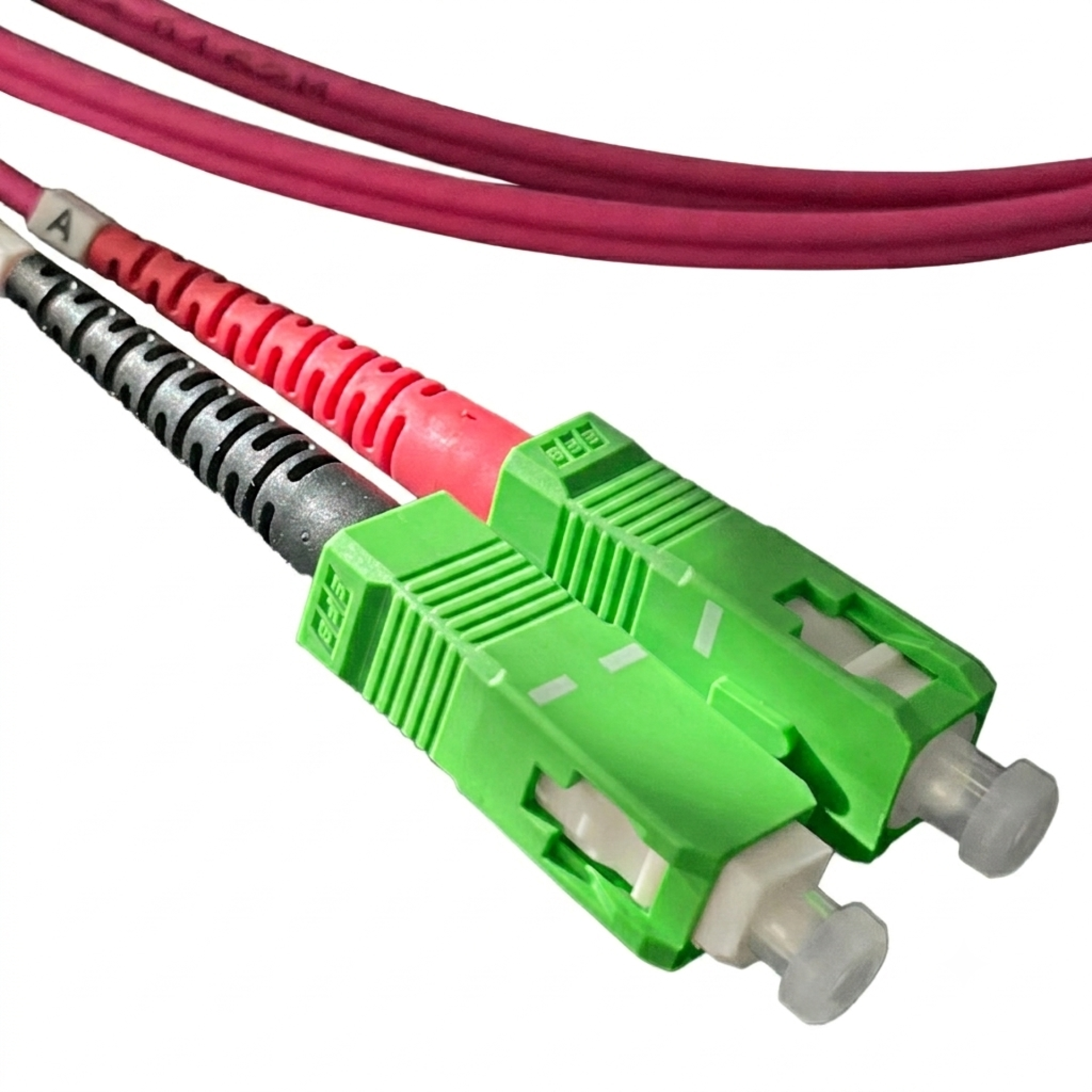

Fiber Pigtail SC/APC OS2 G657A2-colored set 2m - 12 pieces
Indhold:
12 Stück
(15,03 kr. / 1 Stück)
Fiber Pigtail SC/APC OS2 G657A2-colored set 2m - 12 pieces
Varenummer:
FTTH-PIGTAIL-SCA12
EAN nr.:
4049759193980
Produktinformation til Fiber Pigtail SC/APC OS2 G657A2-colored set 2m - 12 pieces
The fibre pigtail SC/APC OS2 G657A2 from EFB-Elektronik is designed for professional fibre optic splice connections in single-mode fibre optic networks. The version as a 2.0 m long set with 12 pigtails is intended for standard-compliant use in the installation environment.
• SC/APC connector according to IEC61754-4 – Ensures a standard-compliant interface and supports clear assignment through the green connector colour.
• OS2 G657A2 in single-mode 9/125 with bend-optimised fibre – Suitable for demanding installation environments and increases robustness at tight bending radii.
• 2.0 m wire pigtail in a set of 12 with fitted strain-relief boot grommet – facilitates processing in the splice area and protects the fibre transfer in everyday installation.
Technically, it is a wire pigtail with an outer diameter of 0.9 mm and a loose buffer. The single-mode version in the OS2 G657A2 category is specified according to IEC60793-2 and meets the requirements for professional use in quality class B/1 according to IEC 61753-021-2. The SC/APC connector corresponds to IEC61754-4 and is green. The marking according to DIN colour code and VDE-0888 supports the clear assignment. An attached strain-relief boot grommet is provided and a test report is available.
Technical details
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC/APC
• Fibre type: Single-mode 9/125
• Category: OS2 G657A2
• Single-mode quality class: B/1 according to IEC 61753-021-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour: DIN colour code
• Colour code: VDE-0888
• Connector colour: green
• Connector standard: IEC61754-4
• Cable standard: IEC60793-2
• Bend-optimised fibre: Yes
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 set (12 pigtails)
• SC/APC connector according to IEC61754-4 – Ensures a standard-compliant interface and supports clear assignment through the green connector colour.
• OS2 G657A2 in single-mode 9/125 with bend-optimised fibre – Suitable for demanding installation environments and increases robustness at tight bending radii.
• 2.0 m wire pigtail in a set of 12 with fitted strain-relief boot grommet – facilitates processing in the splice area and protects the fibre transfer in everyday installation.
Technically, it is a wire pigtail with an outer diameter of 0.9 mm and a loose buffer. The single-mode version in the OS2 G657A2 category is specified according to IEC60793-2 and meets the requirements for professional use in quality class B/1 according to IEC 61753-021-2. The SC/APC connector corresponds to IEC61754-4 and is green. The marking according to DIN colour code and VDE-0888 supports the clear assignment. An attached strain-relief boot grommet is provided and a test report is available.
Technical details
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC/APC
• Fibre type: Single-mode 9/125
• Category: OS2 G657A2
• Single-mode quality class: B/1 according to IEC 61753-021-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour: DIN colour code
• Colour code: VDE-0888
• Connector colour: green
• Connector standard: IEC61754-4
• Cable standard: IEC60793-2
• Bend-optimised fibre: Yes
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 set (12 pigtails)
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.25 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
Tekniske egenskaber
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.25 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
Produktinformation til Fiber Pigtail SC/APC OS2 G657A2-colored set 2m - 12 pieces
The fibre pigtail SC/APC OS2 G657A2 from EFB-Elektronik is designed for professional fibre optic splice connections in single-mode fibre optic networks. The version as a 2.0 m long set with 12 pigtails is intended for standard-compliant use in the installation environment.
• SC/APC connector according to IEC61754-4 – Ensures a standard-compliant interface and supports clear assignment through the green connector colour.
• OS2 G657A2 in single-mode 9/125 with bend-optimised fibre – Suitable for demanding installation environments and increases robustness at tight bending radii.
• 2.0 m wire pigtail in a set of 12 with fitted strain-relief boot grommet – facilitates processing in the splice area and protects the fibre transfer in everyday installation.
Technically, it is a wire pigtail with an outer diameter of 0.9 mm and a loose buffer. The single-mode version in the OS2 G657A2 category is specified according to IEC60793-2 and meets the requirements for professional use in quality class B/1 according to IEC 61753-021-2. The SC/APC connector corresponds to IEC61754-4 and is green. The marking according to DIN colour code and VDE-0888 supports the clear assignment. An attached strain-relief boot grommet is provided and a test report is available.
Technical details
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC/APC
• Fibre type: Single-mode 9/125
• Category: OS2 G657A2
• Single-mode quality class: B/1 according to IEC 61753-021-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour: DIN colour code
• Colour code: VDE-0888
• Connector colour: green
• Connector standard: IEC61754-4
• Cable standard: IEC60793-2
• Bend-optimised fibre: Yes
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 set (12 pigtails)
• SC/APC connector according to IEC61754-4 – Ensures a standard-compliant interface and supports clear assignment through the green connector colour.
• OS2 G657A2 in single-mode 9/125 with bend-optimised fibre – Suitable for demanding installation environments and increases robustness at tight bending radii.
• 2.0 m wire pigtail in a set of 12 with fitted strain-relief boot grommet – facilitates processing in the splice area and protects the fibre transfer in everyday installation.
Technically, it is a wire pigtail with an outer diameter of 0.9 mm and a loose buffer. The single-mode version in the OS2 G657A2 category is specified according to IEC60793-2 and meets the requirements for professional use in quality class B/1 according to IEC 61753-021-2. The SC/APC connector corresponds to IEC61754-4 and is green. The marking according to DIN colour code and VDE-0888 supports the clear assignment. An attached strain-relief boot grommet is provided and a test report is available.
Technical details
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC/APC
• Fibre type: Single-mode 9/125
• Category: OS2 G657A2
• Single-mode quality class: B/1 according to IEC 61753-021-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour: DIN colour code
• Colour code: VDE-0888
• Connector colour: green
• Connector standard: IEC61754-4
• Cable standard: IEC60793-2
• Bend-optimised fibre: Yes
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 set (12 pigtails)
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.25 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.25 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
