FTTH Indoor Connectionbox for 4Fiber, 4Adapter

Priser kun synlige for indloggede brugere

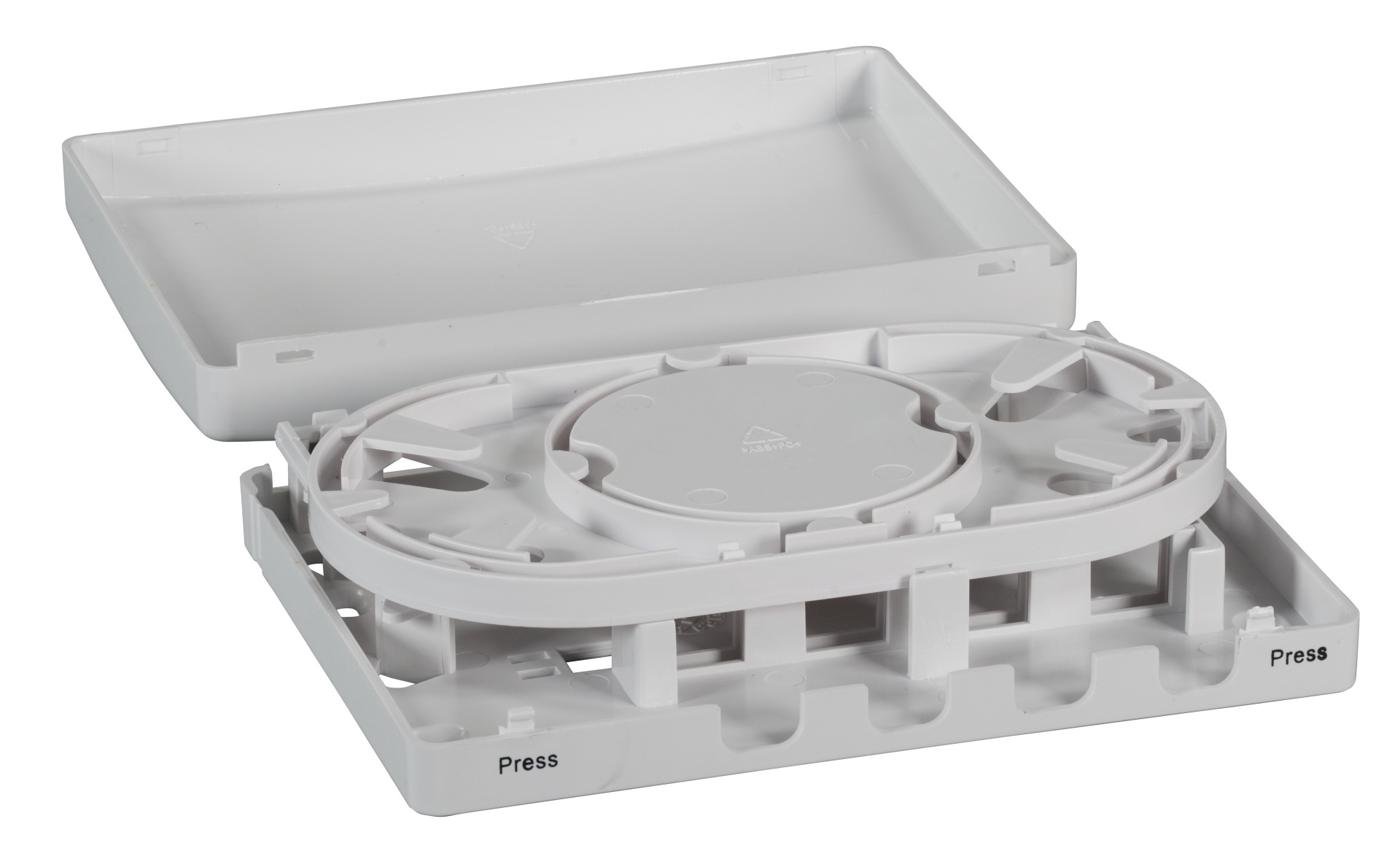

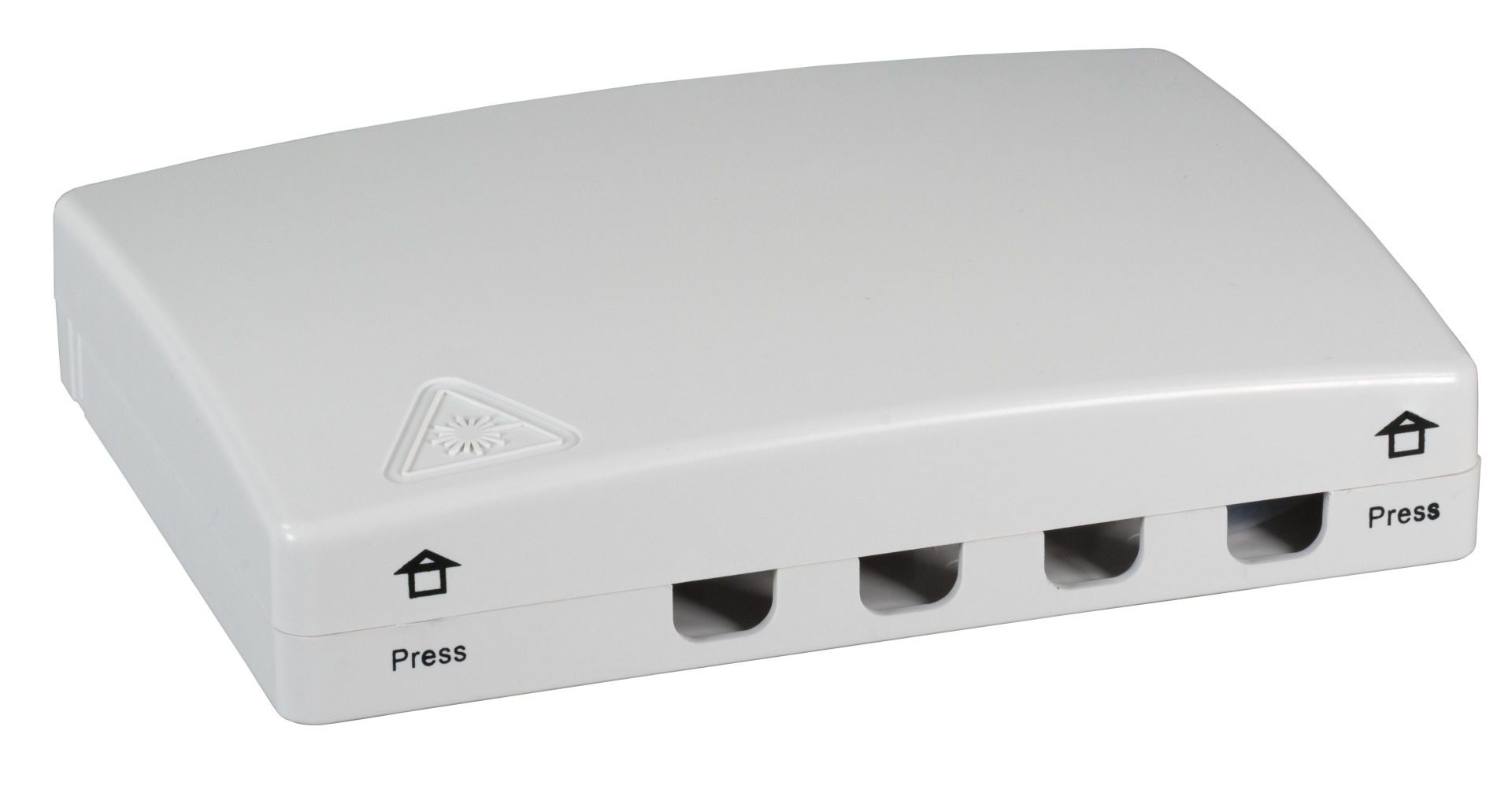

FTTH Indoor Connectionbox for 4fiber, 4adapter, fiber overlength box
Varenummer: FTTH-BOX-IN-1
EAN nr.: 4049759189631
Piece

Produktinformation für FTTH Indoor Connectionbox for 4fiber, 4adapter, fiber overlength box

Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON

Delivery unassembled (4x shrink protection and material for wall mounting included)

When using crimp splice protection, please note that these cannot be firmly inserted

Tekniske egenskaber

Cable sheath support: False
Colour: white

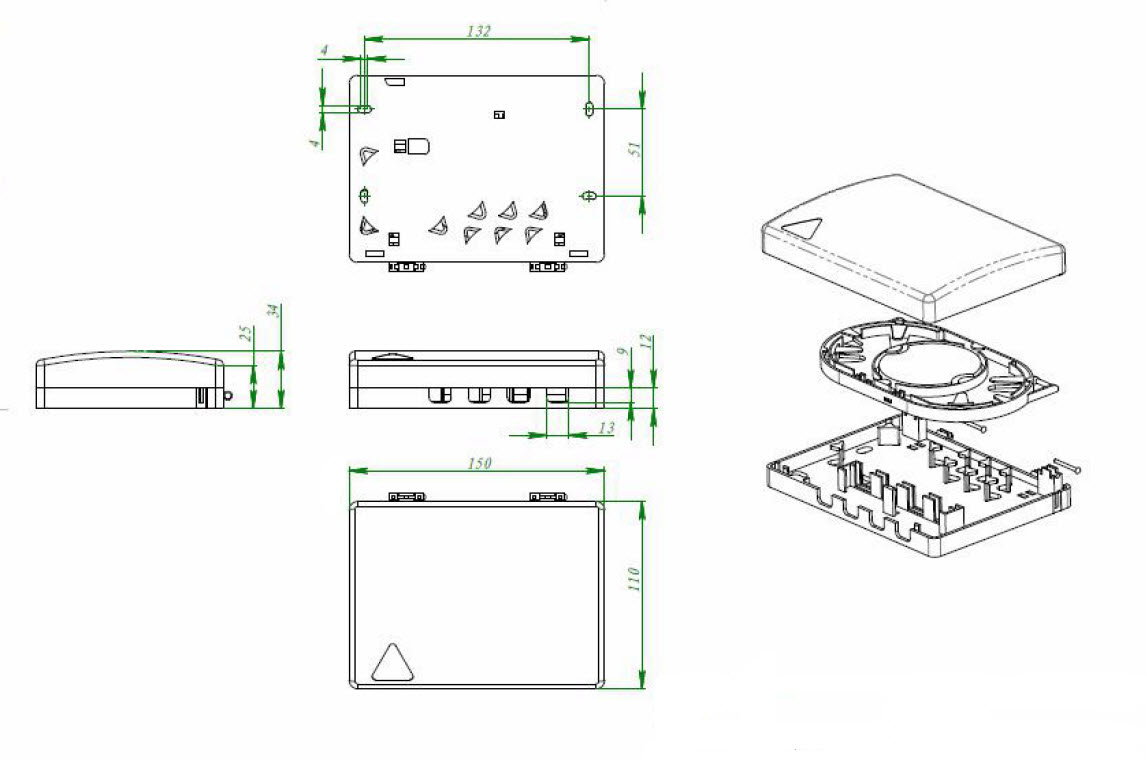

Dimensions: 150 x 110 x 34 mm
Foreign body and contact protection: Protection against medium-sized foreign bodies

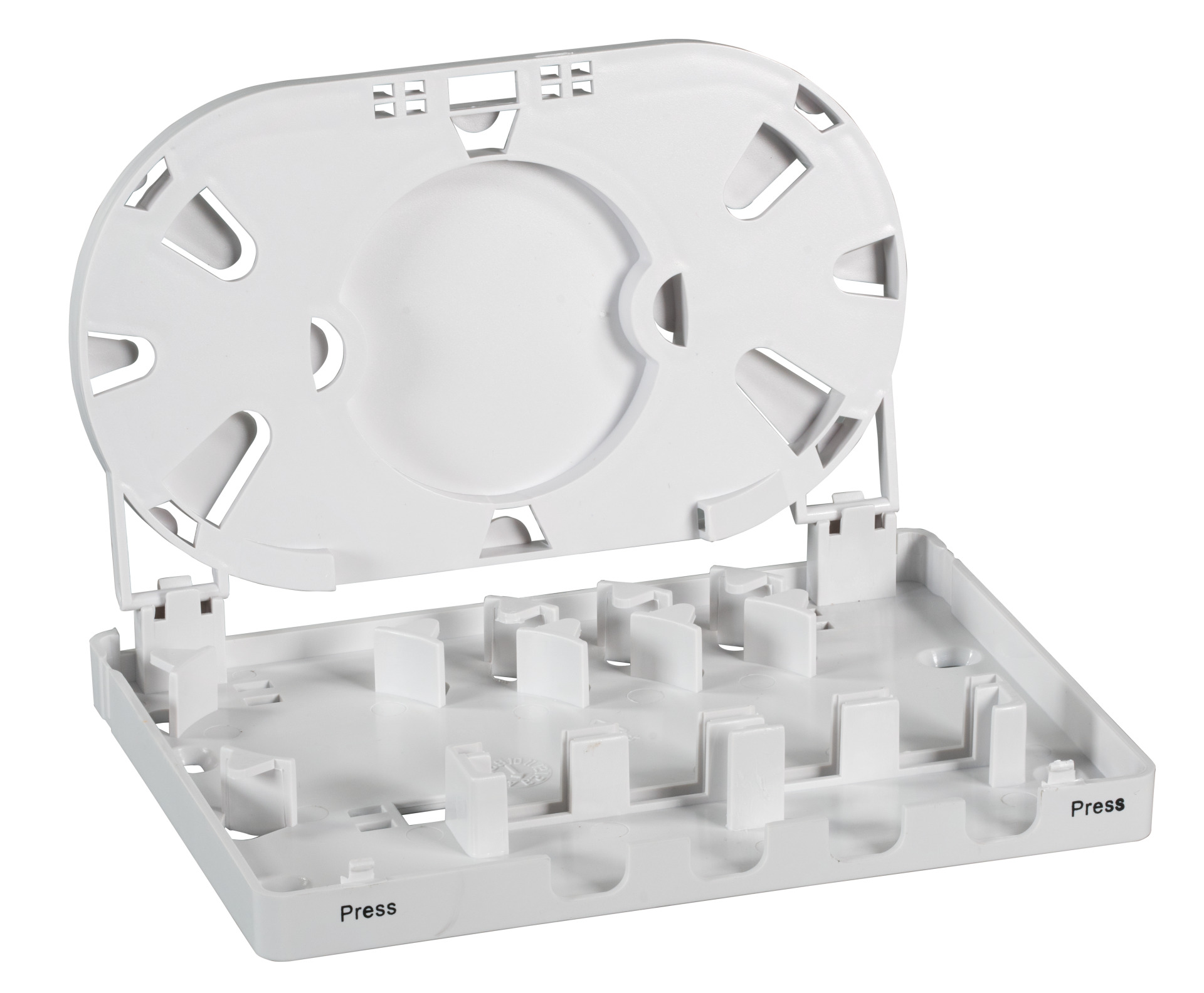

Hinged splice cassette: True
Holder for gas blocker: False
Holder for splitter: False
IP Protection: IP20
Material: Plastic
Max. Assembly (Adapter): 4
Mounting method: Wall mounting
Number of Fibres: 4
Possibility of mast mounting: False
Scope of application: Indoor
Suitable for adapter: SC Simplex/LC Duplex/E2000®
Temperature range: 0 – 50 °C
Type of Splice protection: Thermo
Water protection: Without protection
With Fiber overlength cassette: True

main product

FO marking strips " Vorsicht Glasfaserkabel", PU 50
FO marking strips " Warnung vor Laserstrahlung", PU 10

used with

Simplex FO Patch Cable LC-LC/APC G657.A2 1m 2,0mm yellow 9/125µm

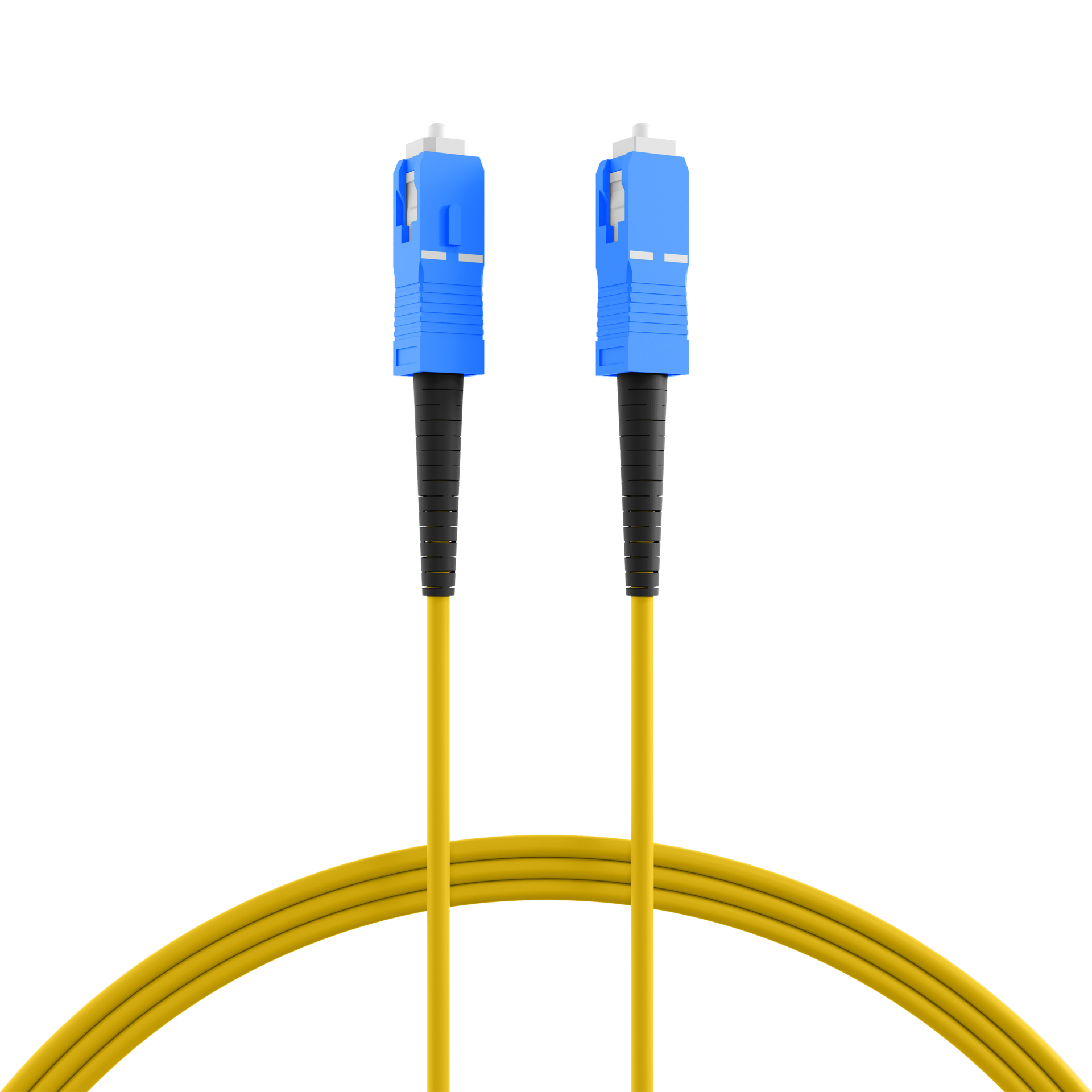

Simplex FO Patch Cable SC-SC G657.A2 7,5m 3,0mm yellow 9/125µm

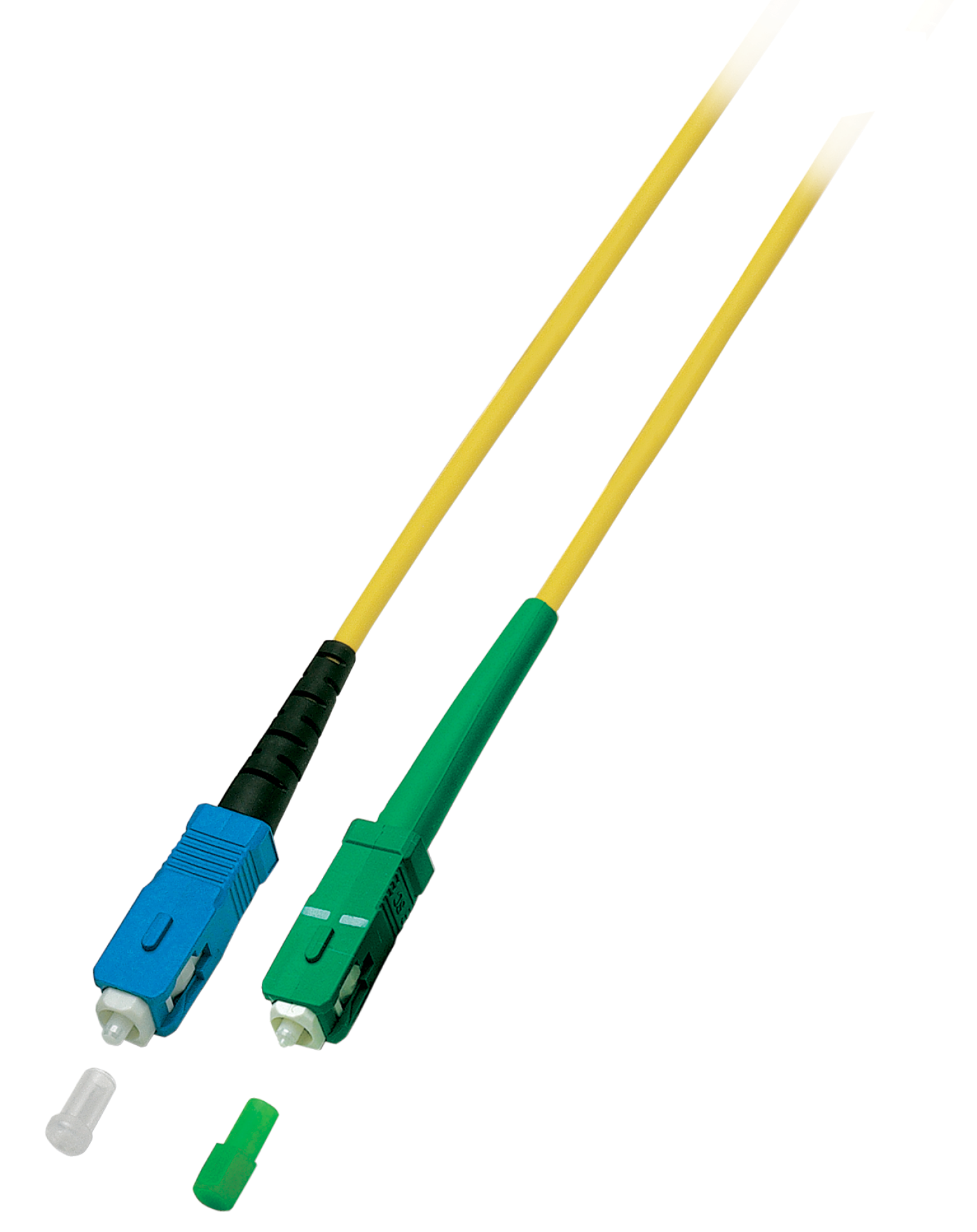

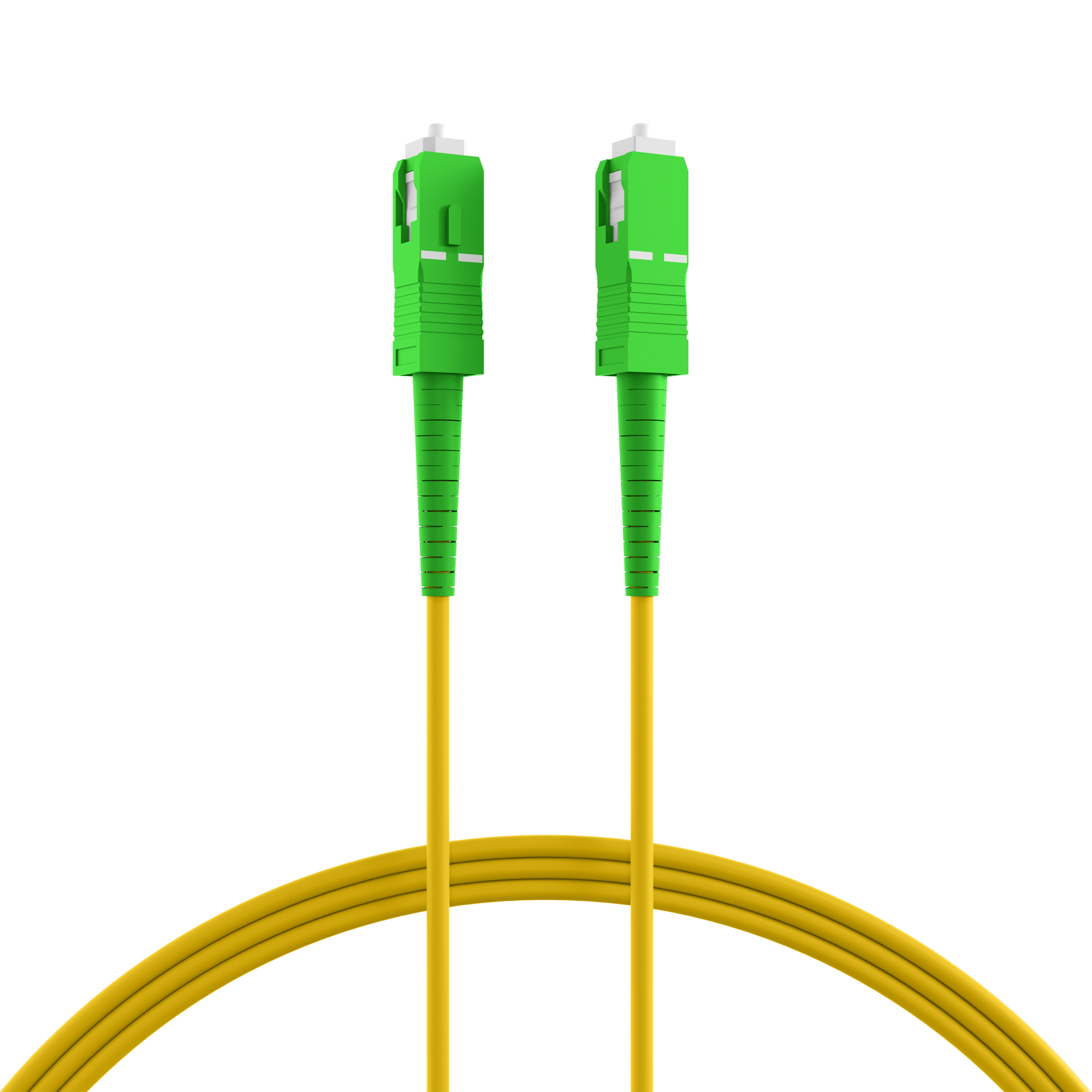

Simplex FO Patch Cable SC/APC-SC/APC G657.A2 0,5m 3,0mm yellow 9/125µm
Simplex FO Patch Cable FC-LC G657.A2 15m 2,0mm yellow 9/125µm

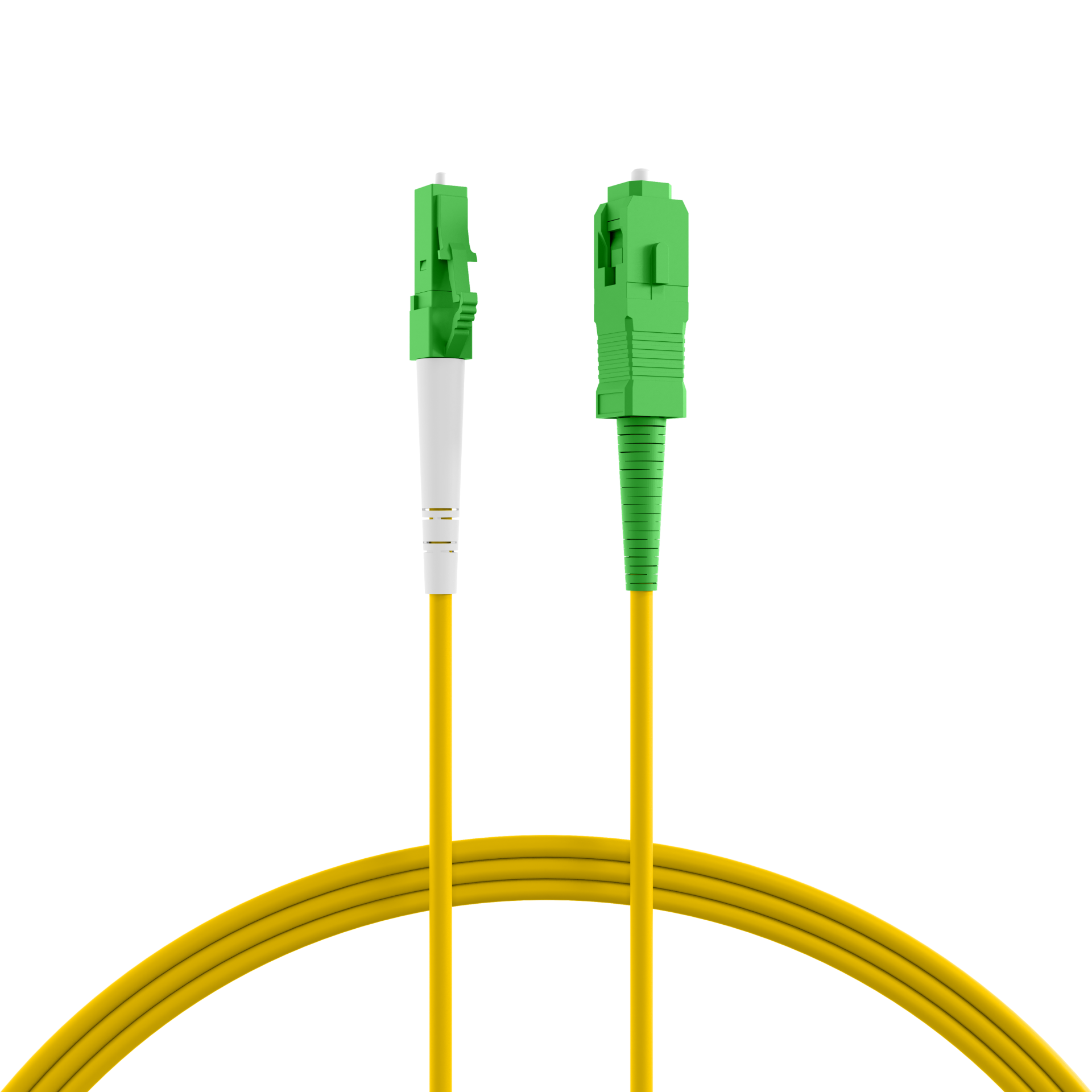

Simplex FO Patch Cable LC/APC-SC/APC G657.A2 1m 2,0mm yellow 9/125µm

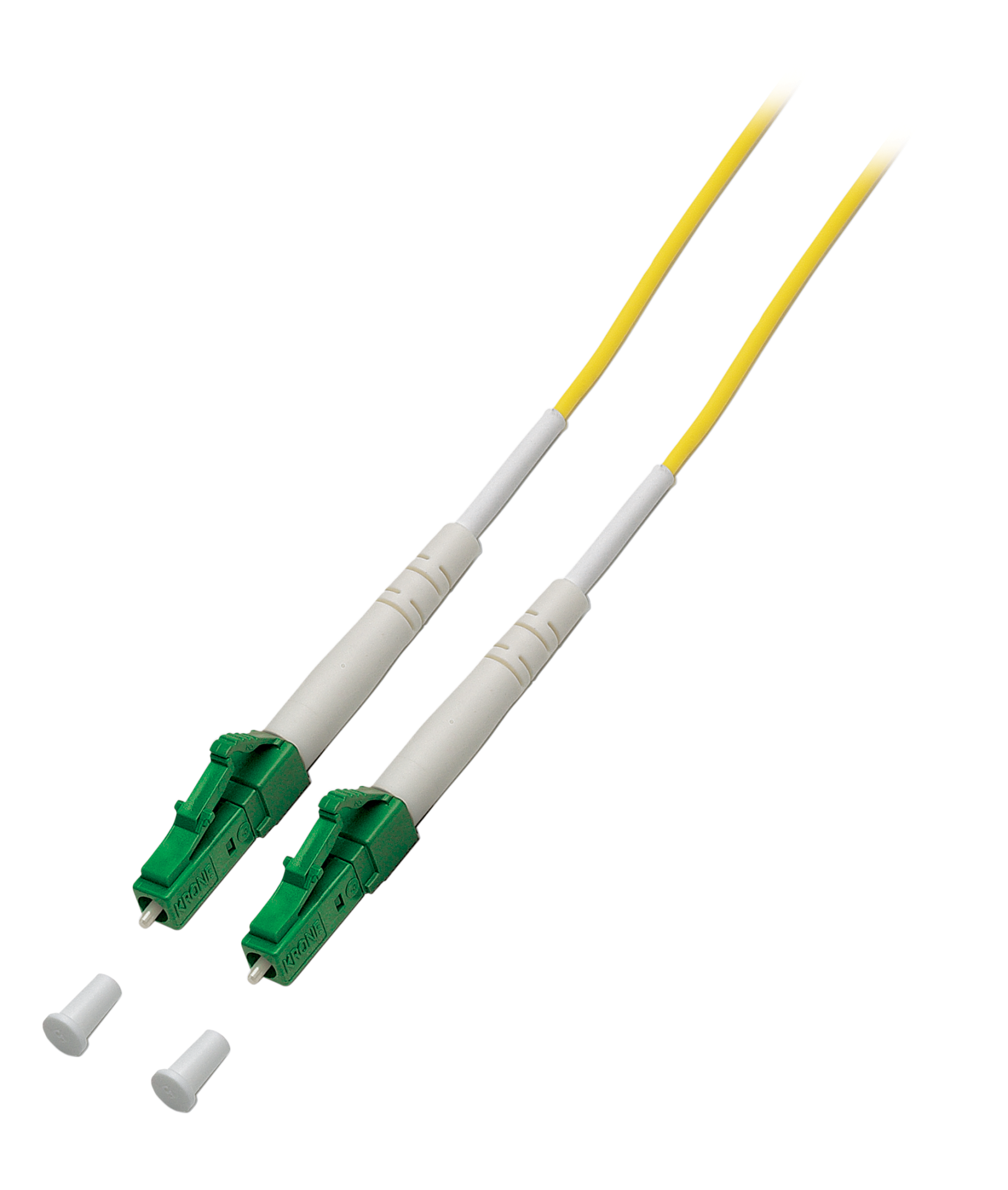

Simplex FO Patch Cable LC/APC-LC/APC G657.A2 1m 2,0mm yellow 9/125µm

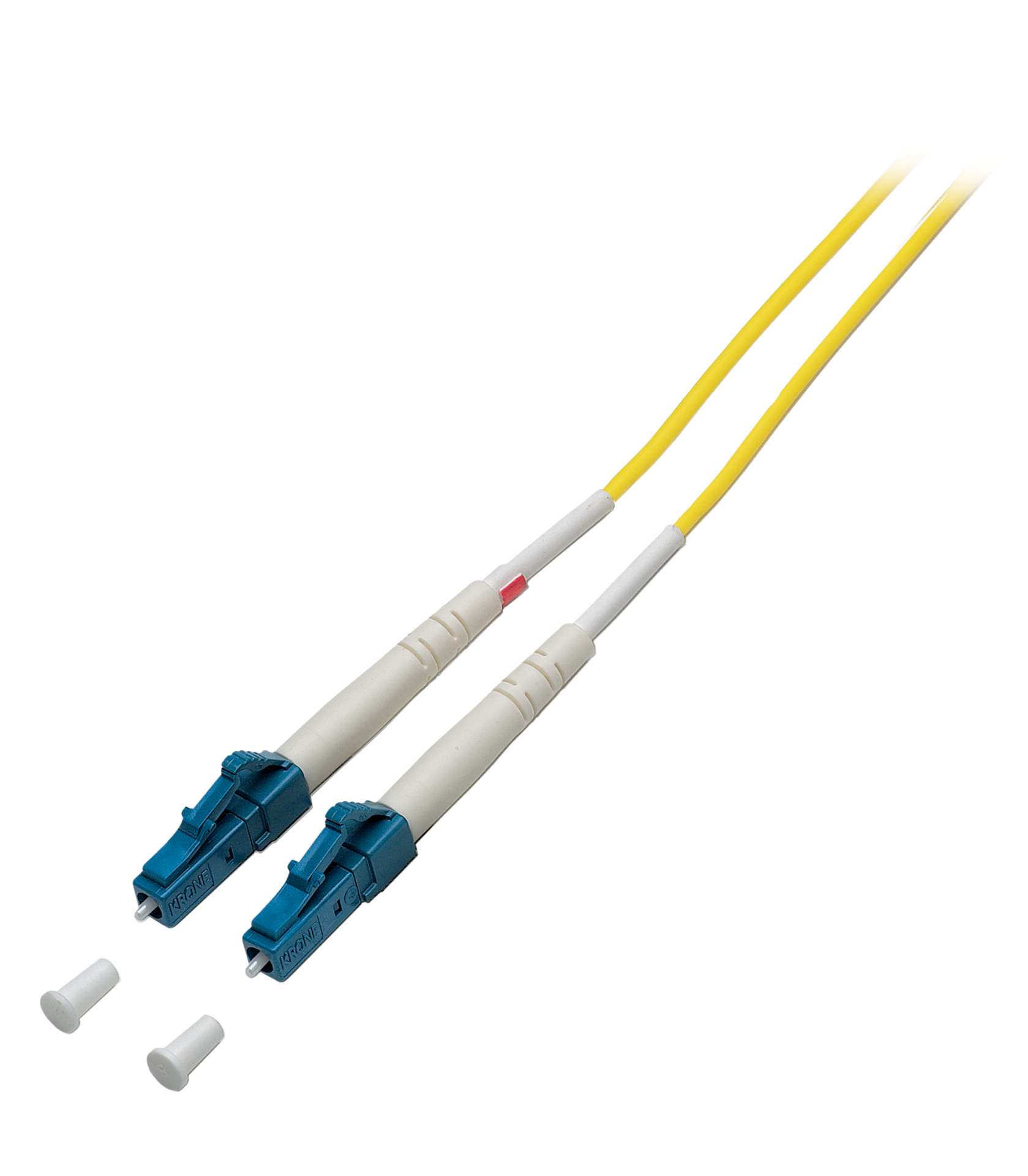

Simplex FO Patch Cable LC-LC G657.A2 7,5m 2,0mm yellow 9/125µm

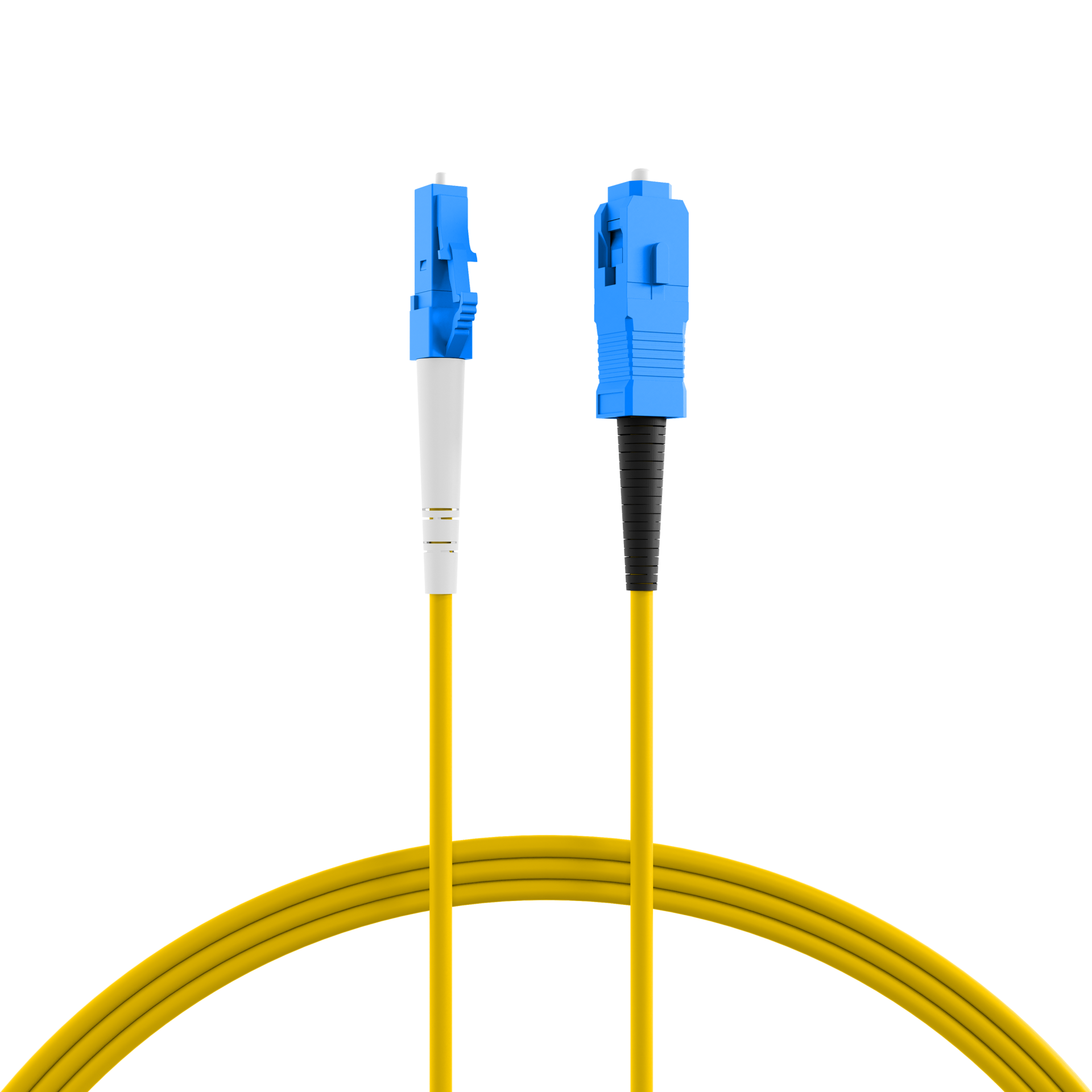

Simplex FO Patch Cable LC-SC G657.A2 7,5m 2,0mm yellow 9/125µm
