Fiber Pigtail SC/APC OS2 G657A2-Yellow 2m - 1 piece
Indhold:
1 Stück
Fiber Pigtail SC/APC OS2 G657A2-Yellow 2m - 1 piece
Varenummer:
FTTH-PIGTAIL-SCA1
EAN nr.:
4049759193973
Produktinformation til Fiber Pigtail SC/APC OS2 G657A2-Yellow 2m - 1 piece
The fibre pigtail SC/APC OS2 G657A2 from EFB-Elektronik is designed for professional fibre optic splice connections in single-mode fibre optic networks. The version as a 2.0 m long wire pigtail with tight-buffered fibre is intended for standard-compliant use in the installation environment.
• OS2 G657A2 in single-mode 9/125 – Supports use in professional fibre optic splice connections and is designed for bend-optimised applications.
• SC/APC connector according to IEC61754-4 – Ensures a standard-compliant interface and clear identification by the green connector colour.
• 2.0 m single pigtail with 0.9 mm outer diameter, loose buffer and attached strain-relief boot – Facilitates processing in the splice area and protects the fibre transition.
Technically, it is a wire pigtail in the category OS2 G657A2 with single-mode 9/125. The fibre is specified according to IEC60793-2 and is intended as a bend-optimised version. The connector SC/APC corresponds to IEC61754-4 and is designed in green. The monochrome yellow marking supports the assignment. The single-mode quality class is specified as B/1 according to IEC 61753-021-2. A test report is available.
Technical details
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC/APC
• Fibre type: Single-mode 9/125
• Category: OS2 G657A2
• Single-mode quality class: B/1 according to IEC 61753-021-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour: yellow
• Colour code: solid colour
• Connector colour: green
• Connector standard: IEC61754-4
• Cable standard: IEC60793-2
• Bend-optimised fibre: Yes
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 pigtail
• OS2 G657A2 in single-mode 9/125 – Supports use in professional fibre optic splice connections and is designed for bend-optimised applications.
• SC/APC connector according to IEC61754-4 – Ensures a standard-compliant interface and clear identification by the green connector colour.
• 2.0 m single pigtail with 0.9 mm outer diameter, loose buffer and attached strain-relief boot – Facilitates processing in the splice area and protects the fibre transition.
Technically, it is a wire pigtail in the category OS2 G657A2 with single-mode 9/125. The fibre is specified according to IEC60793-2 and is intended as a bend-optimised version. The connector SC/APC corresponds to IEC61754-4 and is designed in green. The monochrome yellow marking supports the assignment. The single-mode quality class is specified as B/1 according to IEC 61753-021-2. A test report is available.
Technical details
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC/APC
• Fibre type: Single-mode 9/125
• Category: OS2 G657A2
• Single-mode quality class: B/1 according to IEC 61753-021-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour: yellow
• Colour code: solid colour
• Connector colour: green
• Connector standard: IEC61754-4
• Cable standard: IEC60793-2
• Bend-optimised fibre: Yes
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 pigtail
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Colour: | yellow |
| Colour Code: | one colour |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.25 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
Tekniske egenskaber
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Colour: | yellow |
| Colour Code: | one colour |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.25 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
Produktinformation til Fiber Pigtail SC/APC OS2 G657A2-Yellow 2m - 1 piece
The fibre pigtail SC/APC OS2 G657A2 from EFB-Elektronik is designed for professional fibre optic splice connections in single-mode fibre optic networks. The version as a 2.0 m long wire pigtail with tight-buffered fibre is intended for standard-compliant use in the installation environment.
• OS2 G657A2 in single-mode 9/125 – Supports use in professional fibre optic splice connections and is designed for bend-optimised applications.
• SC/APC connector according to IEC61754-4 – Ensures a standard-compliant interface and clear identification by the green connector colour.
• 2.0 m single pigtail with 0.9 mm outer diameter, loose buffer and attached strain-relief boot – Facilitates processing in the splice area and protects the fibre transition.
Technically, it is a wire pigtail in the category OS2 G657A2 with single-mode 9/125. The fibre is specified according to IEC60793-2 and is intended as a bend-optimised version. The connector SC/APC corresponds to IEC61754-4 and is designed in green. The monochrome yellow marking supports the assignment. The single-mode quality class is specified as B/1 according to IEC 61753-021-2. A test report is available.
Technical details
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC/APC
• Fibre type: Single-mode 9/125
• Category: OS2 G657A2
• Single-mode quality class: B/1 according to IEC 61753-021-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour: yellow
• Colour code: solid colour
• Connector colour: green
• Connector standard: IEC61754-4
• Cable standard: IEC60793-2
• Bend-optimised fibre: Yes
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 pigtail
• OS2 G657A2 in single-mode 9/125 – Supports use in professional fibre optic splice connections and is designed for bend-optimised applications.
• SC/APC connector according to IEC61754-4 – Ensures a standard-compliant interface and clear identification by the green connector colour.
• 2.0 m single pigtail with 0.9 mm outer diameter, loose buffer and attached strain-relief boot – Facilitates processing in the splice area and protects the fibre transition.
Technically, it is a wire pigtail in the category OS2 G657A2 with single-mode 9/125. The fibre is specified according to IEC60793-2 and is intended as a bend-optimised version. The connector SC/APC corresponds to IEC61754-4 and is designed in green. The monochrome yellow marking supports the assignment. The single-mode quality class is specified as B/1 according to IEC 61753-021-2. A test report is available.
Technical details
• Type: fibre pigtail
• Fibre construction: tight-buffered fibre
• Connector type: SC/APC
• Fibre type: Single-mode 9/125
• Category: OS2 G657A2
• Single-mode quality class: B/1 according to IEC 61753-021-2
• Length: 2.0 m
• Outer diameter: 0.9 mm
• Buffer: loose
• Colour: yellow
• Colour code: solid colour
• Connector colour: green
• Connector standard: IEC61754-4
• Cable standard: IEC60793-2
• Bend-optimised fibre: Yes
• With fitted strain-relief boot
• Test report available
• Scope of delivery: 1 pigtail
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Colour: | yellow |
| Colour Code: | one colour |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.25 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Colour: | yellow |
| Colour Code: | one colour |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.25 dB |
| Length: | 2.0 m |
| Material outer sheath: | LSZH |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Spring produktgalleriet over
sold with
Art. nr. FTTH-BOX-OUT-2
FTTH IP65 Connectionbox for 16fiber, 8adapter and Fiber overlength box
Access Control:
Special screw/ Seal
Art. nr. FTTH-BOX-OUT-3
FTTH IP65 Connectionbox for 8fiber, 4adapter and Fiber overlength box
Access Control:
Special screw/ Seal

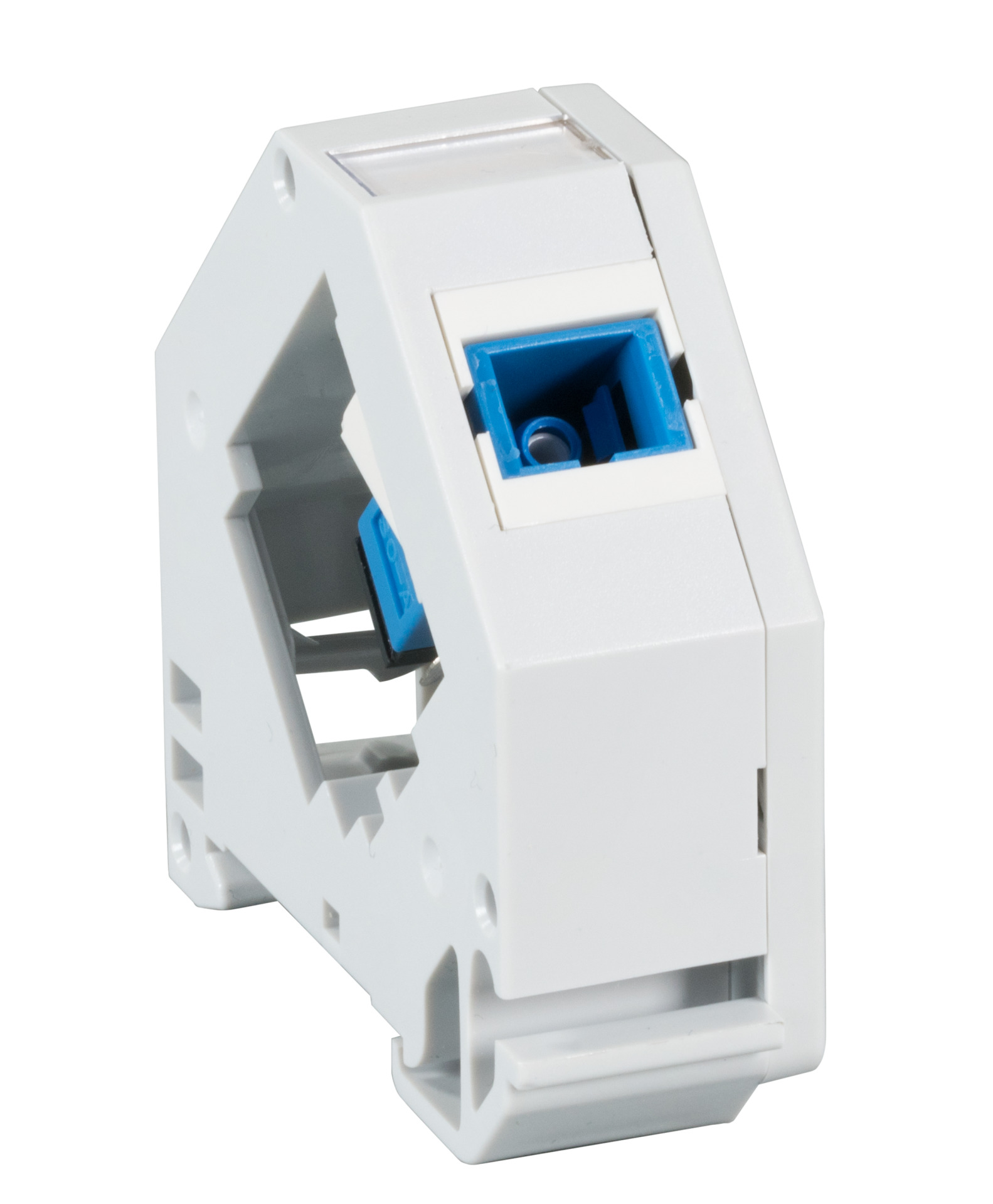

Art. nr. FTTH-DINRAIL-SCA
