FTTH IP65 Connection Box 8 adapter

Priser kun synlige for indloggede brugere

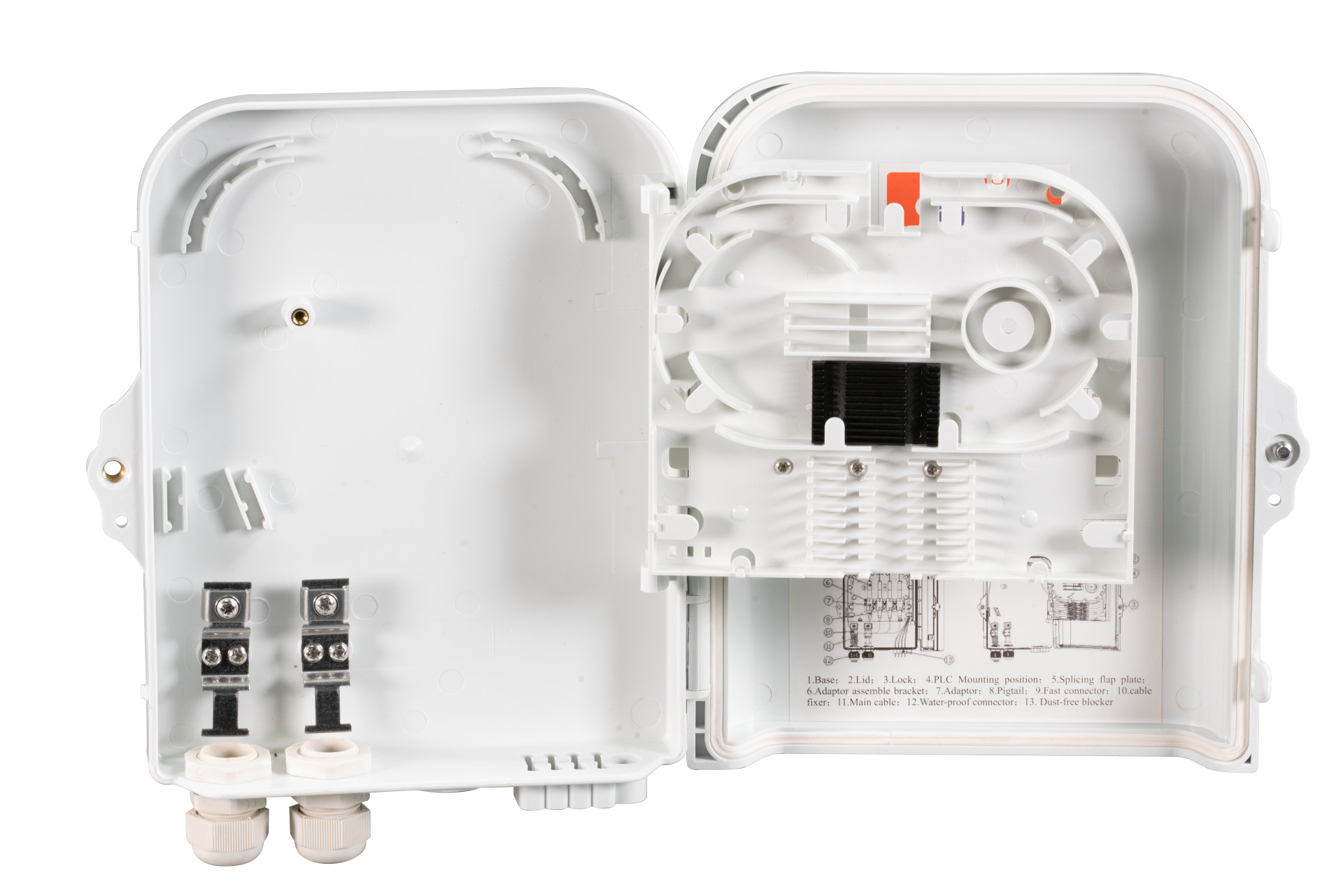

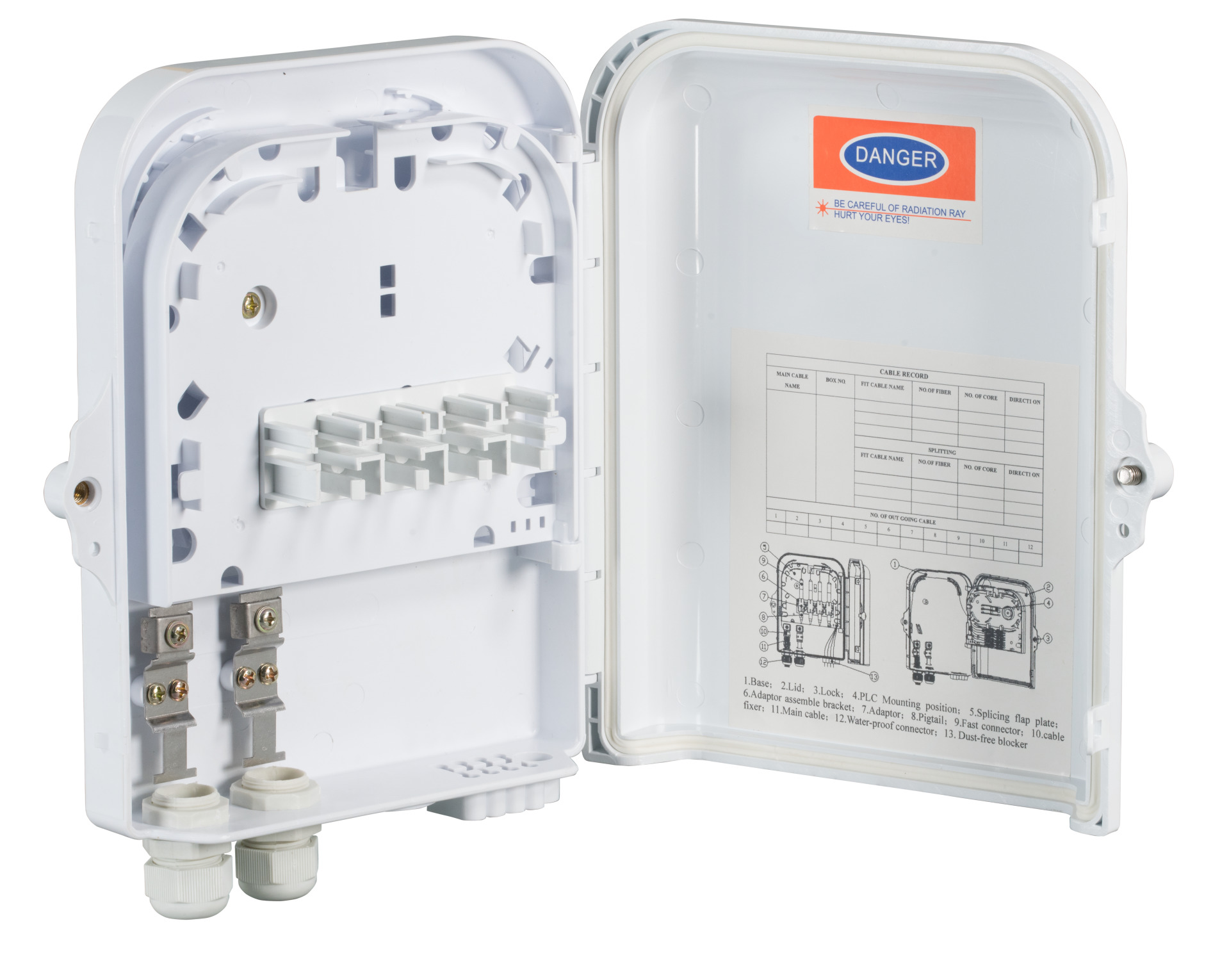

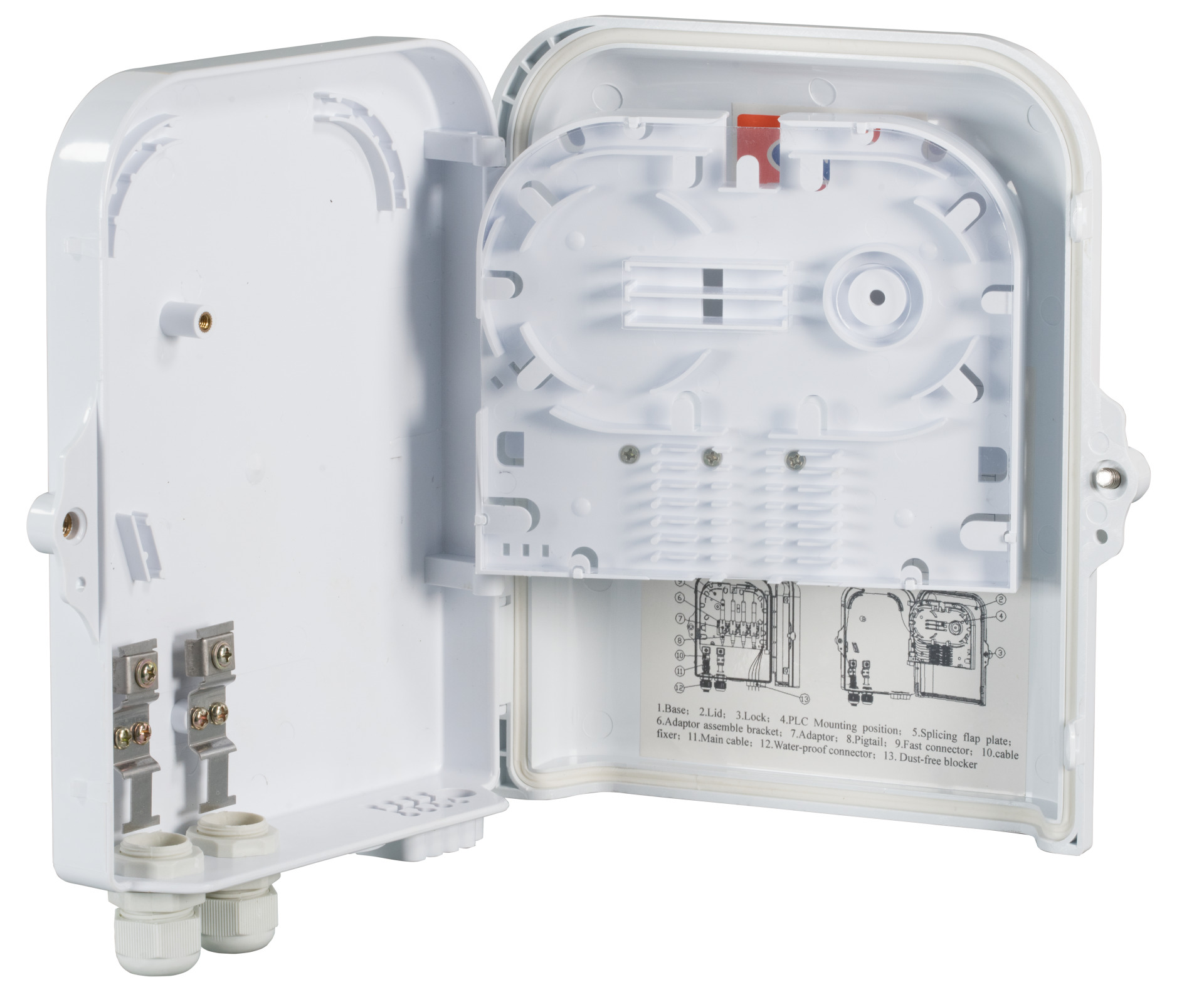

FTTH IP65 Connectionbox for 16fiber, 8adapter and Fiber overlength box
Varenummer: FTTH-BOX-OUT-2
EAN nr.: 4049759189709
Stück

Produktinformation für FTTH IP65 Connectionbox for 16fiber, 8adapter and Fiber overlength box

Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON

Configuration in LC with duplex adapters for 16 ports/ fibers

Configuration in SC with simplex adapters for 8 ports/ fibers

Delivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 16 splices double layed), 8x shrink protection and material for wall mounting included)

Tekniske egenskaber

Cable entry with cable gland: 2x PG13.5
Cable entry without cable gland: 8x max. 3mm / 1x max. 9mm
Cable sheath support: True
Colour: white

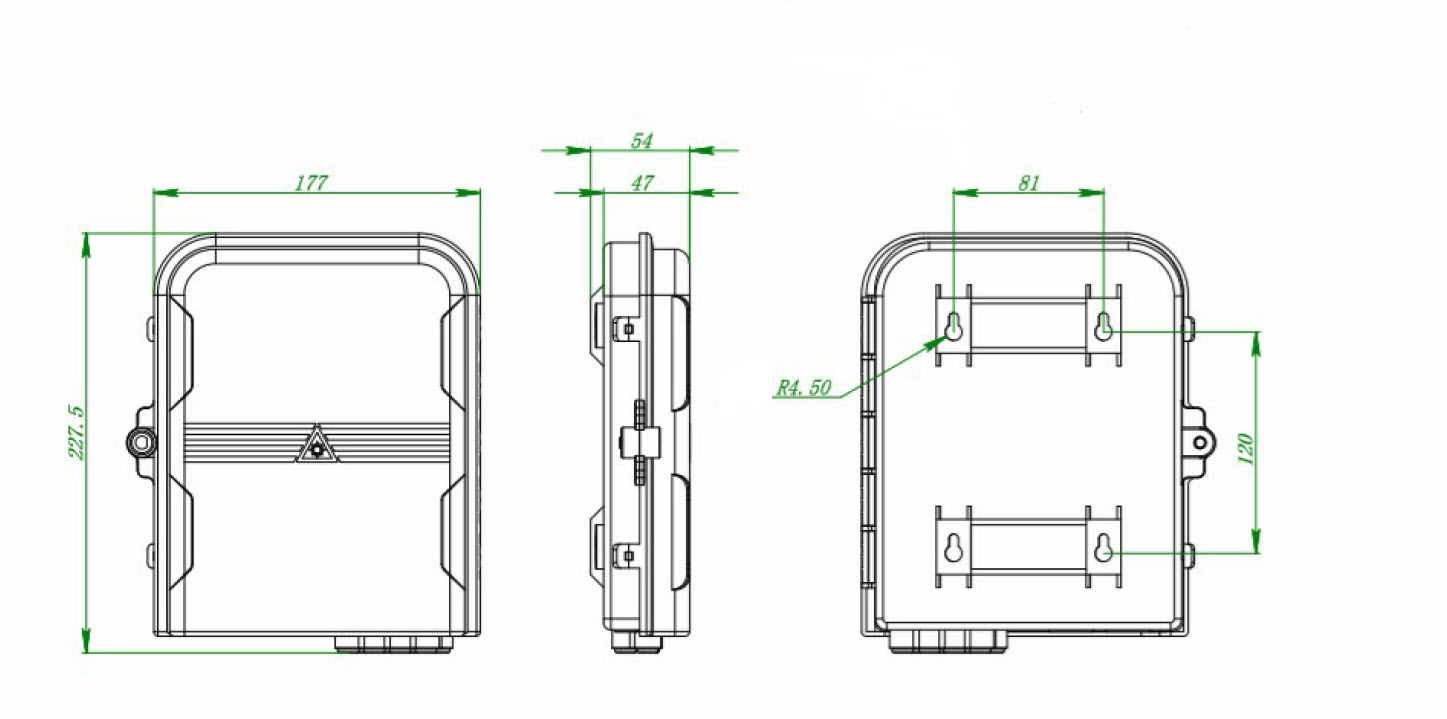

Dimensions: 213x163x47 mm
Foreign body and contact protection: Protection against ingrees of dust

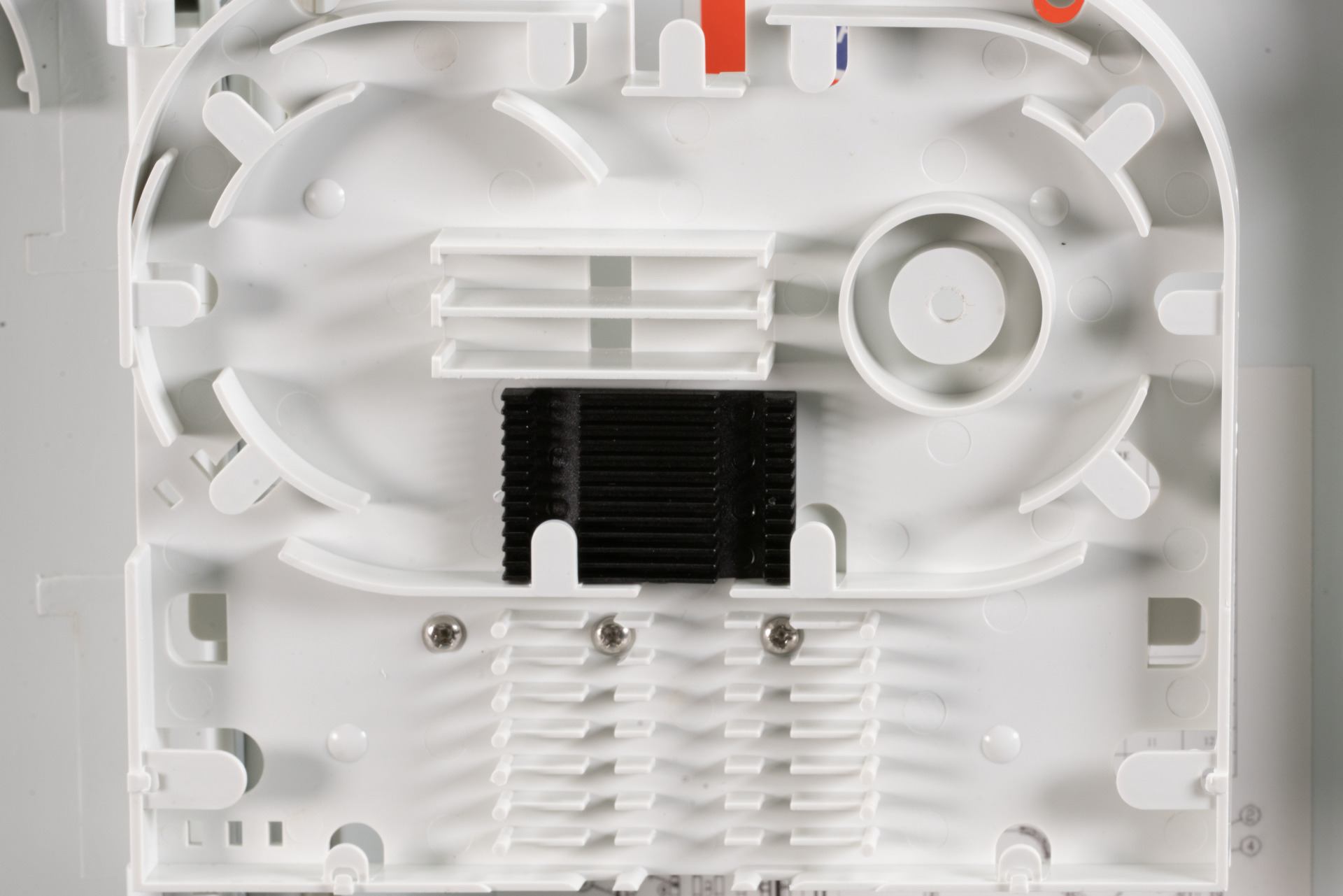

Hinged splice cassette: True
Holder for gas blocker: False
Holder for splitter: True
IP Protection: IP65
Material: Plastic
Max. Assembly (Adapter): 8
Mounting method: Wall mounting
Number of Fibres: 16
Possibility of mast mounting: True
Scope of application: Outdoor
Suitable for adapter: SC Simplex/LC Duplex/E2000®
Temperature range: -25 – 70 °C
Type of Splice protection: Crimp & Thermo
Water protection: Protection against jet water
With Fiber overlength cassette: True
