Simplex Fiber Optic Patch Cable LC-ST OS2

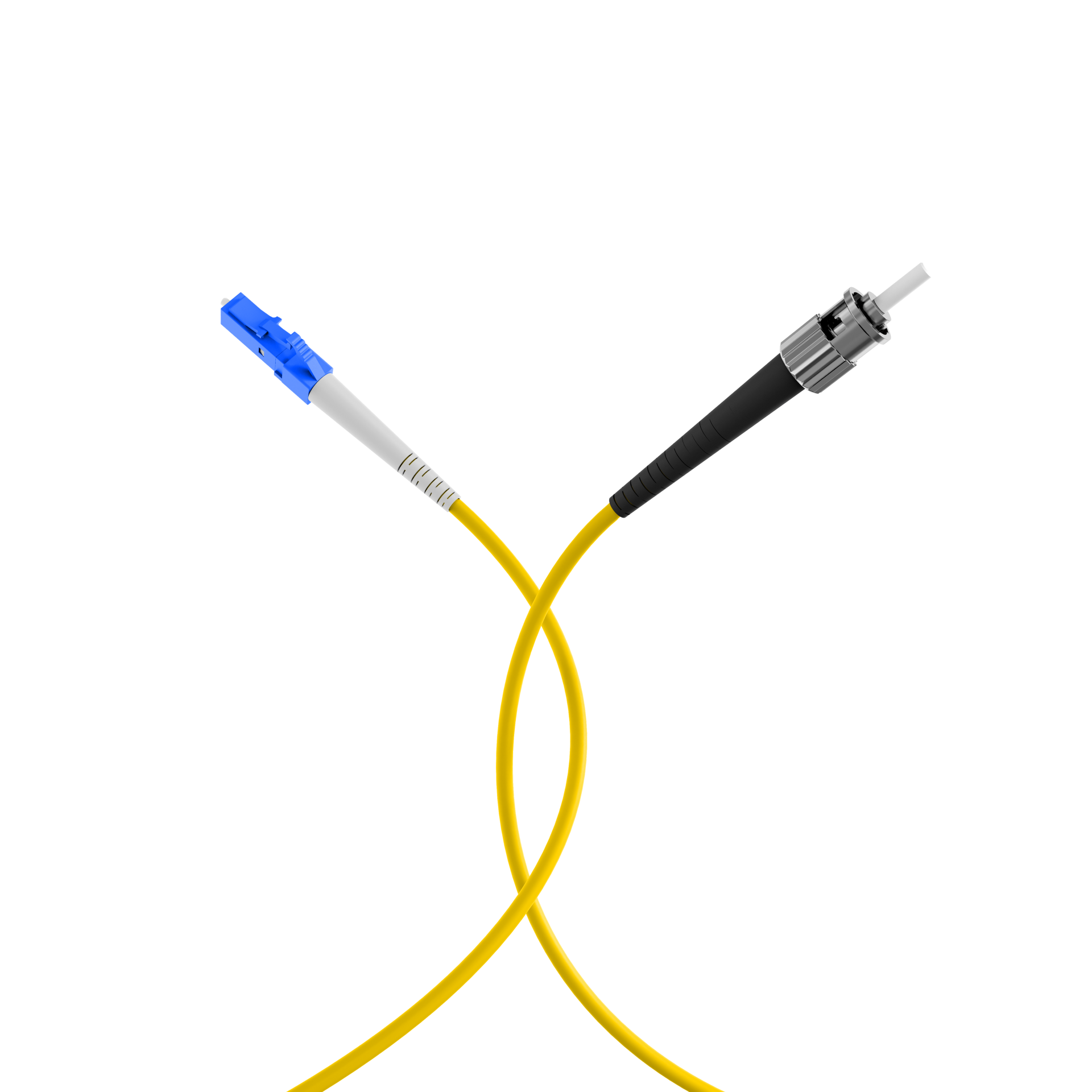

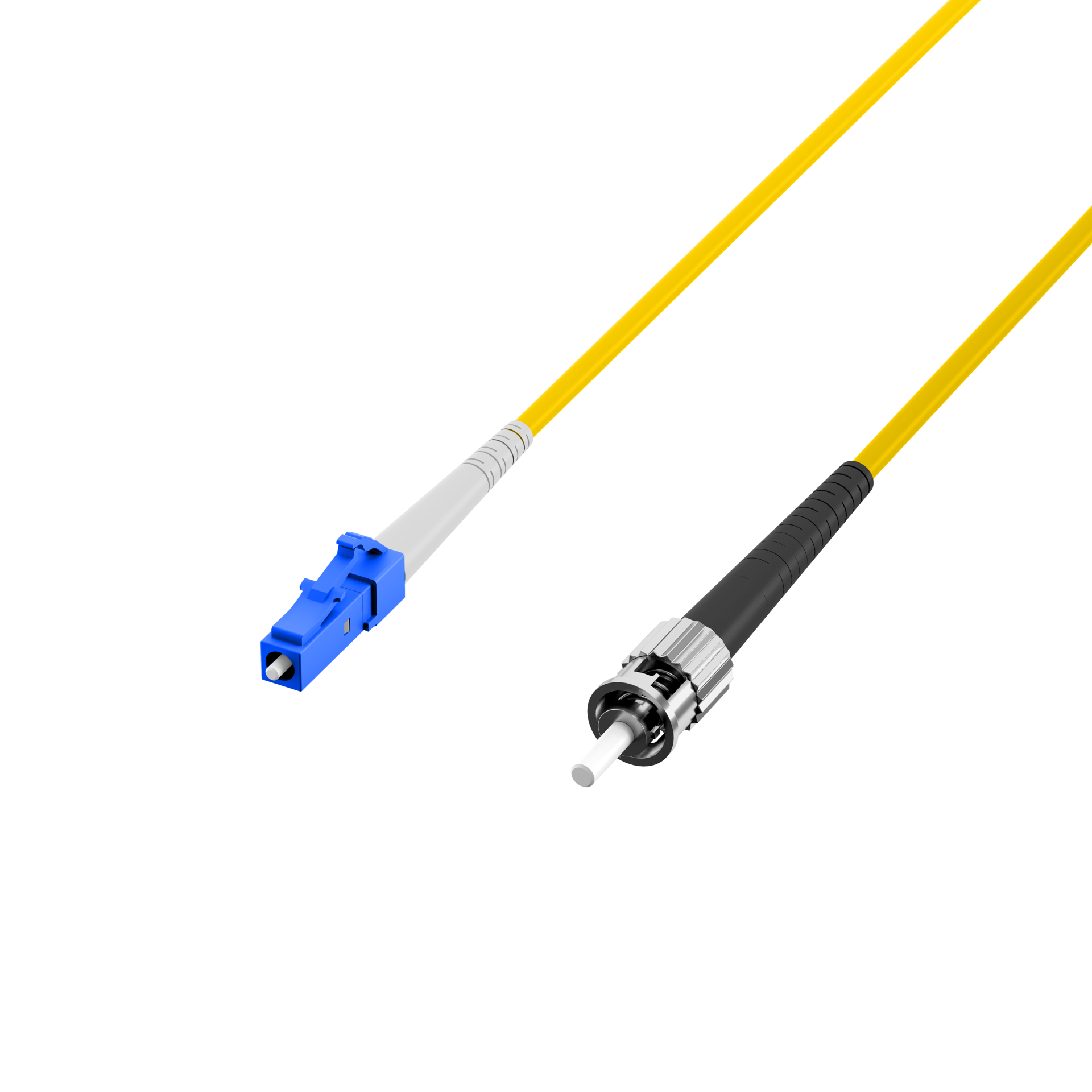

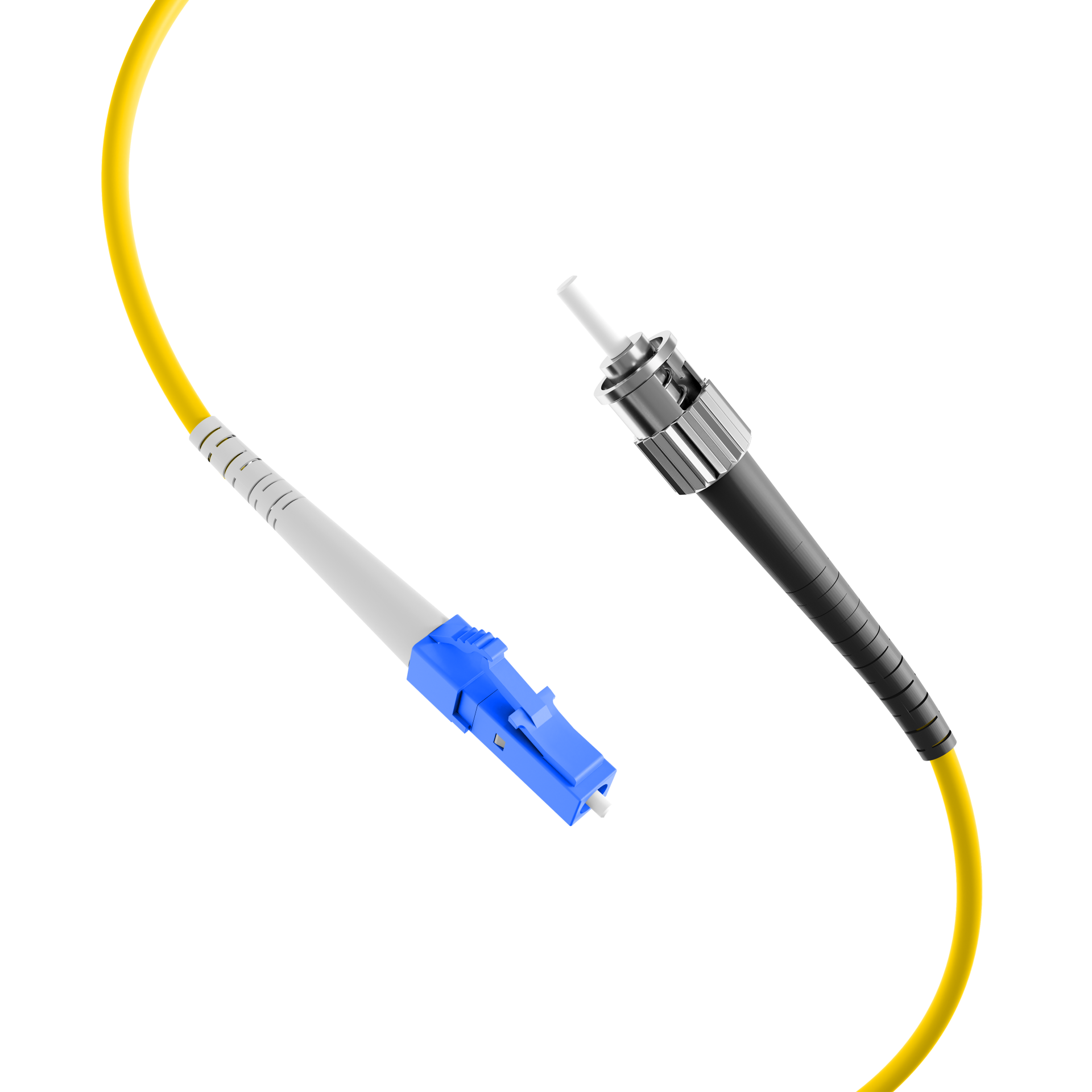

Simplex Fiber Optic Patch Cable LC-ST OS2 5m 3,0mm Yellow 9/125µm
Varenummer:
O0463.5
EAN Nr.:
4049759044527
Produktinformation til Simplex Fiber Optic Patch Cable LC-ST OS2 5m 3,0mm Yellow 9/125µm
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable structure: | simplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 3.0 mm |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | yellow |
| Connector colour 1: | blue |
| Fibre type: | Singlemode 9/125 |
| Flame retardant: | according to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket material: | LSZH |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibers: | 1 |
| Operating Temperature: | -20 – 75 °C |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | LC |
| Type of connector connection 2: | ST |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
