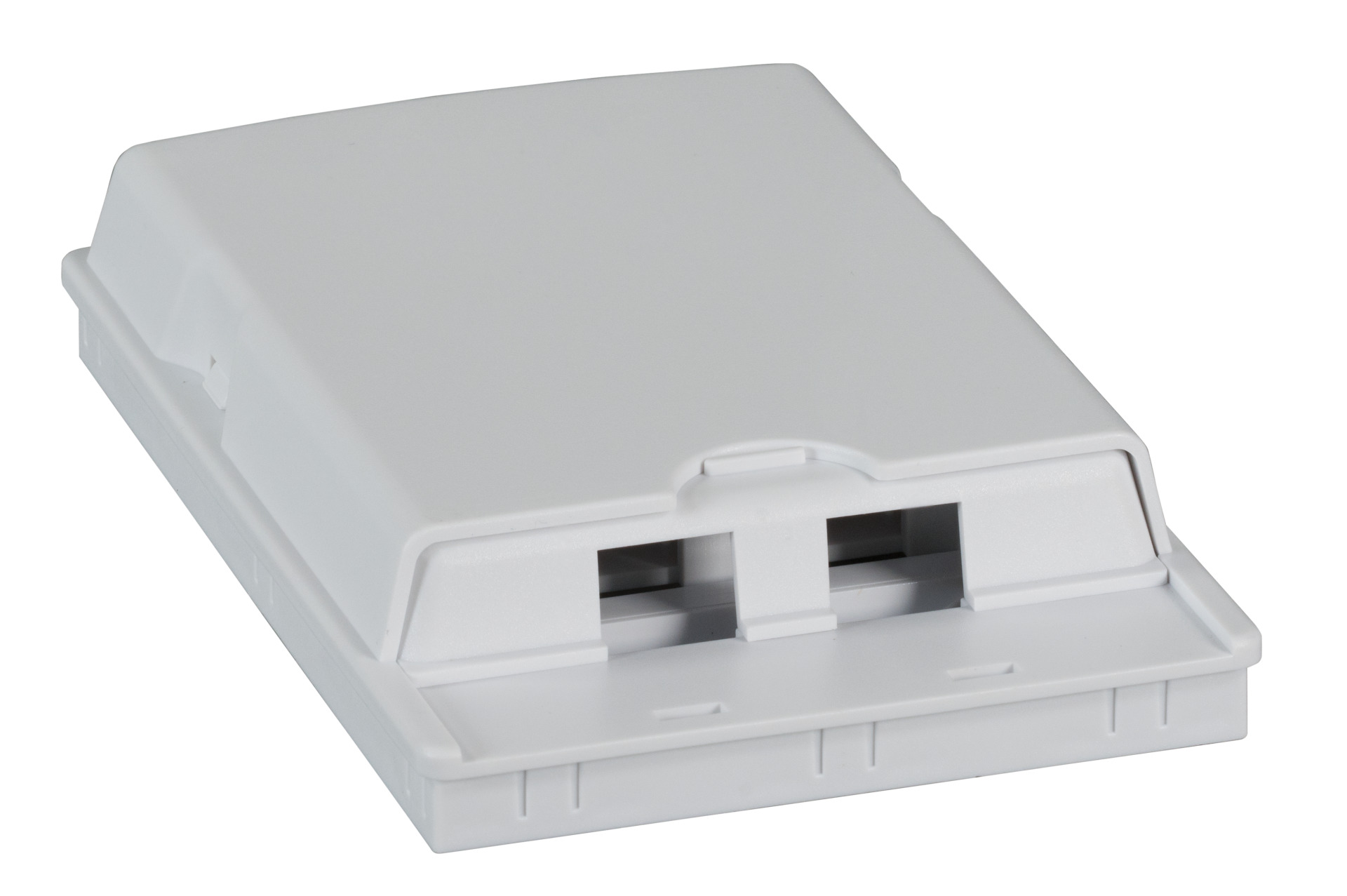

FTTH Indoor Connectionbox for 2Fiber, 2Adapter
FTTH Indoor Connectionbox for 2fiber, 2adapter, connector protection
Varenummer:
FTTH-BOX-IN-2
EAN nr.:
4049759189648
Produktinformation til FTTH Indoor Connectionbox for 2fiber, 2adapter, connector protection
Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON

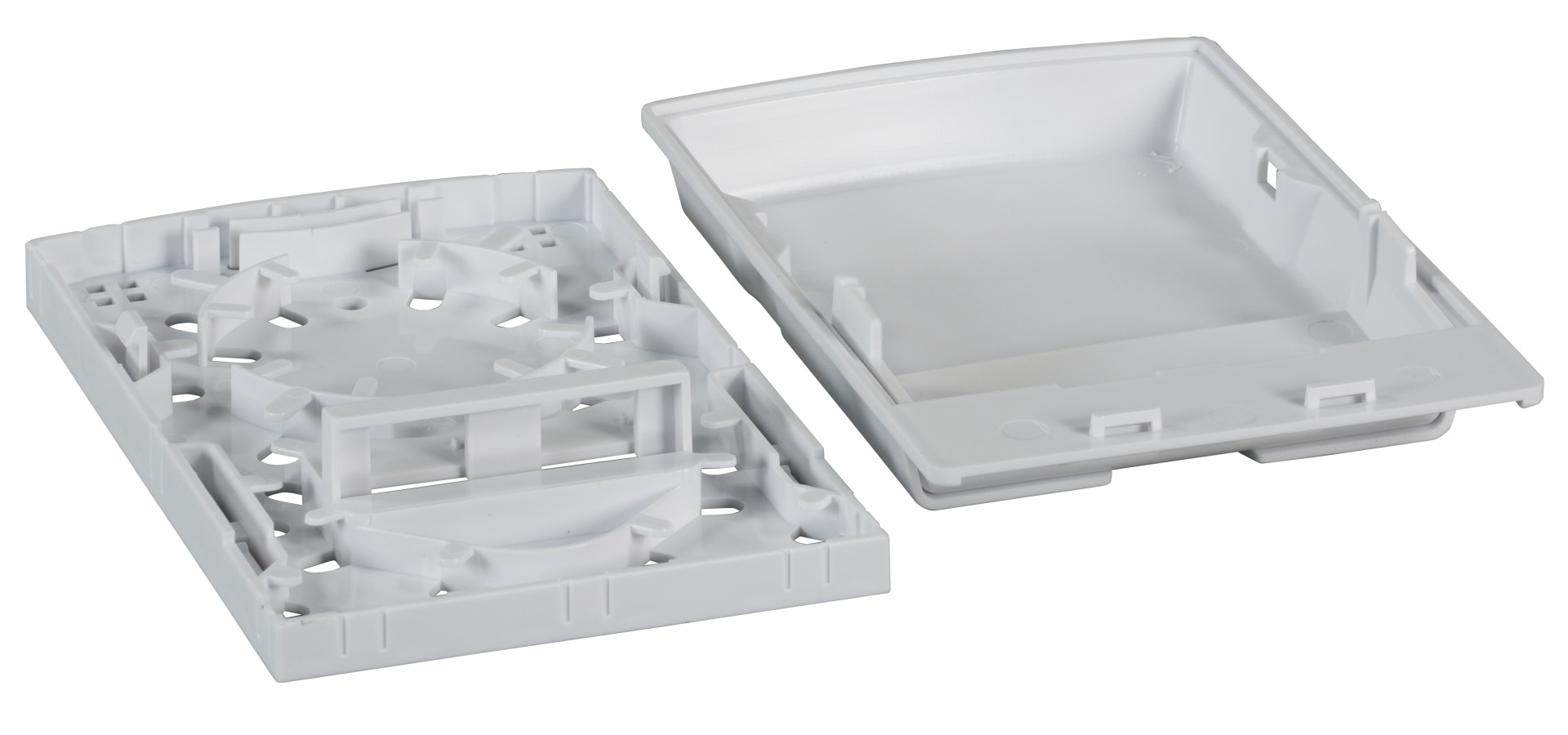

Delivery unassembled (2x shrink protection and material for wall mounting included)
When using crimp splice protection, please note that these cannot be firmly inserted
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (2x shrink protection and material for wall mounting included)
When using crimp splice protection, please note that these cannot be firmly inserted
| Cable sheath support: | False |
|---|---|
| Color: | white |

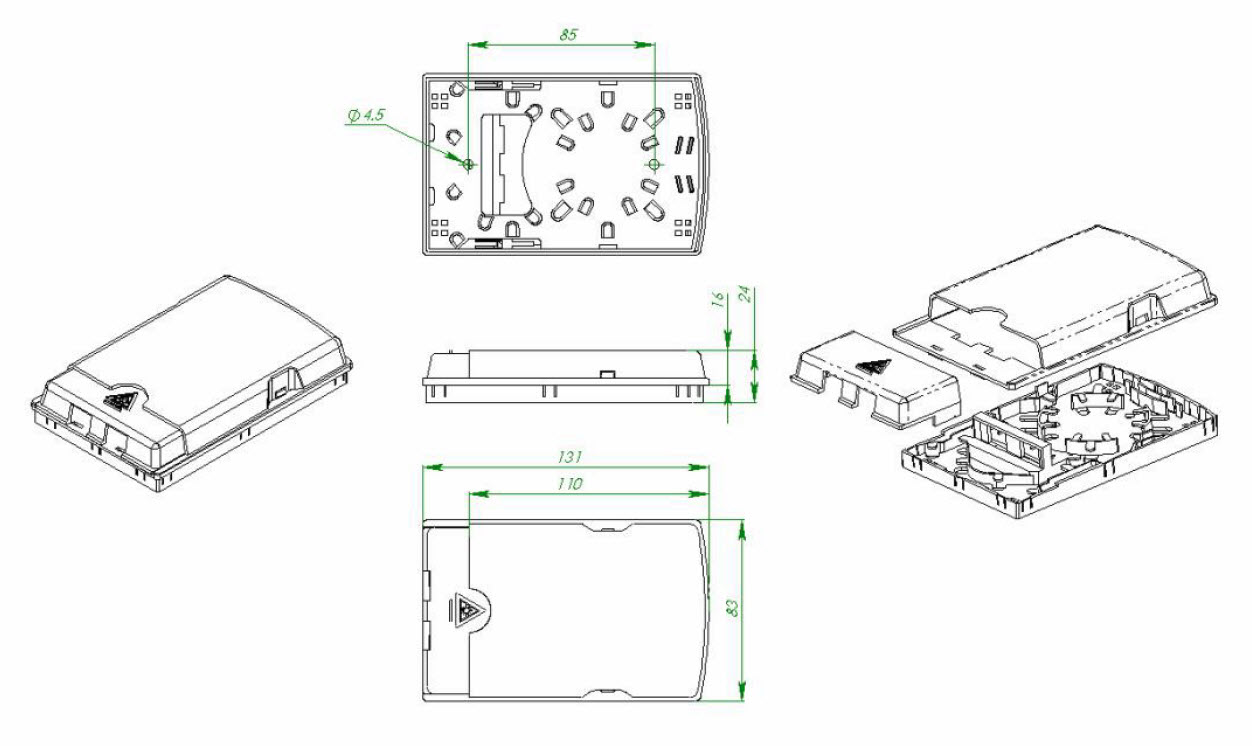

| Dimensions: | 84 x 130 x 24 mm |
| Foreign body and contact protection: | Protection against medium-sized foreign bodies |
| Hinged splice cassette: | False |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP20 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 2 |
| Operating Temperature: | 0 – 50 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Indoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Thermo |
| Water protection: | Without protection |
| With Fiber overlength cassette: | True |
| With plug protection: | True |
Tekniske egenskaber
| Cable sheath support: | False |
|---|---|
| Color: | white |
| Dimensions: | 84 x 130 x 24 mm |
| Foreign body and contact protection: | Protection against medium-sized foreign bodies |
| Hinged splice cassette: | False |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP20 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 2 |
| Operating Temperature: | 0 – 50 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Indoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Thermo |
| Water protection: | Without protection |
| With Fiber overlength cassette: | True |
| With plug protection: | True |
Produktinformation til FTTH Indoor Connectionbox for 2fiber, 2adapter, connector protection
Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (2x shrink protection and material for wall mounting included)
When using crimp splice protection, please note that these cannot be firmly inserted
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (2x shrink protection and material for wall mounting included)
When using crimp splice protection, please note that these cannot be firmly inserted
| Cable sheath support: | False |
|---|---|
| Color: | white |
| Dimensions: | 84 x 130 x 24 mm |
| Foreign body and contact protection: | Protection against medium-sized foreign bodies |
| Hinged splice cassette: | False |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP20 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 2 |
| Operating Temperature: | 0 – 50 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Indoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Thermo |
| Water protection: | Without protection |
| With Fiber overlength cassette: | True |
| With plug protection: | True |
| Cable sheath support: | False |
|---|---|
| Color: | white |
| Dimensions: | 84 x 130 x 24 mm |
| Foreign body and contact protection: | Protection against medium-sized foreign bodies |
| Hinged splice cassette: | False |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP20 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 2 |
| Operating Temperature: | 0 – 50 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Indoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Thermo |
| Water protection: | Without protection |
| With Fiber overlength cassette: | True |
| With plug protection: | True |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Spring produktgalleriet over
main product
Art. nr. 80362.2-10

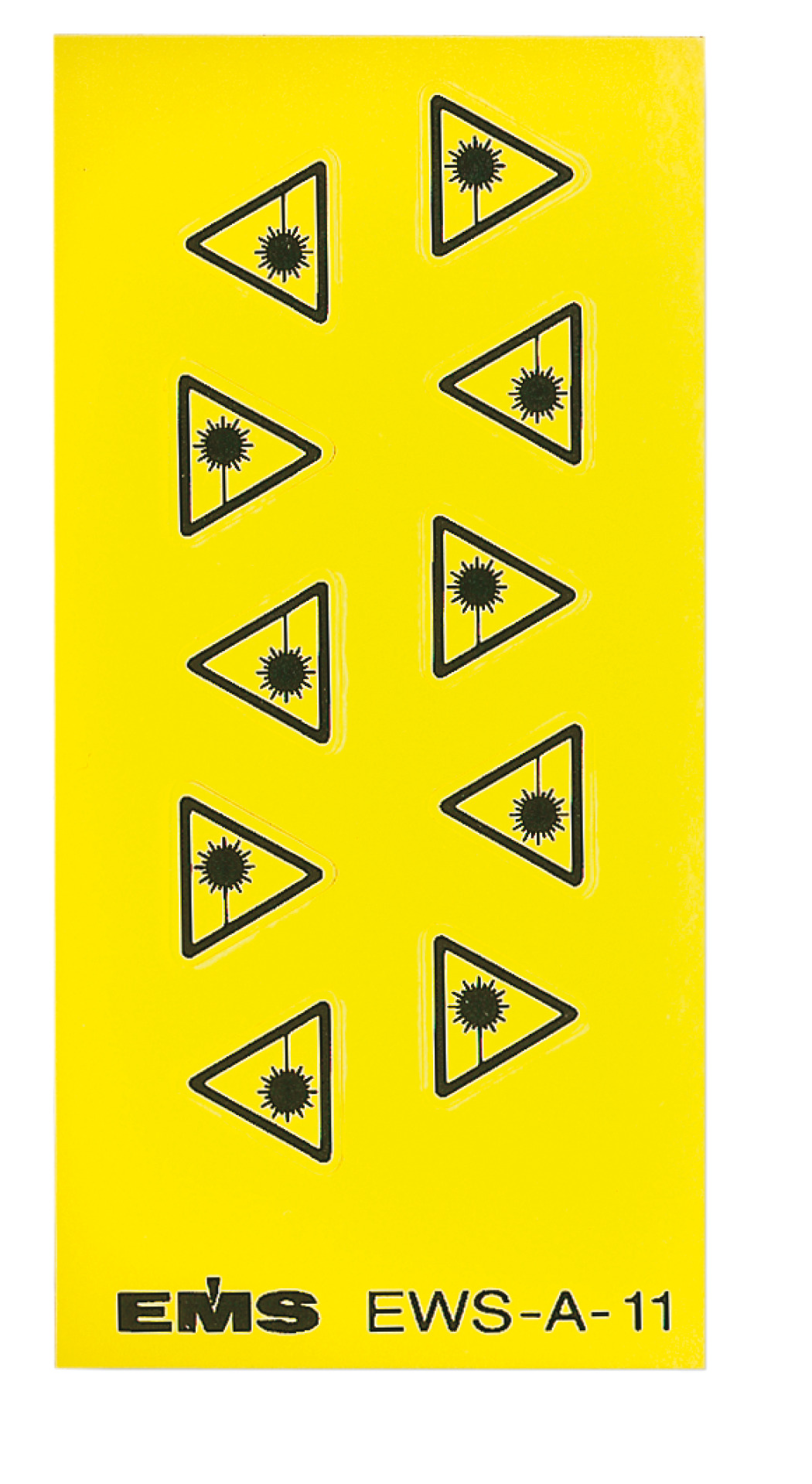

FO marking strips " Warnung vor Laserstrahlung", PU 10
