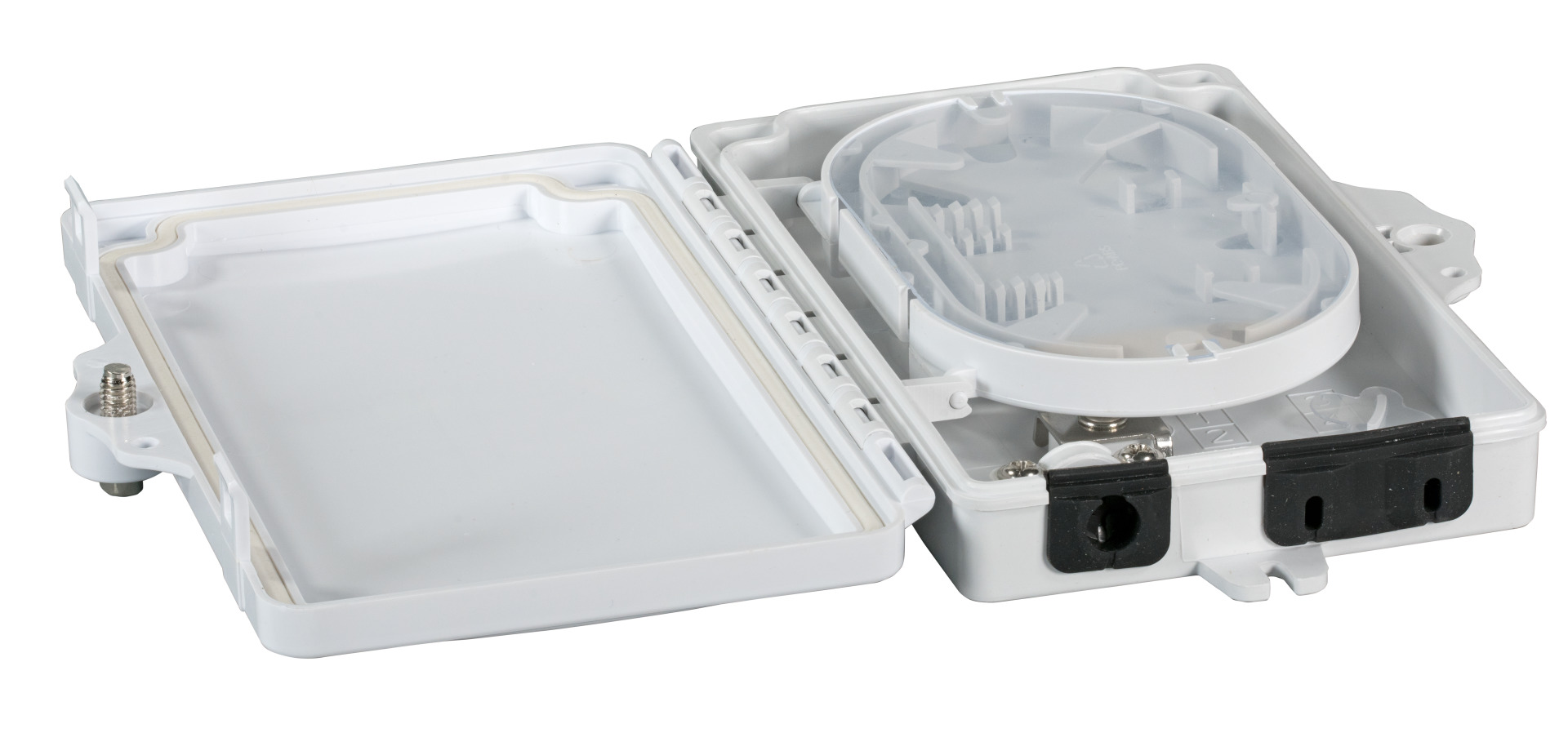

FTTH IP65 Connection Box 2 adapter
FTTH IP65 Connectionbox for 4fiber, 2adapter and Fiber overlength box
Varenummer:
FTTH-BOX-OUT-4
EAN nr.:
4049759189723
Produktinformation til FTTH IP65 Connectionbox for 4fiber, 2adapter and Fiber overlength box
Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Configuration in LC with duplex adapters for 4 ports/ fibers
Configuration in SC with simplex adapters for 2 ports/ fibers
Delivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 4 splices double layed), 2x shrink protection and material for wall mounting included)
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Configuration in LC with duplex adapters for 4 ports/ fibers
Configuration in SC with simplex adapters for 2 ports/ fibers
Delivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 4 splices double layed), 2x shrink protection and material for wall mounting included)
| Cable entry without cable gland: | 1x max. 10mm / 2x max. 4mm |
|---|---|
| Cable sheath support: | True |
| Color: | white |

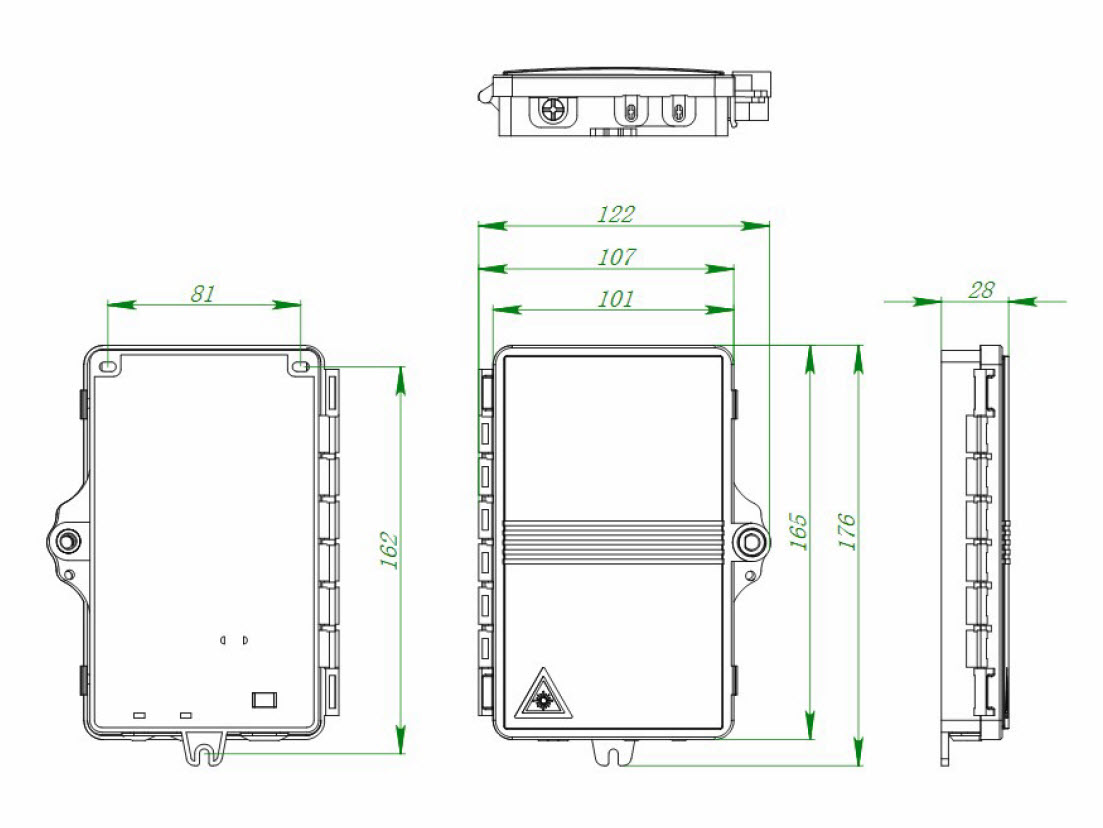

| Dimensions: | 165x100x30 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP65 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 4 |
| Operating Temperature: | -25 – 70 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Outdoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Crimp & Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
Tekniske egenskaber
| Cable entry without cable gland: | 1x max. 10mm / 2x max. 4mm |
|---|---|
| Cable sheath support: | True |
| Color: | white |
| Dimensions: | 165x100x30 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP65 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 4 |
| Operating Temperature: | -25 – 70 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Outdoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Crimp & Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
Produktinformation til FTTH IP65 Connectionbox for 4fiber, 2adapter and Fiber overlength box
Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Configuration in LC with duplex adapters for 4 ports/ fibers
Configuration in SC with simplex adapters for 2 ports/ fibers
Delivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 4 splices double layed), 2x shrink protection and material for wall mounting included)
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Configuration in LC with duplex adapters for 4 ports/ fibers
Configuration in SC with simplex adapters for 2 ports/ fibers
Delivery unassembled (Crimp splice holder (12 splices), shrink splice holder (max. 4 splices double layed), 2x shrink protection and material for wall mounting included)
| Cable entry without cable gland: | 1x max. 10mm / 2x max. 4mm |
|---|---|
| Cable sheath support: | True |
| Color: | white |
| Dimensions: | 165x100x30 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP65 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 4 |
| Operating Temperature: | -25 – 70 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Outdoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Crimp & Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
| Cable entry without cable gland: | 1x max. 10mm / 2x max. 4mm |
|---|---|
| Cable sheath support: | True |
| Color: | white |
| Dimensions: | 165x100x30 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP65 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 4 |
| Operating Temperature: | -25 – 70 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Outdoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Crimp & Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
