FTTH Indoor DIN RAIL Box for 4Fiber, 4Adapter

Priser kun synlige for indloggede brugere

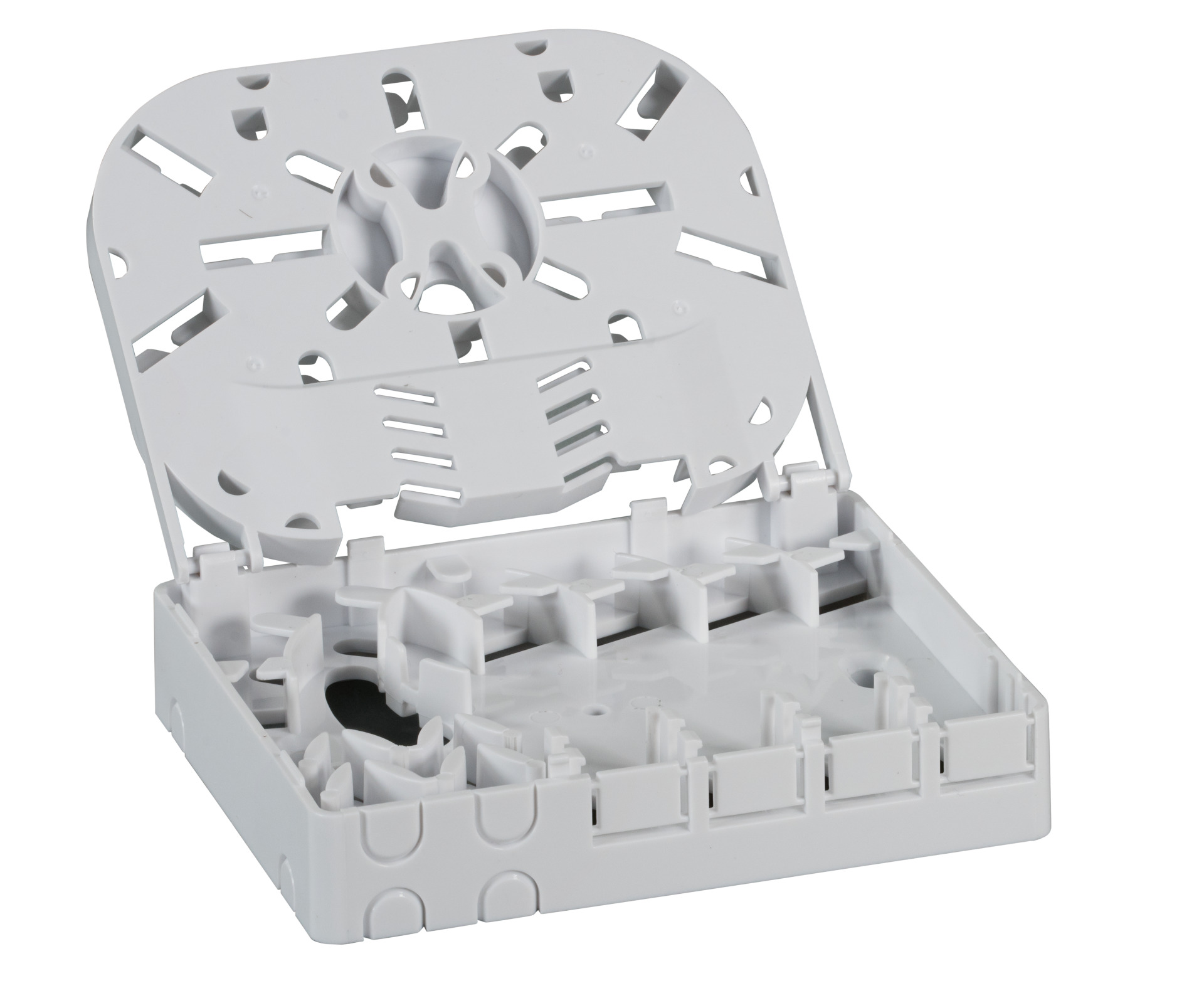

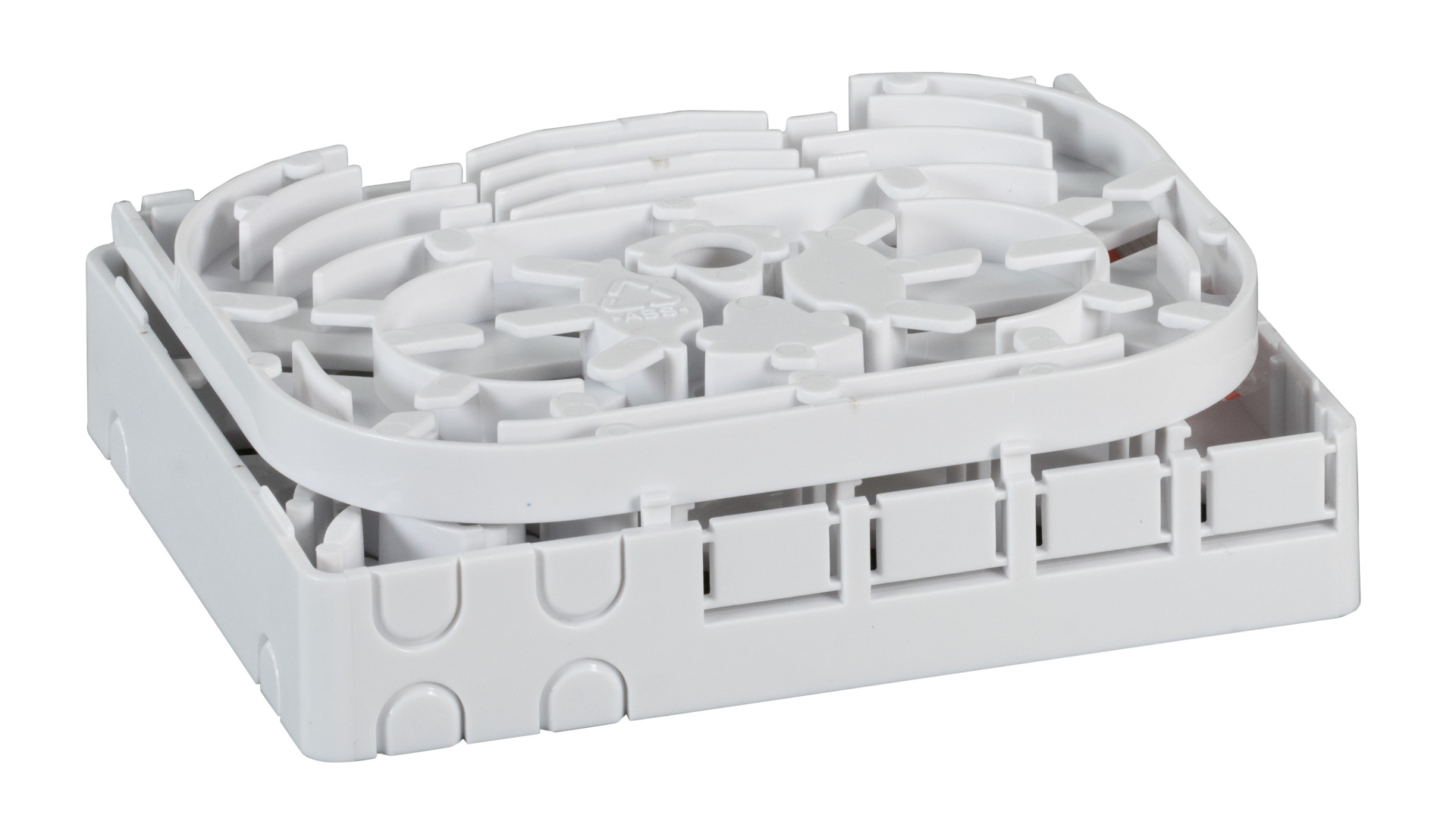

FTTH Indoor DIN RAIL Box for 4fiber, 4adapter and Fiber overlength box
Varenummer: FTTH-BOX-IN-5
EAN nr.: 4049759189679
Piece

Produktinformation für FTTH Indoor DIN RAIL Box for 4fiber, 4adapter and Fiber overlength box

Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON

Delivery unassembled (4x shrink protection, material for wall- and din rail mounting included)

When using crimp splice protection, please note that these cannot be firmly inserted

Use only flangeless adapters

Tekniske egenskaber

Cable sheath support: False
Colour: white

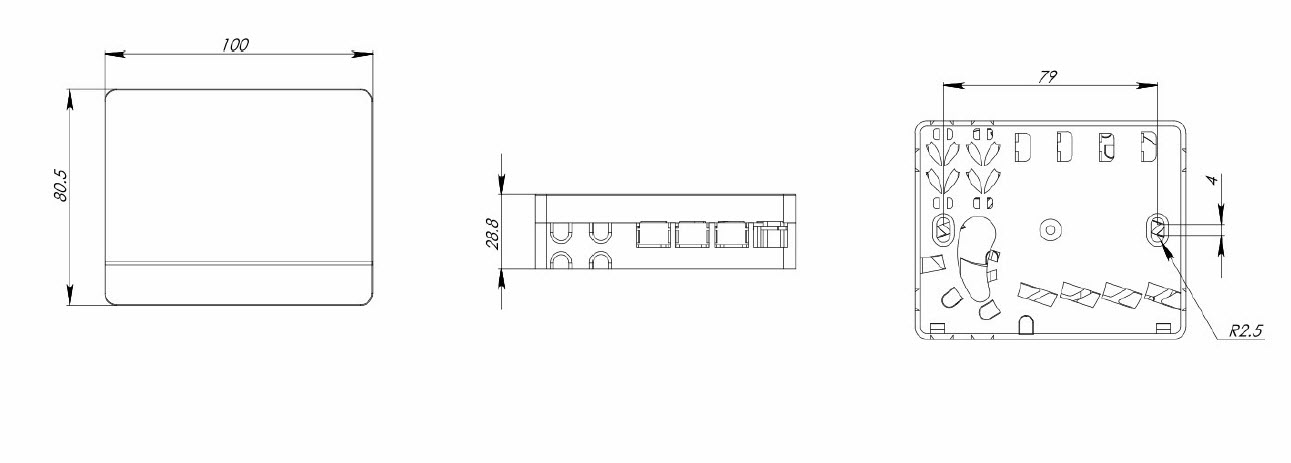

Dimensions: 101 x 81 x 29 mm
Foreign body and contact protection: Protection against medium-sized foreign bodies
Hinged splice cassette: True
Holder for gas blocker: False
Holder for splitter: False
IP Protection: IP20
Material: Plastic
Max. Assembly (Adapter): 4

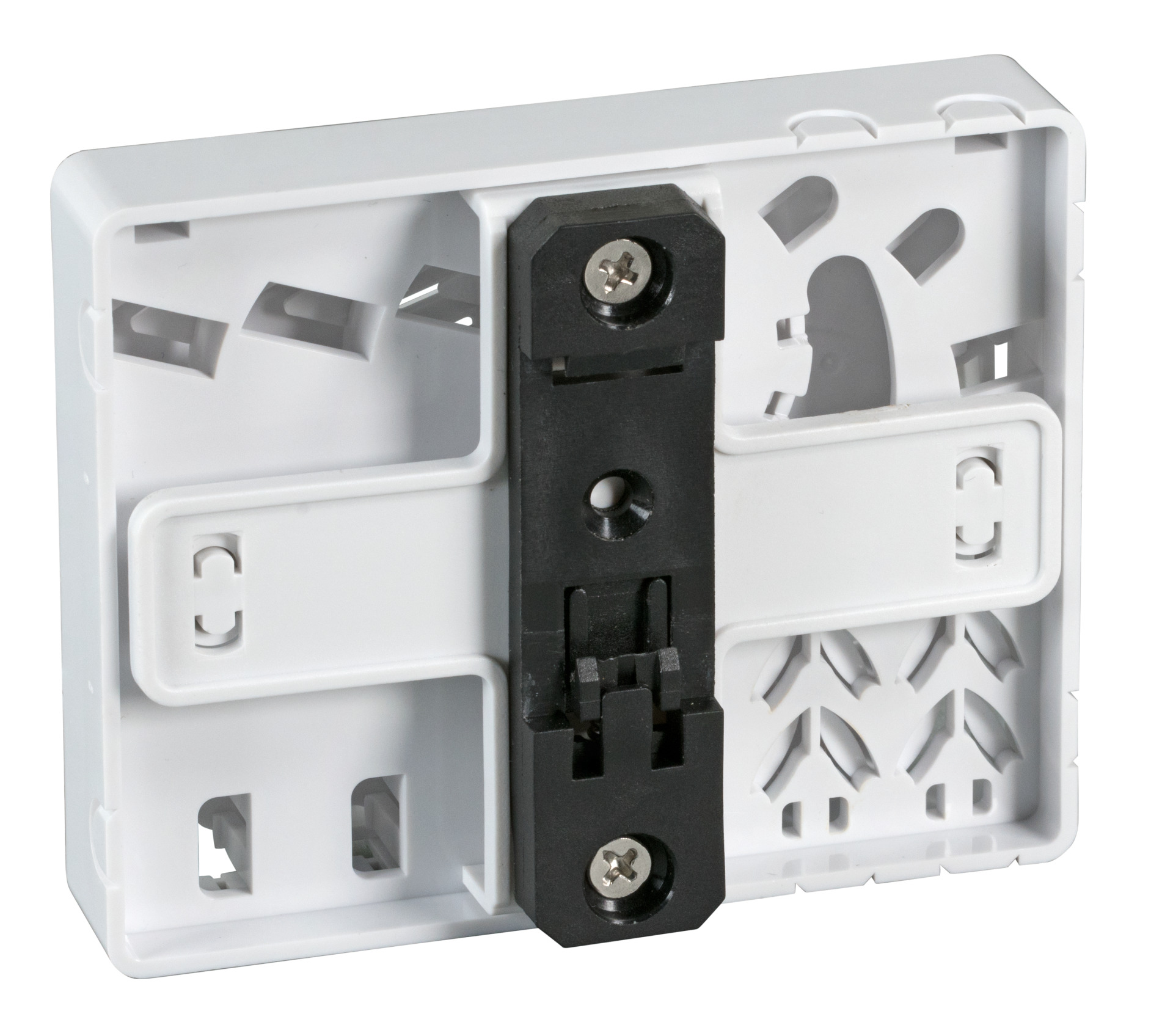

Mounting method: DIN Rail
Wall mounting
Number of Fibres: 4
Possibility of mast mounting: False
Scope of application: Indoor
Suitable for adapter: SC Simplex/LC Duplex/E2000®
Temperature range: 0 – 50 °C
Type of Splice protection: Thermo
Water protection: Without protection
With Fiber overlength cassette: True
