DIN RAIL adapter assembeled

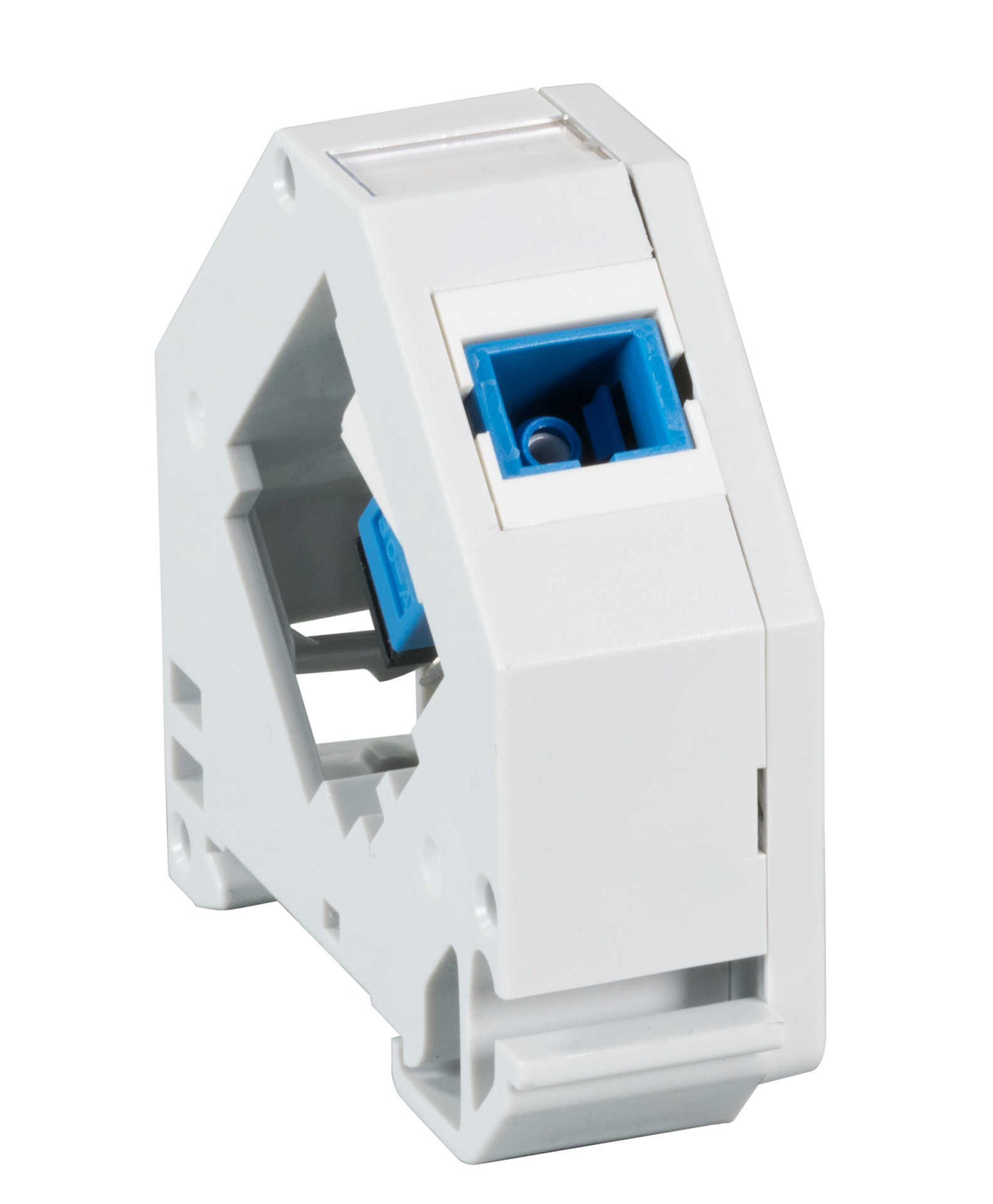

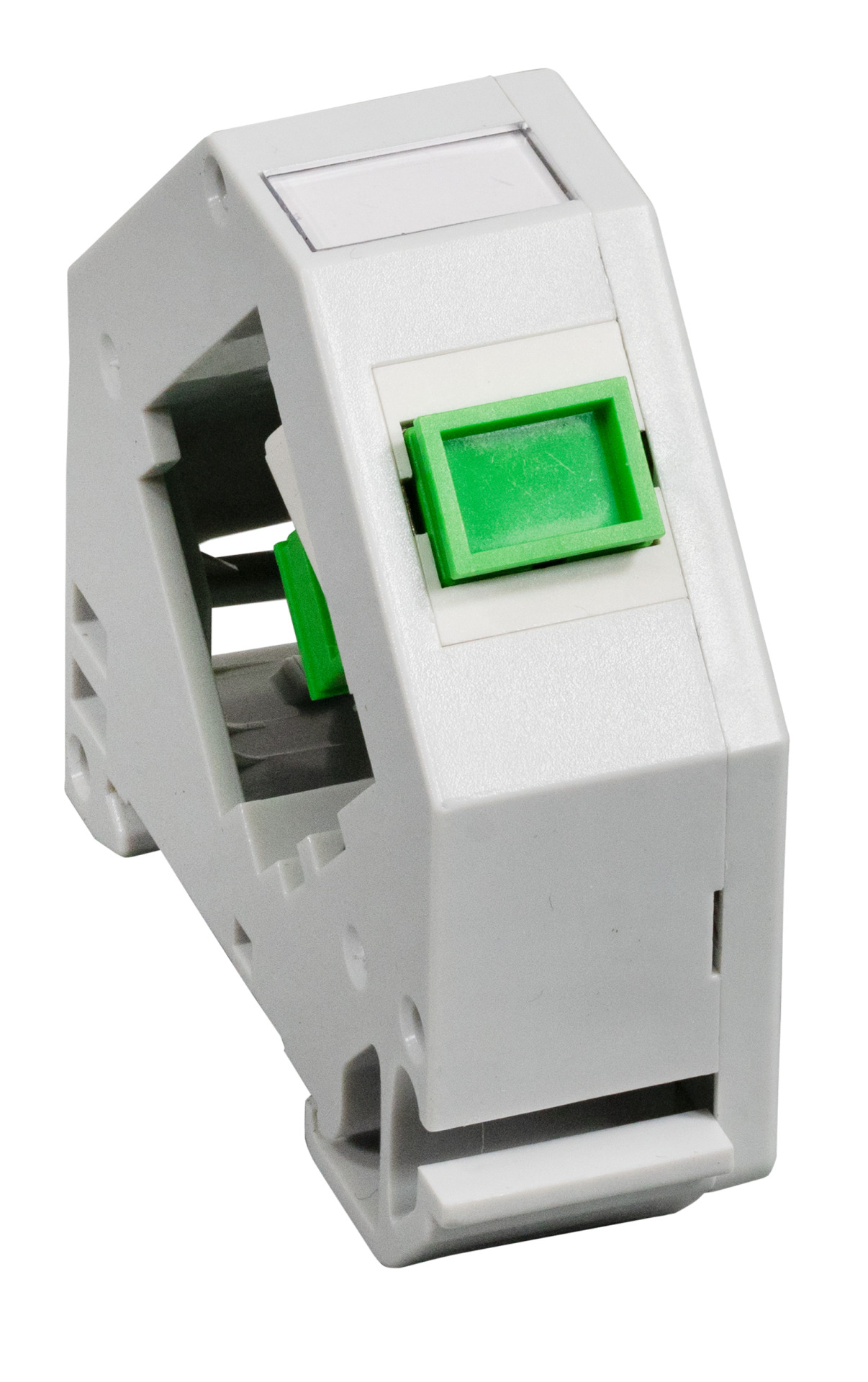

DIN RAIL adapter for SC/APC Singlemode, 1 Port
Varenummer:
FTTH-DINRAIL-SCA
EAN Nr.:
4049759193904
Produktinformation til DIN RAIL adapter for SC/APC Singlemode, 1 Port
Fiber optic connection unit equipped with LC duplex or SC simplex for mounting on DIN rail TS35
Compact design
Closed on one side
Strain relief with cable ties
Delivery without end plate left (ET-25185.1)

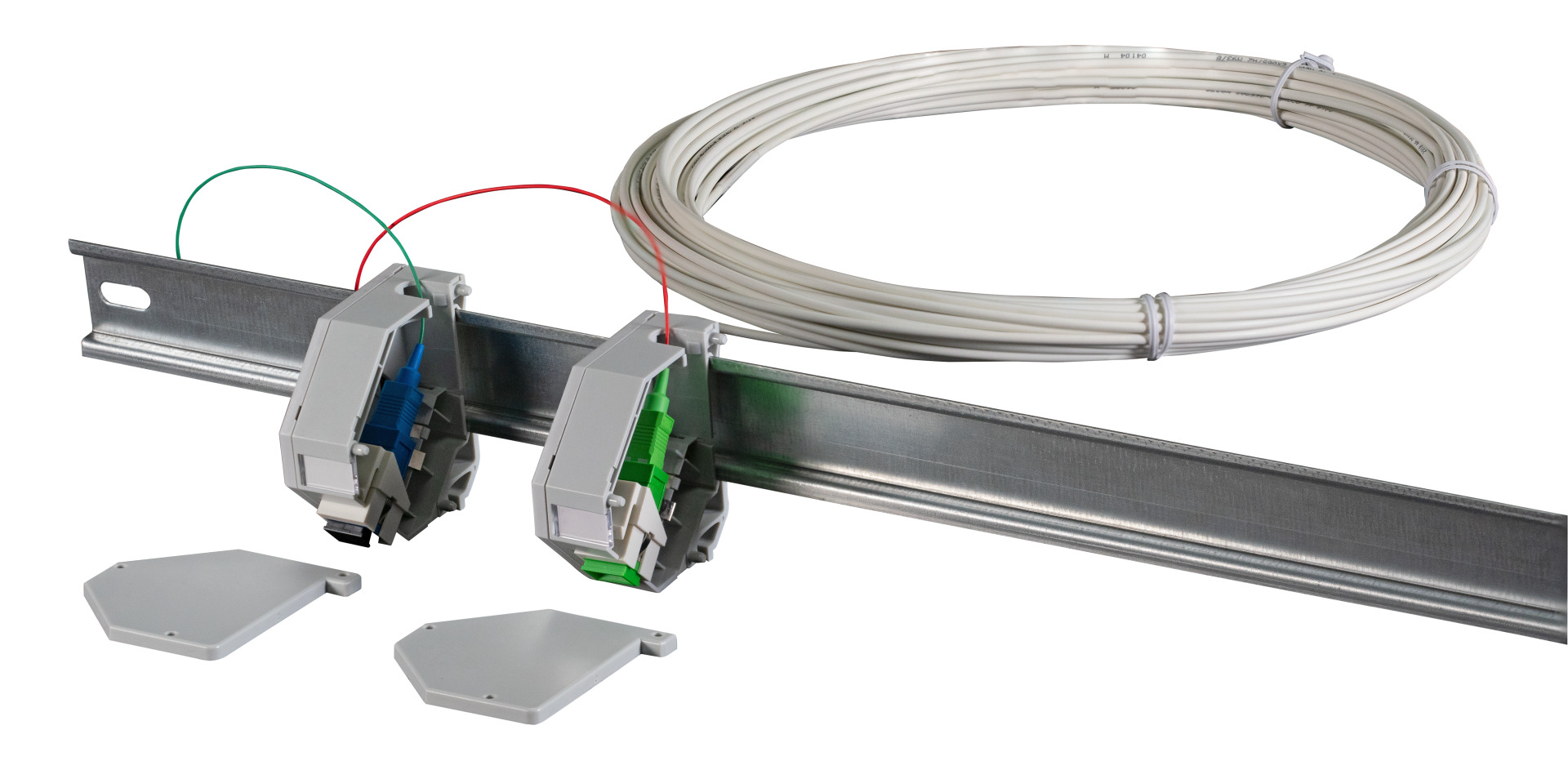

An end plate left is always necessary. DIN RAIL adapter requires an end plate left, several connected also require only one end plate left.
Compact design
Closed on one side
Strain relief with cable ties
Delivery without end plate left (ET-25185.1)
An end plate left is always necessary. DIN RAIL adapter requires an end plate left, several connected also require only one end plate left.
Tekniske egenskaber
| Abmessungen (WxHxD): | 22 x 61 x 54 mm |
|---|---|
| Colour: | light grey |
| For DIN-rail acc. DIN EN60715: | True |
| Material: | Plastic |
| RAL colour: | RAL7035 |
| Stackable: | True |
| Suitable for: | 1 module (keystone format) |
| Type of DIN-rail adapter: | Inclined |
| Type of fastening: | DIN rail (top hat rail) 35 mm |
| With earthing spring: | True |
| With labeling field: | True |
Varianten
| Art. Nr. | Bezeichnung | Assembly | Number of ports | Colour of adapter | |
|---|---|---|---|---|---|

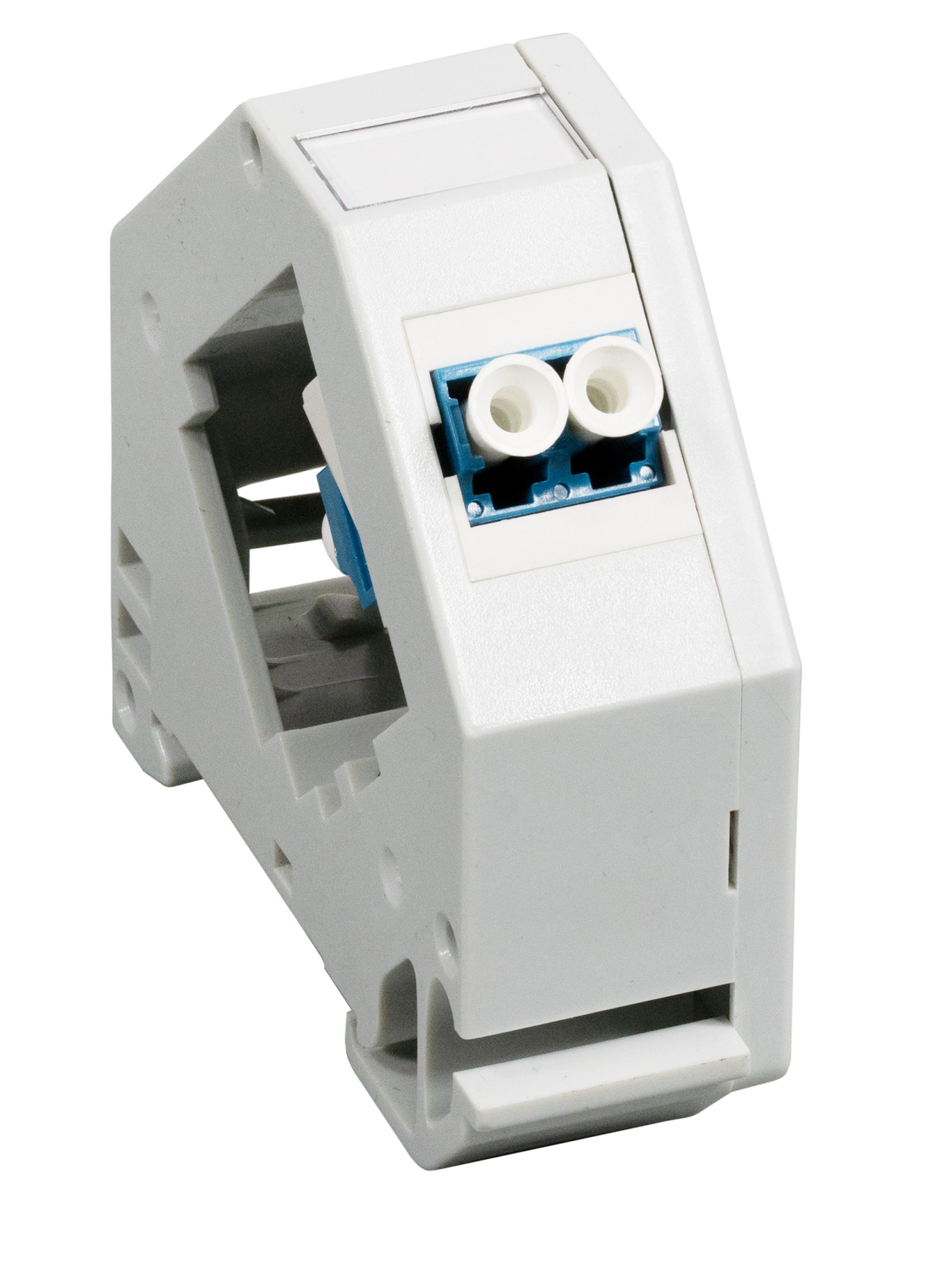

| FTTH-DINRAIL-LC | DIN RAIL adapter for LC Singlemode, 2 Ports | 1x LC-Duplex | 2 | blue | |
| FTTH-DINRAIL-LCA | DIN RAIL adapter for LC/APC Singlemode, 2 Ports | 1x LC-Duplex | 2 | green | |
| FTTH-DINRAIL-SCA | DIN RAIL adapter for SC/APC Singlemode, 1 Port | 1x SC-Simplex | 1 | green |
