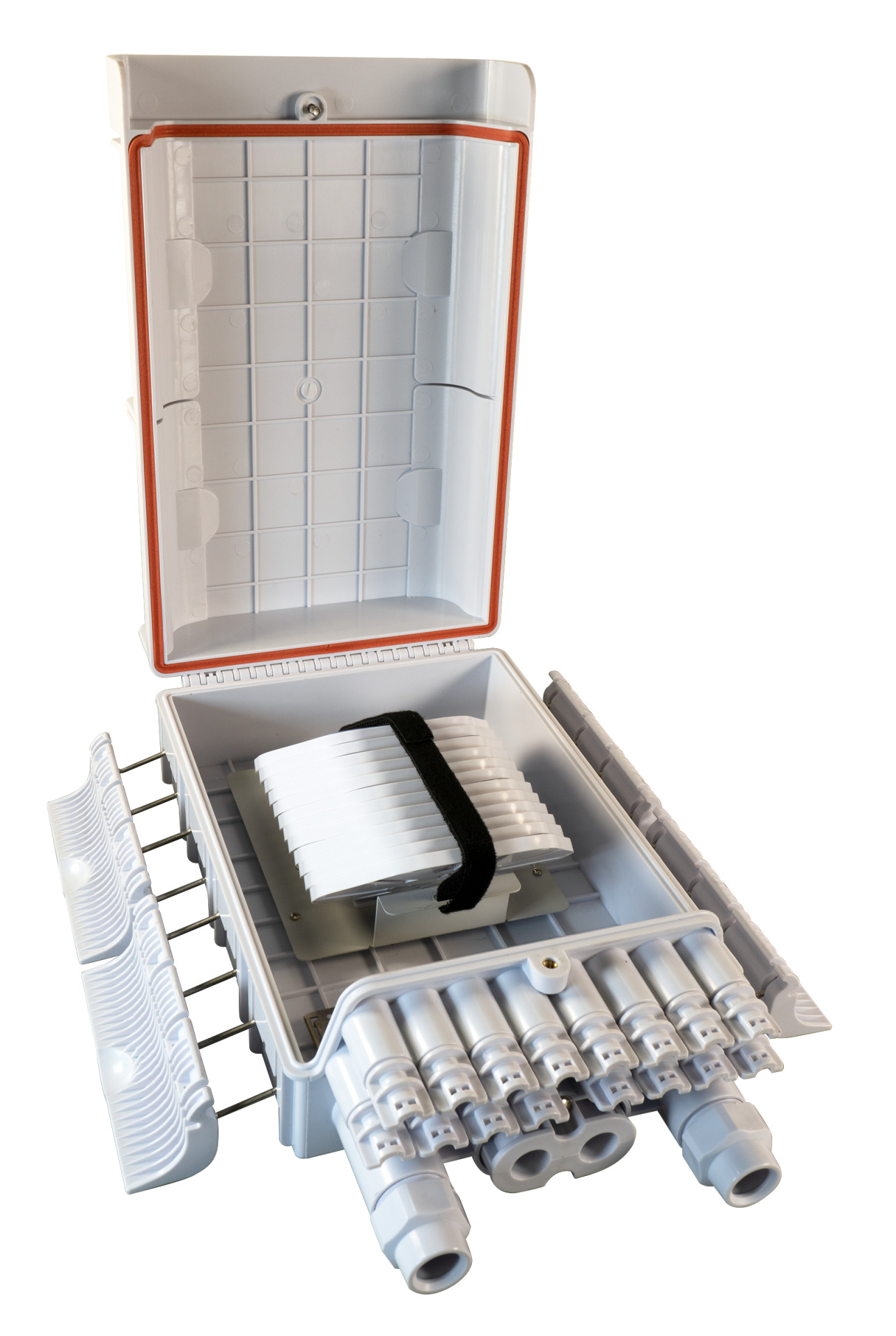

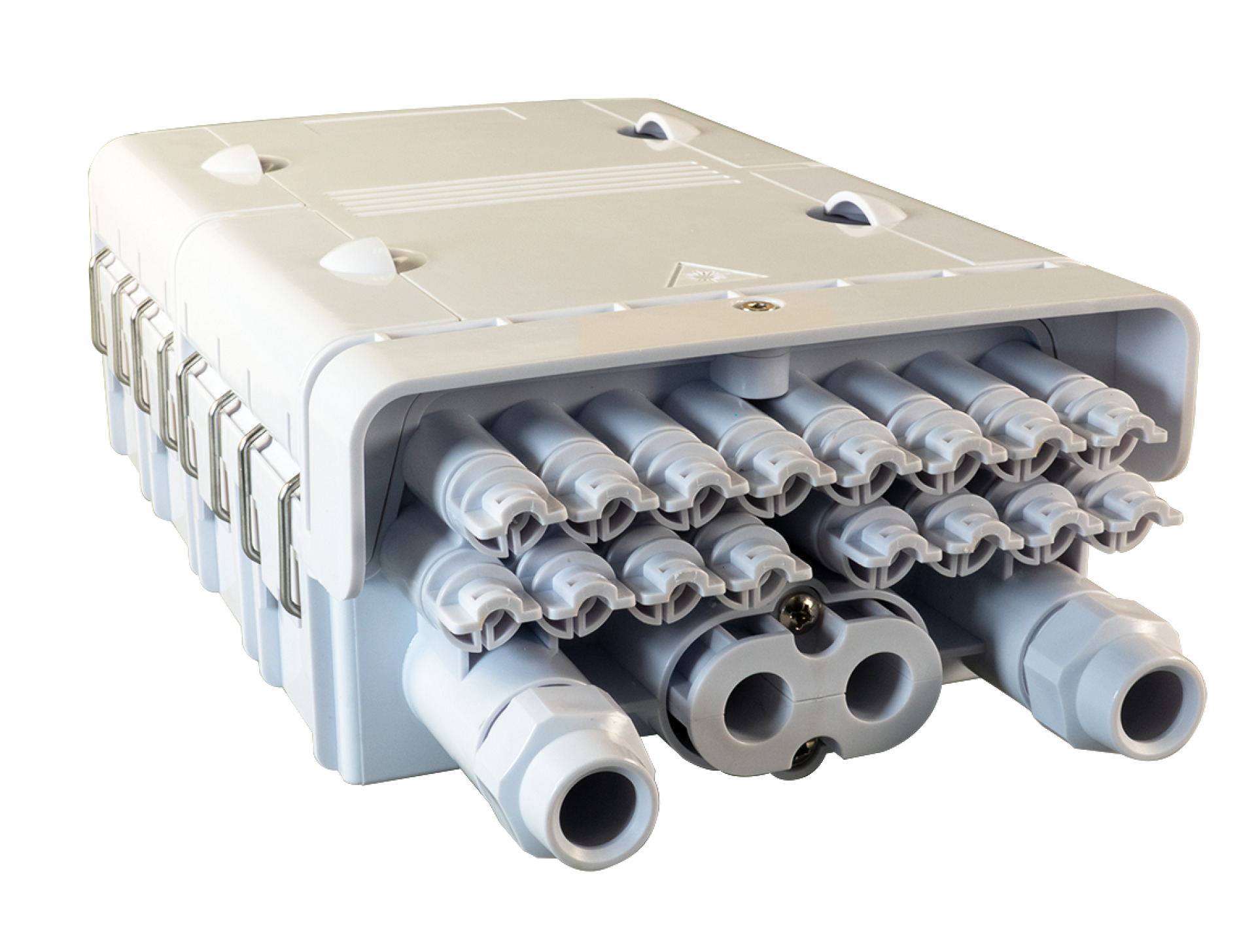

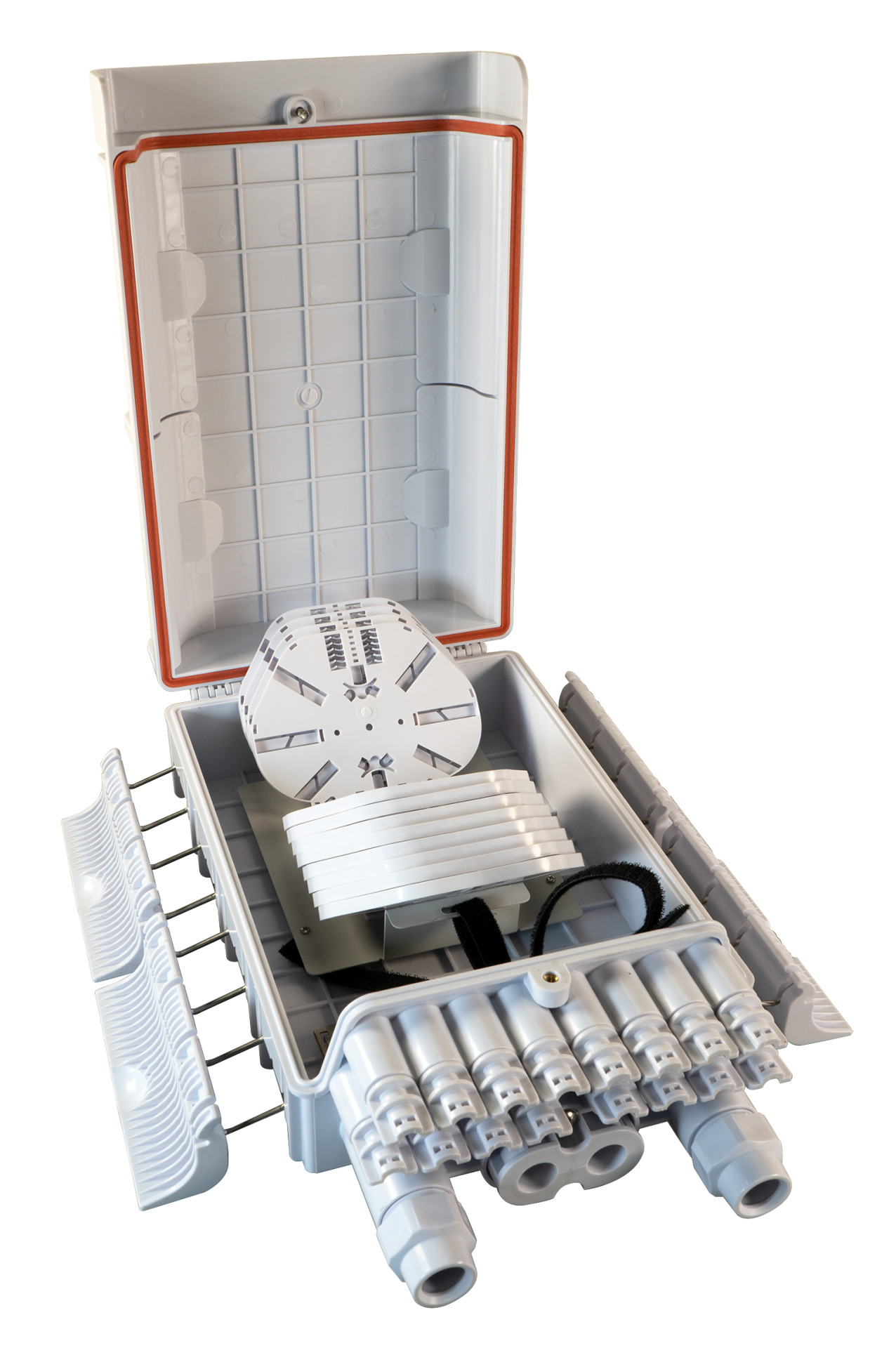

FTTH IP65 Connectionbox for 96 fiber and Fiber overlength box
FTTH IP65 Connectionbox for 96 fiber and Fiber overlength box
Varenummer:
FTTH-BOX-OUT-6
EAN nr.:
4049759243029
Produktinformation til FTTH IP65 Connectionbox for 96 fiber and Fiber overlength box
Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (shrink splice holder, shrink protection and material for wall mounting included)
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (shrink splice holder, shrink protection and material for wall mounting included)
| Cable entry without cable gland: | 2 x 15mm, 2 x 18mm, 16 x 2-3mm |
|---|---|
| Cable sheath support: | True |
| Colour: | grey |

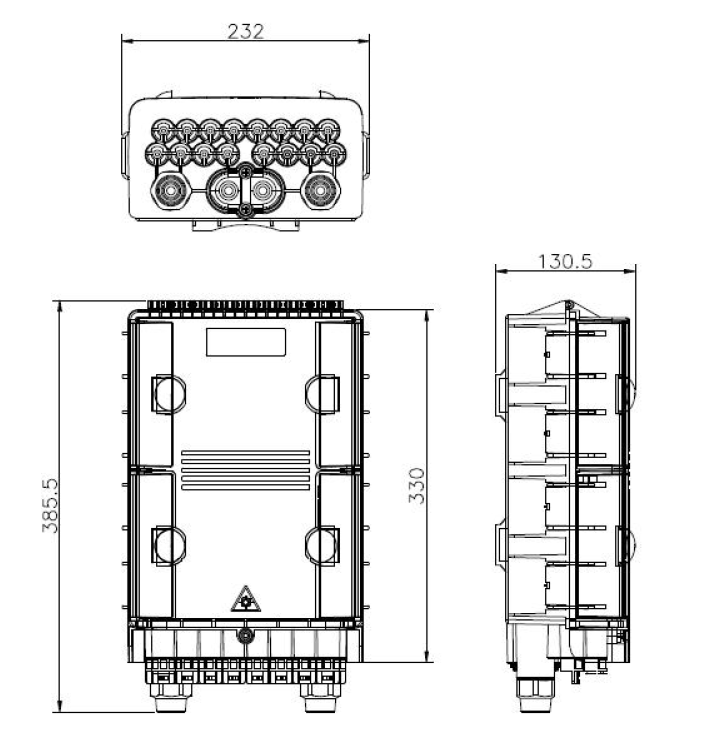

| Dimensions: | 232 x 358.5 x 130.5 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | True |
| Holder for splitter: | True |
| IP Protection: | IP65 |
| Material: | Plastic |
| Mounting method: | Wall mounting |
| Number of Fibres: | 96 |
| Operating Temperature: | -25 – 70 °C |
| Possibility of mast mounting: | True |
| Scope of application: | Outdoor |
| Type of Splice protection: | Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
Tekniske egenskaber
| Cable entry without cable gland: | 2 x 15mm, 2 x 18mm, 16 x 2-3mm |
|---|---|
| Cable sheath support: | True |
| Colour: | grey |
| Dimensions: | 232 x 358.5 x 130.5 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | True |
| Holder for splitter: | True |
| IP Protection: | IP65 |
| Material: | Plastic |
| Mounting method: | Wall mounting |
| Number of Fibres: | 96 |
| Operating Temperature: | -25 – 70 °C |
| Possibility of mast mounting: | True |
| Scope of application: | Outdoor |
| Type of Splice protection: | Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
Produktinformation til FTTH IP65 Connectionbox for 96 fiber and Fiber overlength box
Application:
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (shrink splice holder, shrink protection and material for wall mounting included)
Optical Telecommunication Networks
LAN, Optical fiber Communication Network
CATV Networks
FTTH access Network
PON, G-PON
Delivery unassembled (shrink splice holder, shrink protection and material for wall mounting included)
| Cable entry without cable gland: | 2 x 15mm, 2 x 18mm, 16 x 2-3mm |
|---|---|
| Cable sheath support: | True |
| Colour: | grey |
| Dimensions: | 232 x 358.5 x 130.5 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | True |
| Holder for splitter: | True |
| IP Protection: | IP65 |
| Material: | Plastic |
| Mounting method: | Wall mounting |
| Number of Fibres: | 96 |
| Operating Temperature: | -25 – 70 °C |
| Possibility of mast mounting: | True |
| Scope of application: | Outdoor |
| Type of Splice protection: | Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
| Cable entry without cable gland: | 2 x 15mm, 2 x 18mm, 16 x 2-3mm |
|---|---|
| Cable sheath support: | True |
| Colour: | grey |
| Dimensions: | 232 x 358.5 x 130.5 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| Holder for gas blocker: | True |
| Holder for splitter: | True |
| IP Protection: | IP65 |
| Material: | Plastic |
| Mounting method: | Wall mounting |
| Number of Fibres: | 96 |
| Operating Temperature: | -25 – 70 °C |
| Possibility of mast mounting: | True |
| Scope of application: | Outdoor |
| Type of Splice protection: | Thermo |
| UV-resistant: | True |
| Water protection: | Protection against jet water |
| With Fiber overlength cassette: | True |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Spring produktgalleriet over
accessory
Art. nr. 54448.3LOS2-CPR

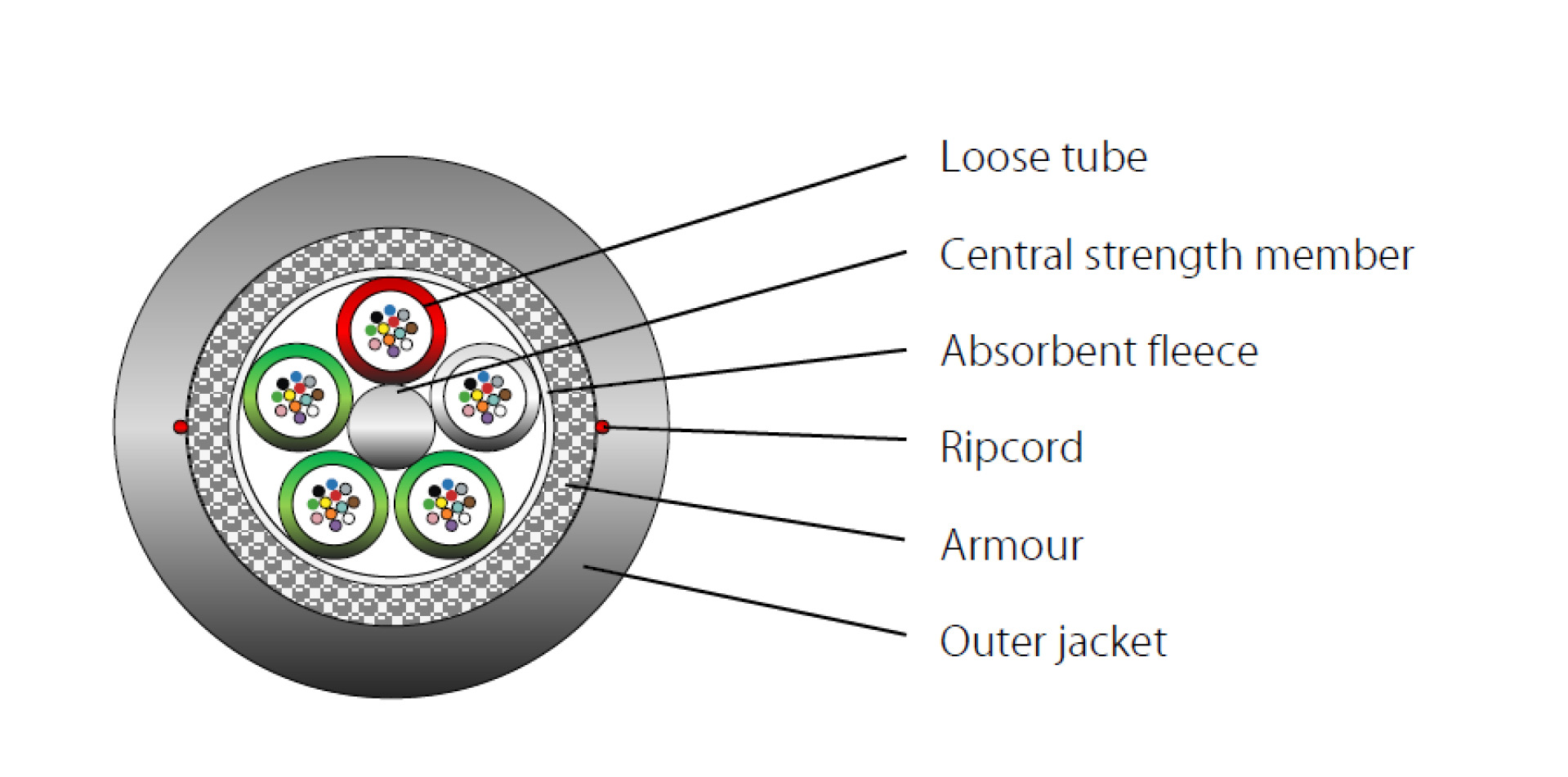

INFRALAN® U-DQ(ZN)BH OS2 48E (4x12) B2ca 5000N LSZH black 11.2mm G657A1
