IP67 Receptacle, M25, RJ45 Cat.6A E-20070
IP67 Receptacle, M25, RJ45 Cat.6A E-20070, for Cat.5/6/7 cable
Varenummer:
IP67EBRJ45KSFL
EAN-nr.:
4049759194802
Produktinformation til IP67 Receptacle, M25, RJ45 Cat.6A E-20070, for Cat.5/6/7 cable

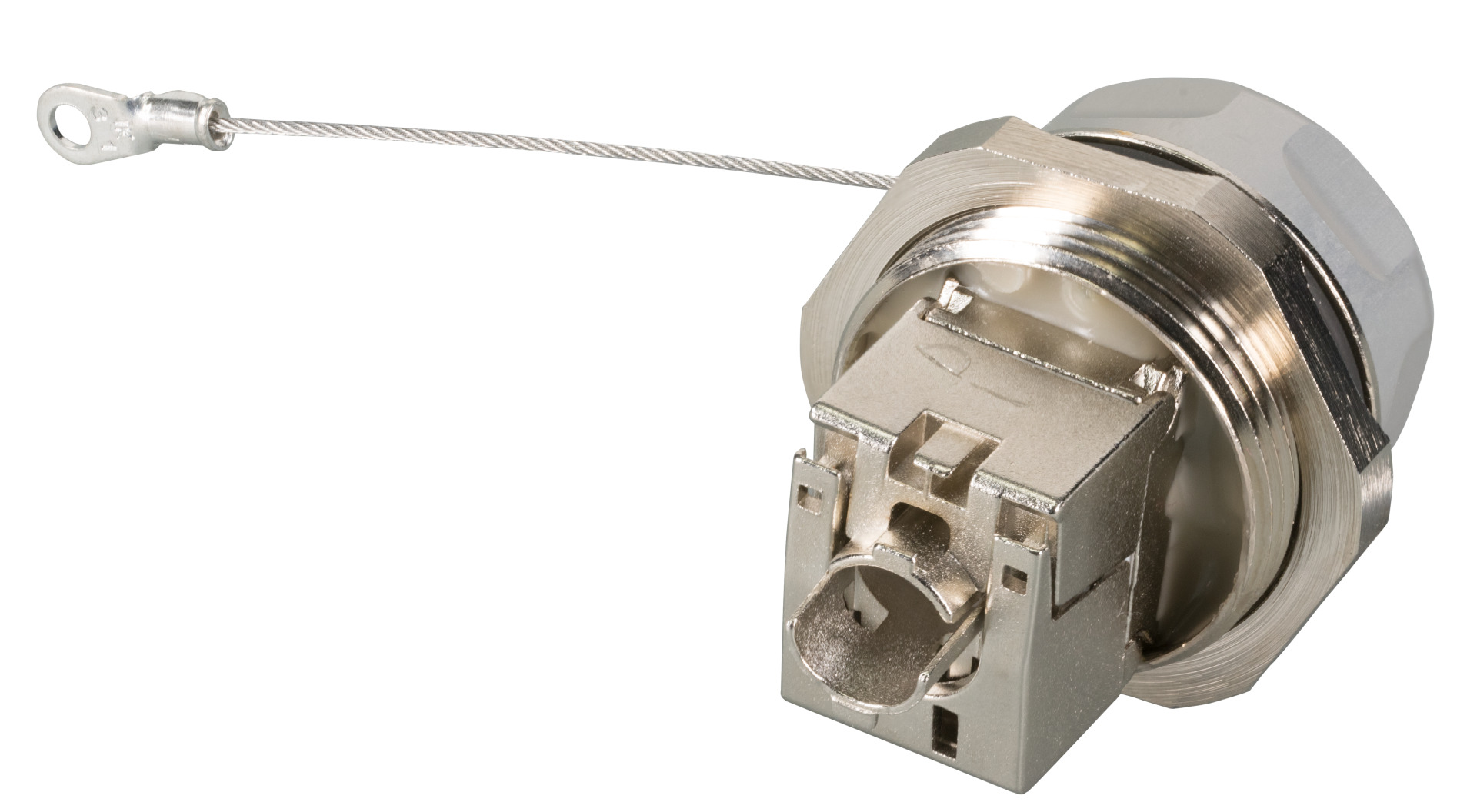

IP67 panel socket for installation in distributor boxes with M25 cut-out.
With built-in Cat.6A RJ45 Keystone (E-20070) for the installation of network installation cables
Material: brass

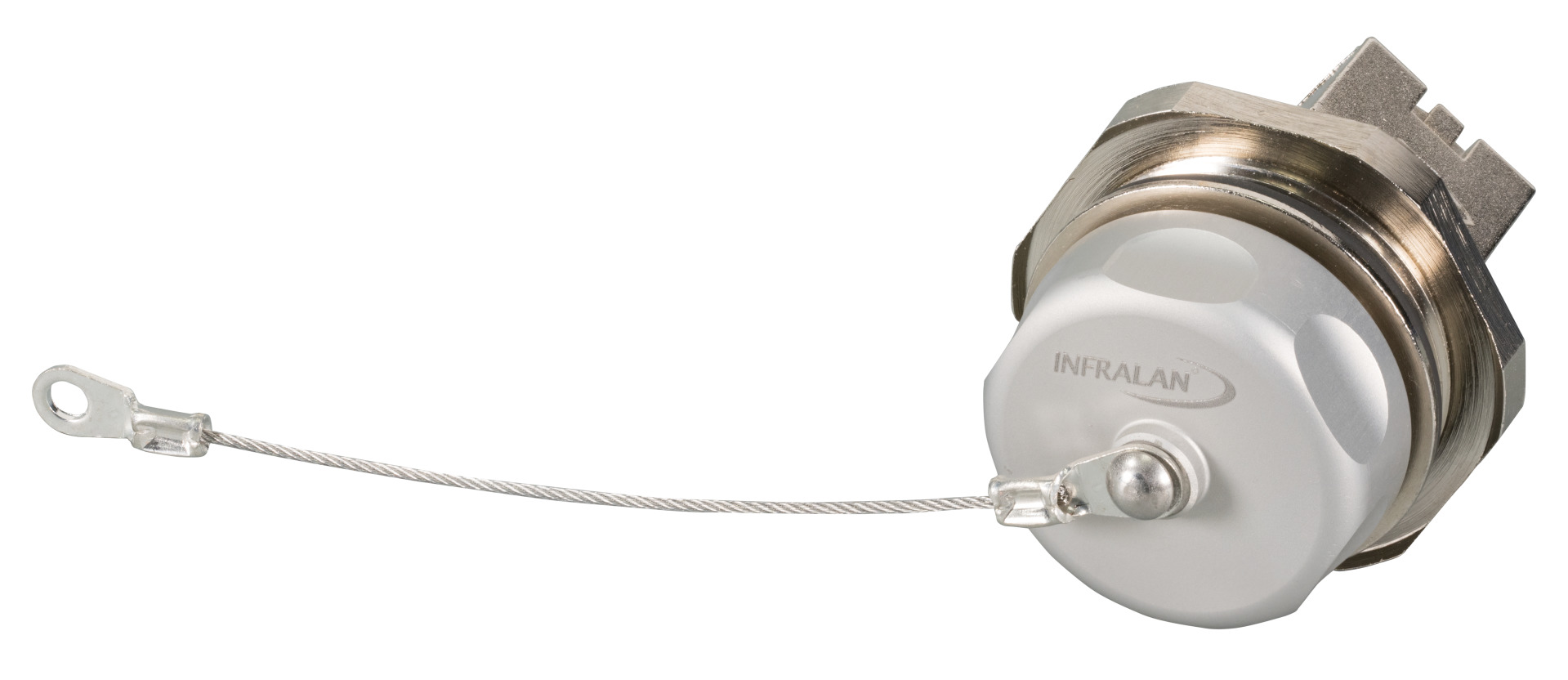

With captive dust protection cap
With built-in Cat.6A RJ45 Keystone (E-20070) for the installation of network installation cables
Material: brass
With captive dust protection cap
Tekniske egenskaber
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| AWG-range for litz wire conductor: | 26 – 24 |
| Cable diameter: | 8.5 mm |
| Casing material: | Brass |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 1,5 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥750 |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for degree of protection (IP): | IP67 |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | M25 |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
