IP67 Cable gland, M25, RJ45 TM31, M-M
IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 1.0m
Varenummer:
IP67KVRJ45TM31-1,0
EAN Nr.:
4049759194963
Produktinformationen für IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 1.0m

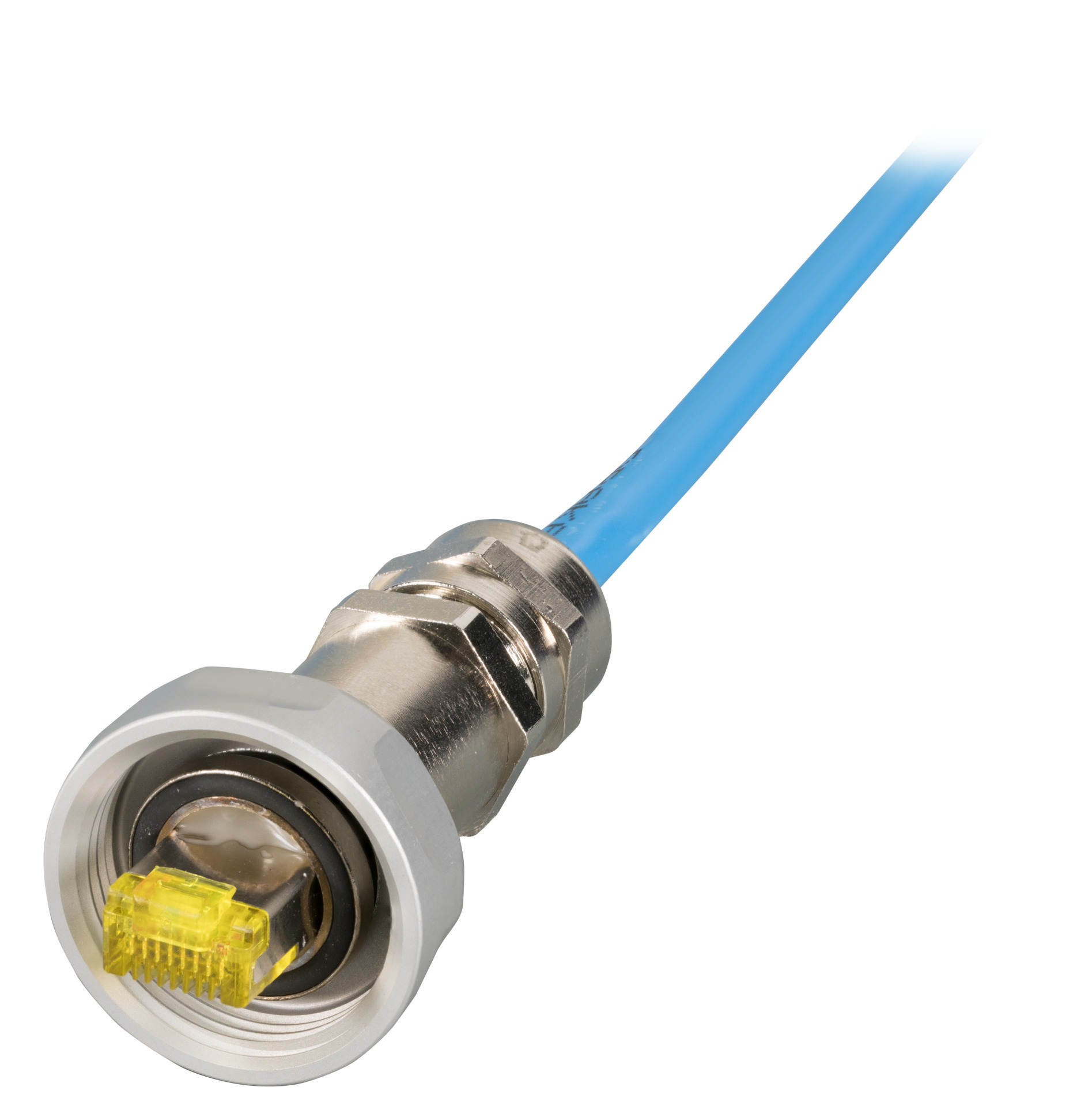

IP67 cable gland with pre-installed Cat.6A TM31 RJ45 S/FTP cable plug / plug
For installation in housings with M25 cut-out
Gland material: brass
For installation in housings with M25 cut-out
Gland material: brass
Technische Eigenschaften
(Halogenfree): | True |
---|---|
AWG-size: | 27 |
Anti-kink sleeve: | put-on |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | blue |
Colour outer sheath: | blue |
Fire retardant version: | True |
Locking lever: | True |
Oil resistant (acc. EN 60811-2-1): | False |
Pin assignment: | 1:1 |
Suitable for degree of protection (IP): | IP67 |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Type of housing: | Brass nickel-plated |
Type of locking: | M25 |
Varianten
Art. Nr. | Bezeichnung | Length | |
---|---|---|---|
IP67KVRJ45TM31-1,0 | IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 1.0m | 1.0 m | |
IP67KVRJ45TM31-2,0 | IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 2.0m | 2.0 m | |
IP67KVRJ45TM31-5,0 | IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 5.0m | 5.0 m | |
IP67KVRJ45TM31-10,0 | IP67 Cable gland, M25, RJ45 TM31, Plug to TM31 Plug, 10.0m | 10.0 m |
