RJ45 Cat.6A IP68 adapter

Priser kun synlige for indloggede brugere

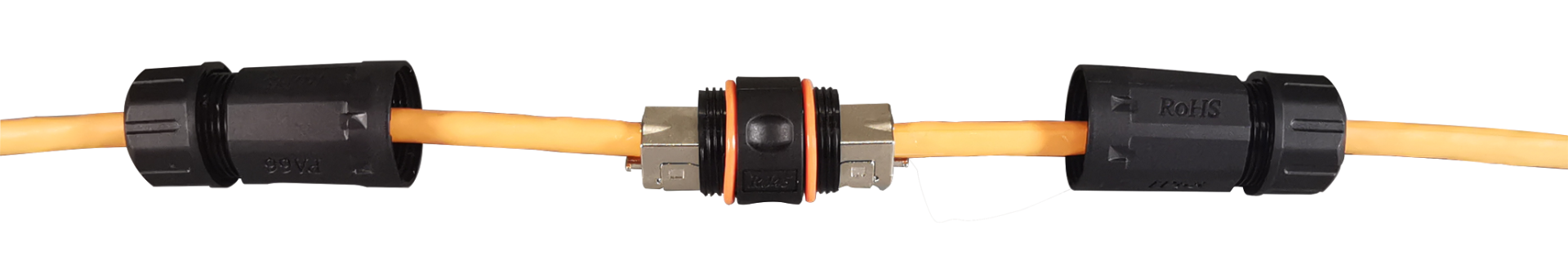

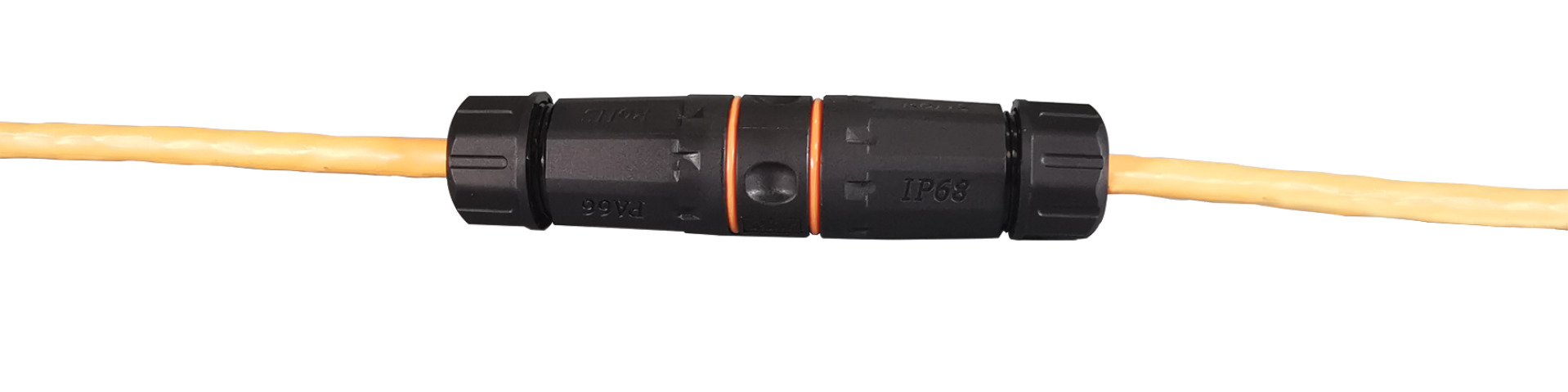

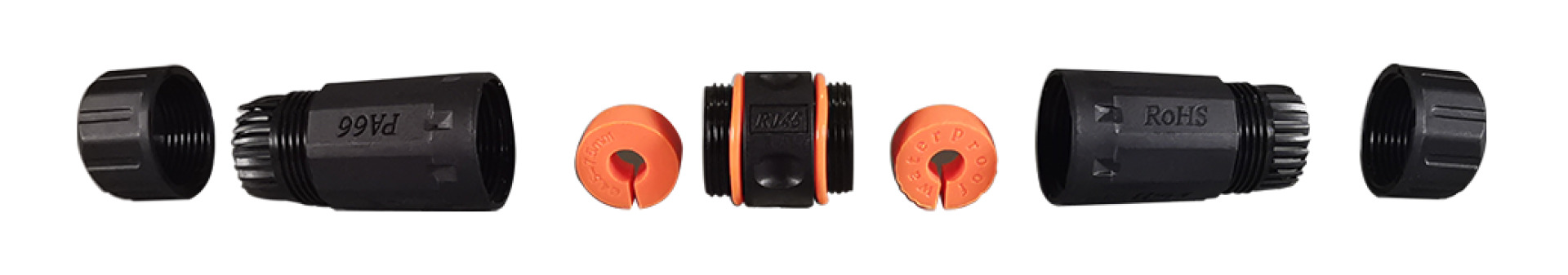

RJ45 Cat.6A IP68 adapter, Jack/Jack Connection module
Varenummer: IP68DFKRJ456AWP
EAN nr.: 4049759261689
Piece

Produktinformation für RJ45 Cat.6A IP68 adapter, Jack/Jack Connection module

IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6A RJ45 jack to facilitate connection. Designed for transmissions up to 500MHz according to ISO/IEC 11801 ClassEA and Data transmission rate up to 10 Gbit/s.

- Easy installation
- Waterproof cable connector of protection class IP68
- Max. Voltage of 125V and max. current of 1.5A

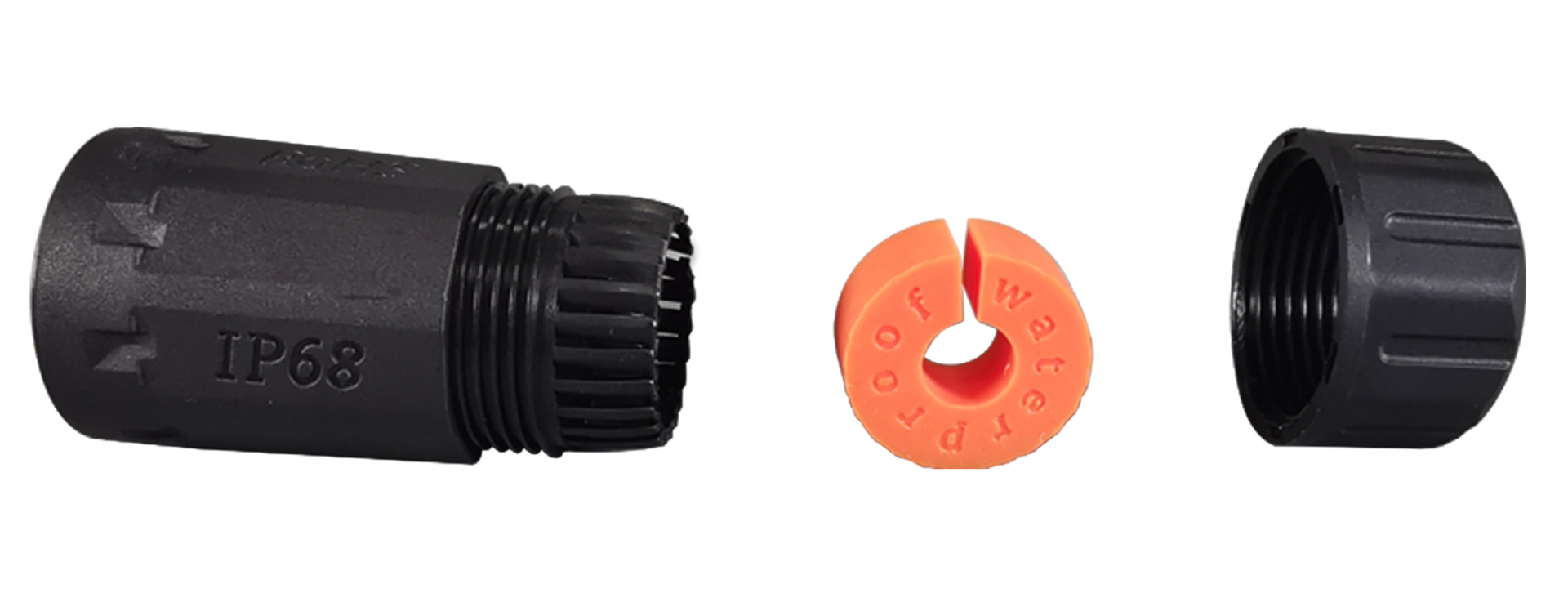

- Cable gland in M16
- For cables with a diameter of 4,5 mm- 10 mm

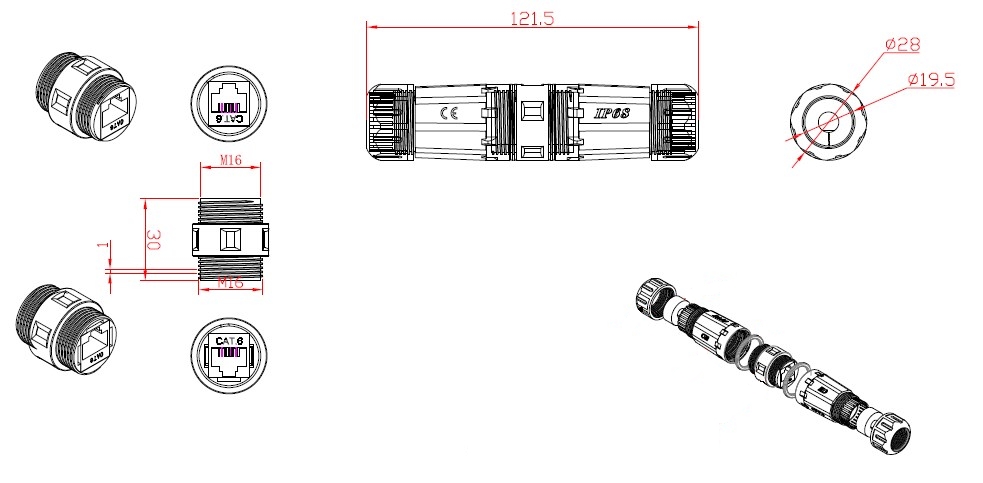

- L x D 121.5mm x 28 mm

Tekniske egenskaber

Category: 6A (TIA)
Design: straight
Model: jack/jack
Temperature Range (Operation): 0 – 70 °C
Temperature Range (Storage): -40 – 85 °C
Type of connector: 2x RJ45
Type of fastening: other
UV resistant: True

accessory

IP68 Cable gland for RJ45 field assembly plugs, sealing for 6.5-9.0mm OD

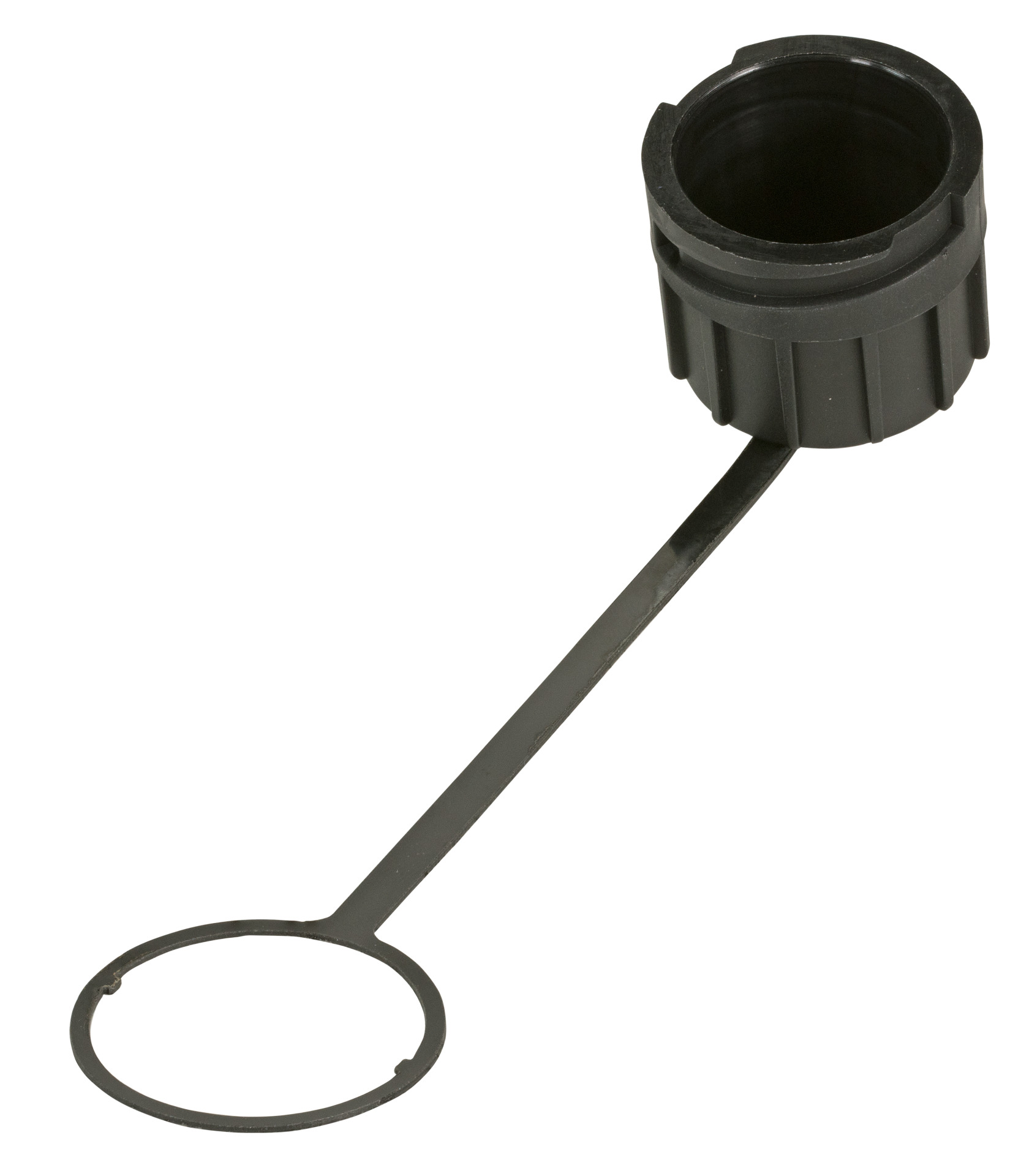

IP68 Dust cap for cable gland, Bayonet locking acc. to IEC61076-3-106
RJ45 Connector STP, Cat.6, Field-Plug

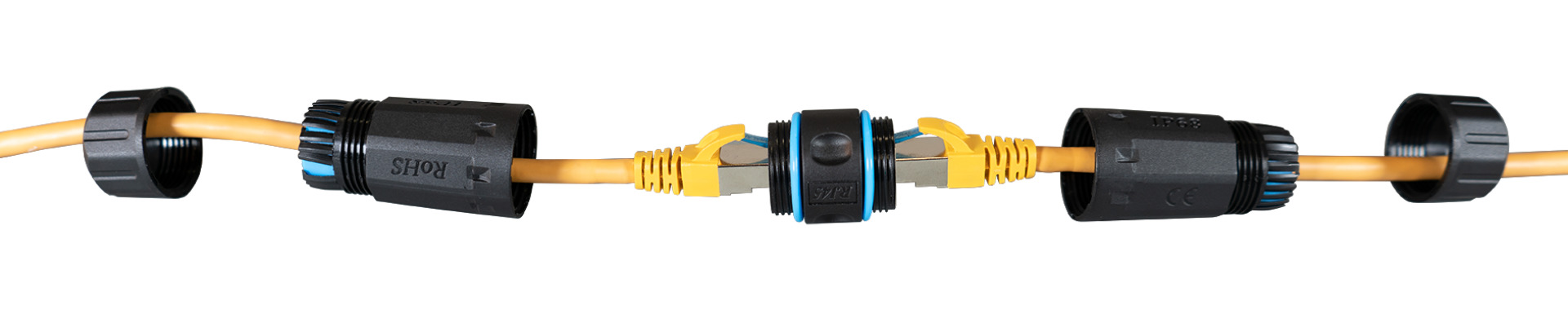

RJ45 Cat.6 IP68 adapter,Jack/Jack Connection module

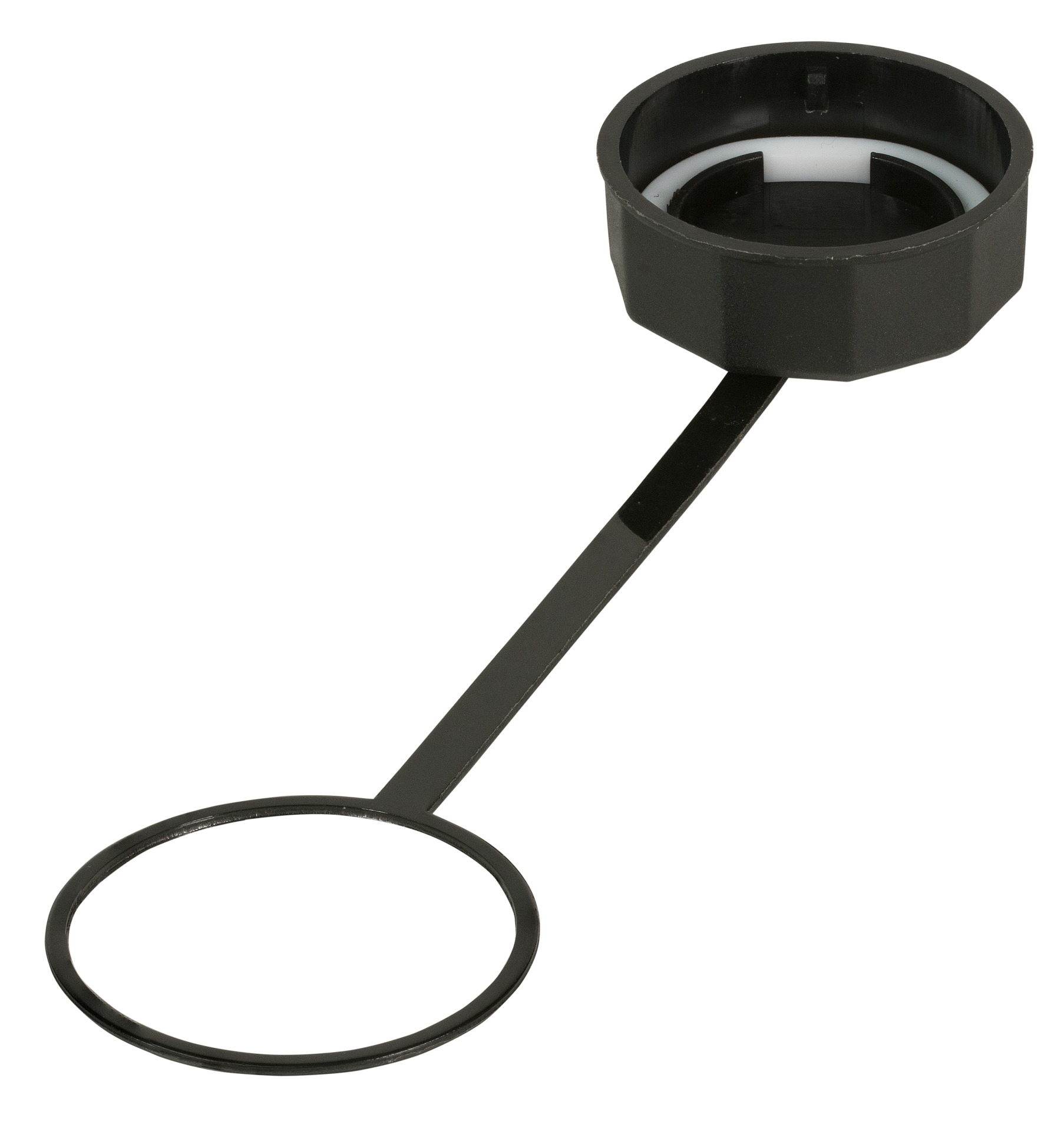

IP68 Dust cap for receptacles, Bayonet locking acc. to IEC61076-3-106
IP68 Cable gland for RJ45 field assembly plugs, sealing for 4.5-6.5mm OD
Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,100m
Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,1000m
IP68 Cable gland for RJ45 HRS TM11/21/31 St, Bayonet locking

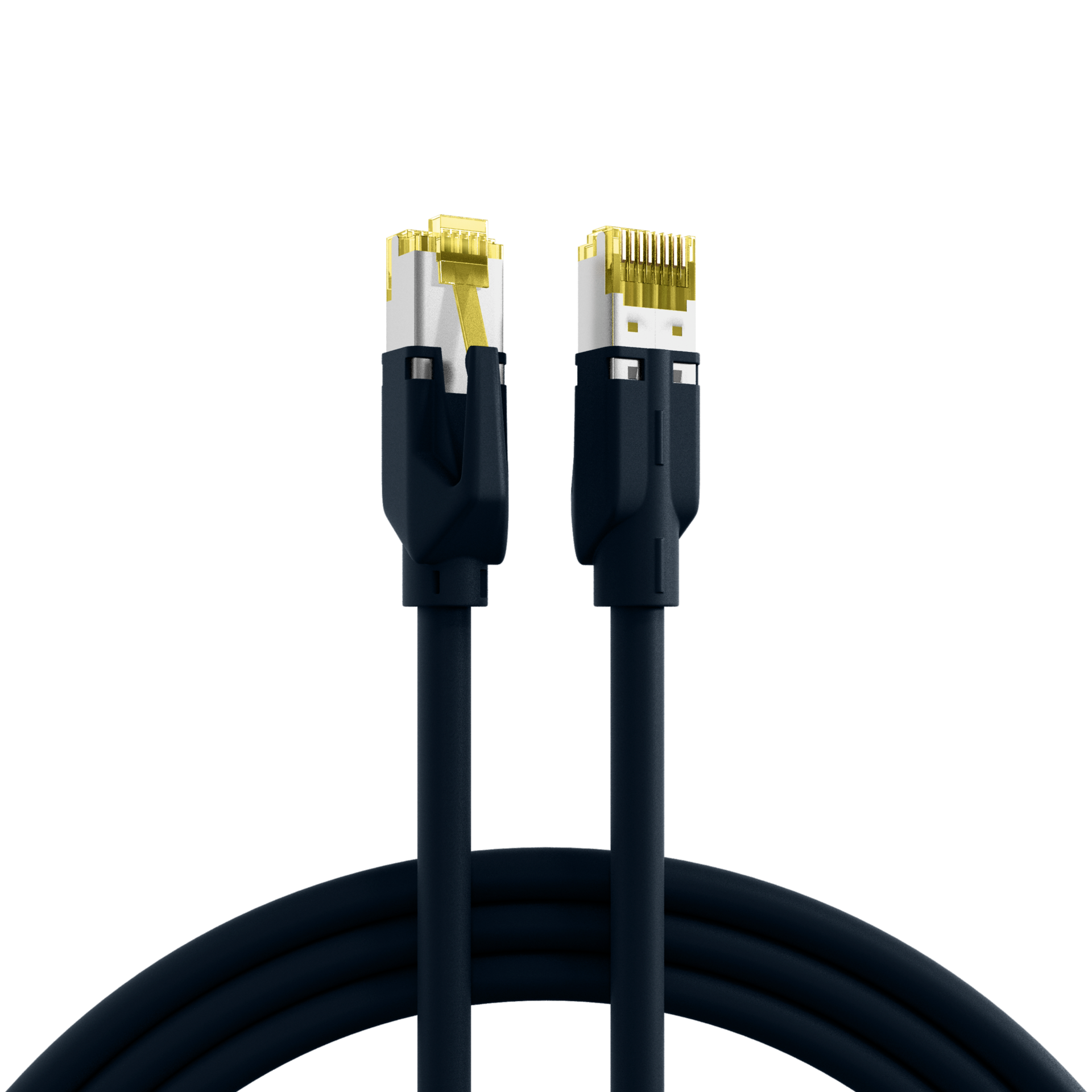

RJ45 Patch Cord Cat.6A S/FTP PUR Cat.7 raw cable TM31 black 1m
