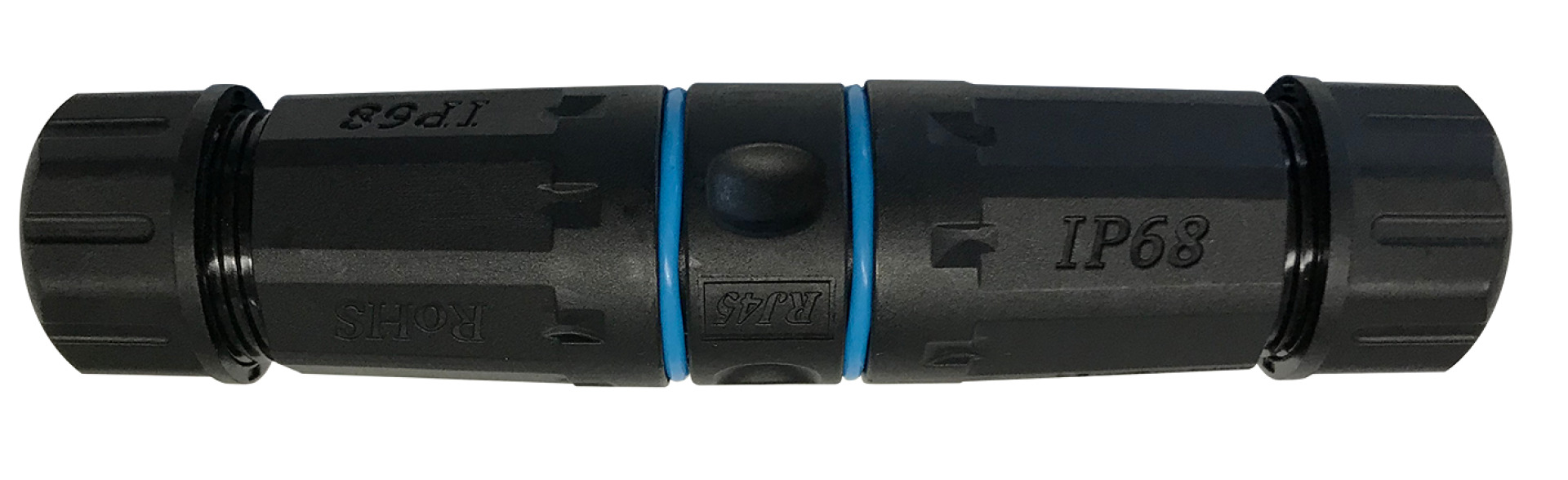

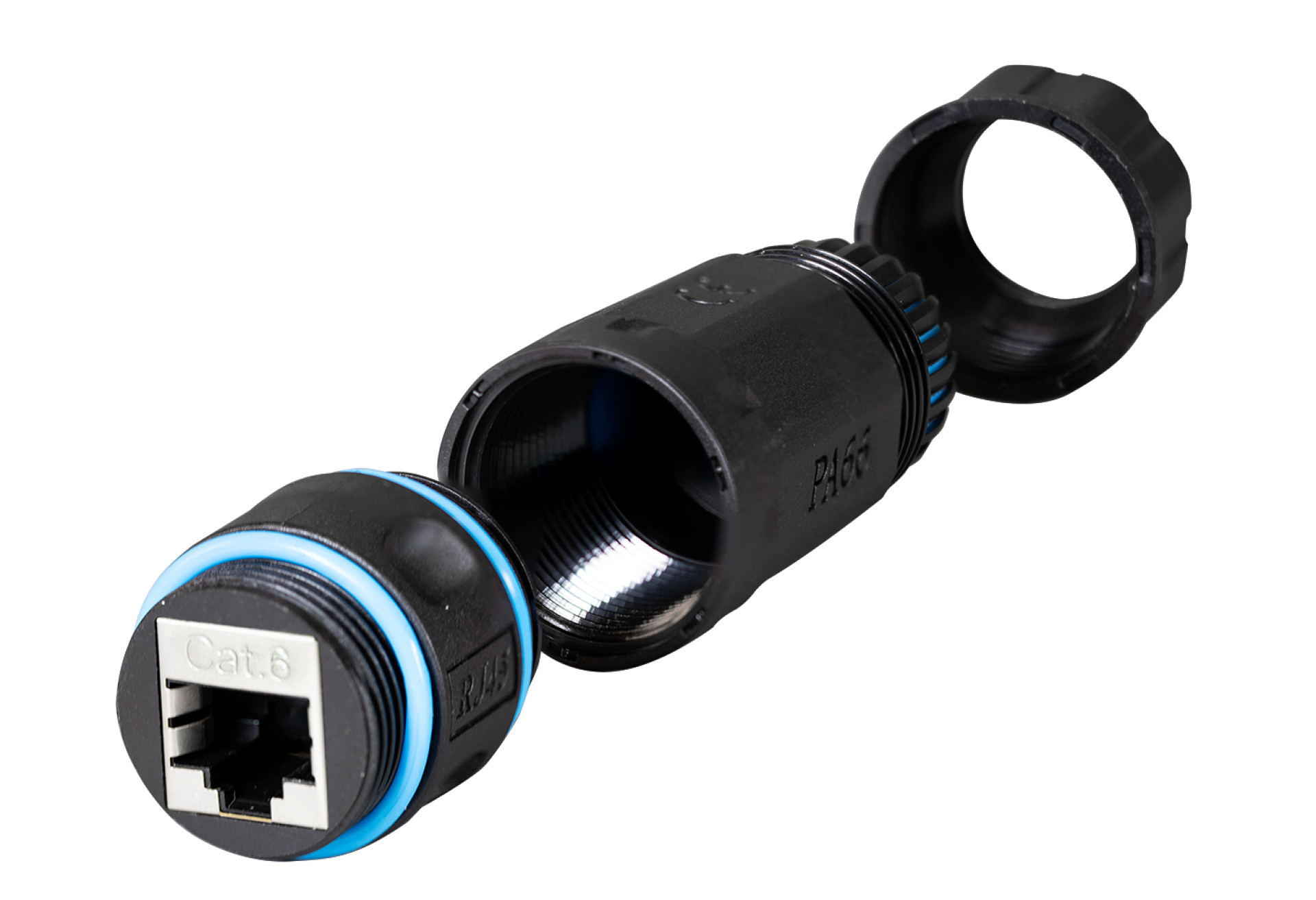

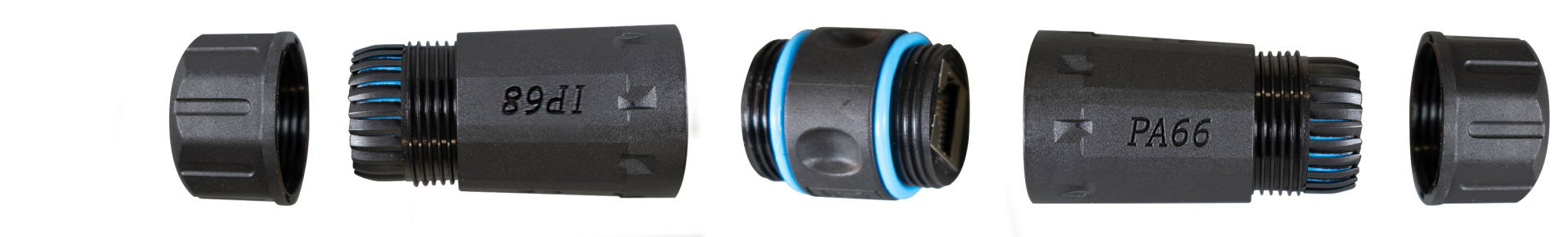

RJ45 Cat.6 IP68 adapter
RJ45 Cat.6 IP68 adapter,Jack/Jack Connection module
Varenummer:
IP68DFKRJ45WP
EAN Nr.:
4049759259068
Produktinformation til RJ45 Cat.6 IP68 adapter,Jack/Jack Connection module
IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6 RJ45 jack to facilitate connection. Designed for transmissions up to 250MHz according to ISO/IEC 11801 ClassE and Data transmission rate up to 5 Gbit/s.
- Easy installation
- Waterproof cable connector of protection class IP68
- Max. Voltage of 125V and max. current of 1.5A
- Cable gland in PG16
- For cables with a diameter of 4,5 mm- 10 mm
- L x D 121.5mm x 28 mm
- Easy installation
- Waterproof cable connector of protection class IP68
- Max. Voltage of 125V and max. current of 1.5A
- Cable gland in PG16
- For cables with a diameter of 4,5 mm- 10 mm
- L x D 121.5mm x 28 mm
Tekniske egenskaber
| Category: | 6 |
|---|---|
| Construction type: | straight |
| Model: | jack/jack |
| Temperature Range (Operation): | 0 – 70 °C |
| Temperature Range (Storage): | -40 – 85 °C |
| Type of connector: | 2x RJ45 |
| Type of fastening: | Other |
| UV resistant: | True |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
