Cat.7 Indoor/Outdoor cable 1200MHz AWG23 S/FTP
Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,100m
Varenummer:
99733.100-CPR
EAN Nr.:
4049759251178
Produktinformation til Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,100m

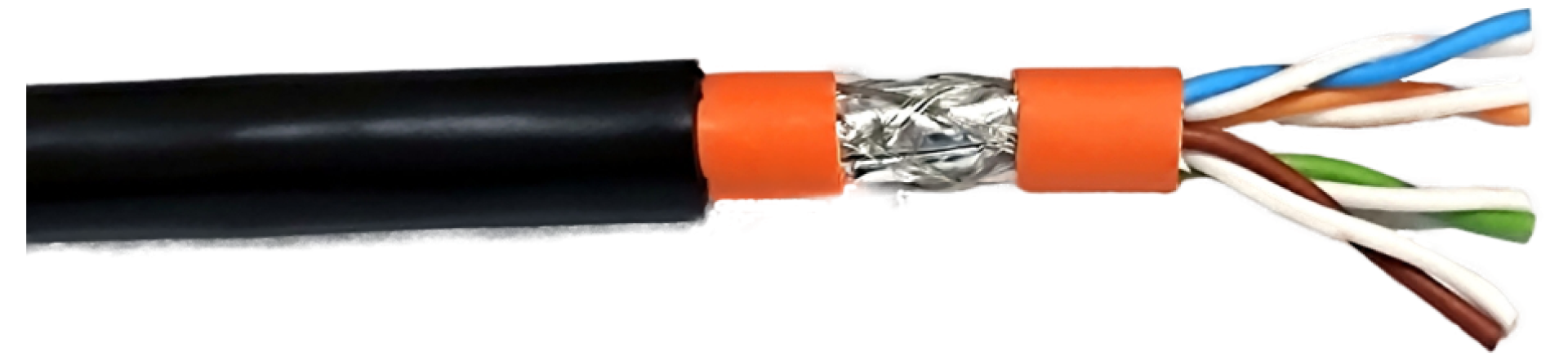

The Cat.7 S/FTP indoor/outdoor cable features a 4x2xAWG23/1 cable structure and achieves a transmission frequency of up to 1200 MHz.
The cable is suitable for installation in dry or damp rooms, outdoors, or buried. Compliant with the standards ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1.
The cable has a PE outer jacket and a halogen-free LSZH inner jacket.
The LSZH jacket complies with the IEC 60332-1 standard and is comparable to CPR Euroclass Dca.
The entire cable is Euroclass Fca according to the Construction Products Regulation.
Since CPR certification is only possible for an entire cable, there is no CPR certification for the indoor cable.
The cable is suitable for installation in dry or damp rooms, outdoors, or buried. Compliant with the standards ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1.
The cable has a PE outer jacket and a halogen-free LSZH inner jacket.
The LSZH jacket complies with the IEC 60332-1 standard and is comparable to CPR Euroclass Dca.
The entire cable is Euroclass Fca according to the Construction Products Regulation.
Since CPR certification is only possible for an entire cable, there is no CPR certification for the indoor cable.
Tekniske egenskaber
| AWG-Querschnitt: | 23/1 |
|---|---|
| Ader-Isolation: | Foam-Skin-PE |
| Ader-Kennzeichnung: | Farbe |
| Biegeradius (dynamisch): | 8 x AD |
| Biegeradius (statisch): | 7 x AD |
| Direktive/Verordnung: | REACH 1907/2006/EC |
| Direktive/Verordnung: | RoHS 2011/65/UE |
| Flammwidrig: | nach EN 60332-1 |
| Flammwidrig: | nach IEC 60754-2 |
| Flammwidrig: | nach IEC 61034 |
| Halogenfrei: | nach EN 60754-1/2 |
| Halogenfrei: | nach EN 60754 |
| Halogenfrei nach EN 60754-1/2: | Ja |
| Installationsstandard: | EN 50174 |
| Kabel: | IEC 61156-5 |
| Kabel: | EN 50288-4-1 |
| Kabelaufbau: | S/FTP |
| Kategorie: | 7 |
| Kopplungsdämpfung: | ≥ 80 dB |
| Kopplungsdämpfung Typ: | Typ 1 |
| Leiter-Klasse: | Kl.1 = eindrähtig |
| Leiter-Material: | Cu, blank |
| Leiterdurchmesser: | 0,56 mm |
| Mantel-Material: | PE + LSZH |
| Max. Frequenz: | 1200 MHz |
| NVP-Wert: | 76 % |
| PoE: | nach IEEE802.3af PoE |
| PoE: | nach IEEE802.3bt 4PPoE |
| PoE: | nach IEEE802.3at PoE+ |
| Prüfspannung DC, 1 min: | 1000 V |
| Raucharm: | nach EN 61034 |
| Schirm über Verseilelement: | Folie |
| Schirm über Verseilung: | Folie + Geflecht |
| Schleifenwiderstand: | 171,2 Ohm/km |
| Trennklasse gem. EN50174-2: | D |
| UV beständig: | Ja |
| Verkabelungsstandards: | ISO/IEC 11801 |
| Verkabelungsstandards: | EN 50173-1 |
| Verseilelement: | Paare |
| Wellenwiderstand: | 100 ± 15 Ohm |
| Widerstandsunsymmetrie: | 3 % |
| Zul. Kabelaußentemperatur, Lagerung: | -30 – 70 °C |
| Zul. Kabelaußentemperatur, fest verlegt: | -30 – 70 °C |
| Zul. Kabelaußentemperatur, in Bewegung: | 0 – 50 °C |
| Übertragungsstandards: | IEEE 802.3 10Mbit bis 10Gbit |

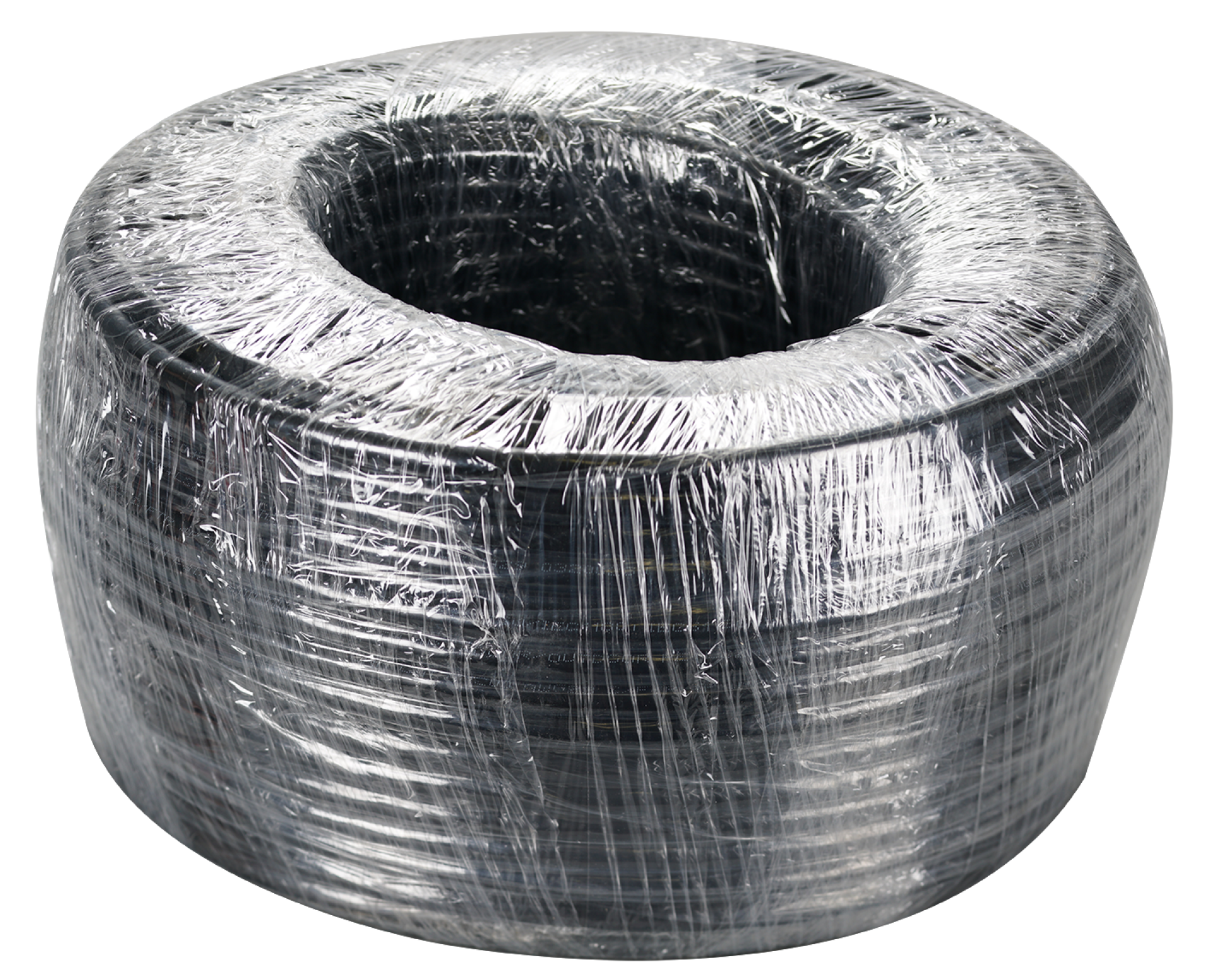

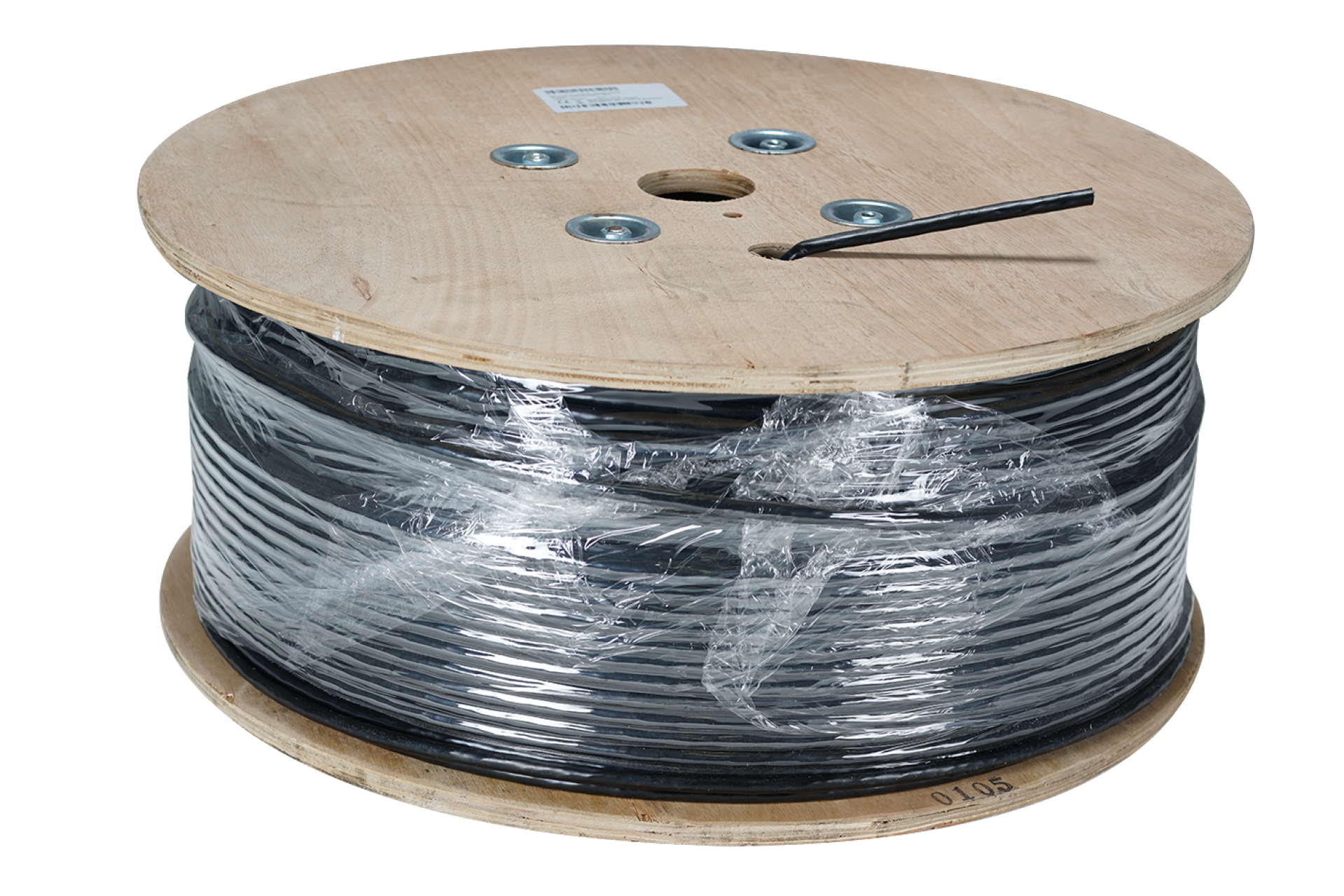

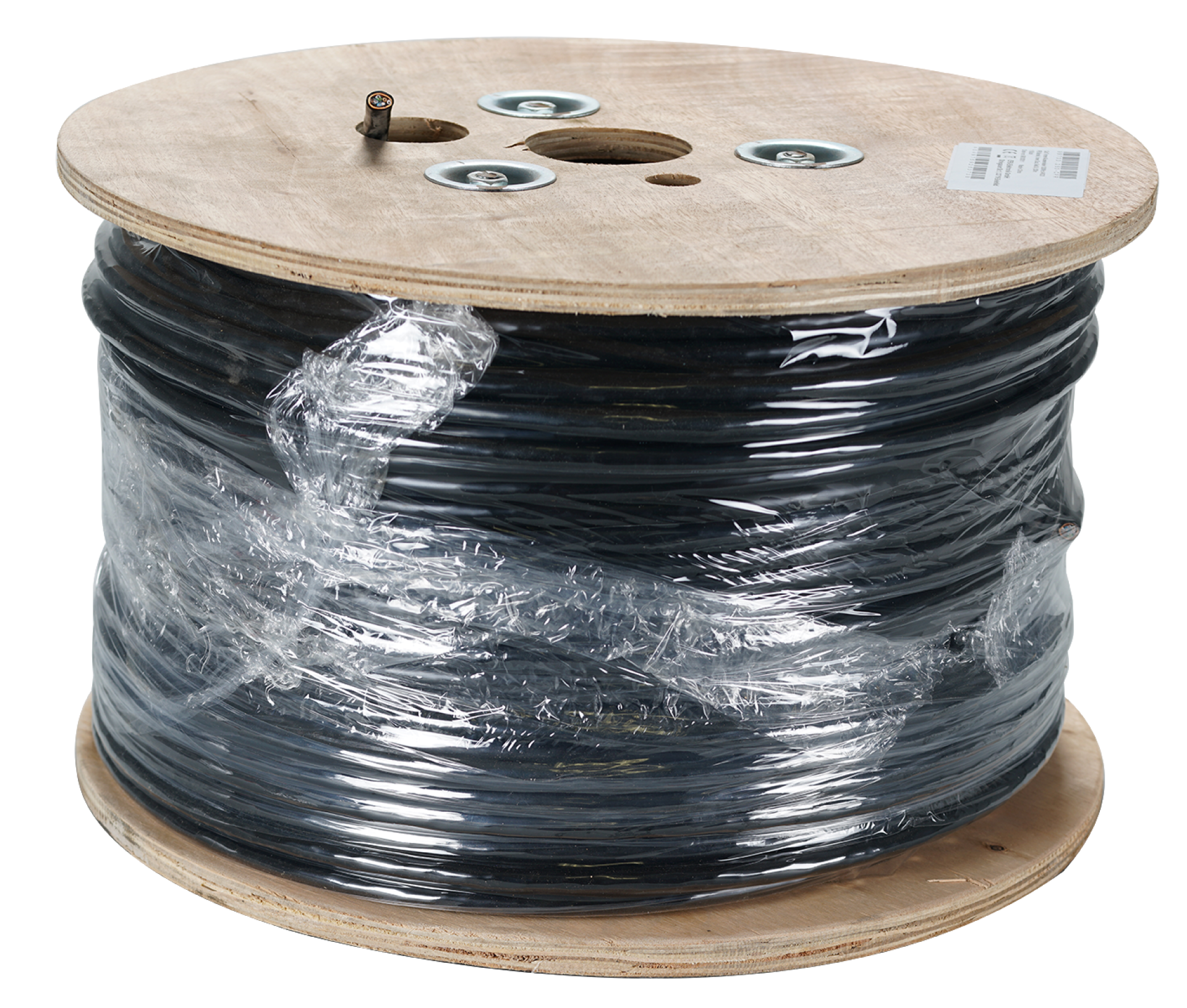

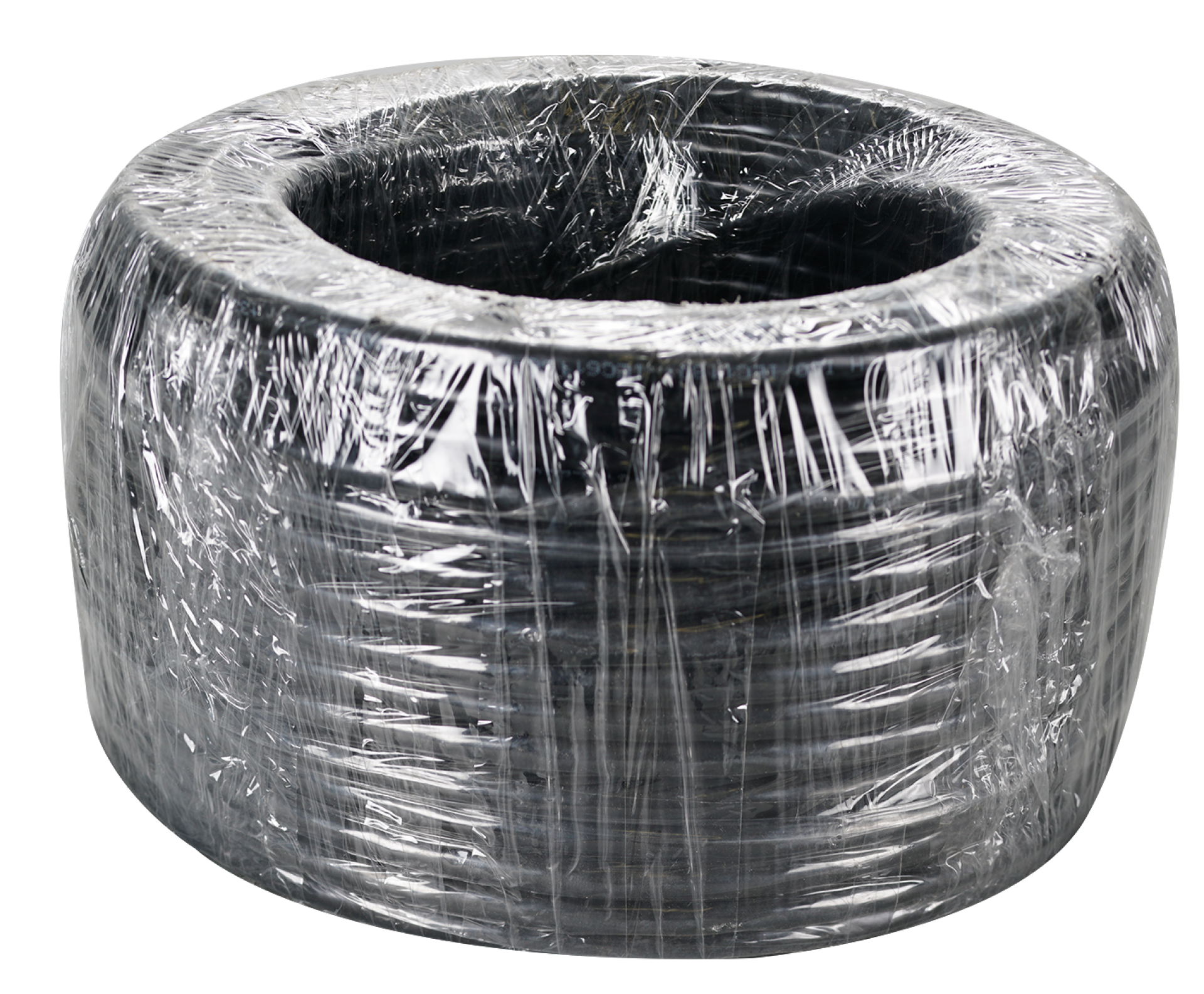

Varianten
| Art. Nr. | Bezeichnung | Mantel-Farbe | Typ | Ader-Zahl | Länge | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 99733.1-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,1000m | schwarz | simplex | 8 | 1,0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.500-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,500m | schwarz | simplex | 8 | 500,0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.250-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,250m | schwarz | simplex | 8 | 250.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.100-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,100m | schwarz | simplex | 8 | 100,0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.50-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,50m | schwarz | simplex | 8 | 50.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.25-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,25m | schwarz | simplex | 8 | 25.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
