Cat.7 Indoor/Outdoor cable 1200MHz AWG23 S/FTP
Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,50m
Varenummer:
99733.50-CPR
EAN Nr.:
4049759254063
Produktinformation til Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,50m

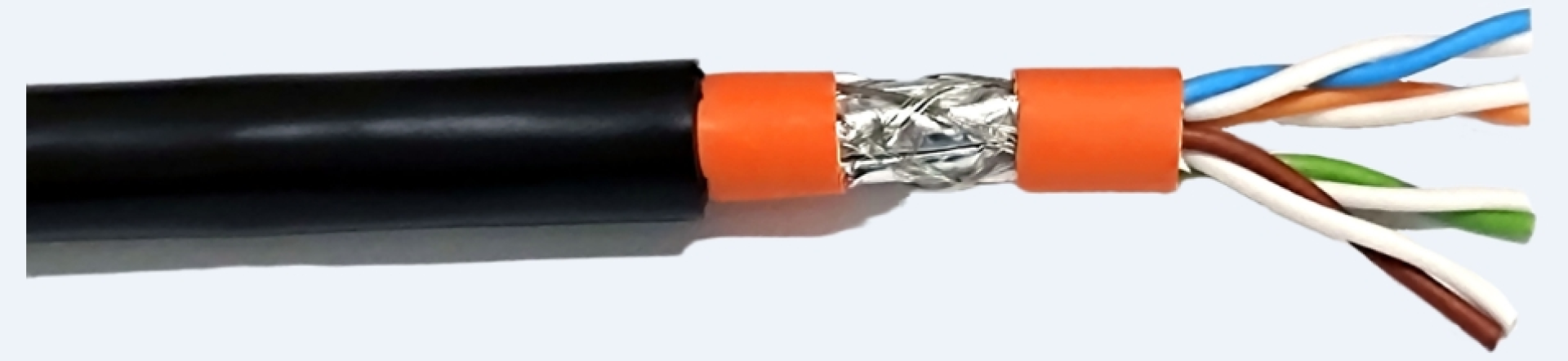

The Cat.7 S/FTP indoor/outdoor cable features a 4x2xAWG23/1 cable structure and achieves a transmission frequency of up to 1200 MHz.
The cable is suitable for installation in dry or damp rooms, outdoors, or buried. Compliant with the standards ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1.
The cable has a PE outer jacket and a halogen-free LSZH inner jacket.
The LSZH jacket complies with the IEC 60332-1 standard and is comparable to CPR Euroclass Dca.
The entire cable is Euroclass Fca according to the Construction Products Regulation.
Since CPR certification is only possible for an entire cable, there is no CPR certification for the indoor cable.
The cable is suitable for installation in dry or damp rooms, outdoors, or buried. Compliant with the standards ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1.
The cable has a PE outer jacket and a halogen-free LSZH inner jacket.
The LSZH jacket complies with the IEC 60332-1 standard and is comparable to CPR Euroclass Dca.
The entire cable is Euroclass Fca according to the Construction Products Regulation.
Since CPR certification is only possible for an entire cable, there is no CPR certification for the indoor cable.
Tekniske egenskaber
| (Halogenfree): |
acc. EN 60754 acc. EN 60754-1/2 |
|---|---|
| AWG-size: | 23/1 |
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 7 x OD |
| Cable: |
EN 50288-4-1 IEC 61156-5 |
| Cable Construction: | S/FTP |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Category: | 7 |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | Colour |
| Core insulation: | foam-skin PE |
| Coupling attenuation: | 80 dB |
| Coupling attenuation Type: | Type 1 |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: |
REACH 1907/2006/EC RoHS 2011/65/UE |
| Flame-retardant: |
acc. EN 60332-1 acc. IEC 60754-2 acc. IEC 61034 |
| Halogen free (according to EN 60754-1/2): | True |
| Impedance: | 100 ± 15 Ohm |
| Installation standard: | EN 50174 |
| Jacket Material: | PE + LSZH |
| Loop resistance: | 171.2 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Max. Freuqency: | 1200 MHz |
| NVP value: | 76 % |
| Operating temperature, fix: | -30 – 70 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -30 – 70 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistance: | yes |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | Number of cores | Type | Length | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|

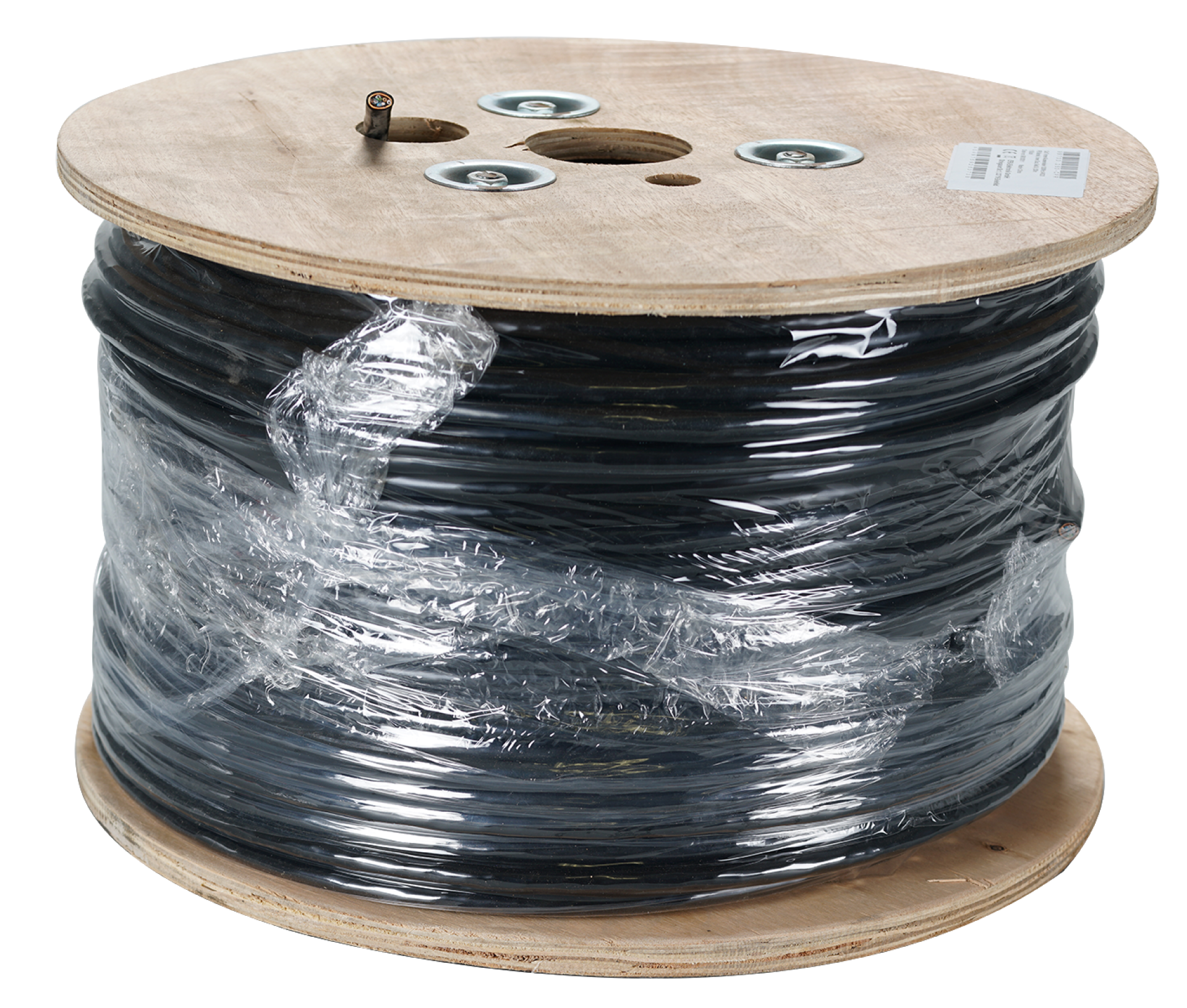

| 99733.1-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,1000m | black | 8 | simplex | 1.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |

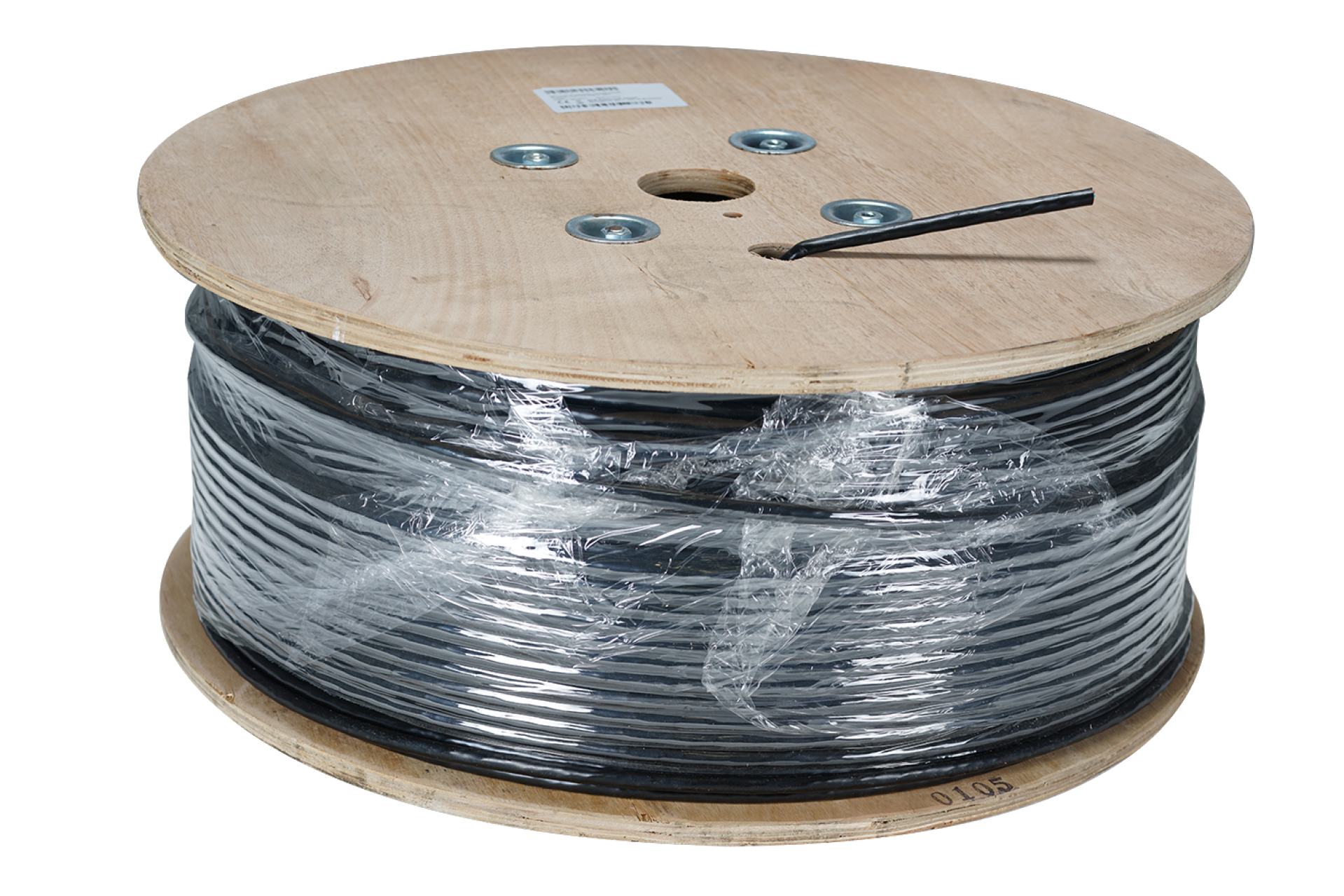

| 99733.500-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,500m | black | 8 | simplex | 500.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.250-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,250m | black | 8 | simplex | 250.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |

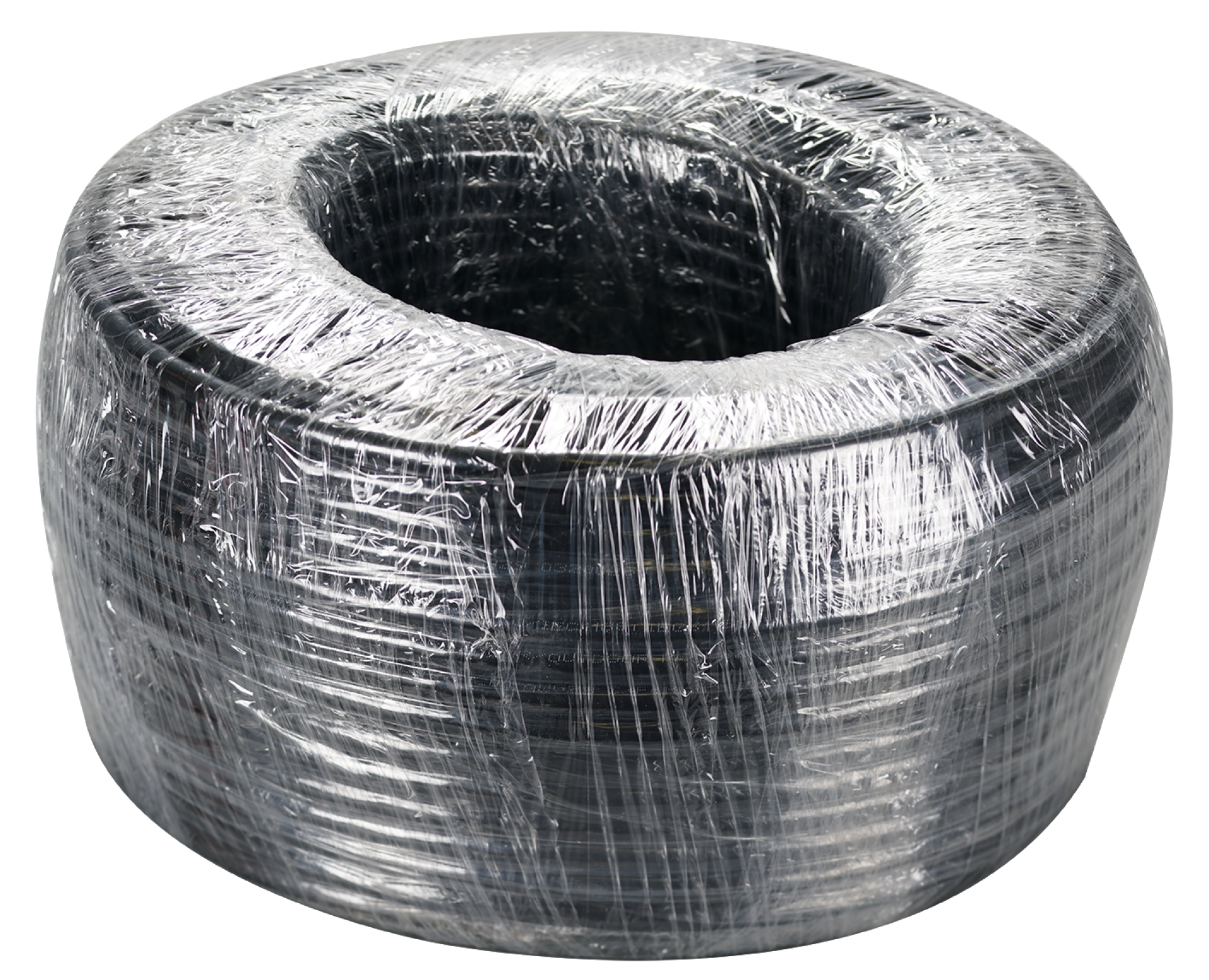

| 99733.100-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,100m | black | 8 | simplex | 100.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |

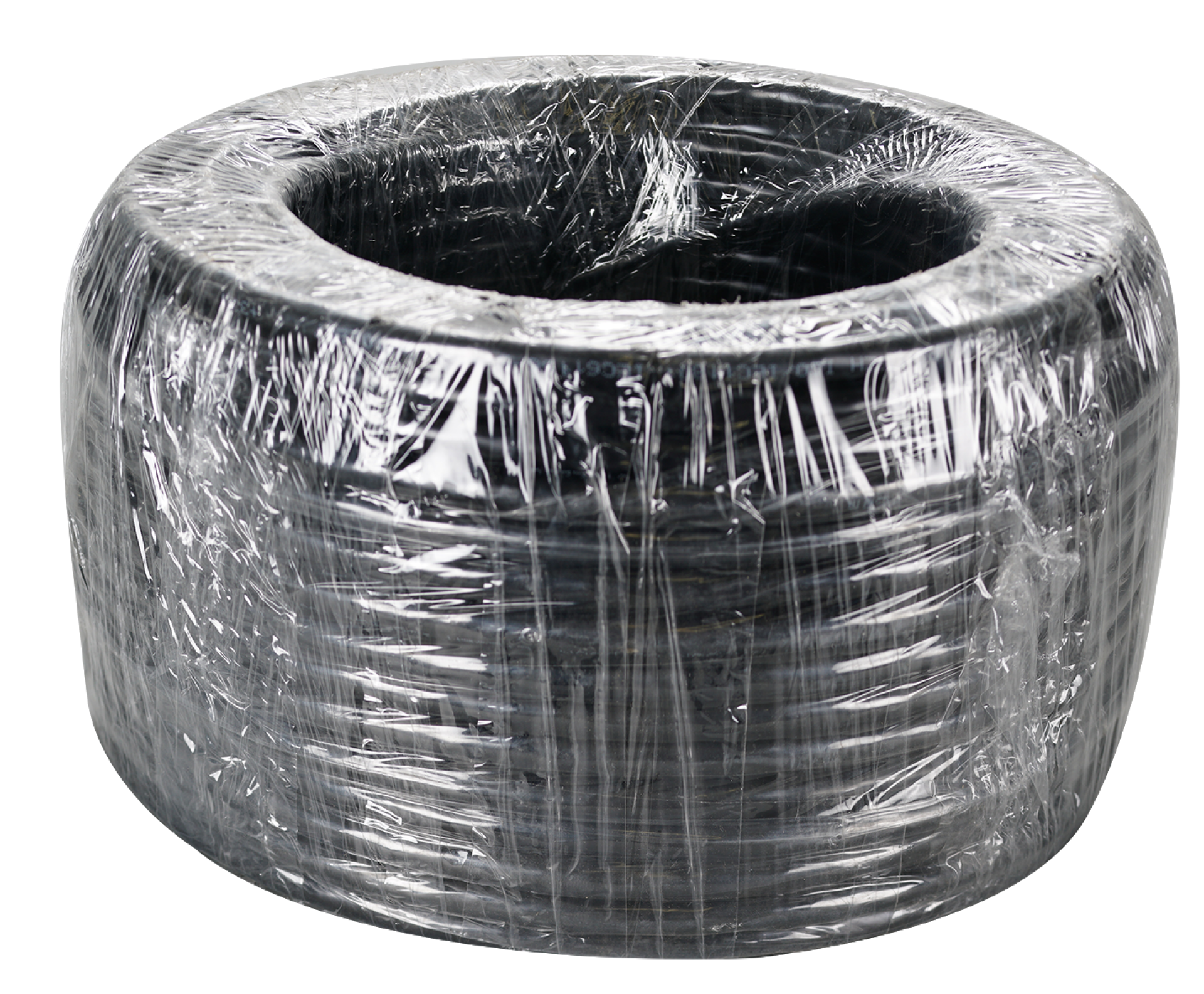

| 99733.50-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,50m | black | 8 | simplex | 50.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km | |
| 99733.25-CPR | Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP,PE jacket, inner Dca, Sw& Or,25m | black | 8 | simplex | 25.0 m | 25.9 kg/km | 132 kg/km | 100 N | 8.4 mm | 1200 MJ/km |
